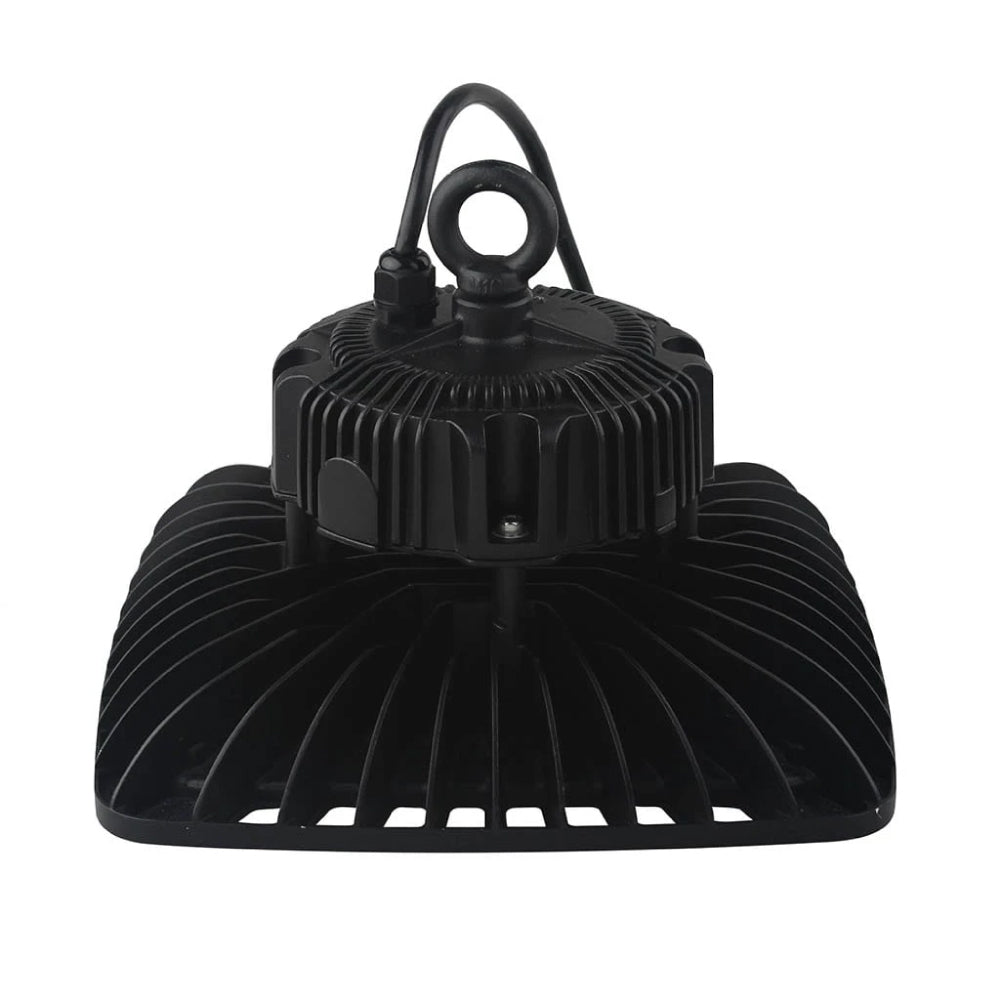

240W Square UFO LED High Bay Light 5700K 34,800LM AC100-277V Black, UL, DLC Listed, 1-10V Dimmable, IP65, For Garage Factory Warehouse Gym Barn Workshop

Regular Price:
$159.99
  • Free Shipping
  • 30 Days Return
  • 5 Years Warranty

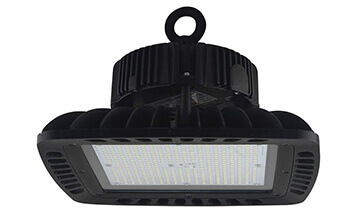

High Bay LED Lights 240W, 100V-277V, SQUARE, HOOK MOUNT, BLACK, 110° BEAM ANGLE, LED Warehouse Lighting

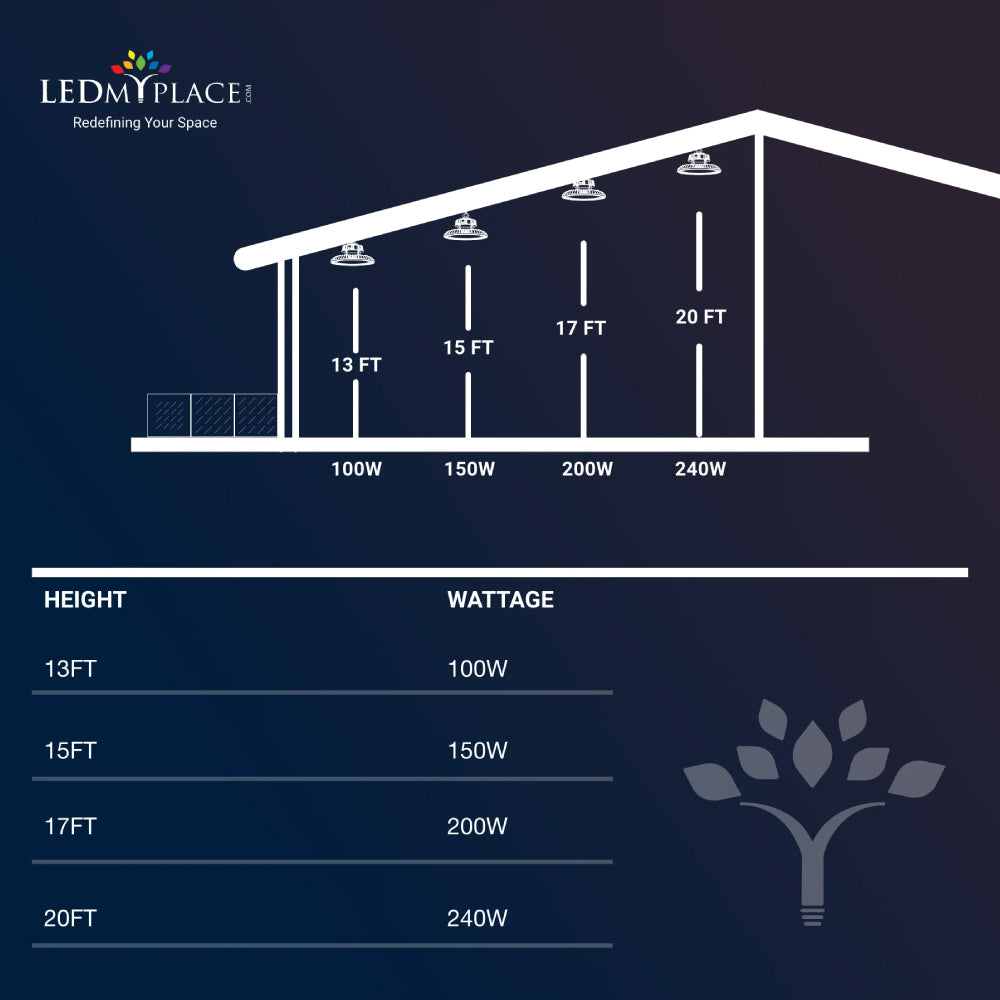

UFO LED High Bay Square light 240W by LEDMyplace is a great lighting solution for any commercial space with a ceiling height of 20ft. - 30ft or more. The premium LED chip and metal housing of the fixture is efficiently put together to achieve an IP65 rating, to resist moisture and dust. The Correlated Color Temperature (CCT) of this High Bay 240W is 5700K. With its inbuilt lighting control feature, the fixture can be dimmed from 1V to 10V. This commercial grade LED High Bay lighting is the best option to choose for any commercial space while moving from metal halide to LED lighting. It can be easily hook mounted on any surface. With a lifespan of 50,000 working hours, LED Shop lights are a perfect replacement for traditional lights that easily get worn out. High Bay LED lights will work for a longer period of time with very little maintenance costs.



840
Watt Replacement
34800
Lumens
50,000
Hours
110°
Beam Angle
100V
Voltage

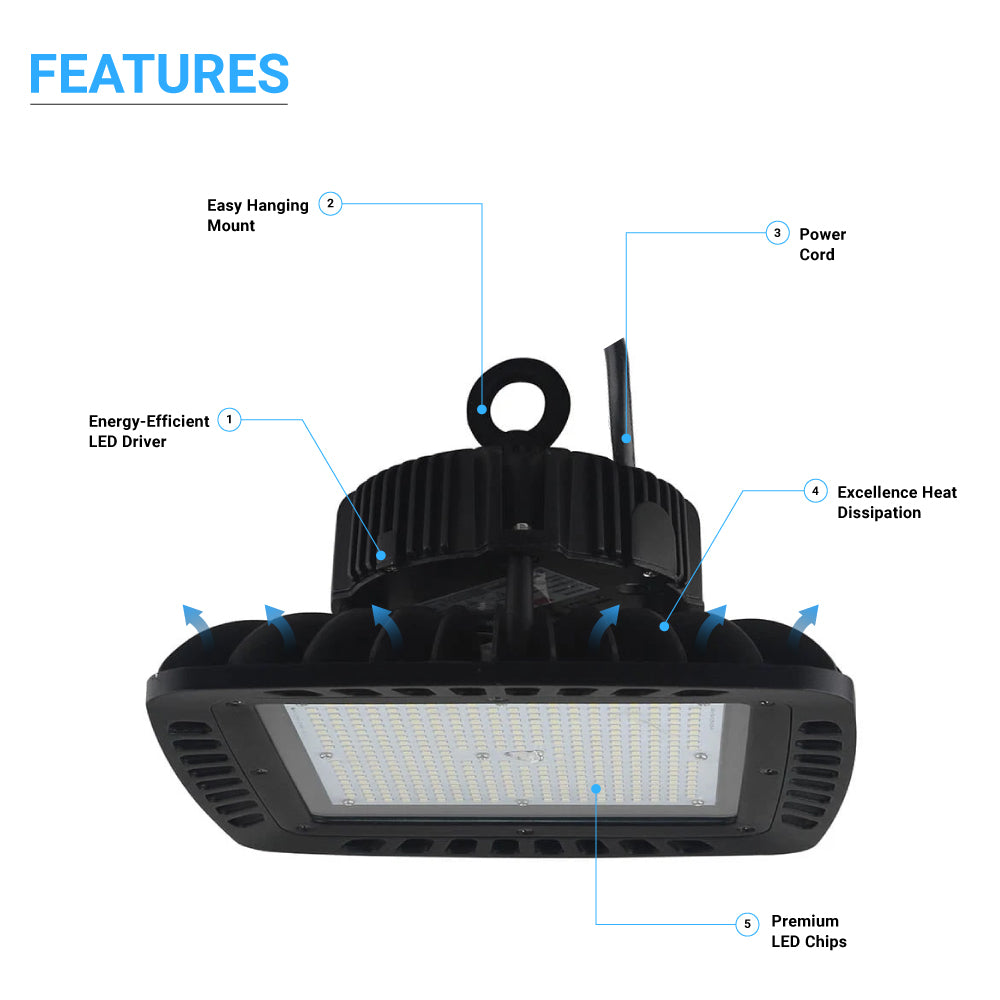

Features Of 240 Watt UFO High Bay LED Lights

  • Available Wattage: 240W
  • Color Temperature Available: 5700K
  • Wattage Equivalent: 840W
  • Lumens: 34,800 Lumens
  • Beam Angle: 110 degree
  • Lifespan: 50,000 hours
  • Voltage: 100V - 277V
  • Color: Black
  • IP65 Rated
  • UL, DLC approved
  • 5 years of Manufacturer's Warranty

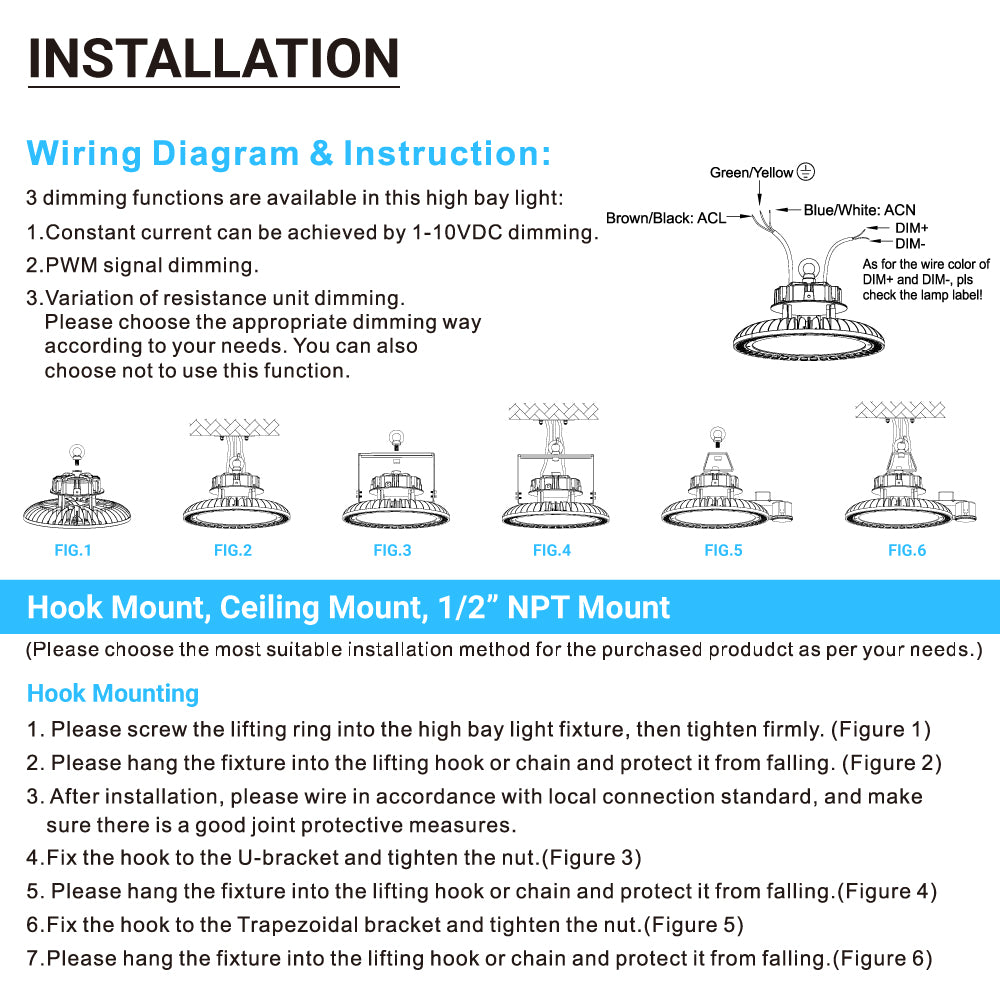

Easy Installation

It’s an easy installation for the recessed lighting provided through UFO high bay.    The hanging ring that comes with our UFO high bay must be inserted into the hole of the lamp and must be tightened through a bolt on the hanging ring itself so that UFO lamp is now firmly fixed. This must be now mounted on the ceiling via a hook. For details, you must check the complete manufacturer’s instructions that come along with the product.

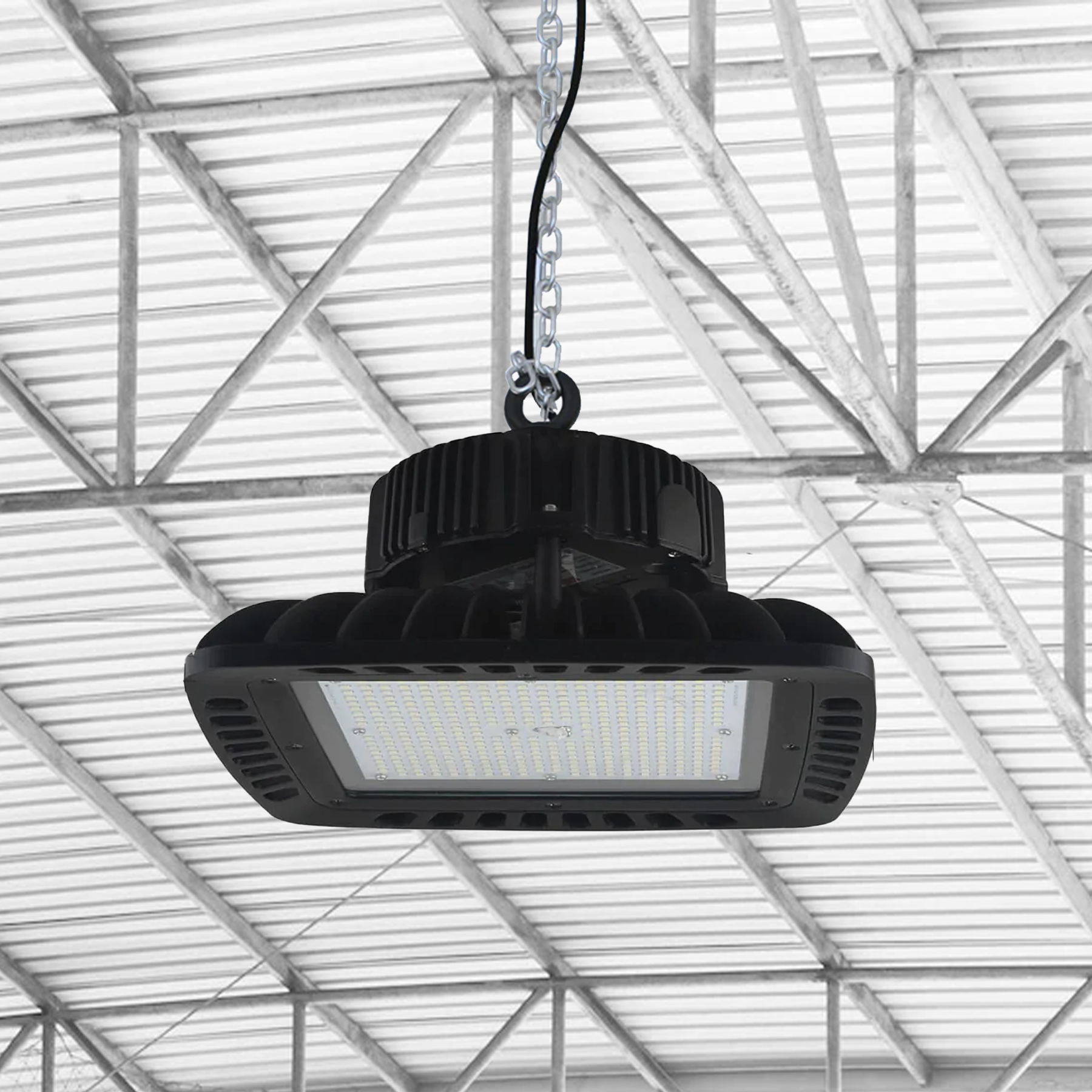

Hook Mount

For hook mounting of the UFO high bay, you must have a hook that is heavier than the lamp. Make sure the weight of the hook is 3-4 times heavier than the UFO lamp.

Thermal Heat Dissipation

The UFO high bay lighting fixtures come with a big heat sink manufactured out of aluminium for excellent heat dissipation.

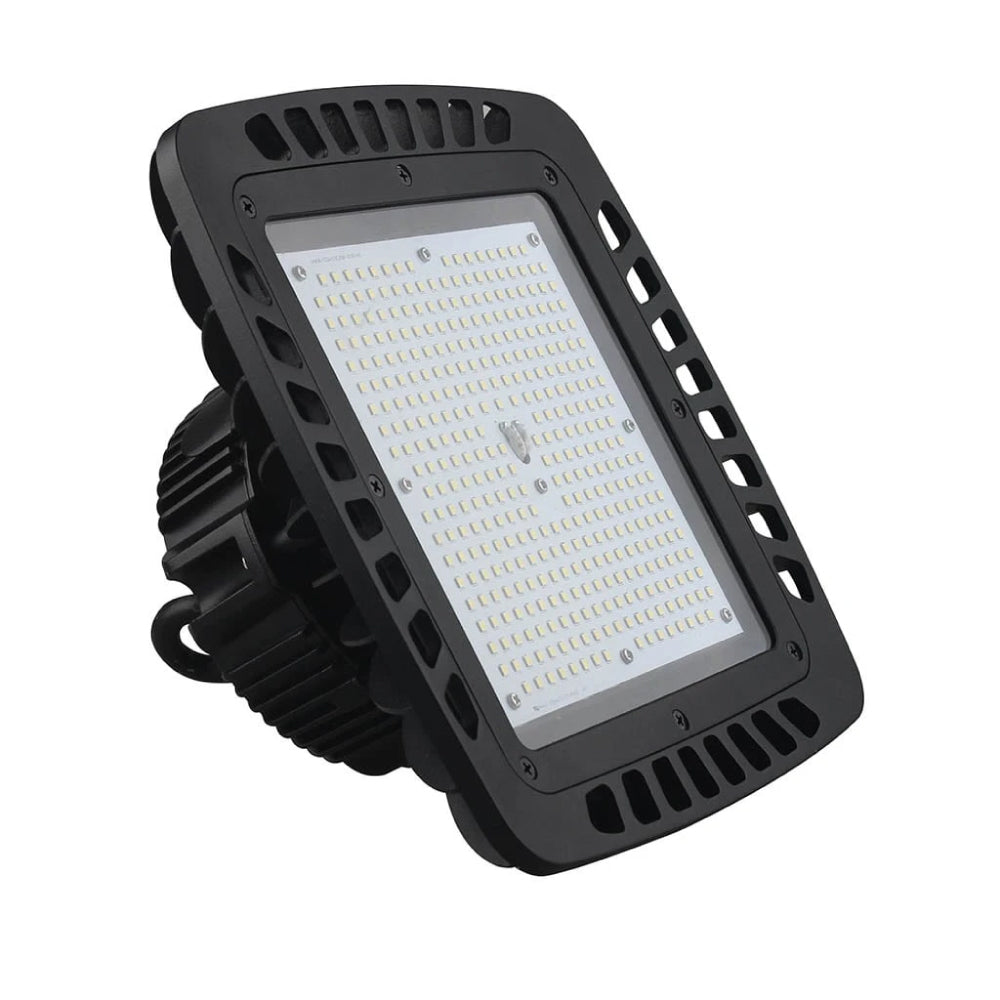

Premium LED Chips

In order to maintain highest quality of the product, we use premium LED chips from Epistar. The chips are packaged inside the product with high precision and accuracy to render maximum operational efficiency to the product.


IP 65 Water Proof

This rating means our UFO high bay is protected against dust-tight and water ingress coming through a nozzle made possible through a IP65 driver inside the product.

Ultra Wide Angle Lens

This product comes with a beam angle that is too wide and not less than 120 degree which is utilized for illumination of wide areas and huge spaces.

Rugged Construction

The housing of our UFO high bay is designed in rugged die-cast aluminium to impart the fixture the necessary durability for withstanding any external tampering.

Low Cost Maintenance

Up to  50,000 hours and with very less lumen depreciation till the end of its lifespan, very low maintenance is needed and hence the costs are also low.

1-10 Dimmable

The UFO high bay as a dimmable product can be dimmed from 10 volts to 1 volts, 1V being the minimum light level that can be achieved and 10V being the highest level of dimming allowed by the dimmer. At 10 volts, the controlled lighting is at 100% of its potential output. Make sure you have a compatible dimmer for our UFO high bay dimmable light.

CRI >80

The more than standard CRI for UFO high bay helps viewing of objects and surfaces with greater clarity and in their true colors in comparison to what they would look without any artifical lighting.

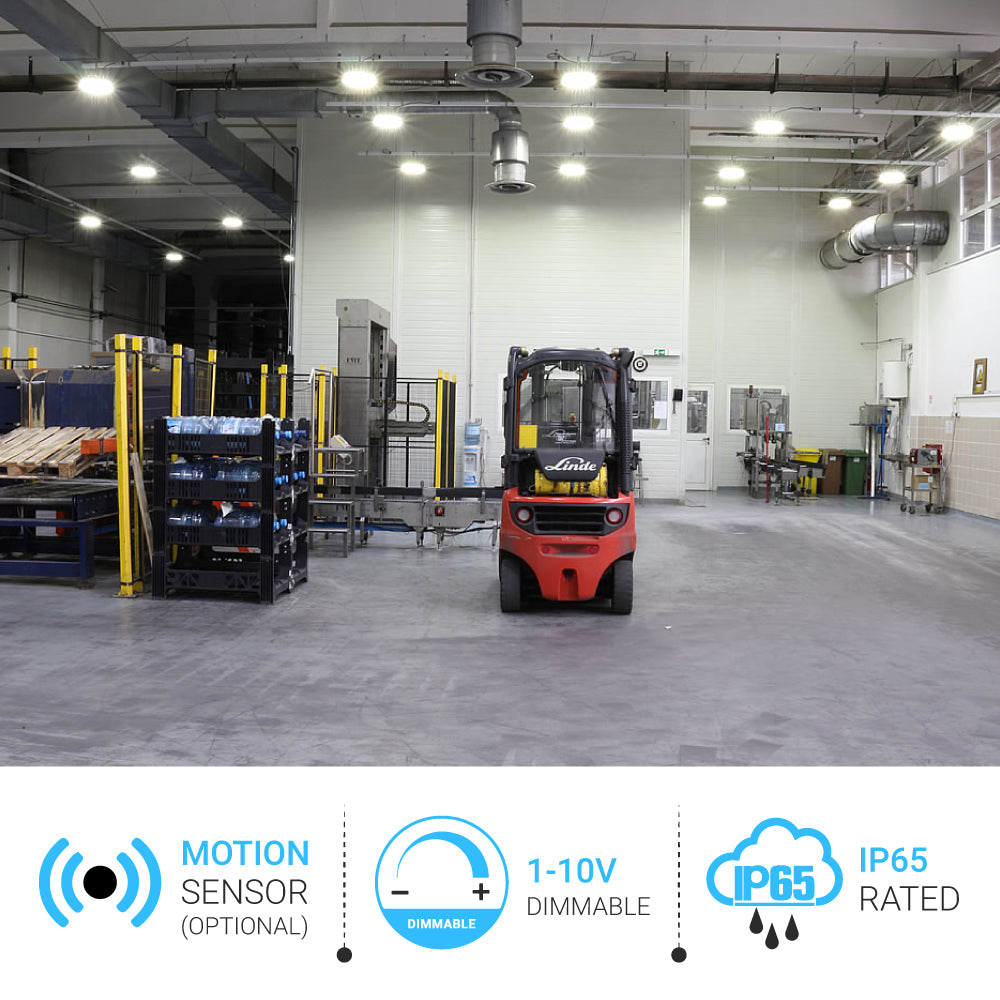

Motion Sensor (Optional)

The motion sensor comes as an accessory and you can choose to have this with our UFO high bay as it helps in alerting you to an intruder especially when you are away.

Rebate Eligible

The UFO high bay being DLC approved comes within the scope of rebate-eligibility criteria and hence you can be eligible for rebate if you decide to have one of our leading products under the commercial segment -- UFO high bay.

Compatible Dimmers

This product is compatible with the following dimmers. These dimmers work perfectly with our lights.

  • DS710
  • IP710
  • NTSTV-DV
  • NFTV
  • DVTV-WH
  • H4FBL3PW

**For any other Dimmer please contact our customer support or check with your electrician.

Specifications

Beam Angle: 110° Beam Angle
Certifications: UL, DLC Listed
Color Temperature (Kelvin): 5700 Kelvin
Dimmable: 1-10 Dimmable
Fixture Color: Black
IP Rating: IP65 Rated
Life Hours: 50,000 Hours
MPN (Part No.): UF001
Replaces: 840 Watt Replacement
SKU: WEN-HBSOS-240W-SQ-57K
Warranty: 5 Years
Operating Temperature: -4 Degree F To +104 Degree F
Brand: LEDMyplace
Color Rendering Index(CRI): >80 CRI

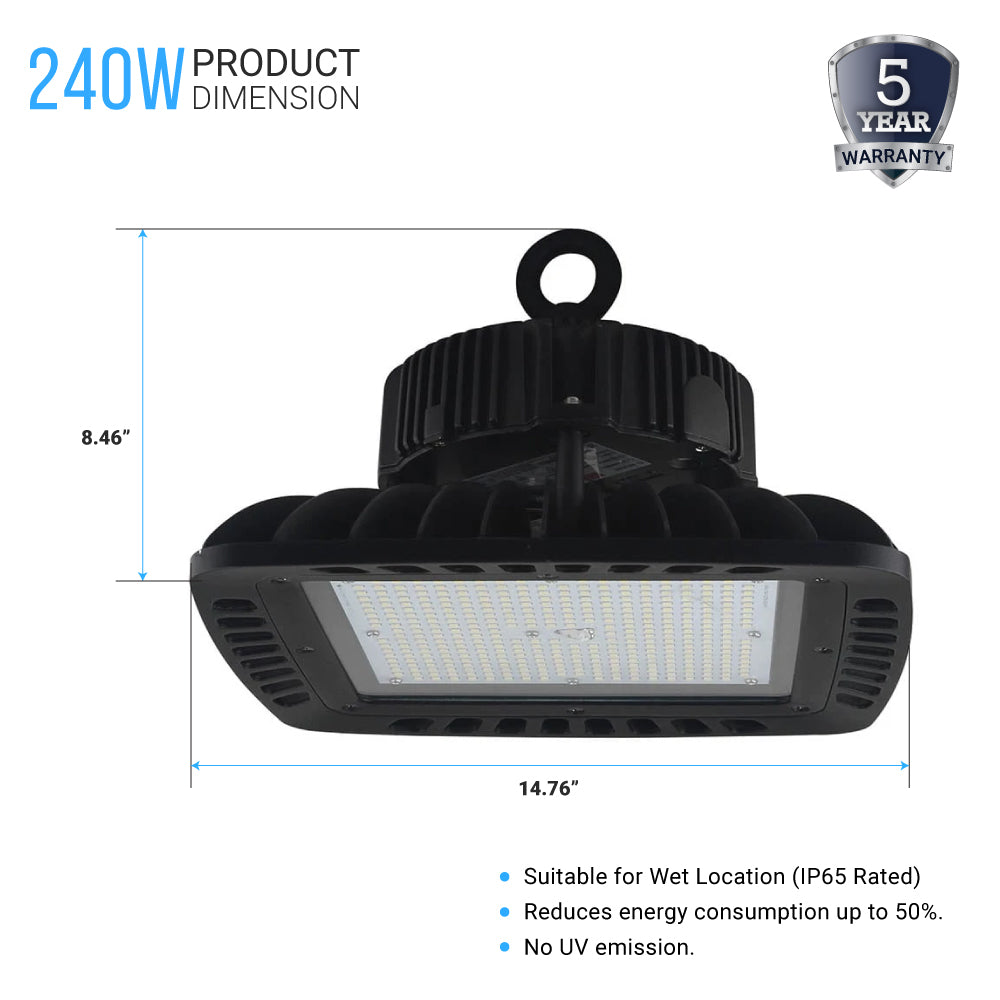

Dimensions (L x W x H): 14.76X14.76X8.46
DLC Listed: Yes
Housing: Aluminum
LED Type: SMD2835
Lumens: 34800 Lumens
Power Factor: >0.9
Shape: SQUARE
Voltage: 100V - 277 Volt
Wattage: 240 Watt

Product Review

Questions & Answers

Ask a Question
  • I have a baseball pitching tunnel 75 ft x 25 ft... how many lamps would be appropriate for this spacing? What formation ? Voltage ?

    Since they're 240Ws, you could get away with using 3-5 lights. You could have 3 lights going down the length, and then 1-2 lights offset from those near the empty space. These run anywhere from 100-277V!
