The 8-inch LED downlight of 30W with an ability to deliver 2250 lumens is available as a dimmable downlight. The LED Downlight beats the conventional halogen downlights in terms of energy efficiency, the light distribution because of its ultrawide beam angle, color rendering ability, lifespan, and operational efficiency. This downlight can easily replace a dimmable halogen downlight of 105W and that means lower utility bills by not less than 88%. Being dimmable, this downlight gives you an option of saving more on your utility expense. With its baffle design as one of the most popular designs among the users, baffle trimming helps reduce glare. With a 120-degree beam angle, a CRI of 80+ and color temperatures of 4000K or 5000K means having a clear, bright, and directional light with a neutral white light glow or neutral white light - day white light glow. This LED dimmable downlight comes with a junction box that makes the installation process easier by providing an accurate placement option for the downlight and also enables safe wiring and connections.
Being ETL approved, this luminaire also makes you eligible for certain rebates & incentives. You get not less than 5 years of warranty from the manufacturer’s end.
Features of 8 in. Dimmable LED Disk Downlight, 30 Watt:
The installation of this dimmable LED downlight takes place in easy steps with first switching off the power supply and then taking out the existing downlight from the fixture. Next, you must twist the adapter in the socket and then insert the connector into the socket. Insert the dimmable LED downlight trip. Make sure, you have a compatible dimmer installed for our dimmable LED downlight to dim appropriately. For details, you must read the instruction booklet. If not able to self-install, you must consult an electrician.

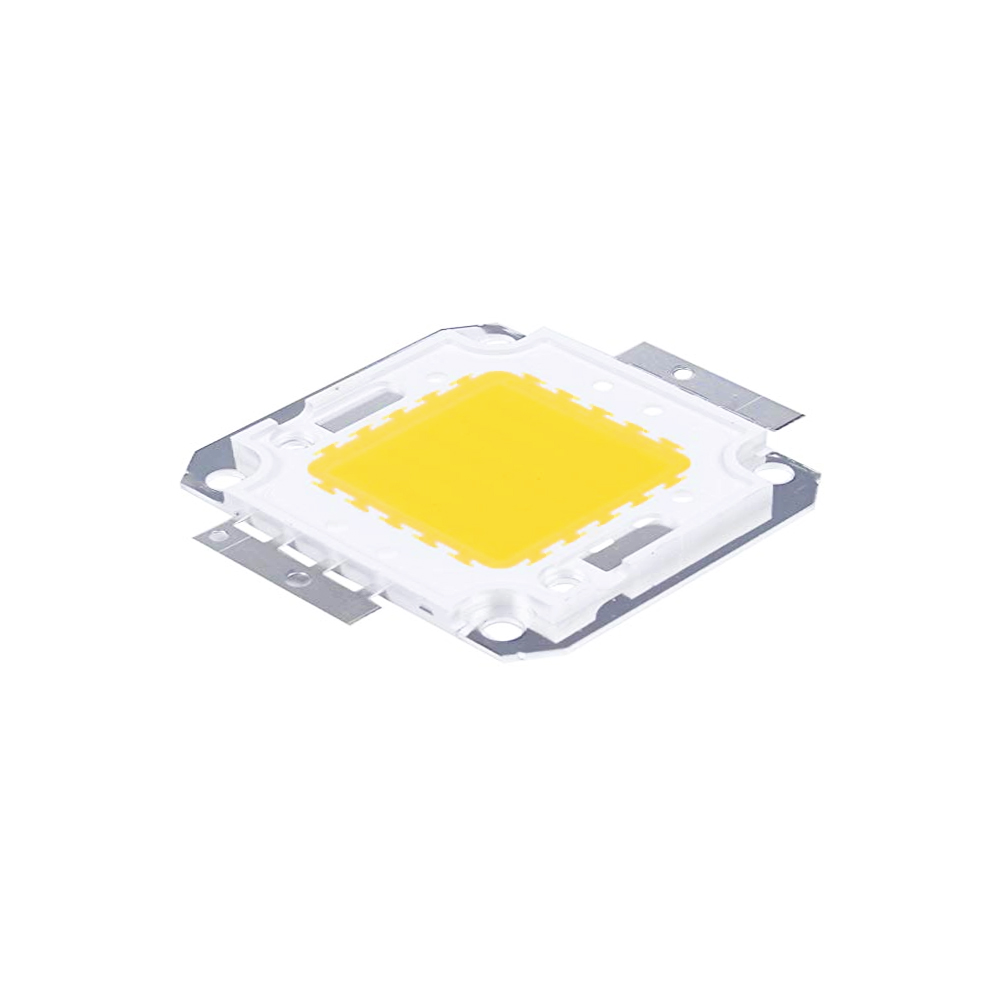

We use the SMD LED chips as one of the Premium LED chips on board for best results. For this product, the SMD type is 2835.

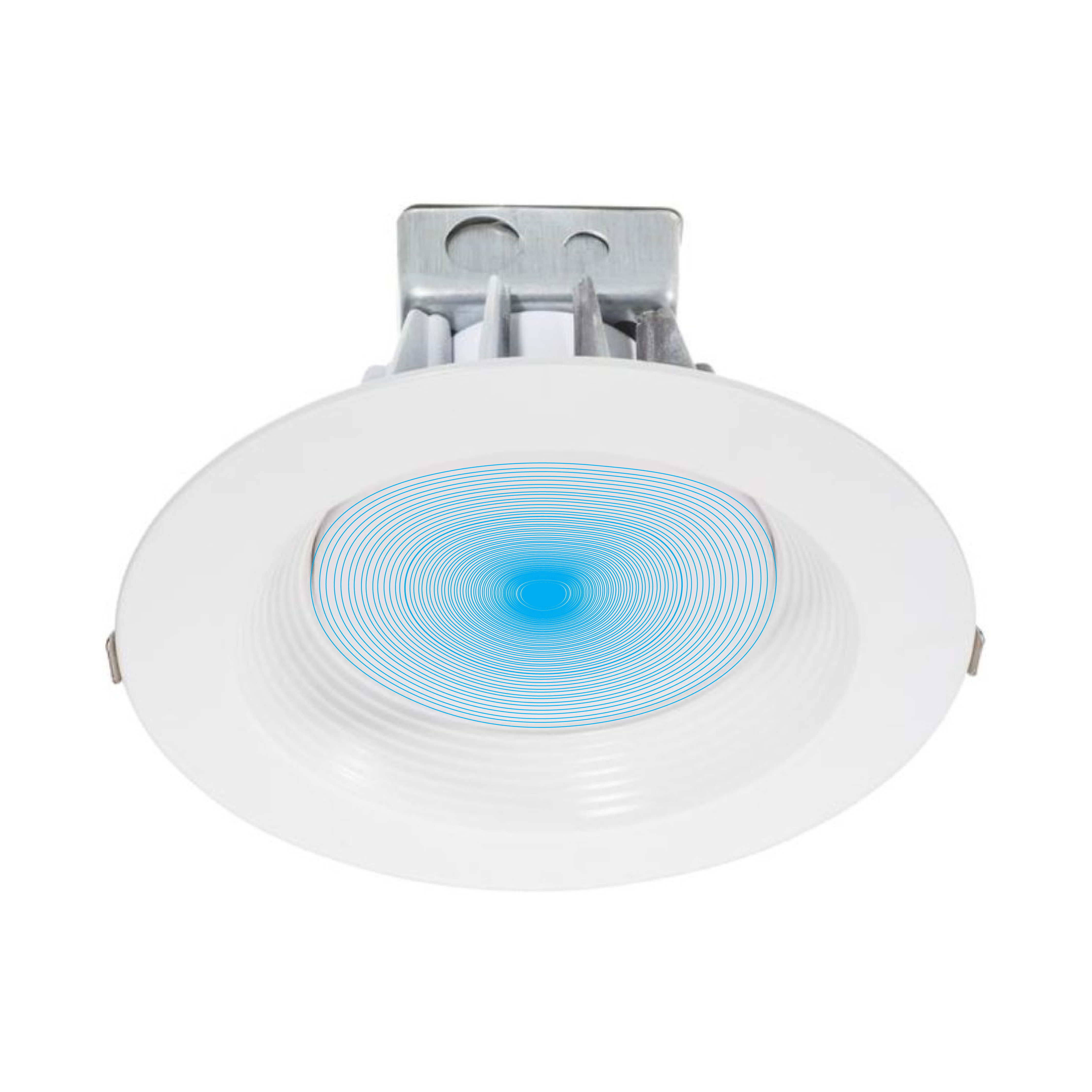

Nowhere you will find any dark spot when using this dimmable LED downlight in its full non-dimming mode. The light distribution is uniform and even with a light spread at a wider beam angle.

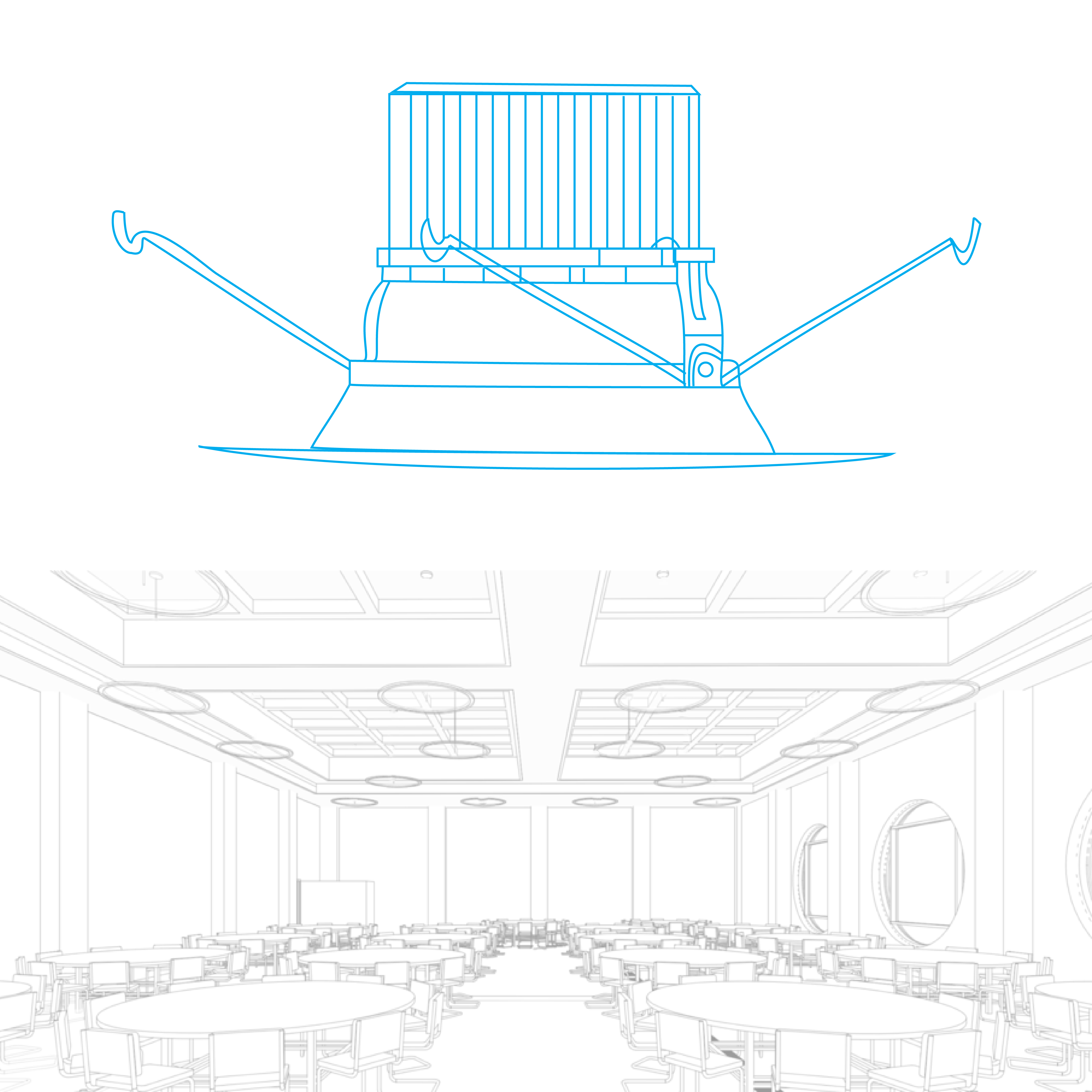

The Color Rendering Index is a measurement of the light source to display the color of objects accurately, realistically and naturally. With reference light as daylight or natural light, CRI is measured on a scale of 0-100. LED lighting products usually have a CRI of 80 or above 80 with different indexes useful to different applications. A CRI of >80 for dimmable LED downlights mean they are good for retail or any other commercial application when the objective is to accurately display the merchandise.

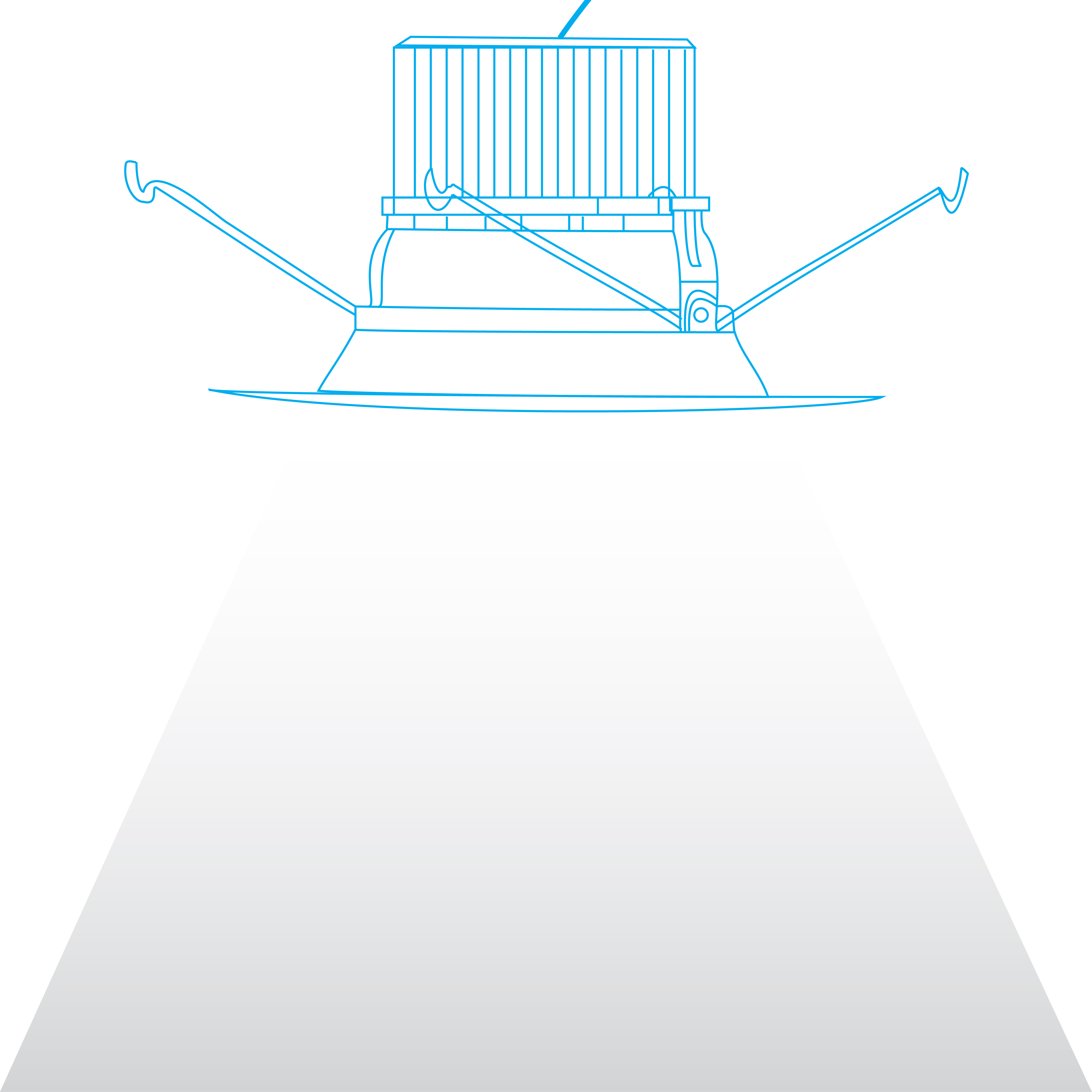

The dimmable LED downlight utilizes a wide beam angle of 120-degree to illuminate large spaces when your objective is to have a non-directional light. The distribution of light is in such a way that no specific objects are highlighted and rather the light distribution is uniform and even.

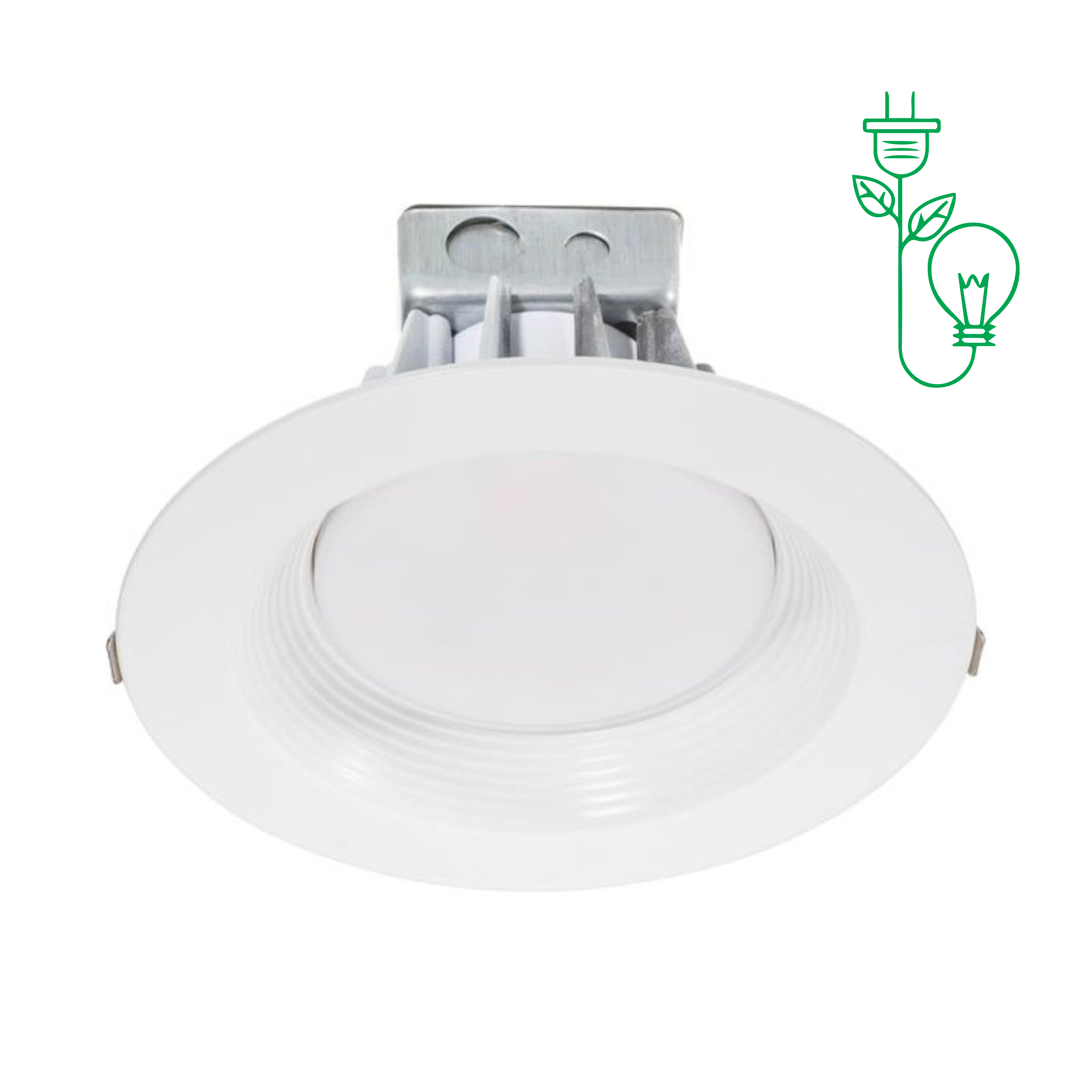

The dimmable LED Downlight is an energy-saving option over the conventional lights. When you make a switch from an incandescent or halogen light to our dimmable LED Downlight, you bring about 88% in energy savings. This is because, by design, the LED downlights are superior and use the latest technology for less power-drawing from the source.

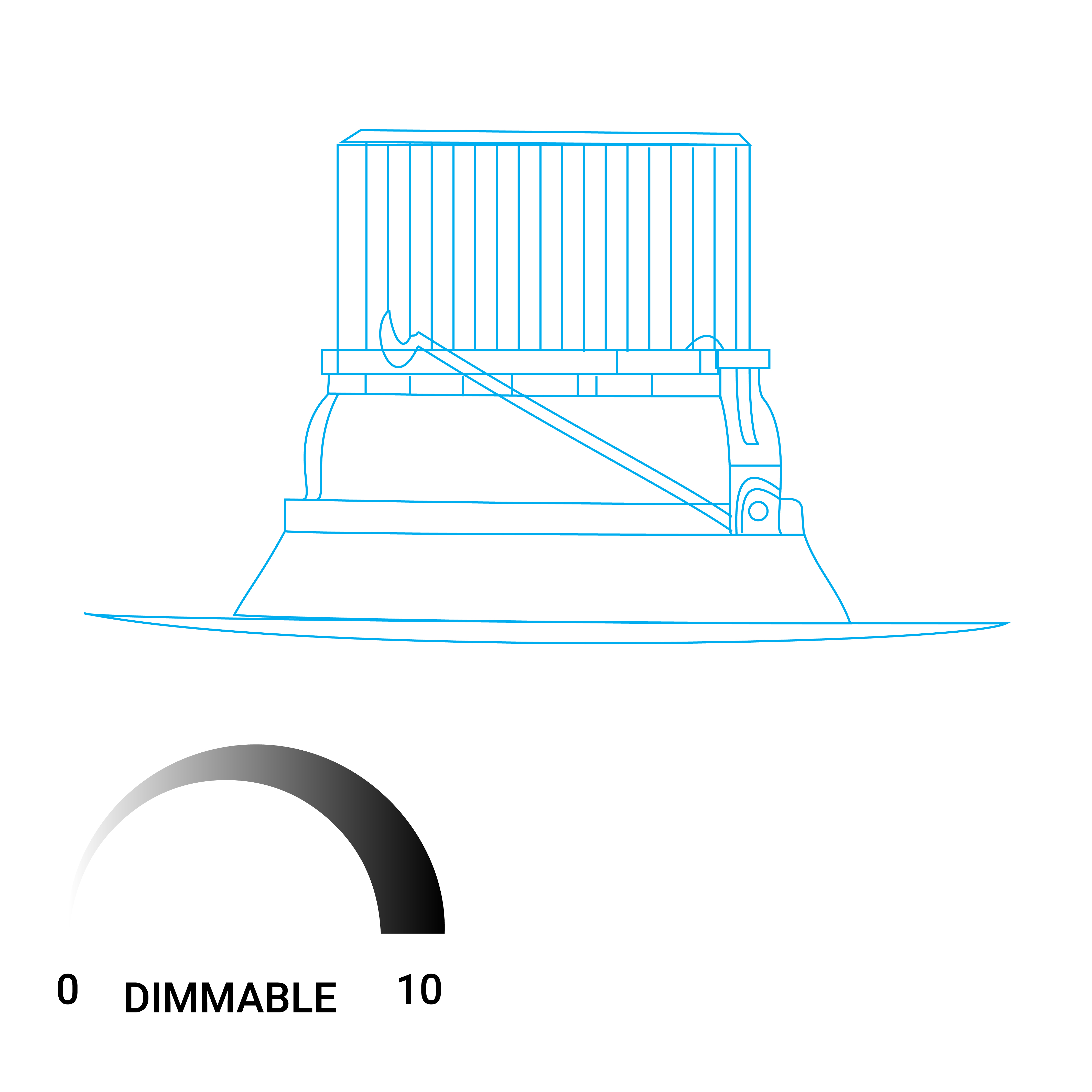

The dimmable LED downlight for dimming purposes uses a low-voltage dimming driver. The driver works best for a commercial application having 0-10V systems, thus providing for smooth dimming. Also, this 0-10V driver is compatible with a 0-10V dimmer.

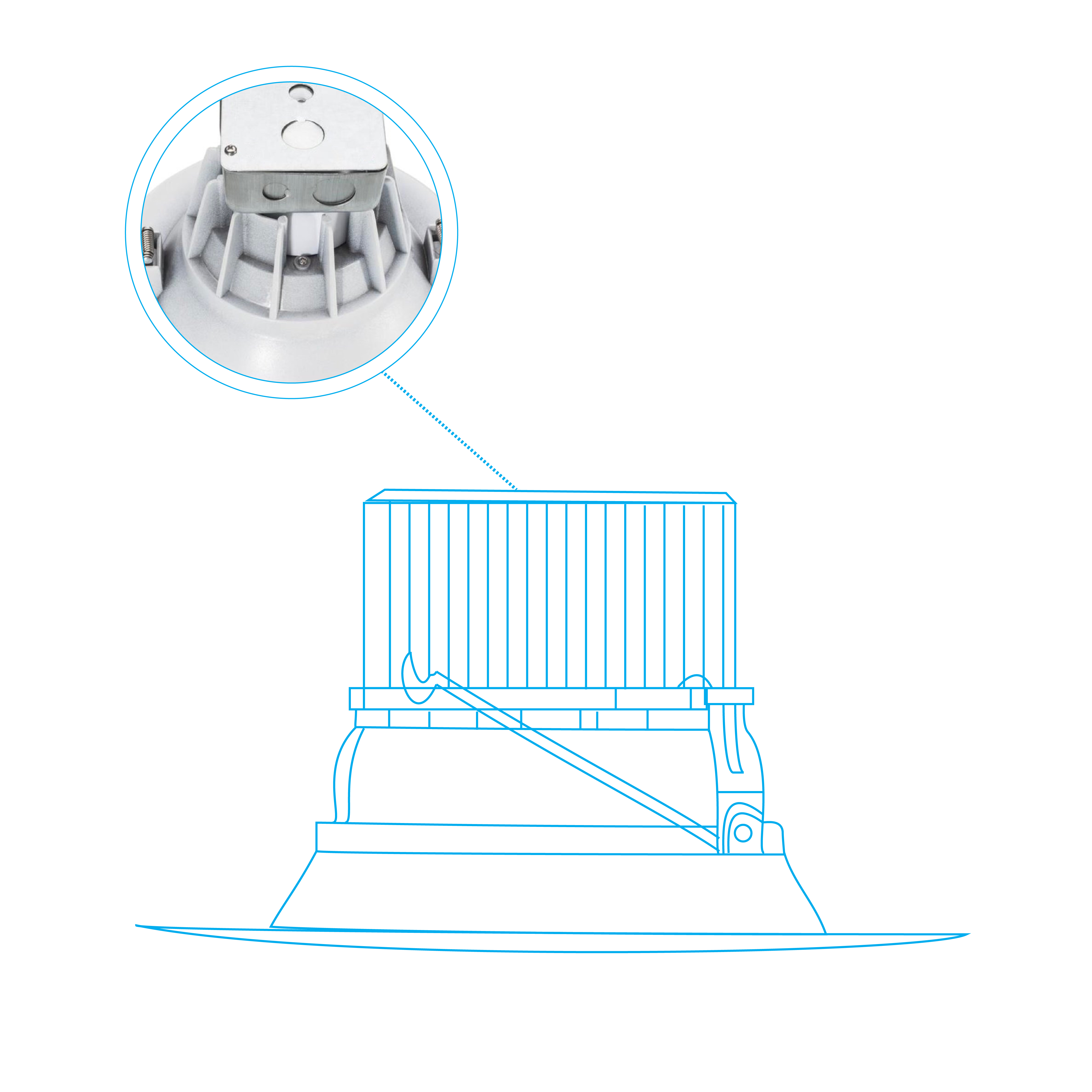

The housing for this dimmable LED downlight is made of rugged die-cast aluminum for better durability.

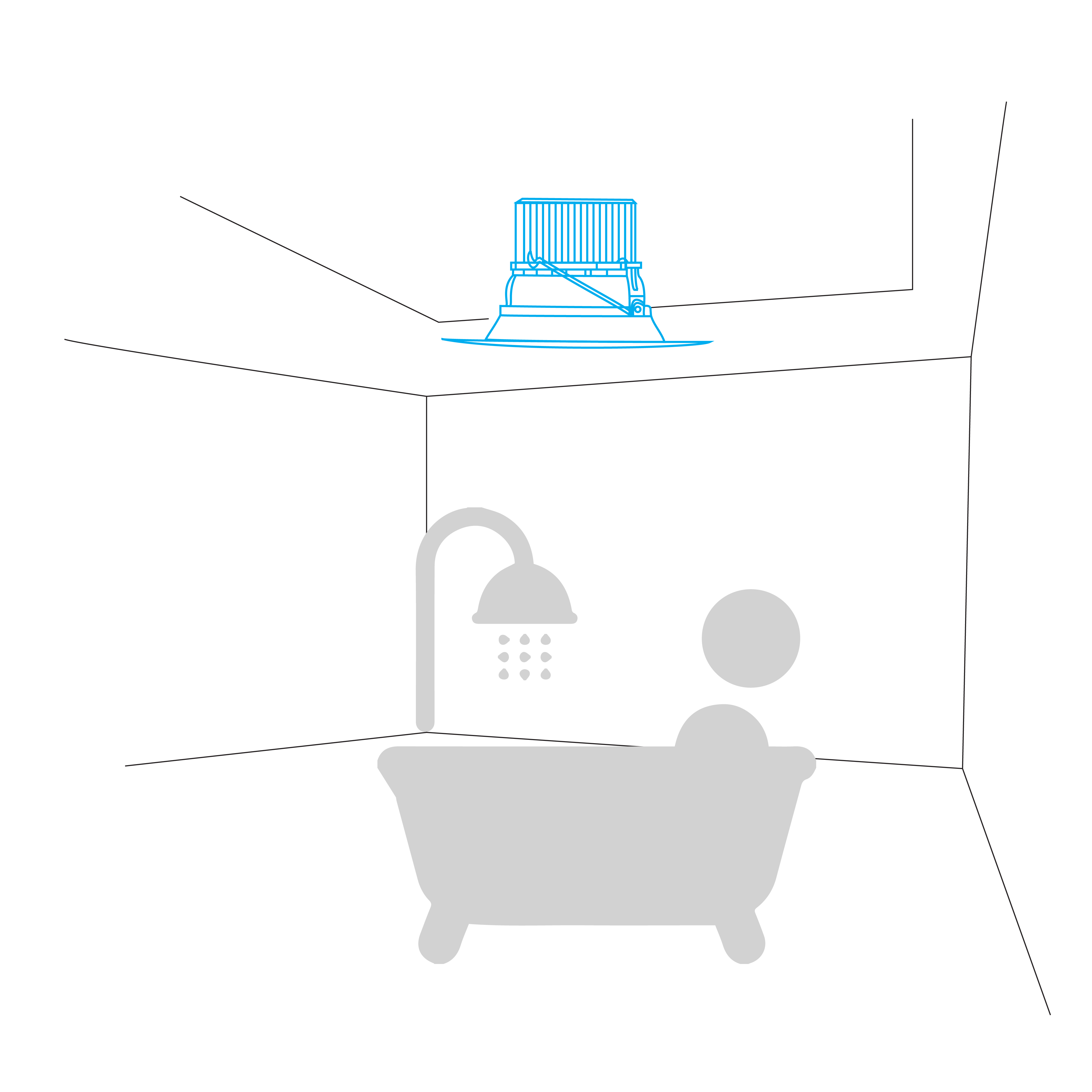

Our LED dimmable light having an IP44 rating protect the lighting fixture against any ingress of dust or water and thus can be used even in wet or damp locations. For any wall-mounted luminaire, it’s essential to have this IP rating so that the water shouldn’t reach the electrical supply and cause any hazard.
This product makes you eligible for certain rebates from power companies, the product having approvals/certifications from Energy Star & ETL.

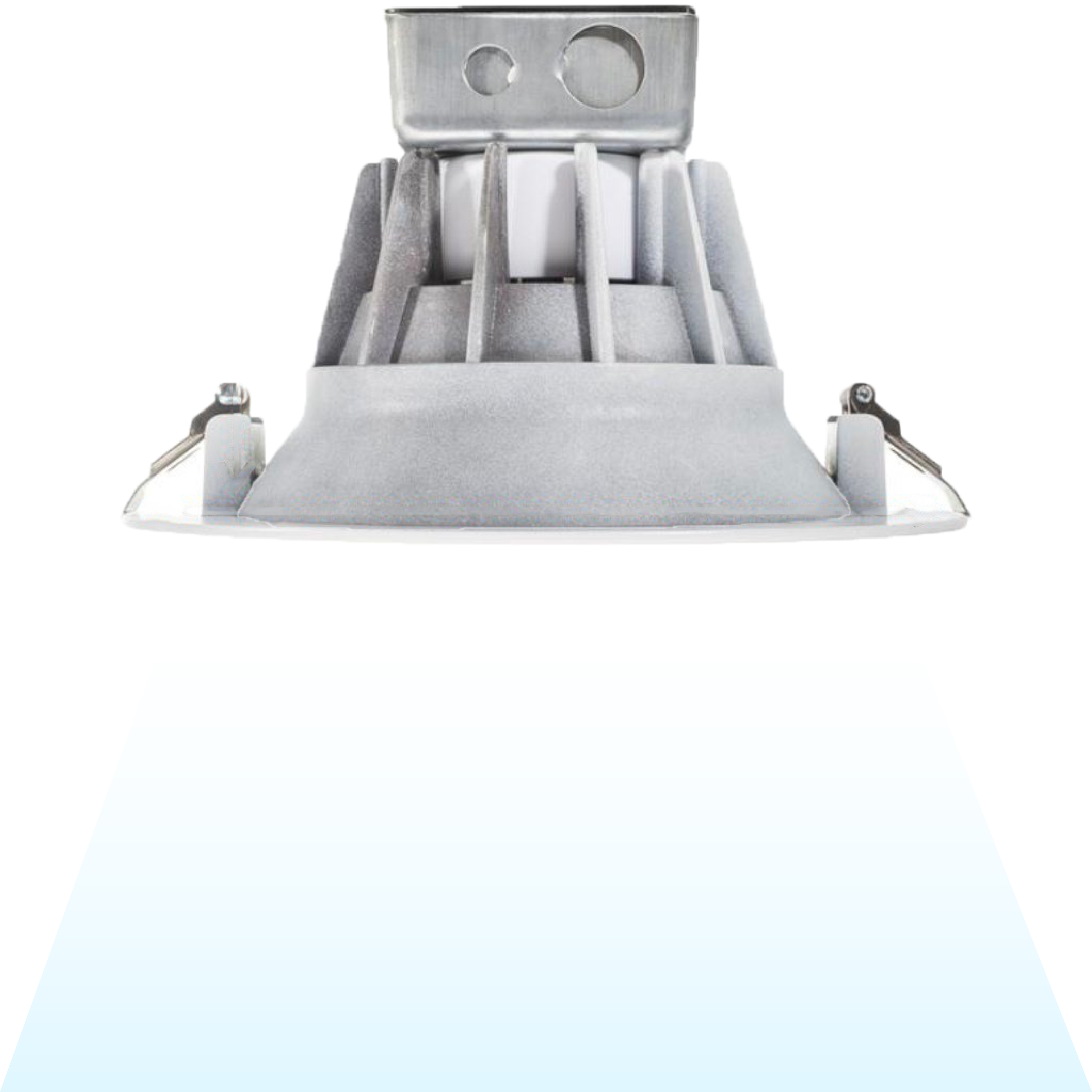

Taking care of the environment is a responsibility that everyone should feel accountable for. The good thing is that lights and luminaries available at LEDMyPlace comply with environmental safety and can be categorized as Green Lights. These lights are completely free from toxic and hazardous chemicals like Mercury and Lead. Using them, you not only save money, but you help contribute towards reducing the environmental impact of traditional bulbs on the Earth.
| Base Type: | Recessed |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | >80 CRI |
| Dimmable: | Triac dimming |
| Housing: | Aluminum |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | DW007 |
| Replaces: | 105 Watt Replacement |
| Voltage: | 110-277 Volt |
| Wattage: | 30 Watt |
| Beam Angle: | 120° Beam Angle |
| Certifications: | ETL, Energy Star Listed |
| Dimensions (L x W x H): | Dia 9.05x5.35 |
| Fixture Color: | White |
| LED Type: | 2835 |
| Lumens: | 2250 Lumens |
| Power Factor: | >0.9 |
| SKU: | WEN-D528-KT-90 |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
What cut out hole size is required for the 8" lights, are these lights IF rated for contact with attic insulation?
The box says "Type IC or Non-IC" I've never seen anything about an IF rating, though I know they're ETL and EnergyStar certified. The diameter of the entire light is 8.5in, with the jbox being 4in.
What diameter hole is required (minimum and maximum) for this 8" fixture. This is for a remodel.
An 8-inch diameter hole is required for this fixture.
