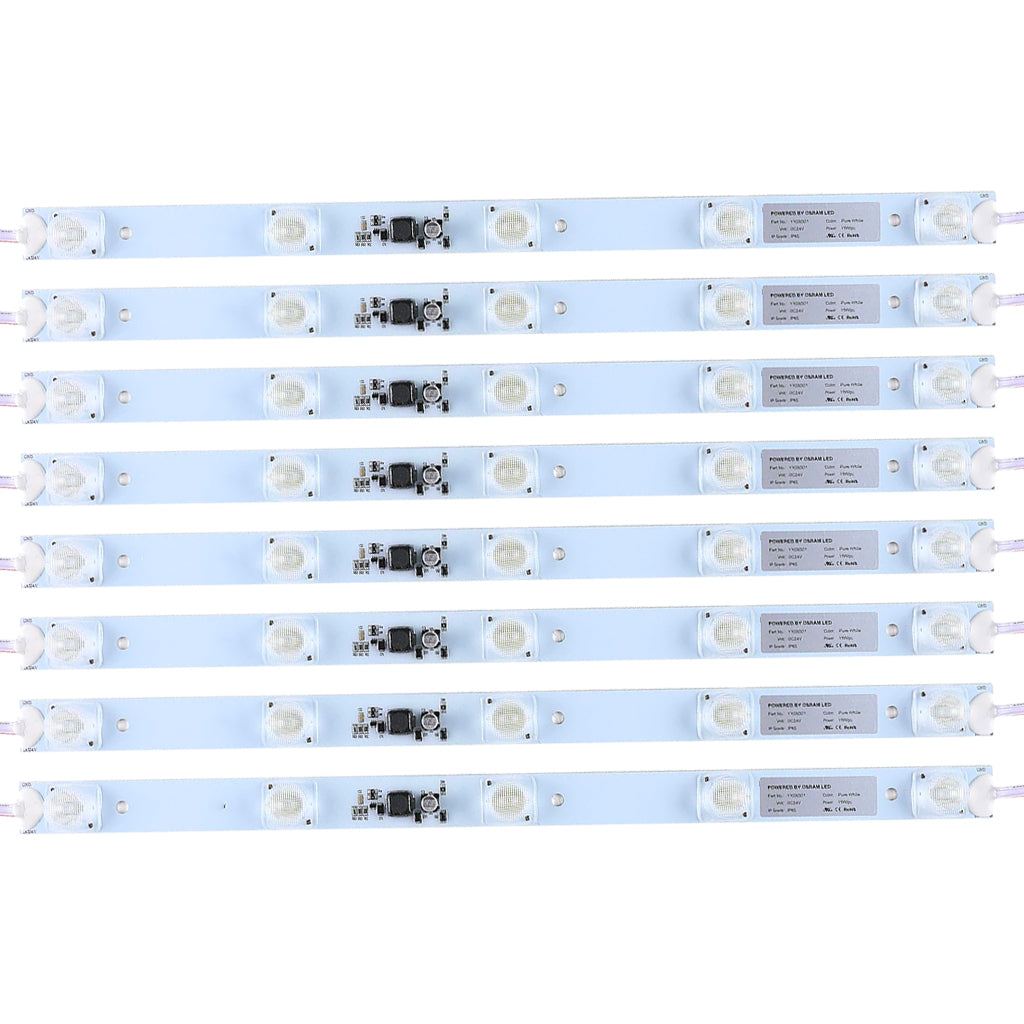

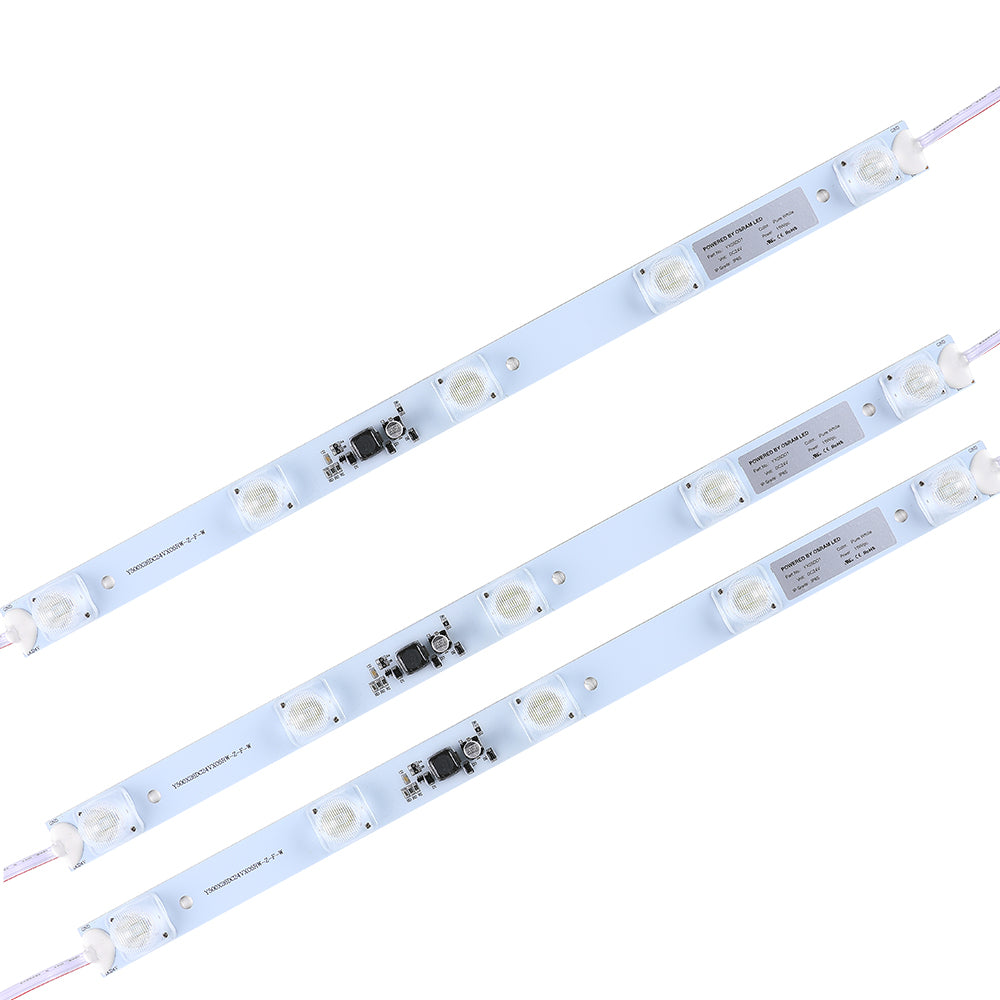

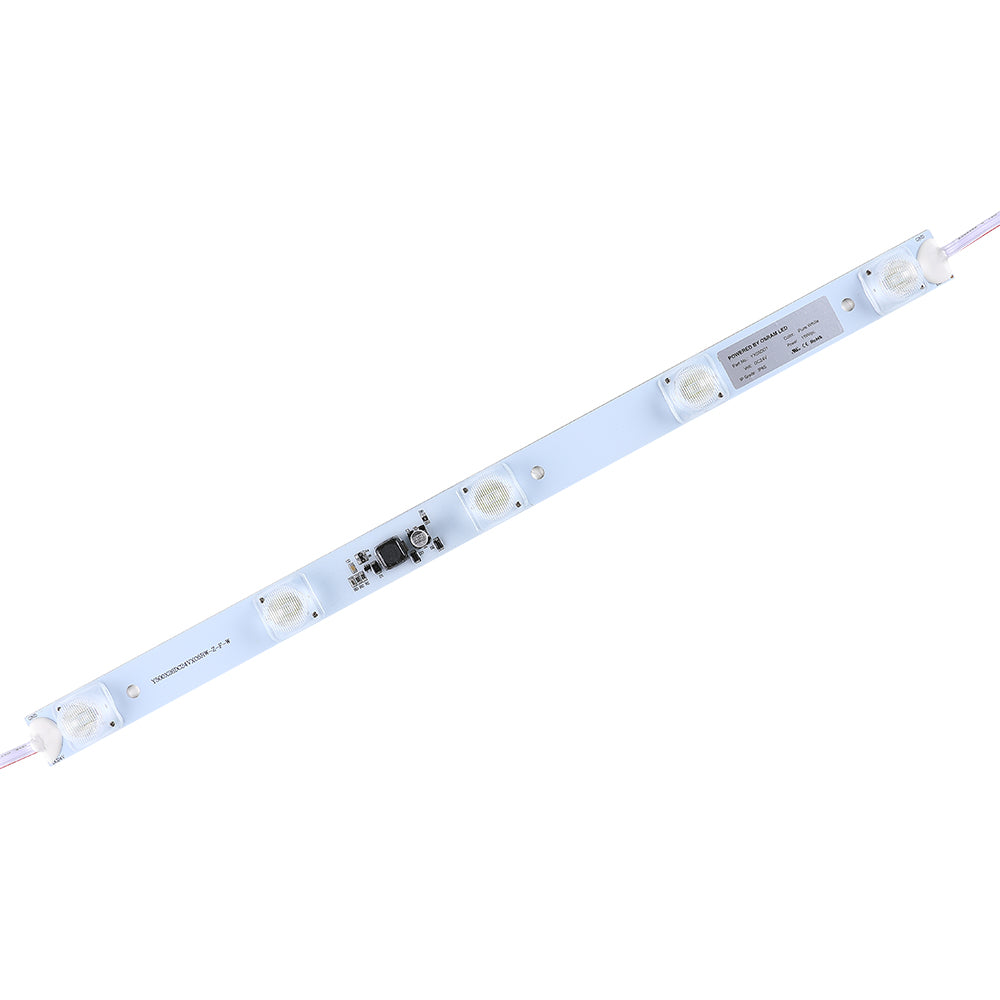

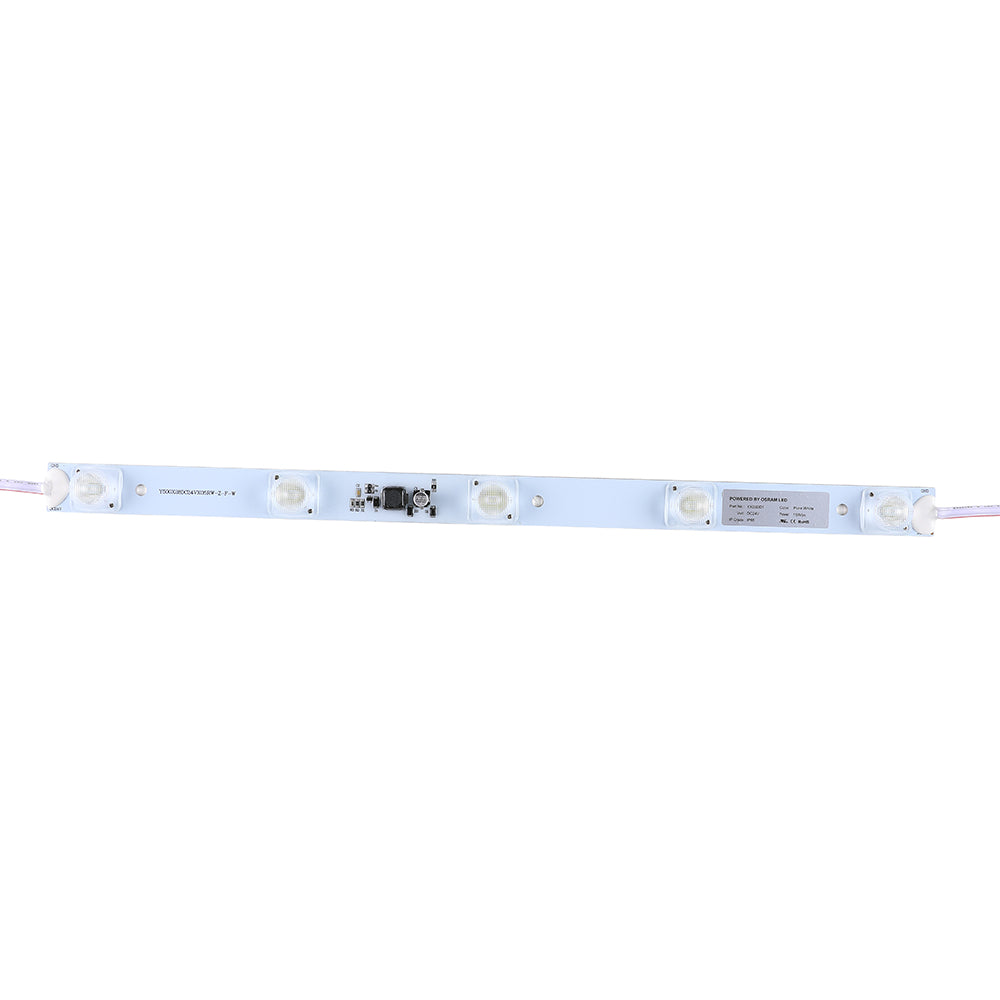

8-Pack LED Bar, 5leds/bar, DC24V, 15W
A total of 5 OSRAM LEDs define this module when the LEDs are highly efficient and capable of ensuring complete color conformity with no hot spots to be seen inside a 12-40cm double-sided and 10-20cm depth single-sided lightbox. The special lens and a beam angle of 15*45 degree ensure even and smooth light coverage of the entire lightbox. A maximum of 10 pcs in this module can be connected at a time and for a higher level of tasks, more modules must be connected. The 99.99% gold thread along with silver-coated copper bracket allows for maximum heat-dissipation and product-ductility thus ensuring high operational efficiency and long life expectancy of the module. As CE, RoHS and UL certified product, the module is completely safe for use and also comes with a hassle-free 5 years of manufacturer’s warranty
- A 7000K color temperature of this 15W LED module brings forth an overcast sky color with slight daylight -- a light color that’s perfect for light boxes.
- High luminous flux of 1350 lumens to ensure high level of brightness all over.
- The product is capable of receiving 24VDC power supply and needs no external driver for constant current supply.
- Being IP64 rated, the product is dust, moisture and water-proof. The water-proofing ensures protection against water spray from any direction.
- The module having a beam angle of 15*45 degree can be used for wall-washing.
LED Module IP64 Rated
The module having a total of 40 pcs of LEDs is eligible for use in both indoor and outdoor conditions as the driver that comes with it is rated as IP65. The IP65 driver protects the module against dust, shock, moisture and even water ejected from the nozzle
LED Module 160° Beam Angle
Utilizing the power of SMD LED chips and high quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.

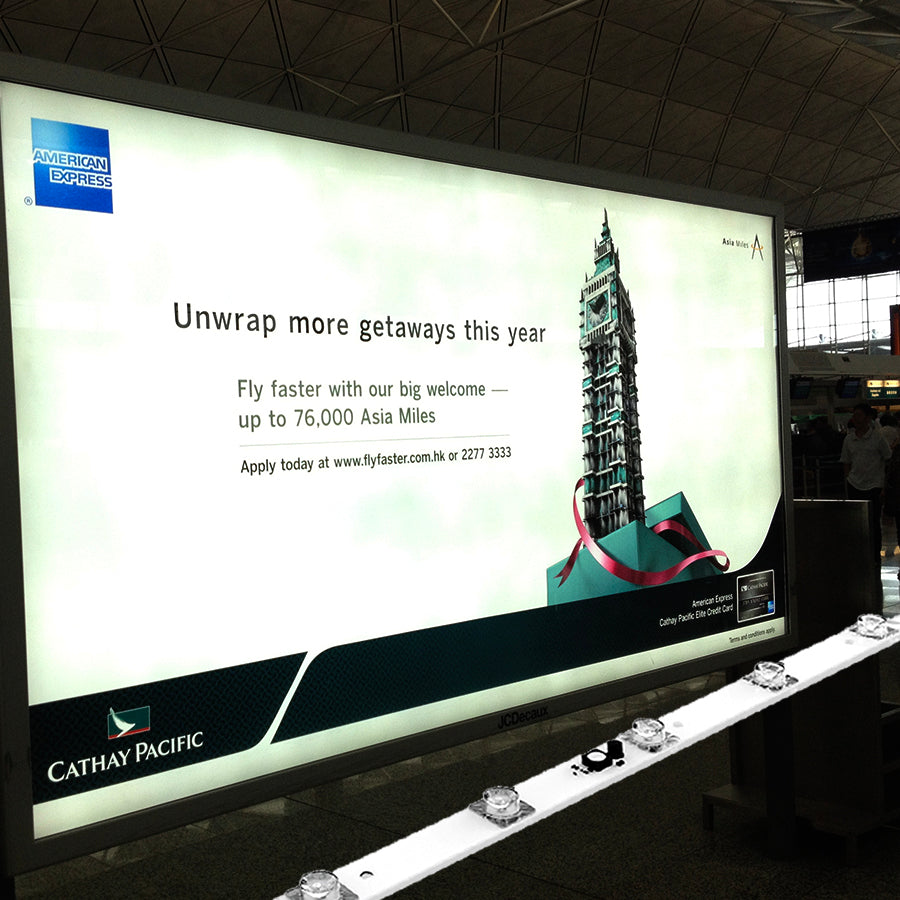

LED Module Recommended For Airports, metros, Banks, Buildings And Shopping Malls, etc.
The LED module has multiple uses such as sign lighting, back lighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilise up to 3 modules per square foot of an area.
5 Year Warranty CE, RoHS And UL Certified
The module being certified by CE, UL and RoHS meets the minimum regulation for product safety, health and environmental conditions. It’s a risk-free product as you have 5 years of warranty from the manufacturer’s end.
CRI ≥ 75 DC 12V| 70 LM | 7000K
(Anti-Dusting, Anti-Moisture, Water Proof, Anti-Shock)
A CRI of above or equal to 75 on a scale of 100 means the module is above average in color rendering of objects and considered ideal for outdoor depth sign lighting. Further, this module prevents ingress of dust, moisture, shock and even water up to a certain degree.
No Spot Good Color Conformity
The SMD LED chips of 2835 grade are much brighter than many other LED chips and provide for perfect color conformity when there is a demand for display lighting.
|MPN (Part No.):||MD008|
Questions & AnswersAsk a Question
What are the dimension of each bar?
Each bar, the metal only, is 19.5in x 1/8in x 1 1/8in and the wires themselves on either side are 3 3/4in long. toal lenth including the wires is a little over 26in.
