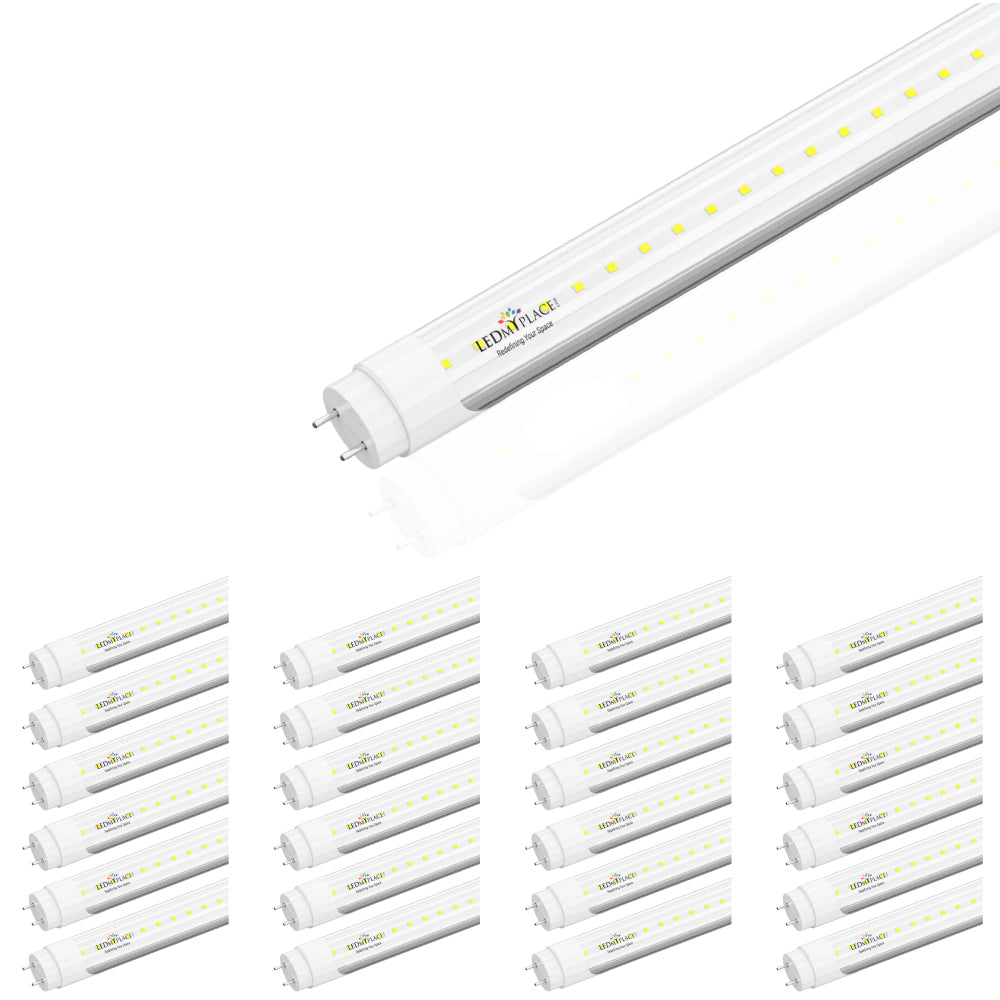

T8 4ft LED Tube/Bulb - 18W 2520 Lumens 5000K Clear, G13 Base, Single End Power - Ballast Bypass
1pcs
- translation missing: en.products.product.sale_price
- $7.99
4ft LED tube glass of 18W available in 5000K color temperature and having a CRI of >80 can deliver lumens up to 2520. It is an excellent substitute for T8, T10 & T12 fluorescent tubes. This 18W can safely and easily replace a fluorescent tube of 65W and bring an energy-savings of 47W. Thus, a lower utility bill for you every month. This 18W will work without a ballast, hence the existing ballast must be bypassed and directly wired to the line source for the tube fixture to work. These 18W LED tubes are housed in rugged die-cast aluminum for efficient heat dissipation. For the standard ceiling height, these LED tubes having a beam angle of 120 degrees emit enough bright light, have a long lifespan.
One of the best things about LED Tubes from LEDMyPlace is they are ETL & DLC listed, these listings make you eligible for a handsome rebate along with 5 years of warranty.

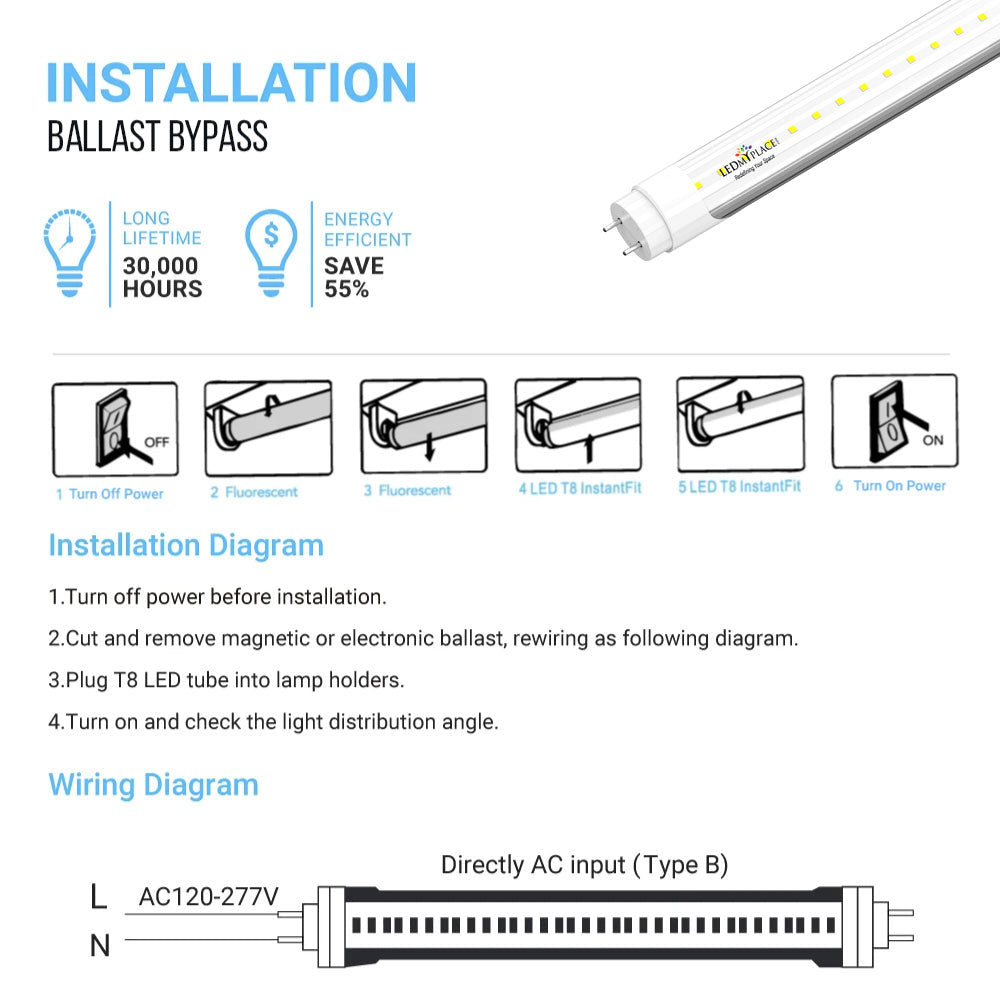

This LED tube requires you to either remove the ballast or bypass it. We have prepared a step-by-step guide to help you bypass the ballast to successfully install your LED tube.
Whether it’s 2ft, 4ft or 8ft LED tube, one of the jaw-dropping features of LED tubes is that they don’t flicker unlike what you would have definitely observed in case of fluorescent tubes. The LED tubes start instantly and once they start, they don’t flicker and produce a humming sound.
The LED tubes that are either clear or frosted have an IP22 rating. This rating signifies that our LED tubes are protected against dust-tight (objects in the dust that are of a size more than 1mm) and protected against water-ingress from all directions. For such reasons, LED tubes are safe for use in areas where there are moisture and water. E.g. Bathrooms, kitchens etc.
The LED tubes accepts an input voltage of 100V-277V. You can go for a waterproof transformer in case you don’t have this voltage and wish to convert this voltage range to some other.
The LED tubes will require low or no maintenance if you are going for a ballast bypass option of LED tube installation. Though not very frequent, but you may have to replace the ballasts once in the total lifetime of LED tubes, if you are going for ballast compatibility option and hence you will have to bear with slightly higher maintenance costs when choosing the former option.
The lifespan of LED tubes is no less than 50,000 hours or 5.7 years if the tubes are operated upon for 24 hours a day. Can last longer, if the tubes are kept ON for only 12 hours a day.
The CRI being greater than 80 for LED tubes, whatever object comes in the light distribution range appears to be real and natural up to 80% extent on a CRI scale of 1-100 and as it would have appeared in the natural light.
The 120 degree or ultra wide beam angle is made use of when large areas need to be covered. All our LED tubes whether clear or frosted have a 120 degree beam angle.

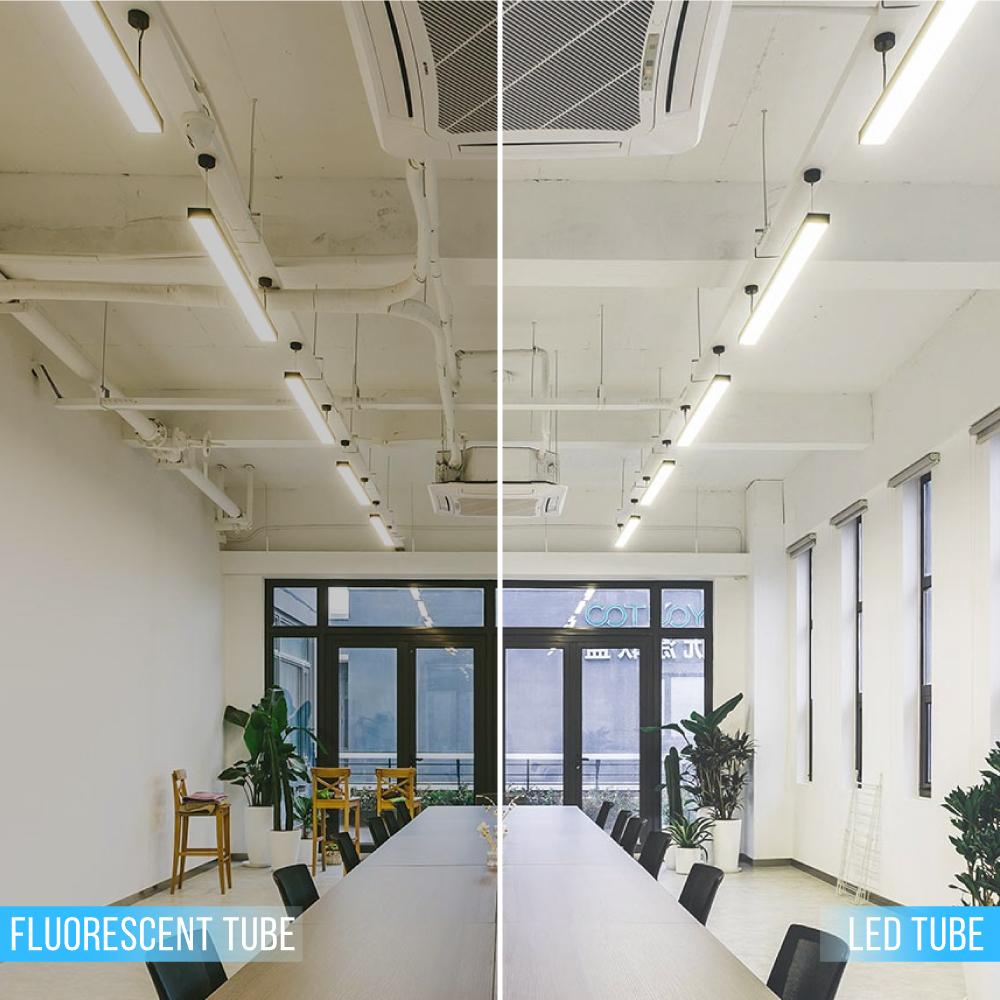

The LED tubes can save energy up to 75% in extreme contrast with fluorescent tubes that consume lot of energy to bring you a higher energy bill. We highly recommend going for our LED tubes that are an excellent combo of lumen brightness and energy-savings.
The LED tubes have a big heat sink made of aluminum and that’s a pretty good reason as to why the LED tubes don’t warm up too soon to be in consistent operation. This is in extreme contrast with the fluorescent tubes that warmed up too soon and required cooling down to operate efficiently.
Embedded inside the LED tube is a high-quality standalone chip -- SMD LED -- made from many numbers of chips to ensure high performance and reliability.
The LED tubes were one of the first LED lighting products to have become rebate eligible. All our LED tubes are DLC approved to make you eligible for rebate.

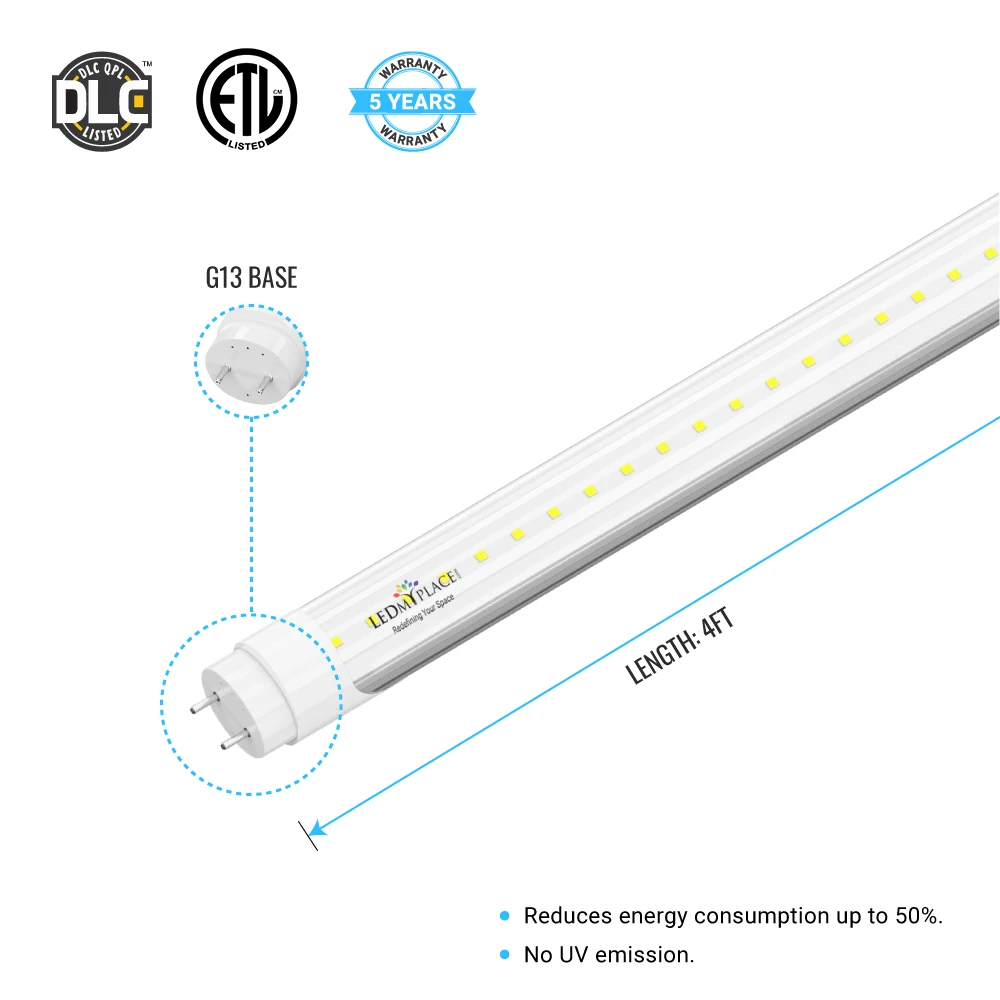

Base Type: | G13 |
Brand: | LEDMyplace |
Color Rendering Index(CRI): | 80 CRI |
Dimensions (L x W x H): | 47.75 x 1.15 x 1.32 |
DLC Listed: | Yes |
Housing: | Aluminum + Plastic |
LED Type: | 2835 |
Light Distribution: | 130-140 Lm/W |
MPN (Part No.): | TB046 |
Replaces: | 65 Watt Replacement |
Voltage: | 100-277 Volt |
Wattage: | 18 Watt |
Wiring: | Single Ended Power ONLY |
Beam Angle: | 120° Beam Angle |
Certifications: | ETL, DLC Listed |
Color Temperature (Kelvin): | 5000 Kelvin |
Dimmable: | No |
DLC Model no.: | WEN-T8-18P4FT2-C(5000K) |
IP Rating: | IP22 Rated |
Life Hours: | 50,000 Hours |
Lumens: | 2520 Lumens |
Power Factor: | 0.95 |
SKU: | WEN-T8-4FT-18WC5000K |
Warranty: | 5 Years |
Weight: | 0.66 Lbs |
Operating Temperature: | -68 Degree F To +122 Degree F |
Do these come with the tombstones for the non-power end ???
these dont come with the tombstones however these need non shunted tombstones and we sell those.
