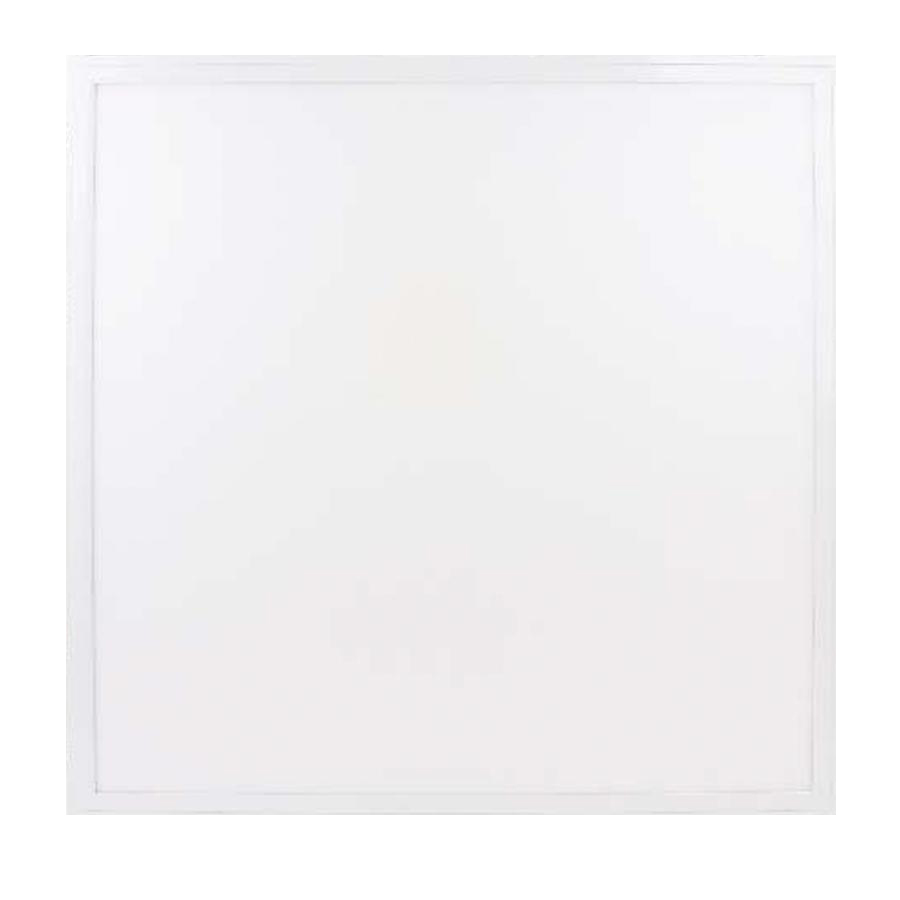

2X2 LED Flat Panel Light 4000K, 40W AC100-277V, DLC Listed and Dimmable, Flat Backlit Fixture - LED Drop Ceiling Lights
- translation missing: en.products.product.sale_price
- $186.16
2X2 LED Flat Panel Light 4000K, 40W AC100-277V, DLC Listed and Dimmable, Flat Backlit Fixture - LED Drop Ceiling Lights - 4-Pack
2X2 LED Flat Panel Light 4000K, 40W AC100-277V, DLC Listed and Dimmable, Flat Backlit Fixture - LED Drop Ceiling Lights - 4-Pack
MPN: PN022
Regular Price:
$186.16
$46.54Ea.
- Free Shipping
- 30 Days Return
- 5 Years Warranty
2x2 LED Flat Panel Light Fixture, Tunable White, 40W, 4000K, Dimmable, 2x2 LED Drop Ceiling Lights, CRI: >80 CRI
In contrast with lighting solutions that only contain a single bulb, a LED Panel Light consists of a combination of LEDs that distributes light evenly and smoothly over a wide area giving you the proper illumination you need. This smooth distribution of lighting is one of the key factors of drop ceiling LED lights. This 2x2 40W LED light can replace a 140-watt fluorescent panel while providing you with a bright lumen output of 5000 lumens. This 40W 2X2 LED Backlit Flat Panel 4000K can save you up to 75% on utility bills. LED Drop Ceiling Lights are designed to replace traditional fluorescent ceiling lights. Also known as basement ceiling lights due to their versatile use in different business and commercial spaces. With all these strong points, you will be right to believe that led flat panel light will undoubtedly be the way to your brighter future.
140
Watt Replacement
5000
Lumens
50,000
Hours
120°
Beam Angle
100-277V
Voltage
Feature of 2X2 LED Panel - 40W:
- Color Temperature Available: 4000K
- Luminous Flux: 5000 Lumens
- Beam angle: 120°
- Lifespan: 50,000 hours
- Voltage: AC100-277V
- IP40 Rated
- Working Temp: -4°F to 113°F
- Dimension: 23.75x23.75 In
- UL, DLC listed,
- Dimming: 0-10V/PMW/Resistant dimming
- 5 years of Manufacturer's Warranty

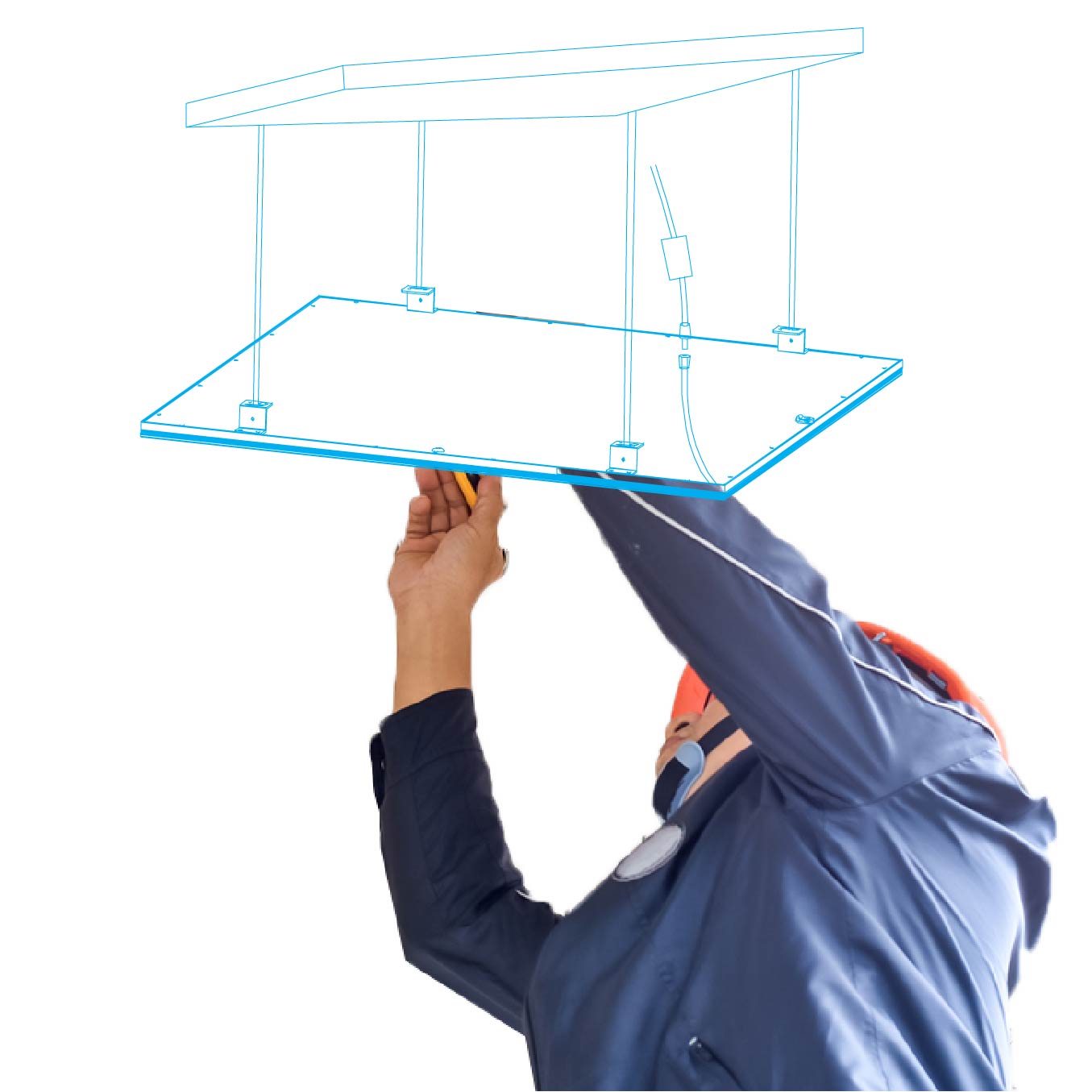

Easy Installation
LED ceiling lights can be installed in four ways-built in, recessed, mounted and suspended. Built-in and recessed installation offer the sleeker look, albeit the latter provides the subdued lighting.

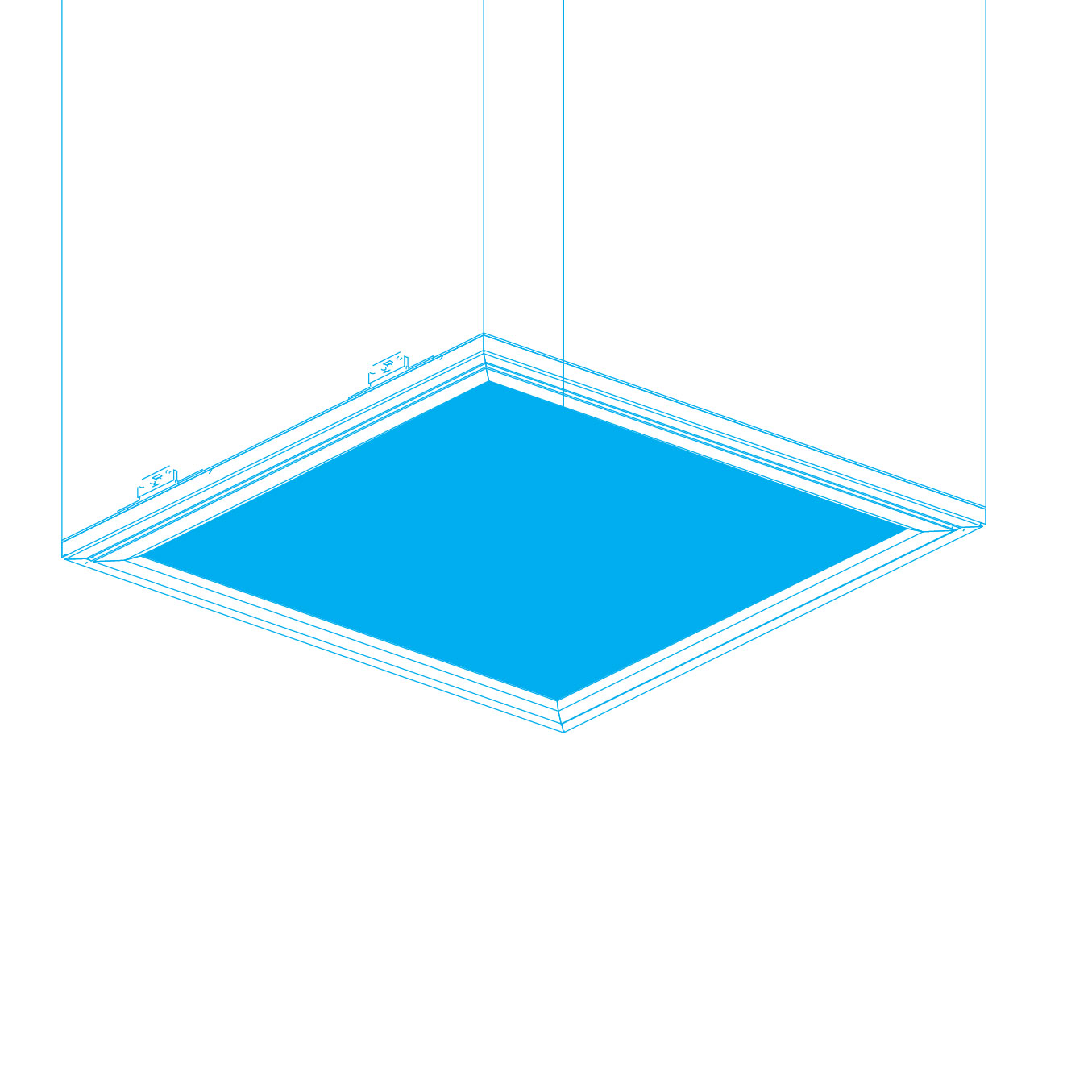

No Dark Spot
Exposing eyes to glare for a long time can make you nervous, tired and uncomfortable. Therefore, high lighting and low glare are always appreciated. When you choose LED panel lights, you actually pick health- friendly lights, because it’s low glare lens not only distributes balanced light but also brings relief for the eyes.
CRI >80
With high CRI- colors pop, textures stand out and finishes have depth and luster. Sleek and suave, Led panel lights have 80 + CRI, that means when you put a yellow colored object under this light you see it as yellow.

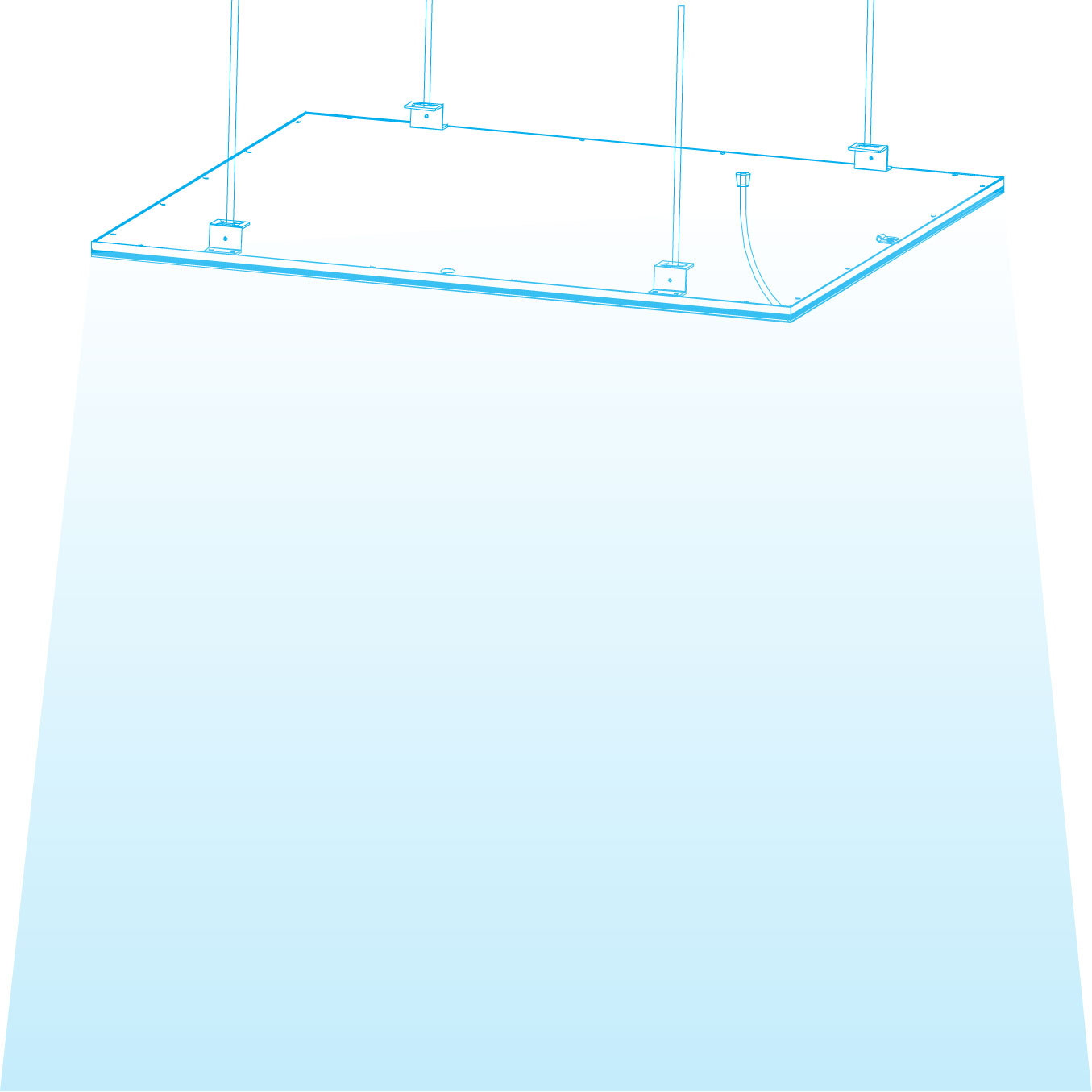

Wide Beam Angle
Beam Angle is a width of a light emitted from the luminaire. Normal LED lights have 40 to 60- degree beam angle, whereas LED panel lights have a 120- degree angle which helps in interspersing light in the wider area.

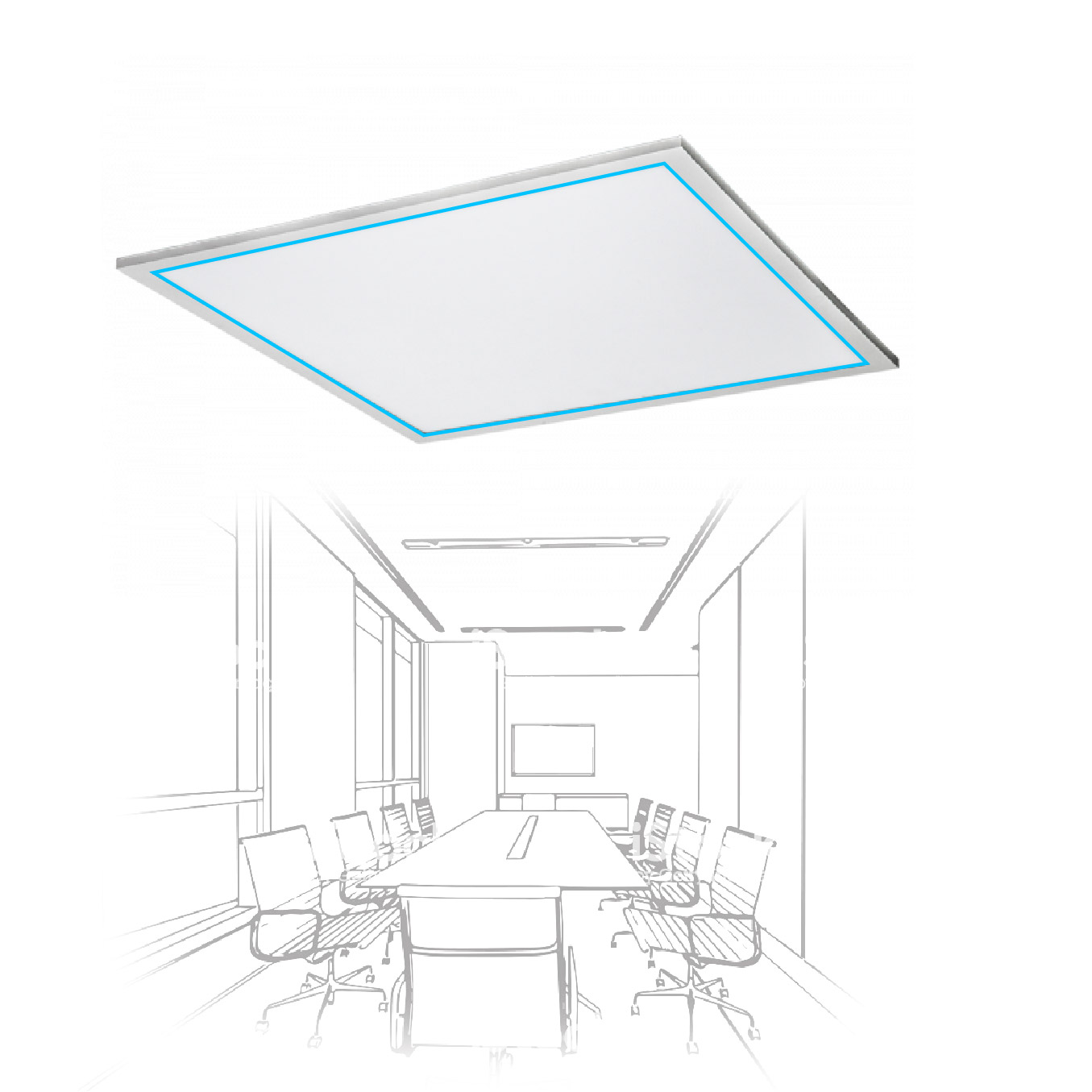

Slim & Sleek Design
Colorful walls become more vibrant when they are drenched in seamless lighting. Alike, the state-of-the-art gymnasium becomes more enticing when you install LED panel lights on ceilings.

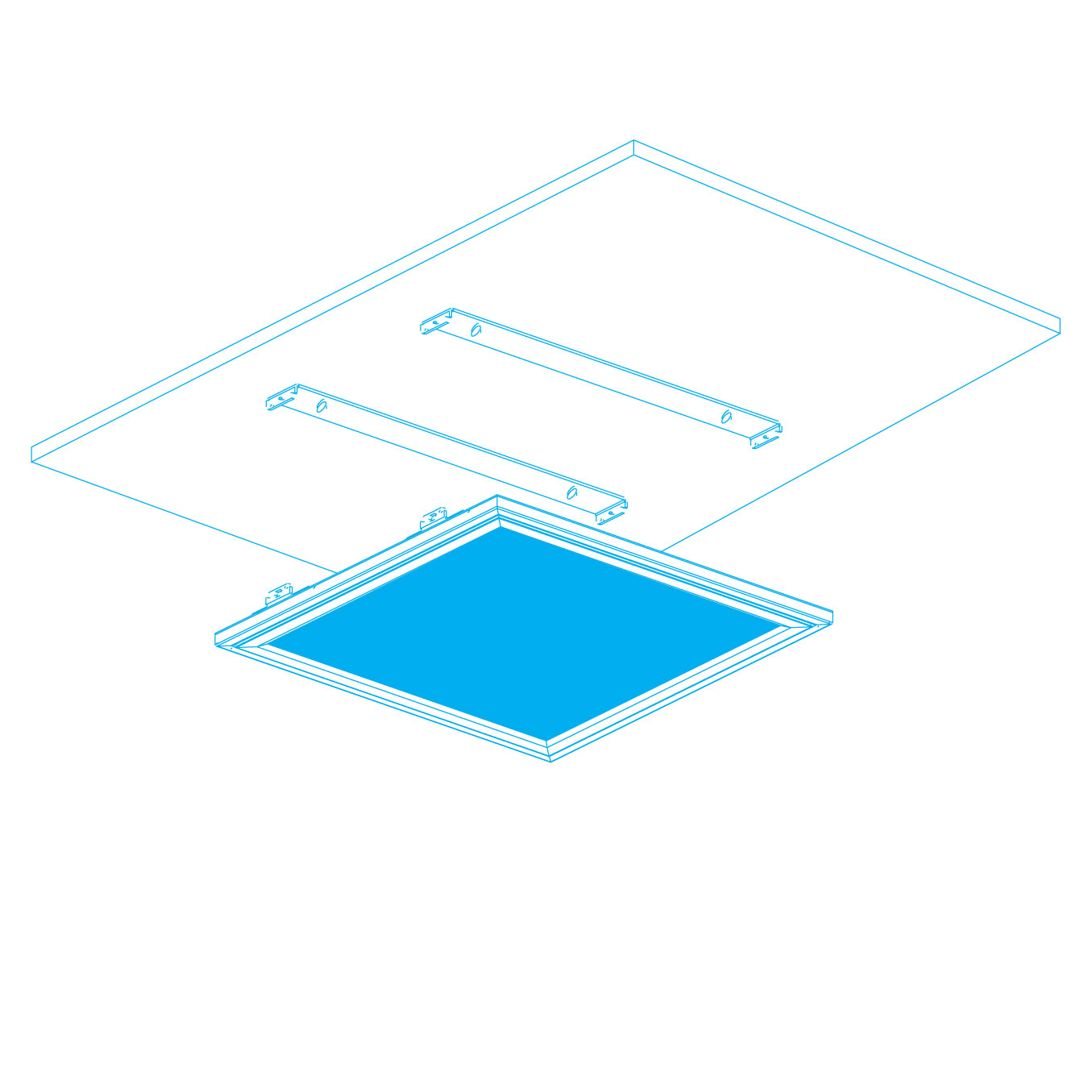

Rugged Construction
LED panel light’s aluminum fixture meets all the expectations. Like, this fixture is not only protected against harmful corrosion but also work as a heat sink.
UV & Mercury Free
The world has become sensitive towards the environment, people adore energy and environment-friendly products. Our led lights don’t have harmful chemicals like mercury, cadmium, and lead, so, when you put LED panel lights on ceilings, you not only curb energy price but also promote a healthy environment.

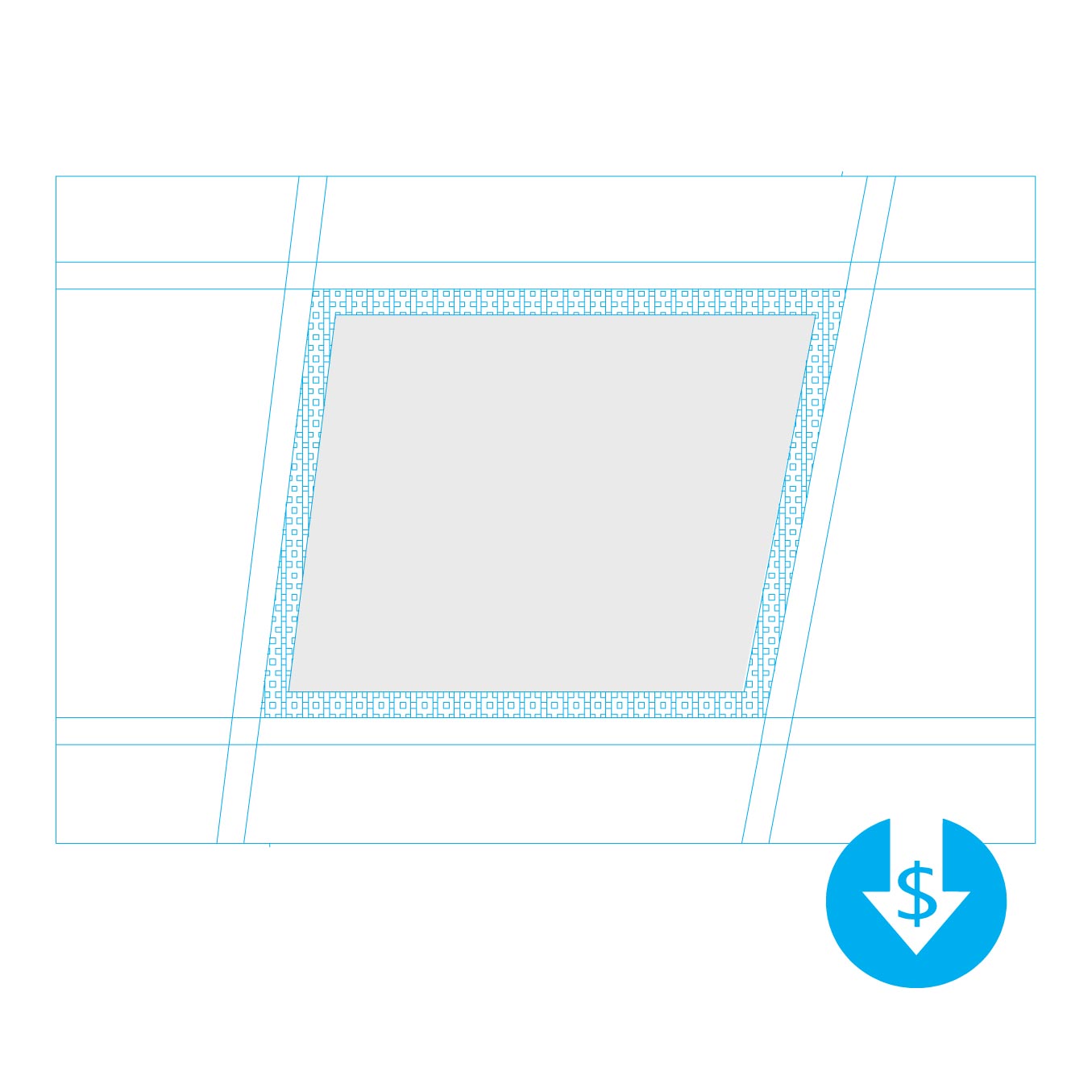

Low Maintenance Cost
Futuristic lights are the perfect conglomeration of superior technology and invincible protection. Besides eye soothing design, LED panel lights also have good resistance against water, dust, and winds.

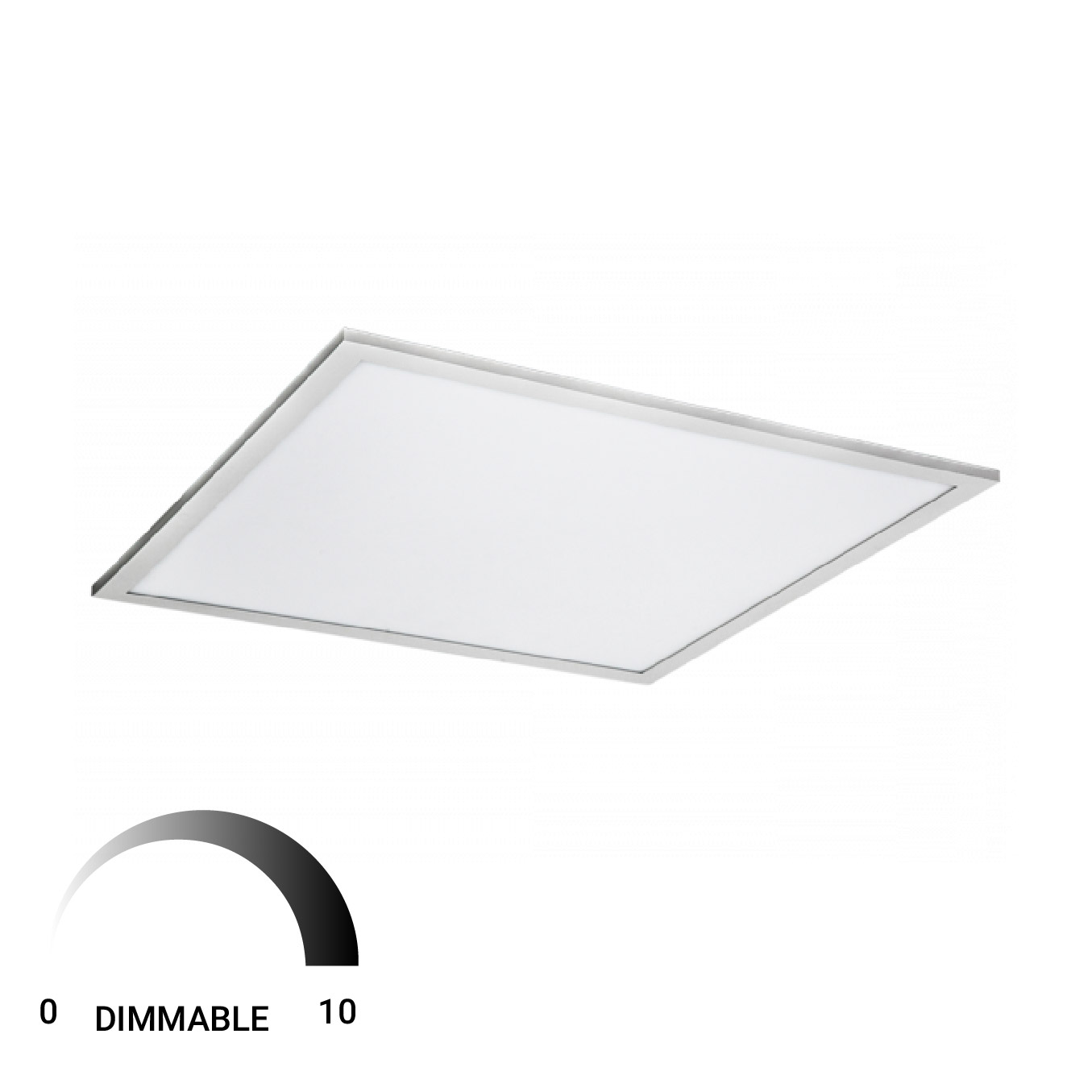

0-10V Dimming
Dimmers compatibility makes LED panel lights smarter. When you install sleek and suave panel lights in a gymnasium, hotel or a restaurant, its dimmer friendliness helps in controlling light intensity without any flicker.

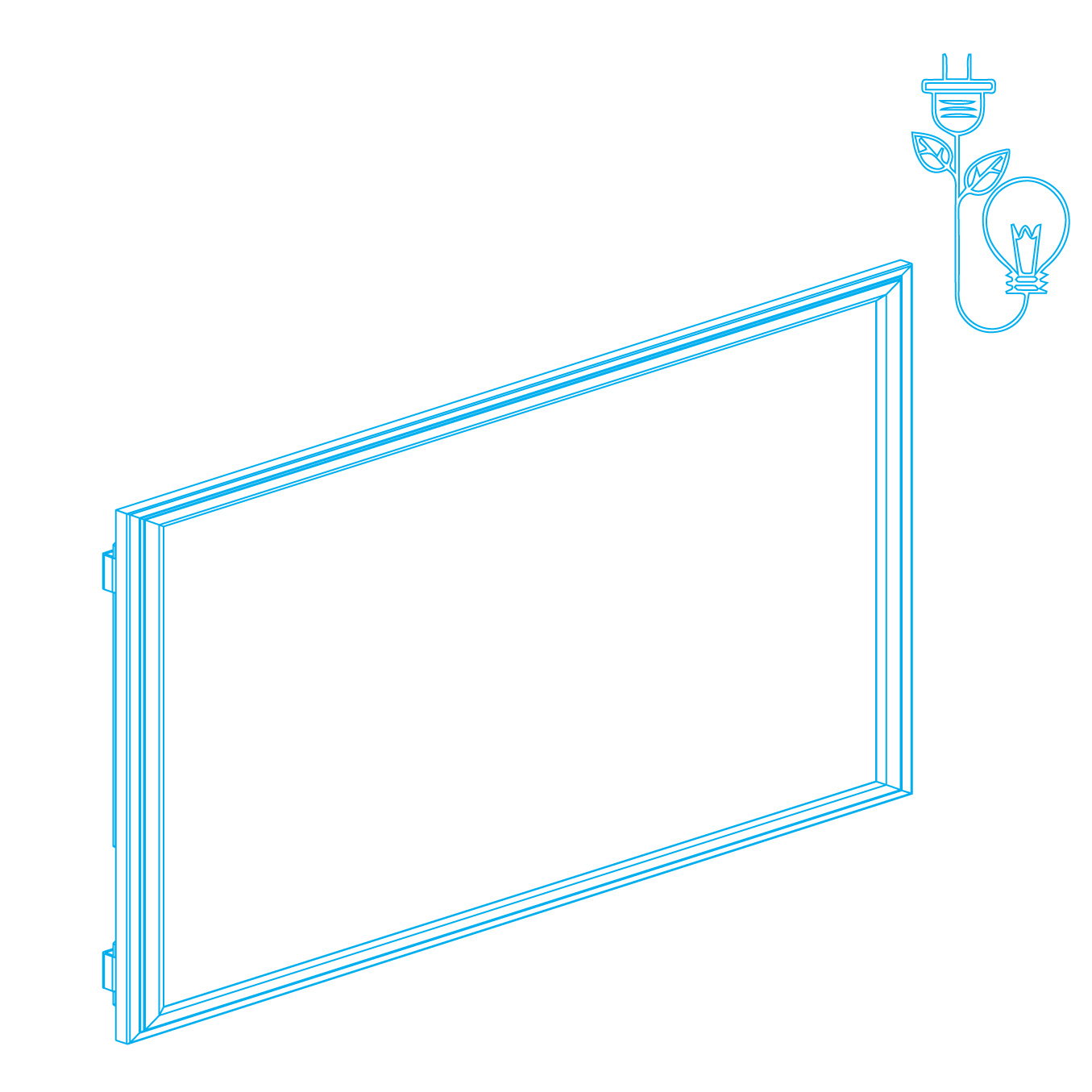

Energy Saving
It is not just technology that brings applause, but the energy consumed by the product also makes a big difference. When you install LED panel lights in a gymnasium, reception area or dental clinic, you can easily save more than 75% energy.

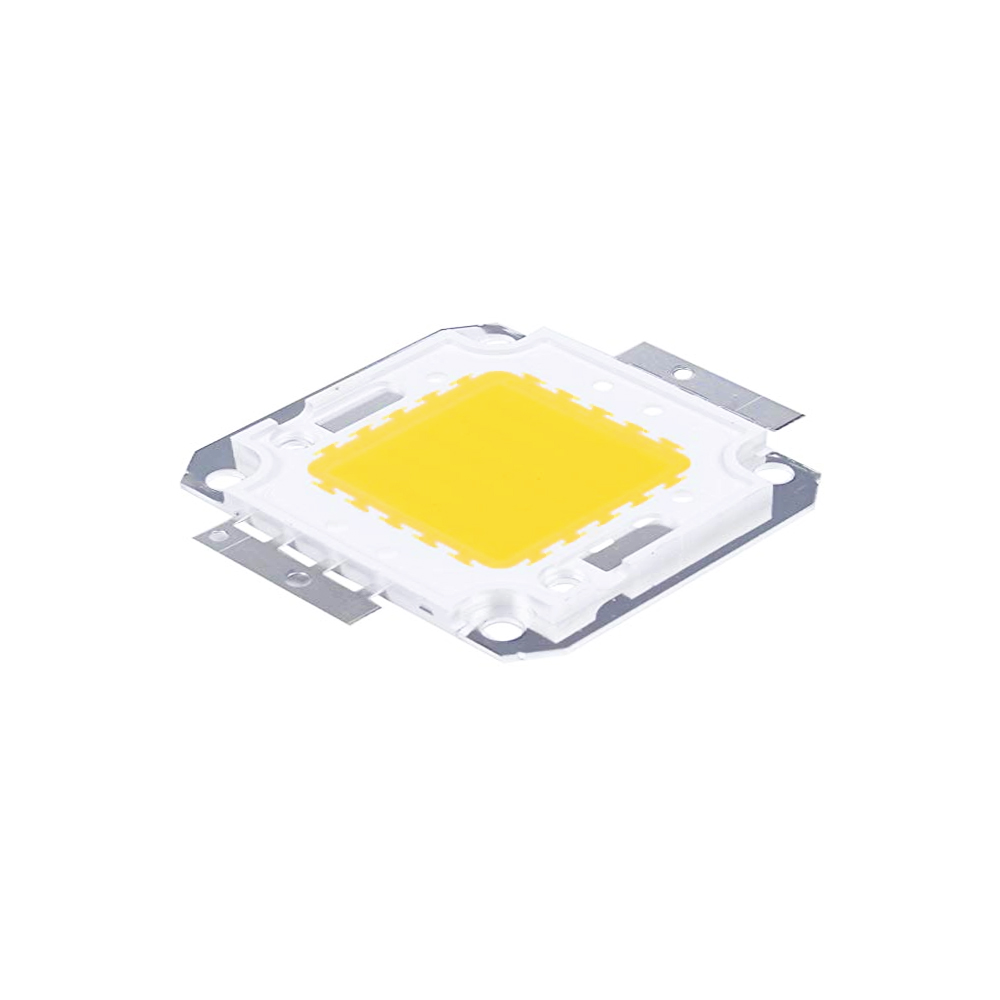

Premium LED Chips
We never compromise on quality and that’s why we go to any length to make our products more dependable and reliable. Like Epistar LED chips in flush mount enhances our LED panel lights operational efficiency.
Rebate Eligible
We have always manifested concern for energy and this becomes more visible when you read UL, DLC and Energy Star is attached to our products.
Specifications
| Beam Angle: | 120° Beam Angle |
| CCT: | 4000 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |
| Dimensions (L x W x H): | 23.74x23.74 |
| DLC Listed: | Yes |
| Height: | 23.74 |
| IP Rating: | IP40 Rated |
| Life Hours: | 50,000 Hours |
| Lumens: | 5000 Lumens |
| Power Factor: | ≥0.9 |
| Safety Rating: | UL, DLC Listed |
| Voltage: | 100-277V |
| Wattage: | 40 Watt |
| Brand: | LEDMyplace |
| Certifications: | UL, DLC Listed |
| Color Temperature (Kelvin): | 4000 Kelvin |
| Dimmable: | 0-10V Dimmable |
| Fixture Color: | White |
| Housing: | Aluminum + LGP + Diffuser(PS & PMMA) |
| LED Type: | SMD2835 |
| Light Distribution: | 125LM/W |
| MPN (Part No.): | PN022 |
| Replaces: | 140 Watt Replacement |
| SKU: | WEN-CPS-U4A40-P6-4000K |
| Warranty: | 5 Years |
| Operating Temperature: | -4 Degree F To +113 Degree F |
Product Review
Questions & Answers
Ask a Question-
I purchased 12 of the PN 022 panels and they look fantastic. I want to install a bank of 8 and a bank of 4 on separate circuits. What type of dimmer do I need to "gang" 8 of the panels together on one dimmer? Do you have a suggested dimmer part number that you recommend? Thanks
You'd first need to find the amperage of them all that you want to put together then you'd need to find an LED compatible Panel dimmer.
-
Can these be installed in an existing 2x2 troffer ?
Yes, they can.
-
Can these lights be flush mounted to an Armstrong ceiling that uses 12" x 12" ceiling tiles that are mounted with their "Easy up" track system? I want to use the lights in a basement with low ceiling clearance. I realize that I would need to provide clearance for the transformer. Thanks
No, it is better the ceiling size bigger than 2x2, so that we can use the surface mounted frame to fix the panel on ceiling.
-
What is the thickness of the unit?
It's 1.18 inches in thickeness.
