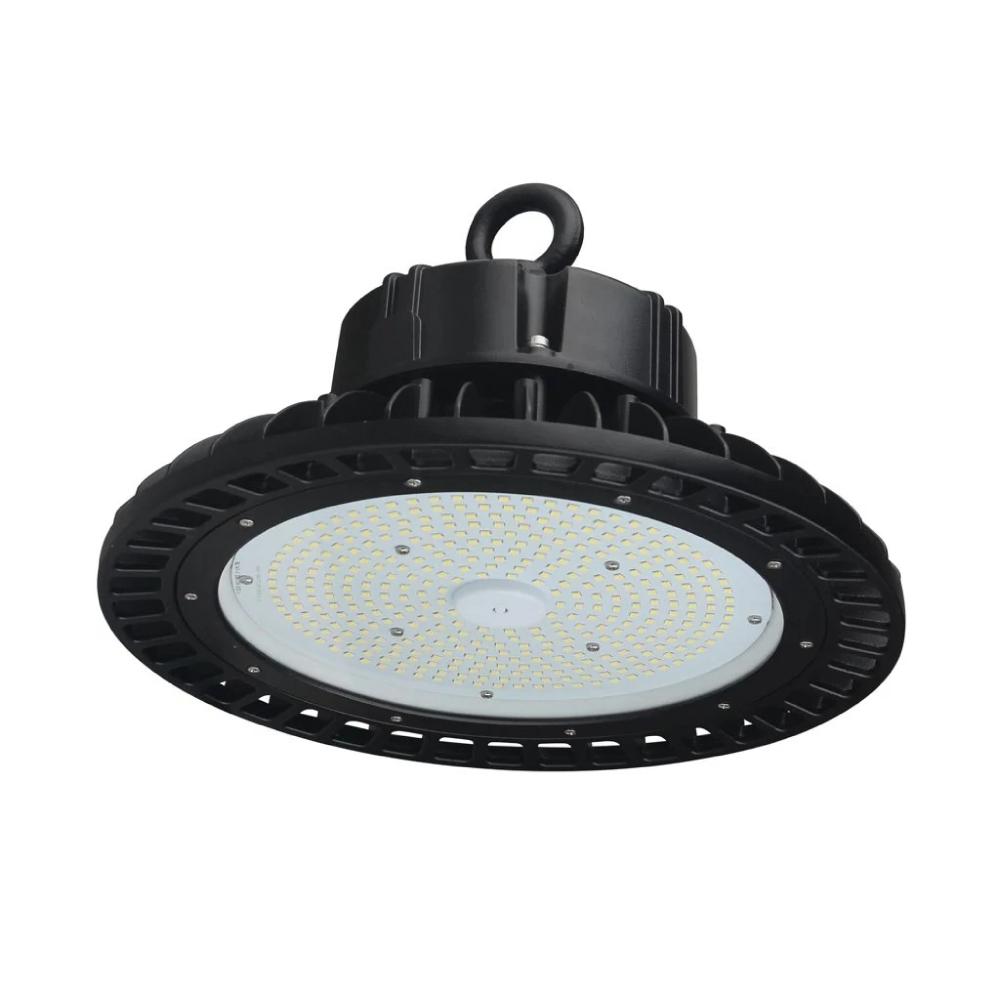

This 100W UFO High Bay Light is our best-selling product for warehouse area and high ceiling indoor lighting. Ideal lighting solution for an indoor ceiling with a height ranging between 15ft to 25ft. With a lumen output of up to 14,500 lumens, this dimmable high bay light can provide you superior luminaire than any 350W non-LED light while saving you 250W of energy on each fixture. Its premium-grade lens is designed to achieve a beam angle of 110 degrees. Can be easily hooked/mounted on any ceiling or surface. High bay LED Lights have very few maintenance costs that drastically reduces the cost of this light. Hence, these lights help to reduce your utility bills. The places like shops need consistent lighting and so switching to LED Shop lights will save you a lot of money.

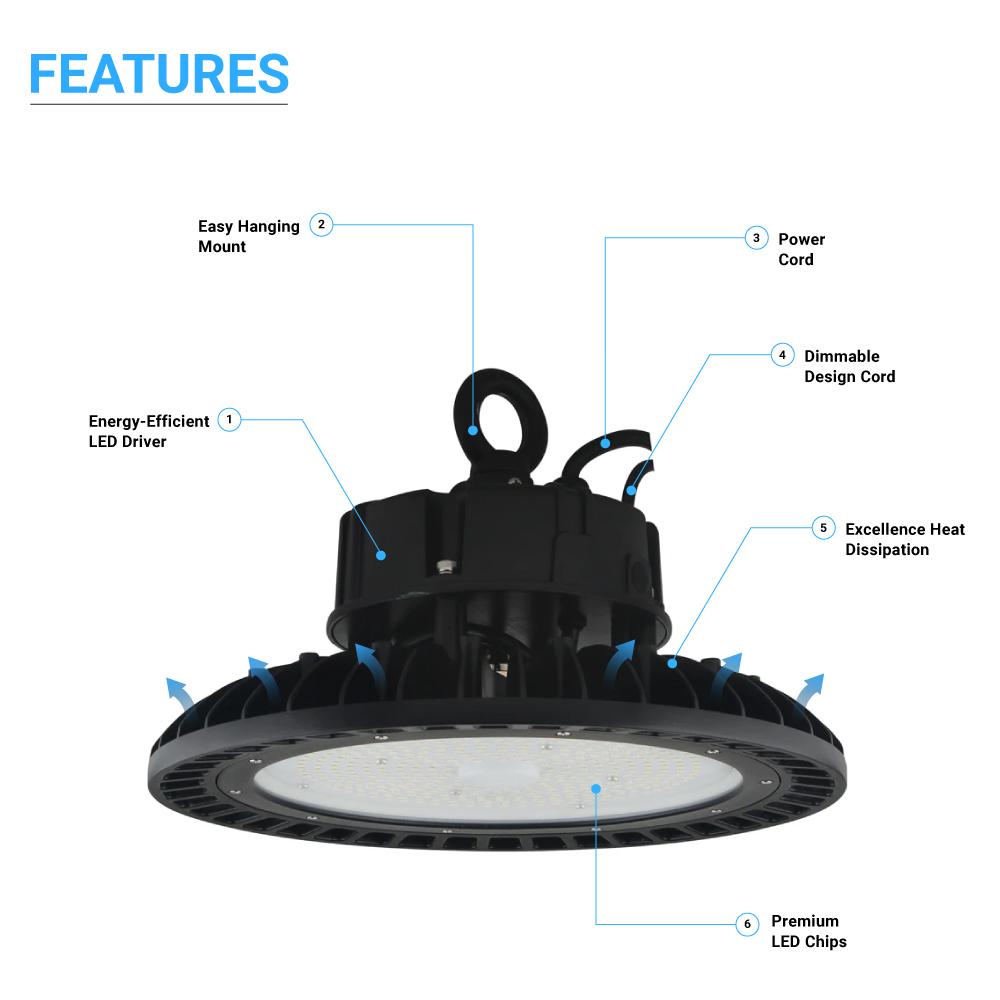

Features Of 100W LED UFO High Bay Light
Easy Installation:

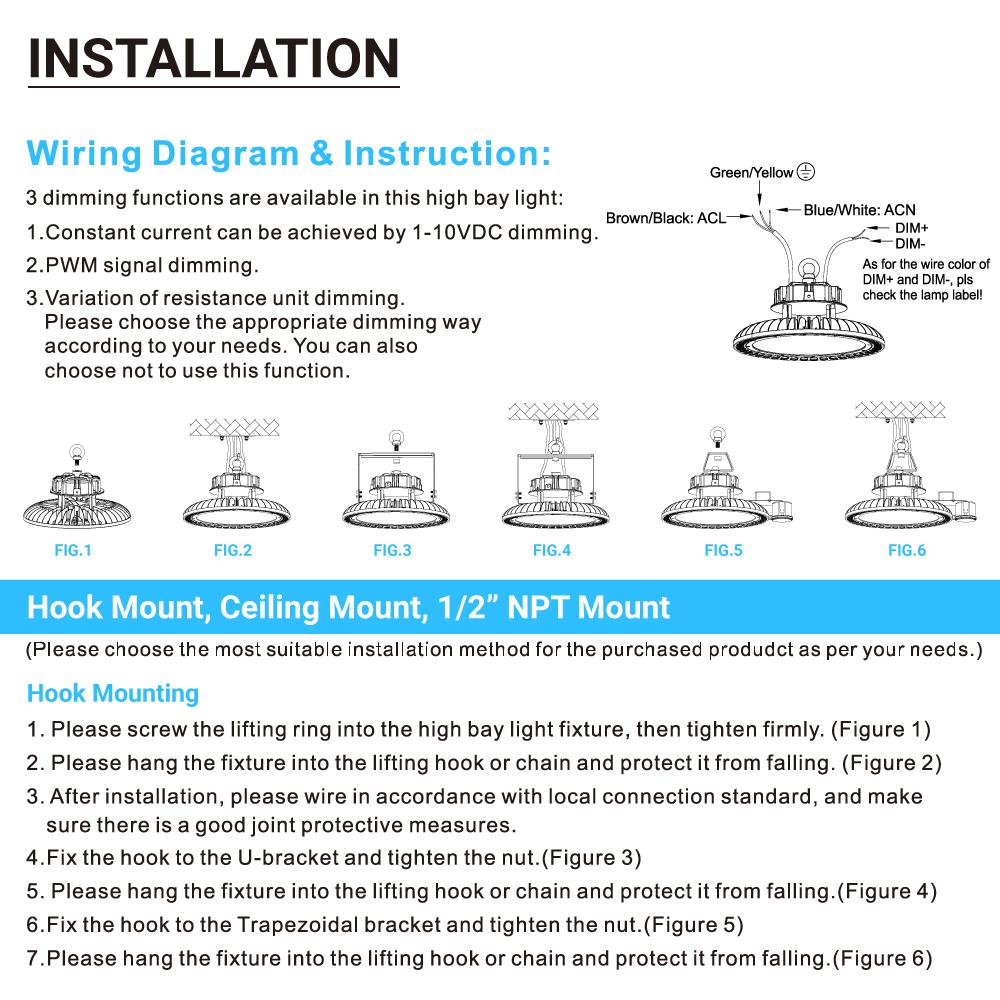

This LED UFO light fixture can be installed easily using the various mounting option the product comes with, reducing installation time by 80% of what traditional fixtures consume. For step by step guide to installing warehouse light refer to the installation guide. (Included inside the box)
Hook Mount:
The hanging ring that comes with our UFO high bay light can be inserted in the mounting cavity and tightened through a bolt on the hanging ring to firmly fix the lights. Now mount this ring on the ceiling via a hook. Remember for hook mounting you must have a heavier hook than the lamp, recommended weight is 3-4 times heavier than the high bay light fixture.

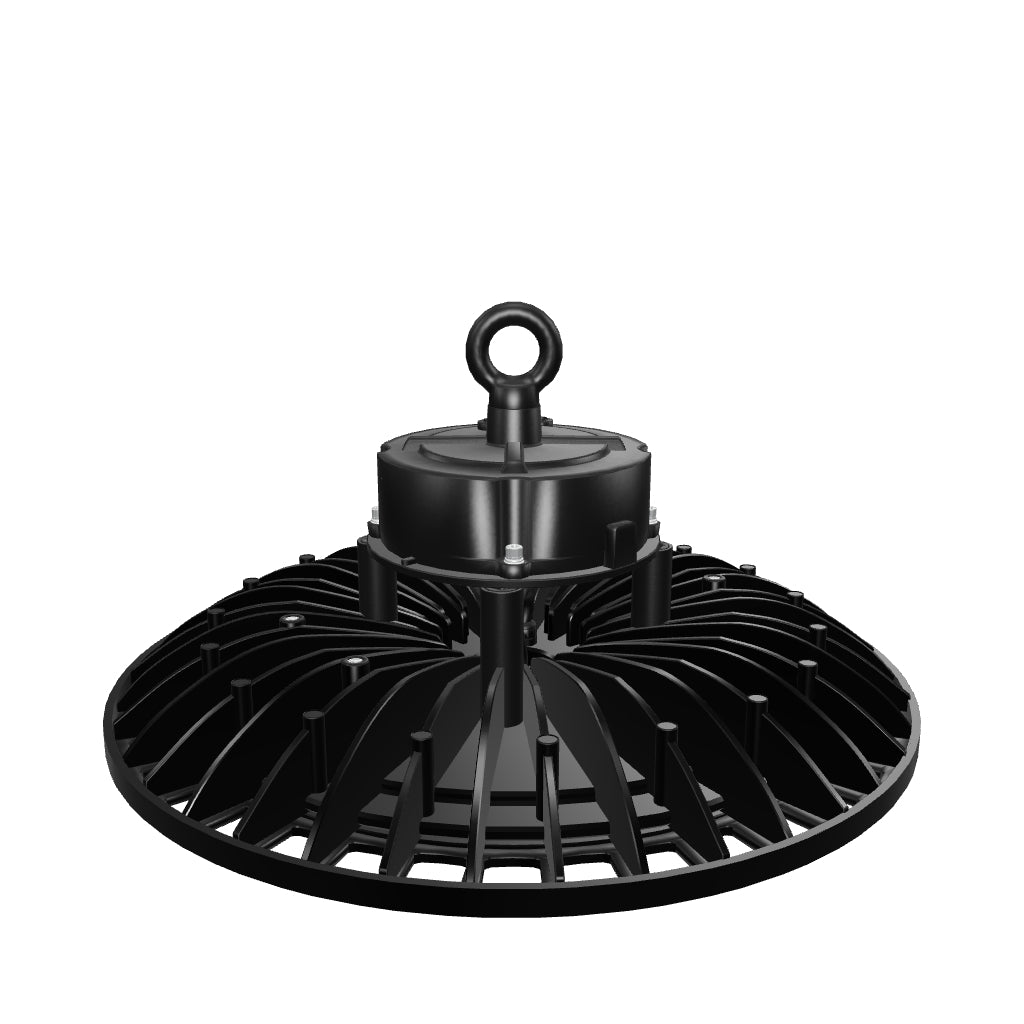

Thermal Heat Dissipation:
The UFO high bay lighting fixtures have an inbuilt aluminum heatsink which accounts for excellent heat dissipation giving these lights a longer lifespan and better performance.
Premium LED Chips:
For maintaining the best quality of our products we use premium LED chips in our Light Fixture. Built with high precision and accuracy these products render maximum operational efficiency.
IP65 Waterproof Rating:
The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These warehouse lighting fixtures are versatile and long-lasting products.
Ultra Wide Angle Lens:
The LED UFO High Bay lights are designed to provide high-intensity lights in large storage spaces like warehouses, departmental stores, etc. that's why these come with an ultra-wide-angle lens.
Rugged Construction:
Designed in a rugged die-cast aluminum these UFO high bay lights are sturdily built and can withstand external pressure while installation, removal, and shipping.
Low-Cost Maintenance
The average lifespan of the 150W LED UFO lights is 50,000 hours. There is no complaint of lumen depreciation till the end of its lifespan. Installing LED UFO will reduce recurring replacement charges; hence, it is a low-cost maintenance light.
1-10 Dimmable
The 100W UFO 4000K High Bay comes with a 3-step dimmer and can be dimmed from 10 volts to 1 volt, with 1V being the minimum light level, and 10V being the highest level of dimming allowed by the fixture. At 10 volts, the controlled setting of light is at 100% of its potential output.
CRI >80
CRI or Color Rendering Index of a light source is a measure of clarity and true colors visible under that source compare to the sun having the maximum CRI of 100. The CRI of these LED high bay lights is greater than 80.
The motion sensor comes as an accessory, and you can choose to have this with our UFO high bay as it helps in not just alerting an intruder in your facility, but allows you to have much better control of the lighting. The 3 Step Dimmer sensor allows energy saving without compromising comfort. You can also go through the blog mentioned above to get a better hang of this sensor.
Rebate Eligible
The UFO high bay is DLC approved and comes within the scope of rebate-eligibility criteria.
Compatible Dimmers
The LED UFO High Bay product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
- H4FBL3PW
** For any other Dimmer, please contact our customer support or check with your electrician.
| Beam Angle: | 110 Deg. Beam Angle |
| CCT: | 4000 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |

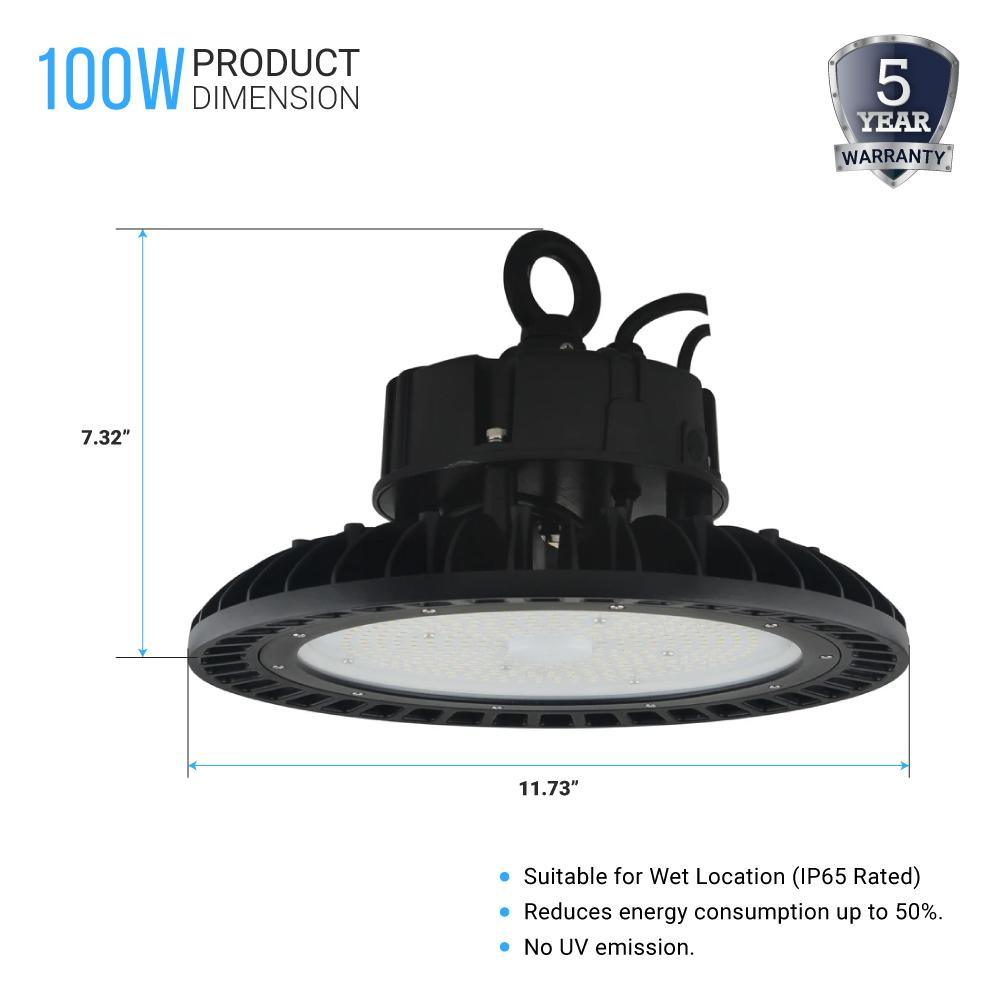

| Dimensions (L x W x H): | 7.32x11.73 Dia |
| DLC Listed: | Yes |
| Housing: | Aluminum |
| LED Type: | SMD2835 |
| Lumens: | 14500 Lumens |
| Power Factor: | >0.9 |
| Shape: | Round |
| Voltage: | 120-277V |
| Wattage: | 100 Watt |
| Brand: | LEDMyplace |
| Certifications: | UL, DLC Listed |
| Color Temperature (Kelvin): | 4000 Kelvin |
| Dimmable: | 1-10V Dimmable |
| Fixture Color: | Black |
| IP Rating: | IP65 Rated |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | UF011 |
| Replaces: | 350 Watt Replacement |
| SKU: | WEN-HB07-100WSACGD1-BH40 |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
How does PWM dimming work on 100W LED High Bay UFO 4000K fixture Do you have more detailed info on PWM feature?
Unfortunately, the PWM dimming will not work on this light. The 150W UFO 5700K High Bay is a 3-step dimmable product that can be dimmed from 10 volts to 1 volt, 1V being the minimum light level that can be achieved, and 10V being the highest level of dimming allowed by the dimmer. At 10 volts, the controlled lighting is at 100% of its potential output.
