The High Efficiency LED Sign Modules, and Sign Bars are designed to produce high performance with excellent color tone and no dark spots. Enhance the modern Lighting in your space with the innovative LED Sign Modules and Sign Bars. These 12 W LED Sign Modules, and Sign Bars come with a CCT of 7000 K. These light fixtures are designed to be very suitable for reading or studying and are available in three colors: Red, Green, and White. With a lumen output of 1200 Lumens, these LED Sign Lighting Fixtures are highly durable. It's a UL and RoHS certified light fixture that comes with a lifespan of 50,000 hours and a manufacturer warranty of 3-years.

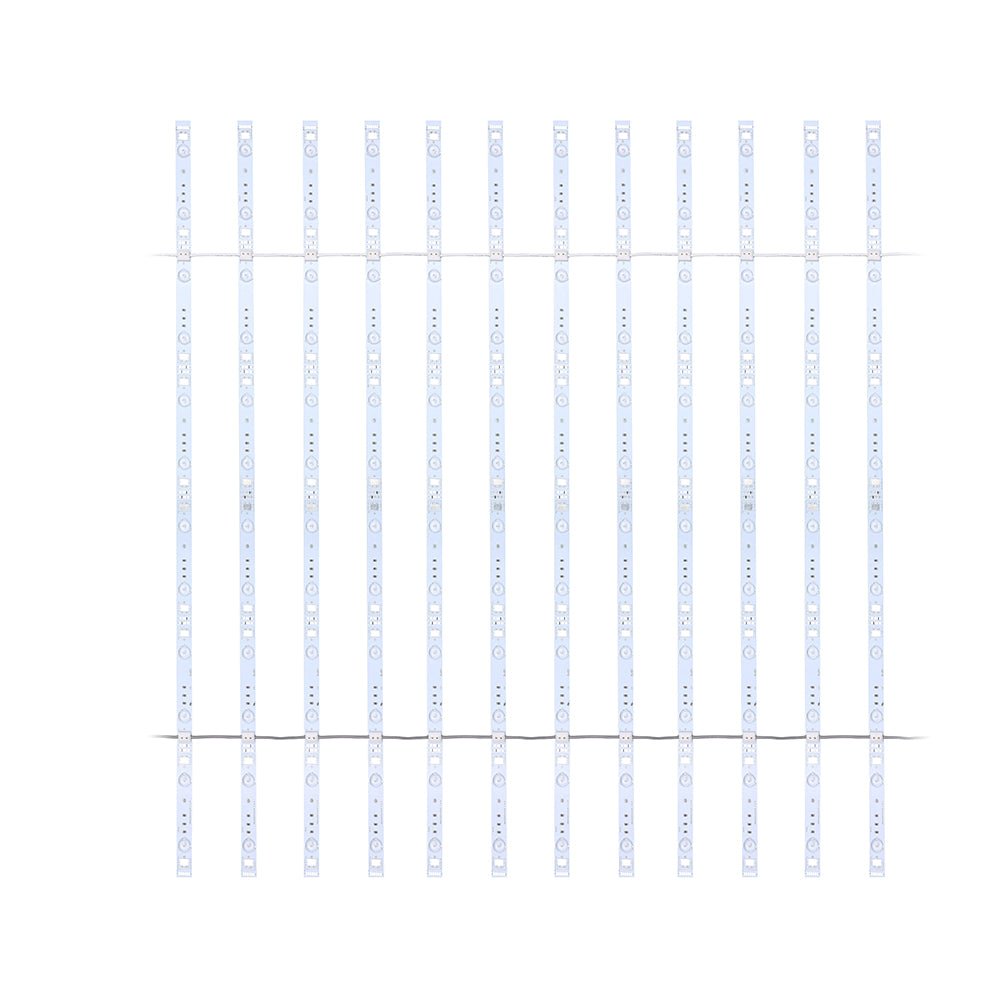

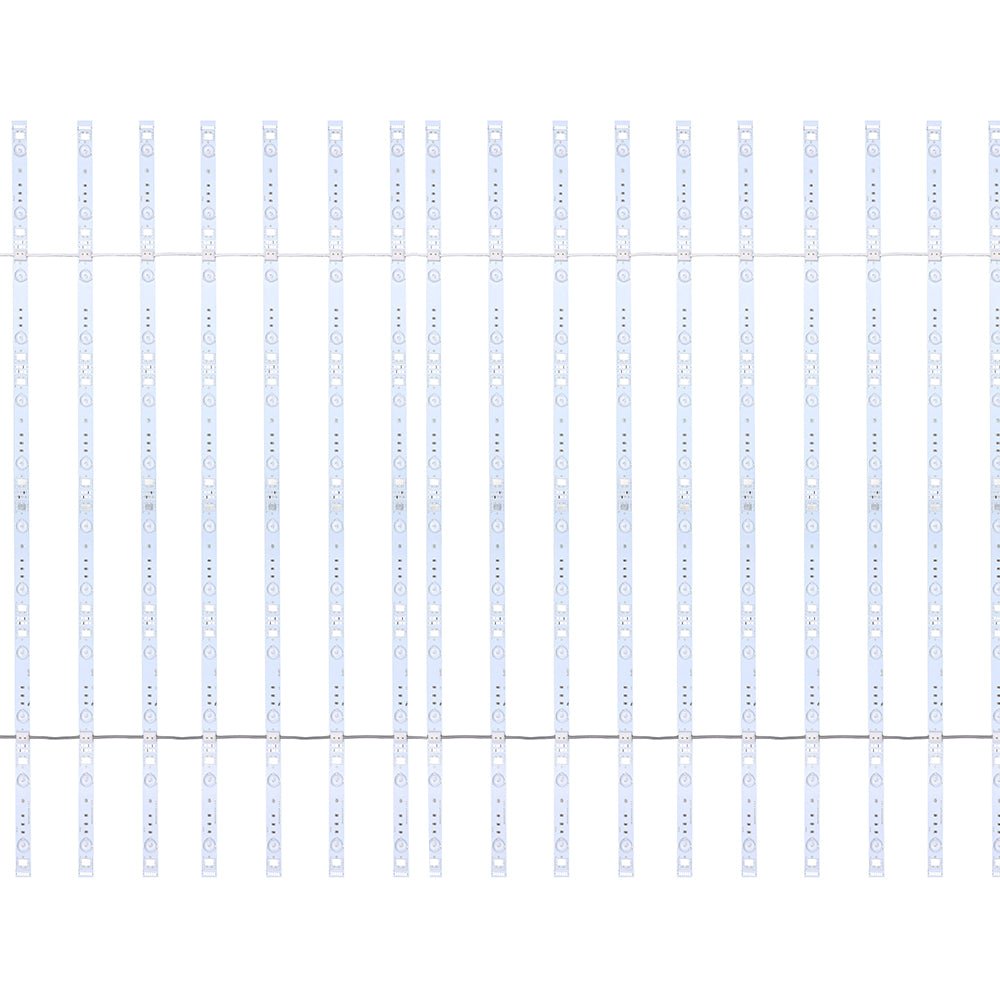

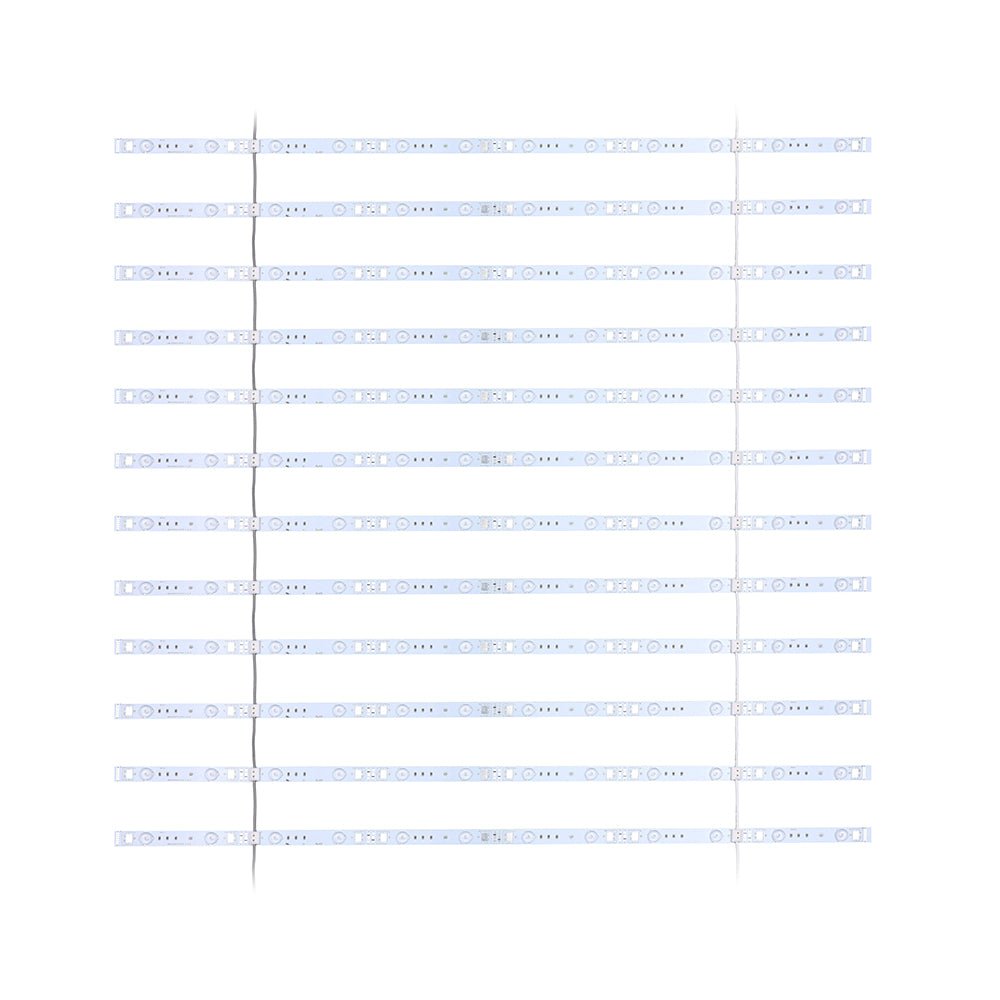

Please Note:-?If you want to connect, for example, 40pcs it should be two-end input for a series connection or 2 x 20pcs parallel connection.

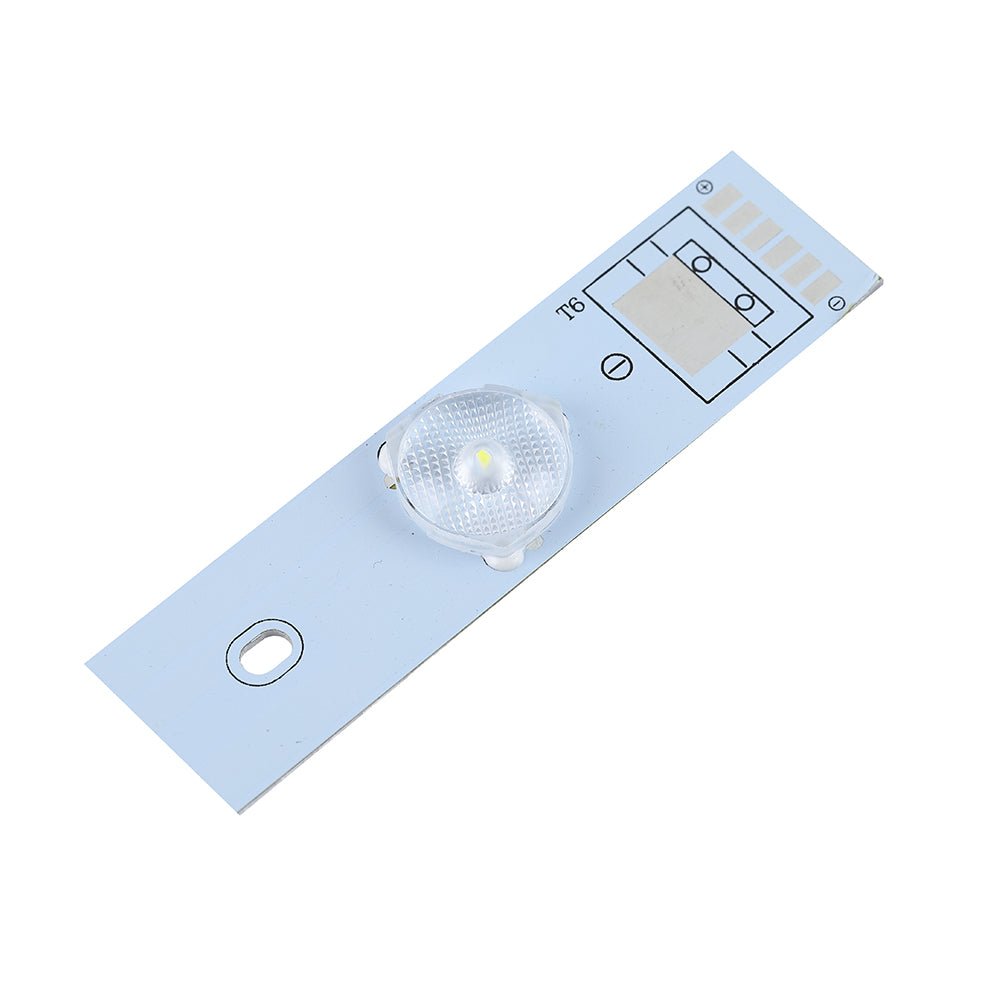

Utilizing the power of SMD LED chips and high quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.
The LED module has multiple uses such as sign lighting, back lighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilise up to 3 modules per square foot of an area.
The module being certified by CE, UL and RoHS meets the minimum regulation for product safety, health and environmental conditions. It’s a risk-free product as you have 5 years of warranty from the manufacturer’s end.
A CRI of above or equal to 75 on a scale of 100 means the module is above average in color rendering of objects and considered ideal for outdoor depth sign lighting. Further, this module prevents ingress of dust, moisture, shock or even water up to a certain degree.
| Beam Angle: | 170 Deg Beam Angle |
| Brightness: | 1200 Lumens |
| Certifications: | UL, RoHS Listed |
| Color Temperature (Kelvin): | 7000 Kelvin |
| Fixture Color: | Pure white |
| LED Type: | SMD2835 |
| Lumens: | 1200 Lumens |
| Safety Rating: | UL, RoHS Listed |
| UPC: | 719034339719 |
| Warranty: | 3 Years |
| Operating Temperature: | -13 Degree F To 140 Degree F |
| Brand: | LEDMyplace |
| CCT: | 7000 Kelvin |
| Color Rendering Index(CRI): | >75 CRI |
| Dimensions (L x W x H): | 37.80x0.78x0.28 |
| IP Rating: | IP33 Rated |
| Life Hours: | 30,000 Hours |
| MPN (Part No.): | MD011 |
| SKU: | WEN-YE12LC1-96-80 |
| Voltage: | 24V DC |
| Wattage: | 12Watt |
