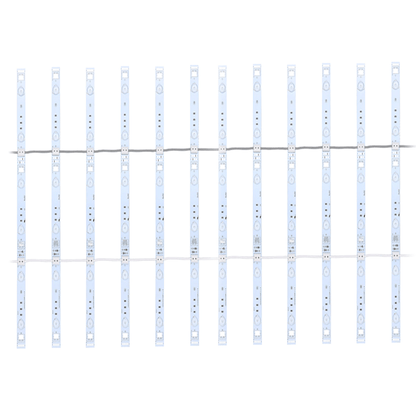

12-Pcs Flexible LED Back Lighting Series With Tape Adhesive Backside, DC24V, 6W/bar, 600LM, 7000K, IP33, UL, RoHS Listed, Pure White

Skip to product information
1 of 5

12-Pcs Flexible LED Back Lighting Series With Tape Adhesive Backside, DC24V, 6W/bar, 600LM, 7000K, IP33, UL, RoHS Listed, Pure White

  • 30 Days Return
  • 3 Years Warranty
Size: 1-Box(12-Bars)

LED Backlighting Series, Dim-18.90x0.78x0.28, 6 LED/Module, For Signage, Backlighting, Trade Show, Display

The High Efficiency LED Sign Modules, and Sign Bars are designed to produce high performance with excellent color tone and no dark spots. Enhance the modern Lighting in your space with the innovative LED Sign Modules and Sign Bars. These 6 W LED Sign Modules, and Sign Bars come with a CCT of 7000 K. These light fixtures are designed to be very suitable for reading or studying and are available in three colors: Red, Green, and White. With a lumen output of 600 Lumens, these LED Sign Lighting Fixtures are highly durable. It's a UL and RoHS certified light fixture that comes with a lifespan of 50,000 hours and a manufacturer warranty of 3-years.

Deg Beam Angle

Features of LED Module - Pure White - 6 LED/Module -  6W

  • Available Wattage: 6W
  • Color Temperature Available: 7000K
  • Luminous Flux Available: 600 Lumens
  • Beam angle: 170°
  • Lifespan: 30,000 hours
  • Voltage: 24V DC
  • CRI >75
  • IP33 Rated
  • Working Temp: -13°F to 140°F
  • Dimension: 18.90x0.78x0.28 In
  • UL, CE and RoHS certified.

LED Module 160° Beam Angle

Utilizing the power of SMD LED chips and high-quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.

LED Module Recommended For Airports, metros, Banks, Buildings And Shopping Malls, etc.

The LED module has multiple uses such as sign lighting, back lighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilise up to 3 modules per square foot of an area.

No Spot Good Color Conformity

The SMD LED chips of 2835 grade are much brighter than many other LED chips and provide for perfect color conformity when there is a demand for display lighting.


Beam Angle: 170 Deg Beam Angle
Brightness: 600 Lumens
Certifications: UL, RoHS Listed
Color Temperature (Kelvin): 7000 Kelvin
Fixture Color: Pure white
LED Type: SMD2835
Lumens: 600 Lumens
Safety Rating: UL, RoHS Listed
UPC: 719034339702
Warranty: 3 Years
Operating Temperature: -13 Degree F To 140 Degree F
Brand: LEDMyplace
CCT: 7000 Kelvin
Color Rendering Index(CRI): >75 CRI
Dimensions (L x W x H): 18.90x0.78x0.28
IP Rating: IP33 Rated
Life Hours: 30,000 Hours
MPN (Part No.): MD010
SKU: WEN-YE06LC1-48-80
Voltage: 24V DC
Wattage: 6Watt
