The 150W LED shoebox light or LED Pole Light from LEDMyplace is available in slim & sleek design; as light-weight; and in bronze color. Having a beam angle of 150*85 degree (Type III lighting) and being available in color temperature of 5700K day white light), the LED pole light while delivering 21000 lumens makes for a perfect security light. As UL certified product, this product provides for complete safety when installing on poles in any outdoor area.
This product can save you at least 75-80% savings in energy while also providing for high-intensity, broad-beamed, general purpose lighting, security lighting, leisure lighting etc.

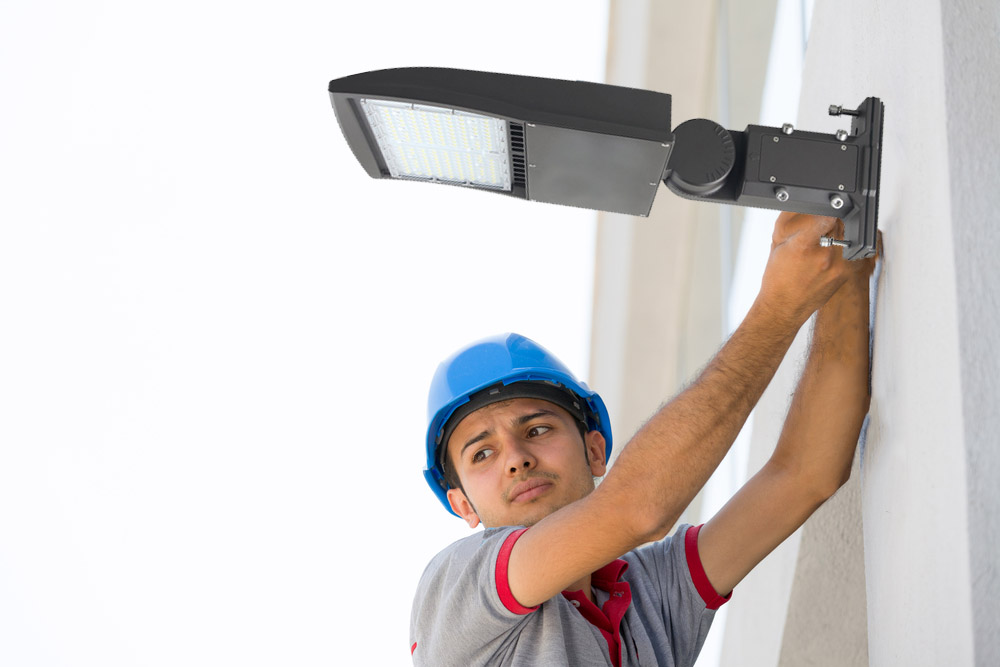

- Easy Installation.
- Instant Start.
- High Lumen Output.
- Dust & Moisture-Resistant Lighting Fixture.
- Lifespan Not < 50,000 Hours.
- Excellent Thermal Management.
- Extreme Temperature Condition.
- Aluminium Housing.
- 5700K Color Temperature.
- 5 Years of manufacturer’s Warranty.
- Rebate Eligible Product.

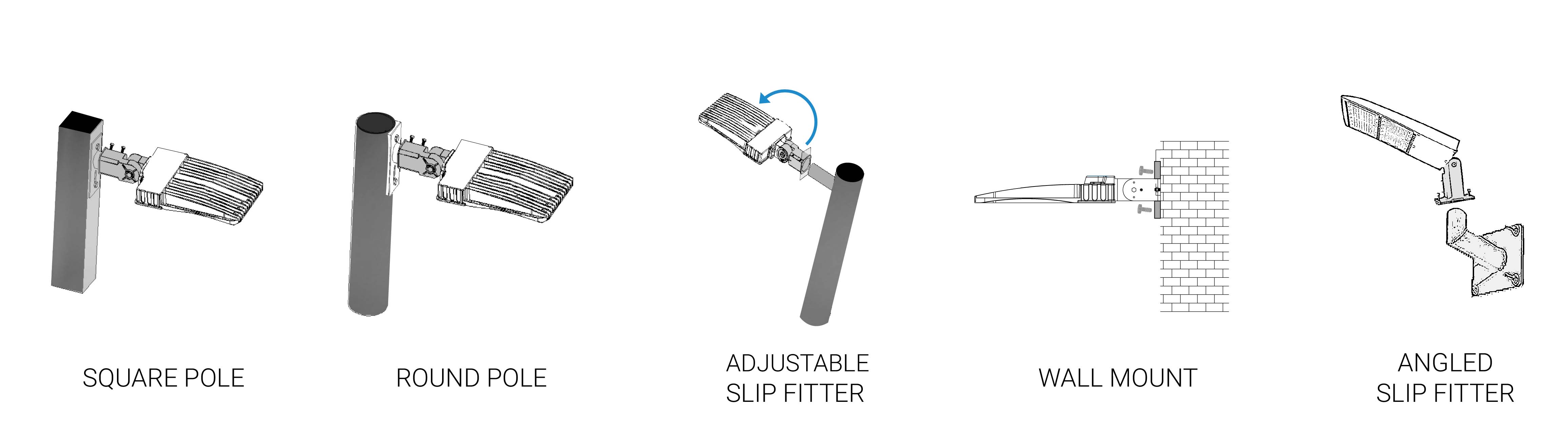

Our outdoor LED pole light can be installed with enough ease and can be installed on round or square poles. The mounting option available with this pole light is Universal mounting option when you can change the position of the lighting fixture in three different ways -- yoke, adjustable slipfitter or knuckle mounting.
As an user, it’s important to understand how important IP ratings are, when making a decision to purchase any lighting fixture. The LED pole light rated as IP65 protects the fixture against dust and water.
PCB mounted LED technology comprises of multi-cluster LED's on a single metal core board. Polycarbonate prismatic optics ensure longevity and minimize dirt depreciation. Zero uptight optics reduce sky glow and meets dark sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniform light distribution, especially over wide areas and spaces.
Rugged die-cast, low copper content aluminum housing is powder coated for durability and corrosion resistance. Rigorous pre-treating and painting process yields a ﬁnish that achieves longer lifespan for the fixture. Two bolt horizontal arm mount with 180 degree vertical adjustment provides 3G vibration rating per ANSI C136

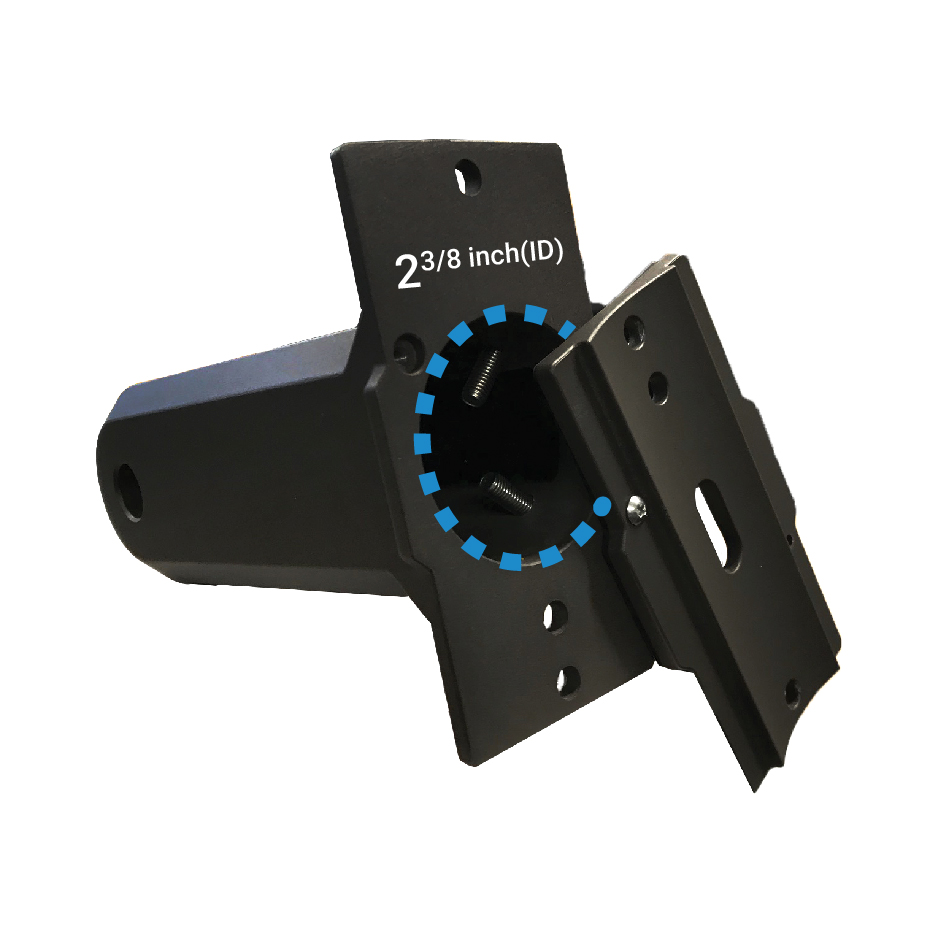

Universal Mounting (all-in-one)
LEDMyplace offers one of the best mounting options that lowers your installation costs by enabling a hassle-free, easy self-installation. Apart from easy self-installation process, the universal mounting option also reduces your time by not requiring any re-drilling or cutting any pole tops when allowing for a change in the mounting process. With just two holes inside the poles and with just two bolts, you can easily undertake Universal mounting (Slip, Direct and Adjustable Mount). Our 150W LED pole light luminaire thus enables mounting in two ways -- vertical and horizontal. And, what you get out of these options is -- an enhanced optical control and to a certain extent, the luminaire efficiency.
Thermal Heat Dissipation
Although LEDs are cool to the touch, within the fixture itself, there is plenty of heat that needs to be dissipated for effective thermal management. The High performance modular LED fixtures are engineered to remove heat through efficient thermal management. Without good heat sinking, the junction (internal) temperature of the LED rises, shortening the life of diodes causing loss of; the brightness and efficiency of your LED but this junction temperature affects the overall lifetime of the LED as well. Our outdoor LED pole light has been designed in such a way that through its massive heat sink made of die-cast rugged aluminium housing, it can operate safely and securely at any point in time and provides outstanding life for the luminaire.

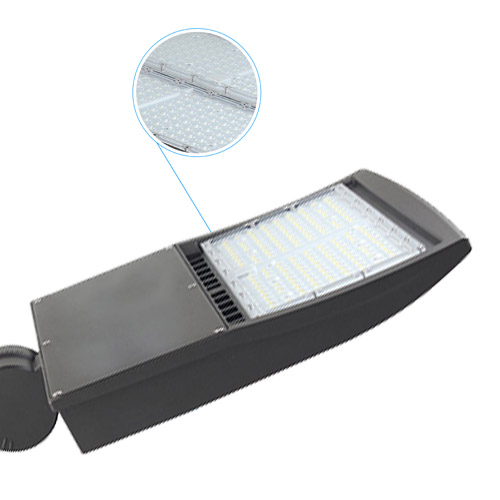

Ultra Wide Angle Lens

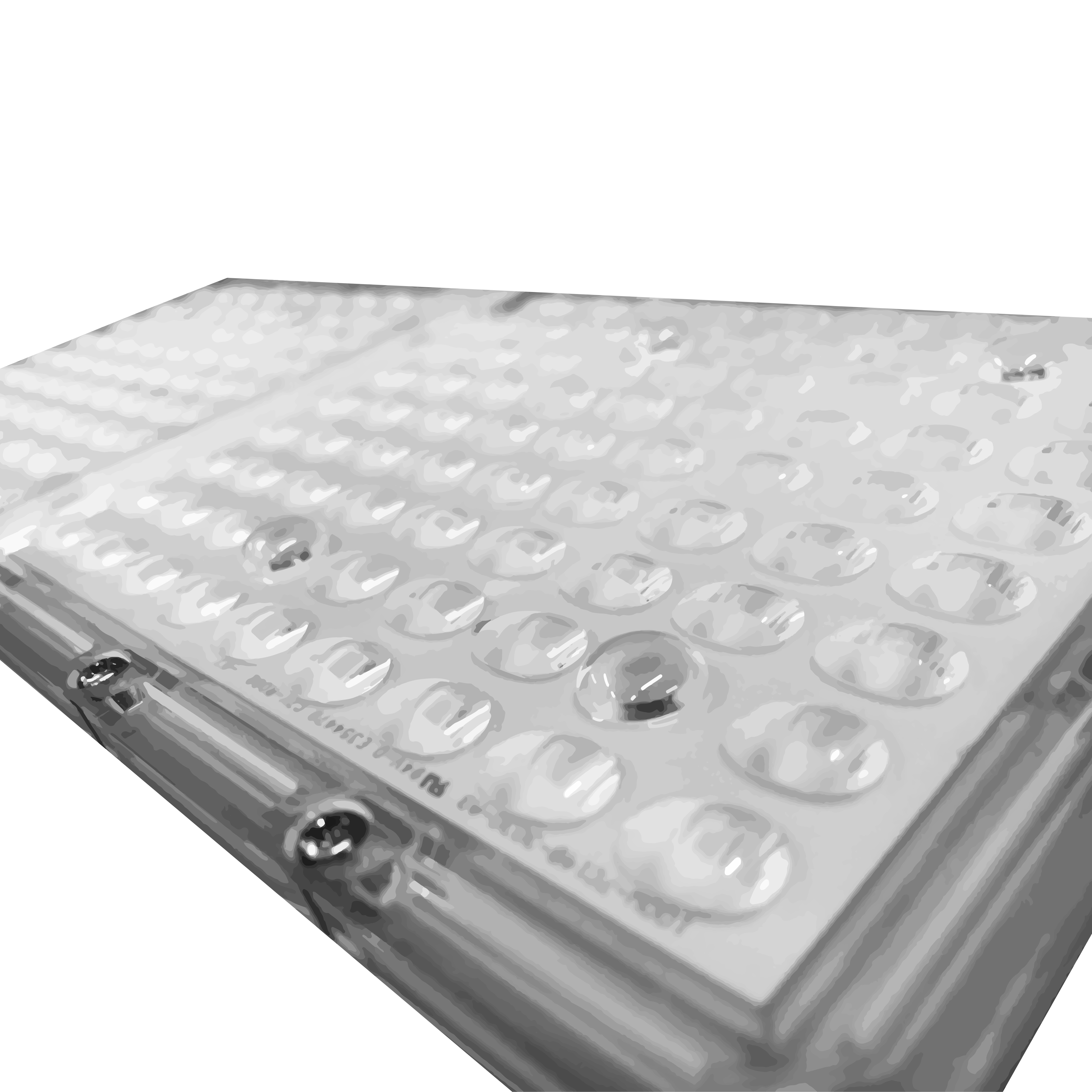

The PCB mounted LED technology comprised of multi-cluster LED's on single metal core board and is available in a color temperature of 3 5700K with CRI of 70 minimum. Polycarbonate prismatic optics ensure longevity and maximise dirt and bug resistance. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.
Premium LED Chips
Our premium LED chips comprise of highly efficient quality materials that deliver superior price/performance for high-intensity LEDs. Typical features of these premium LED Chips include Low heat generation, savings in energy, environmental-friendliness and long service life.

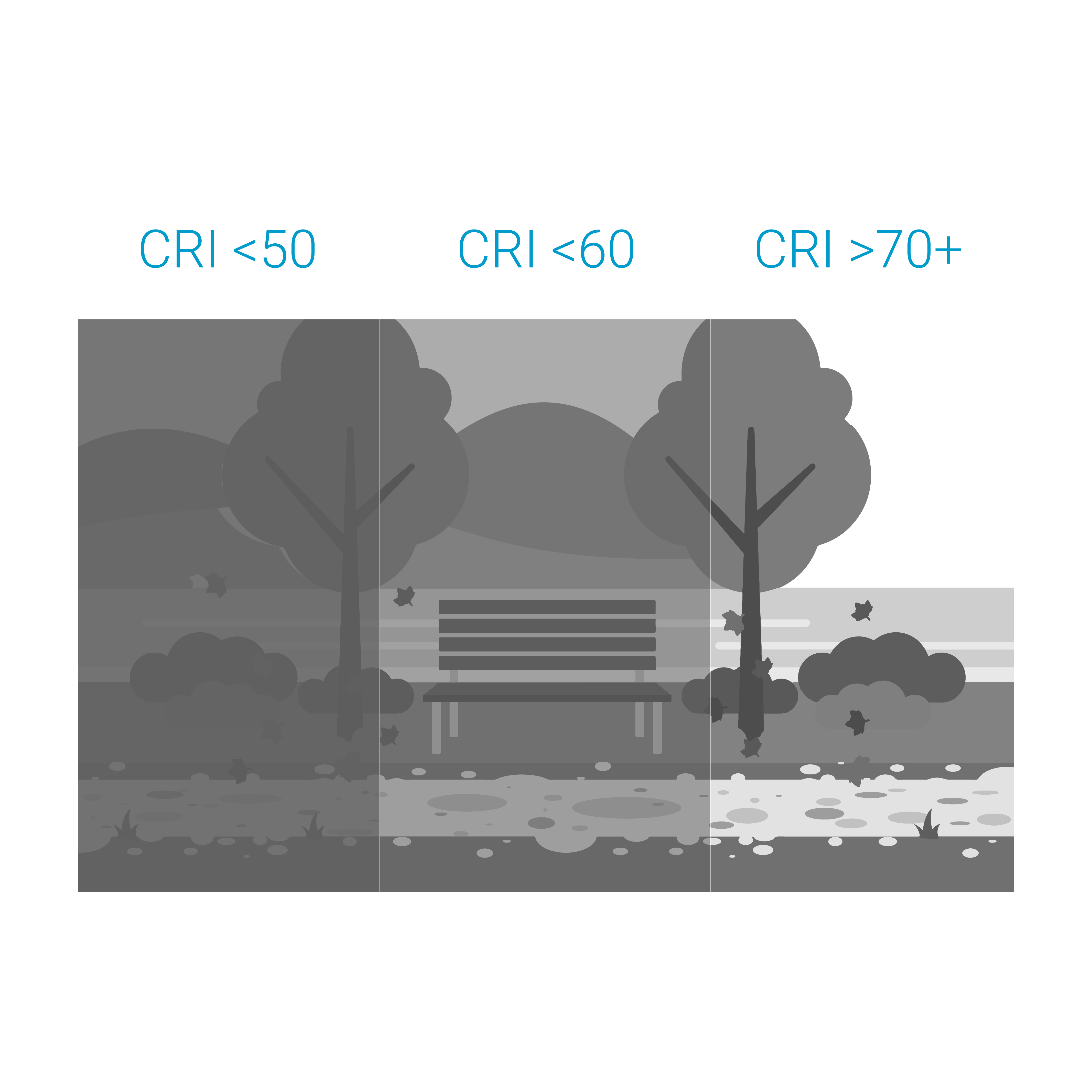

The LED Pole Light 150W delivers true-to-life colors with a Color Rendering Index (CRI) of >70 and optical distributions that are optimized for automotive frontlines, large parking lots and high mast applications.
Low Cost Maintenance
LED lighting uses significantly fewer watts than conventional lighting. But that's not the only savings you enjoy when selecting LED lighting. Conventional bulbs have a shorter operating lifetime compared to LED lighting. If you are using conventional bulbs you will be purchasing up to four times as many bulbs or fixtures compared to a single LED replacement with a long operating lifetime. Buying and using conventional bulbs and fixtures also means that you incur three-four times more maintenance as well as replacement costs compared to LED lighting.
LEDMyplace 300W Pole Light with Photocell Sensor are UL, CUL, DLC, CE, ROHS Approved, making them stand eligible for rebates with MOST of the electric companies (we can help with paperwork also)
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
**For any other Dimmer please contact our customer support or check with your electrician.
|Beam Angle:||150x85° Beam Angle|
|Certifications:||UL CUL, DLC Listed|
|Color Temperature (Kelvin):||5700 Kelvin|
|DLC Model no.:||WEN-S-G07B-150WCT3A2|
|Metal Halide Equal:||450 Watt Replacement|
|Operating Temprature:||-40° F to 113° F|
|Safety Rating:||UL CUL Listed|
|Color Rendering Index(CRI):||>70 CRI|
|Dimensions (L x W x H):||22.20x13.11x6.30|
|IP Rating:||IP65 Rated|
|Life Hours:||50,000 Hours|
|MPN (Part No.):||PL048|
Questions & AnswersAsk a Question
Will these work on a 208 volt circuit?
Yes, they're rated anywhere from 100-277V.
How do you connect the dimming wires?
Please contact our customer support for Dimmers wiring instructions for this light.
