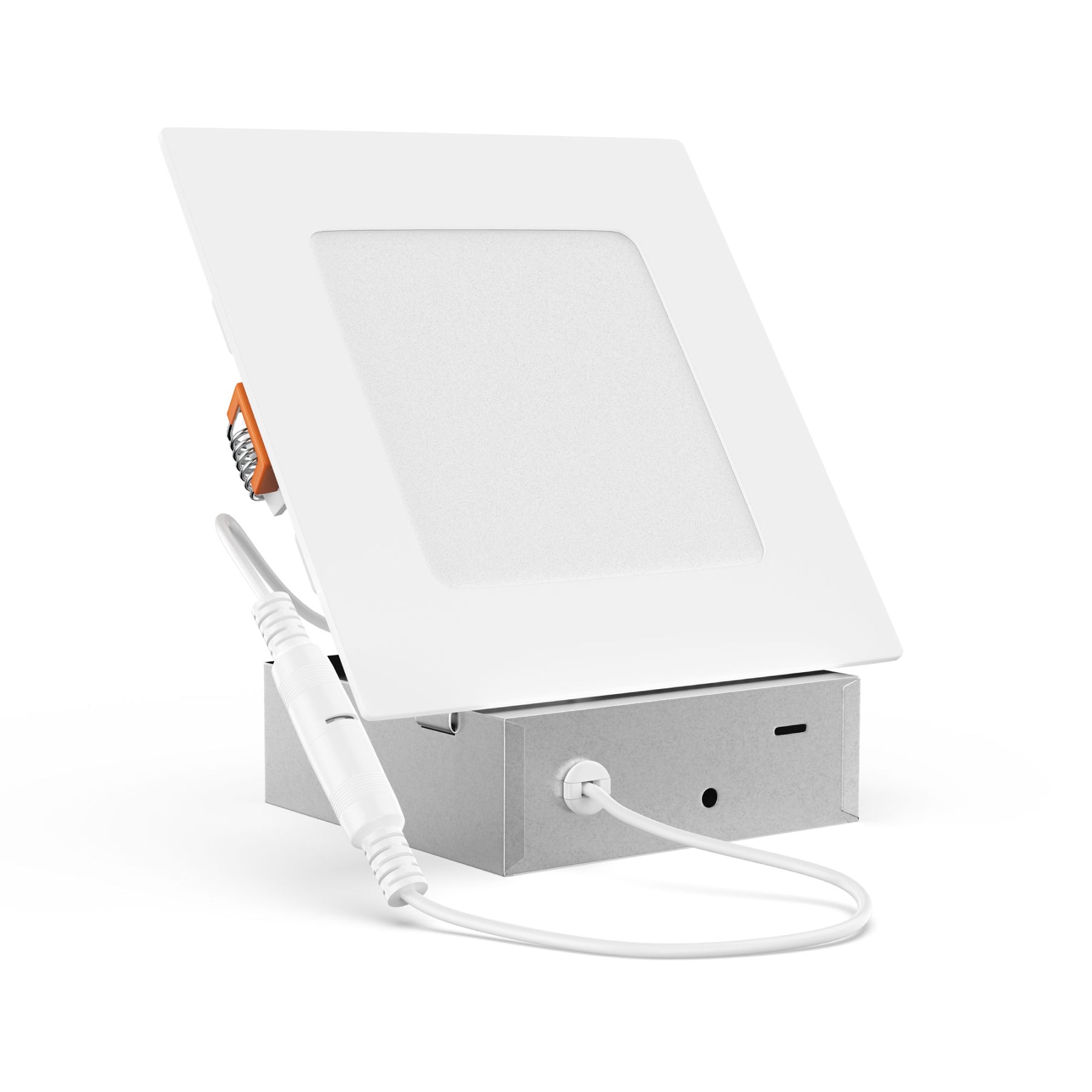

4 inch LED Recessed Downlights of square shape are designed for new or remodel applications like Home, Shop, and Hotel. It features a design that facilitates mounting in confined ceiling areas or soffits. This slim fixture is easy to install, which does not require a separate housing, and the recessed fixture is to mount directly into the ceiling. The Recessed Downlight fixture is IP Rated, making it suitable for the Damp location, and is dimmable with leading-edge LED dimmers. Available in 4" size in square shape, three color temperature options are available - 3000K, 4000K, and 5000K. You can choose the particular color temperature as per your requirements. This Downlight features an LED driver that offers 120-Volt dimming capability. It provides uniform illumination as it disperses the light on a 120-degree beam angle. The recessed Downlight has a lifespan of 50,000 hours and meets the ETL, ES, FCC standards. You will get the five years of Manufacturer's Warranty on the purchasing of this product.
Features of 4inch LED Recessed Square Downlight:

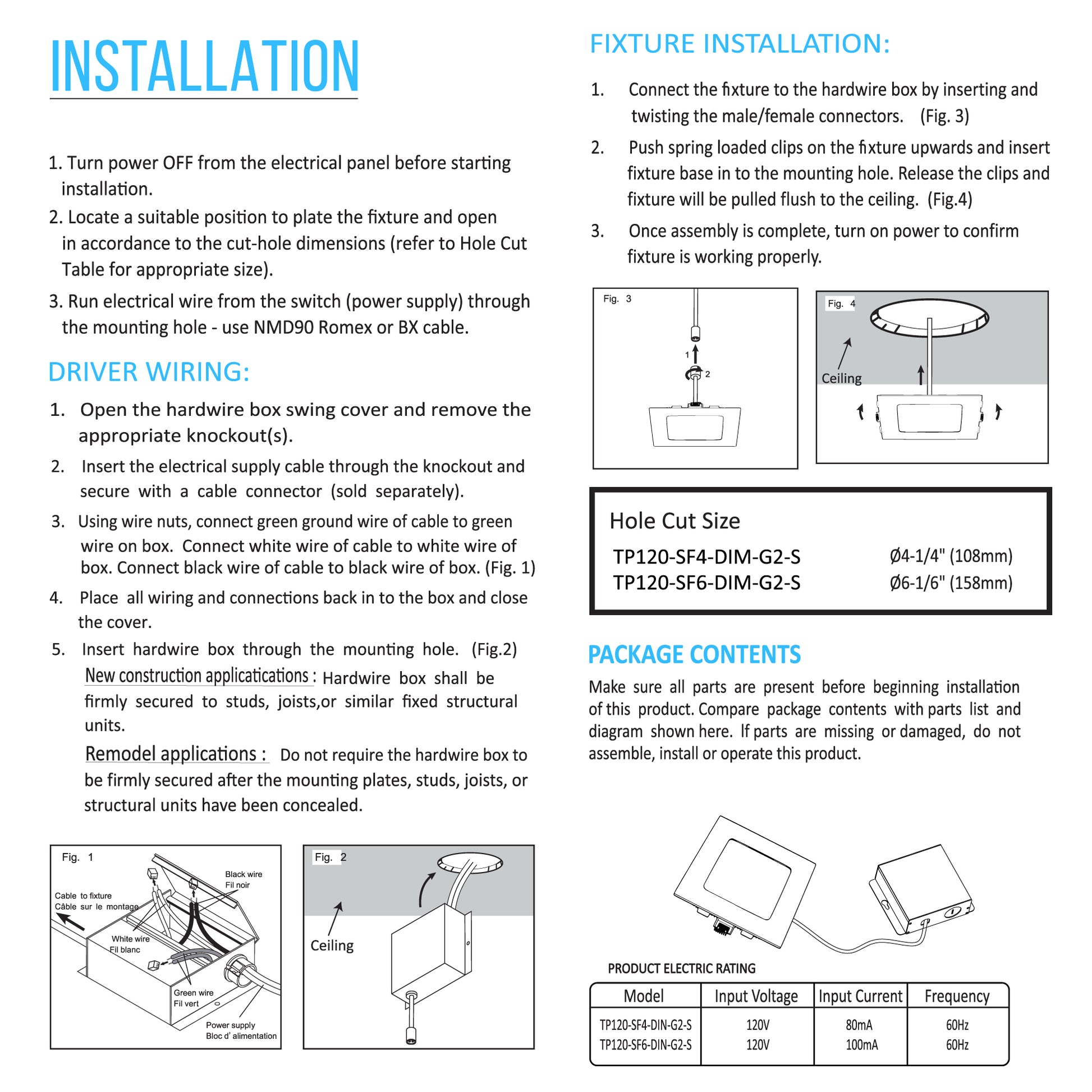

The installation of this dimmable LED downlight takes place in easy steps with first switching off the power supply and then taking out the existing downlight from the fixture. Next, you must twist the adapter in the socket and then insert the connector into the socket. Insert the dimmable LED downlight trip.
Make sure, you have a compatible dimmer installed for our dimmable LED downlight to dim appropriately. For details, you must read the instruction booklet. If not able to self-install, you must consult an electrician.
Nowhere you will find any dark spot when using this dimmable LED downlight in its full non-dimming mode. The light distribution is uniform and even with the light spread at a wider beam angle.
The Color Rendering Index is a measurement of the light source to display the color of objects accurately, realistically, and naturally. With reference light as daylight or natural light, CRI is measured on a scale of 0-100. LED lighting products usually have a CRI of 70 or above 70 with different indexes useful to different applications. A CRI of >80 for dimmable LED downlights means they are good for retail or any other commercial application when the objective is to accurately display the merchandise.
The dimmable LED downlight utilizes a wide beam angle of 120-degree to illuminate large spaces when your objective is to have a non-directional light. The distribution of light is in such a way that no specific objects are highlighted and rather the light distribution is uniform and even.
This dimmable LED downlight is available in a slim & sleek design to allow for easy mounting on low ceilings and in spaces where only ultra-thin lights can be accommodated.
The housing for this dimmable LED downlight is made of rugged die-cast aluminum for better durability.
The dimmable LED downlight for dimming purposes uses a low-voltage dimming driver. The driver works best for the commercial application having 0-10V systems, thus providing for smooth dimming. Also, this 0-10V driver is compatible with a 0-10V dimmer.
The dimmable LED downlight is an energy-saving option over conventional lights. When you make a switch from an incandescent or halogen light to our dimmable LED downlight, you bring about 88% in energy savings. This is because, by design, the LED downlights are superior and use the latest technology for less power-drawing from the source.
| Beam Angle: | 120° Beam Angle |
| Certifications: | ETL, Energy Star Listed |
| Color Temperature (Kelvin): | 3000K, 4000K, 5000 kelvin |
| Housing: | Aluminum |
| LED Type: | SMD2835 |
| Light Distribution: | 72 Lm/W |
| MPN (Part No.): | DW063 |
| Replaces: | 35 Watt Replacement |
| Voltage: | 120 Volt |
| Wattage: | 9 Watt |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | >80 CRI |
| Dimmable: | Triac dimming |
| IP Rating: | Damp Location |
| Life Hours: | >50,000 Hours |
| Lumens: | 650 Lumens |
| Power Factor: | 0.9 |
| SKU: | WEN-DL4-9W-DIM-30-WD-S.1pk,WEN-DL4-9W-DIM-40-WD-S.1pk,WEN-DL4-9W-DIM-50-WD-S.1pk |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
