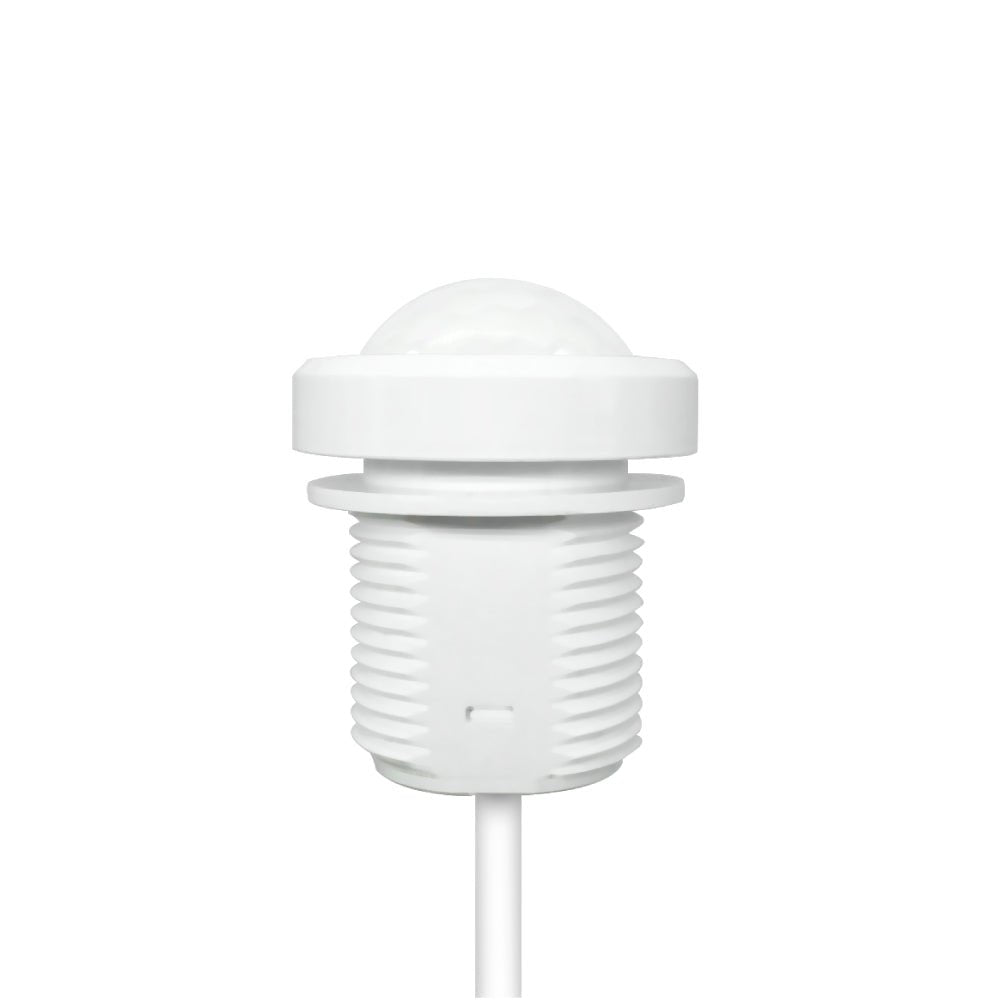

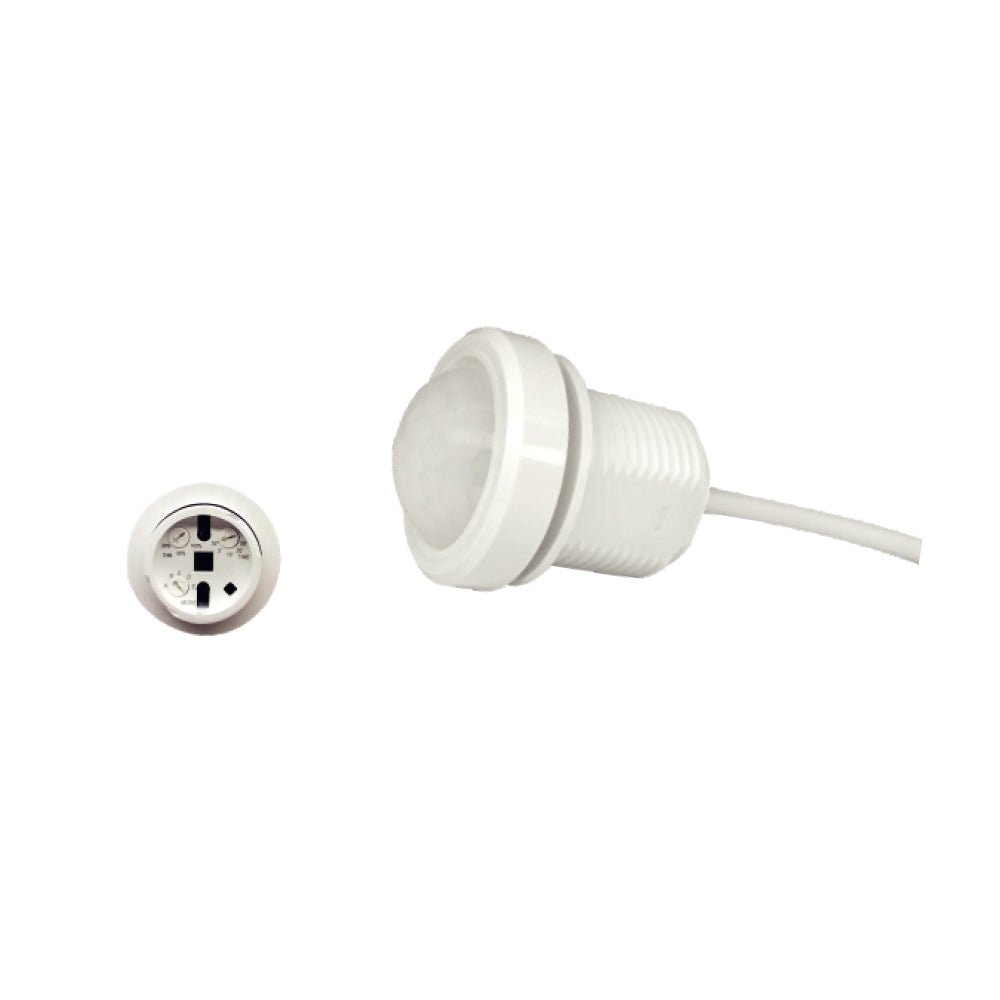

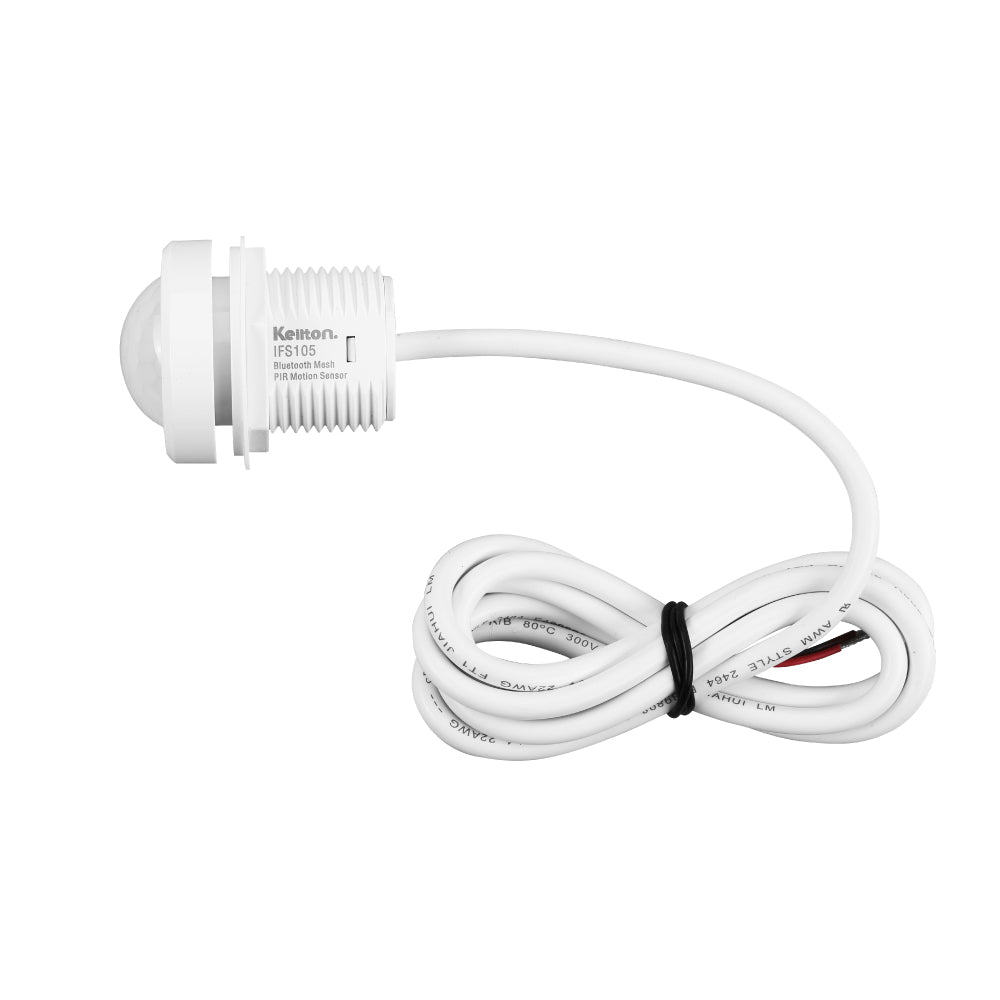

Integrated PIR Motion Sensor for Bluetooth Power Pack

0-10V Bluetooth PIR Occupancy Sensor

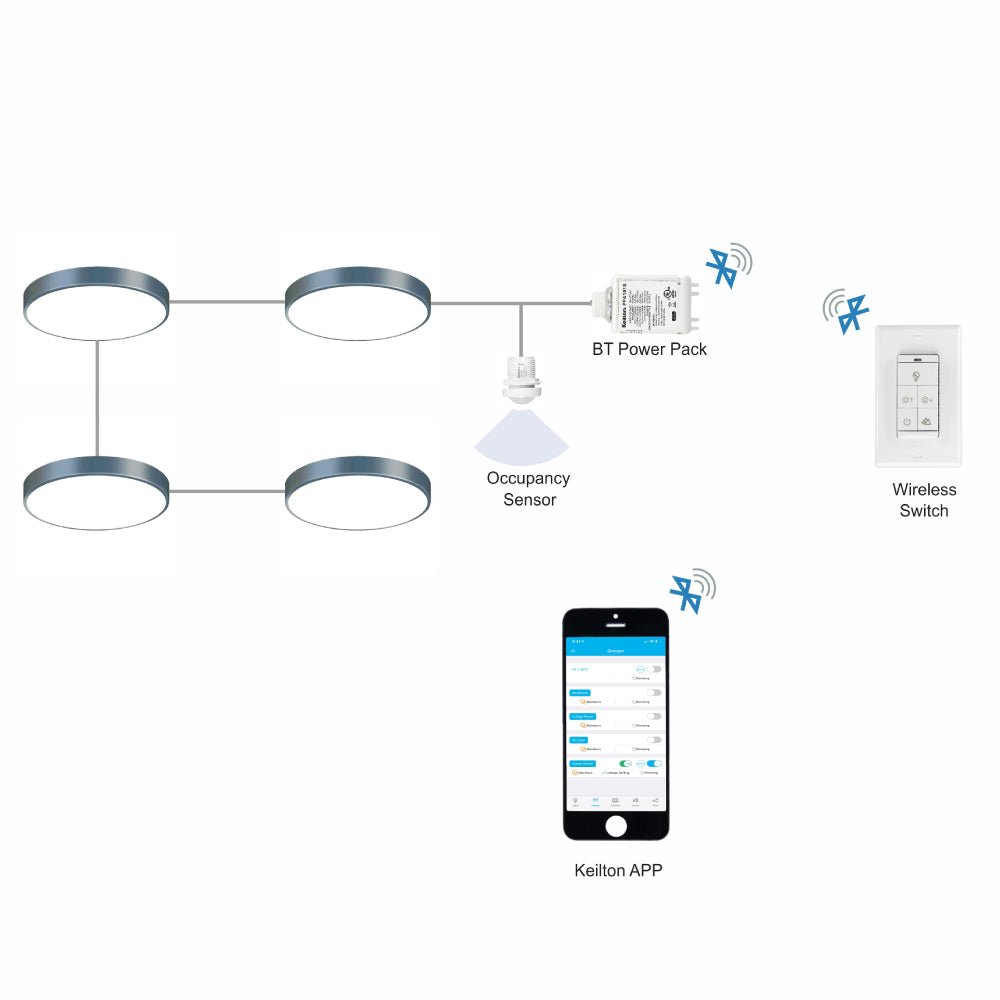

The PIR 0-10 volt occupancy sensor is specifically designed to be mounted upon a fixture or electrical junction box to control 0-10 volt dimmable fixtures so that the lights remain on even without motion detection. The detectable speed of the sensor is 0.3-3 meters/second. The sensor can be controlled by an inbuilt mobile app as well.

FEATURES

• Controls 0-10V dimmable ballasts for daylight harvesting applications
• Operating range of -40 to 149°F (-40 to 65°)

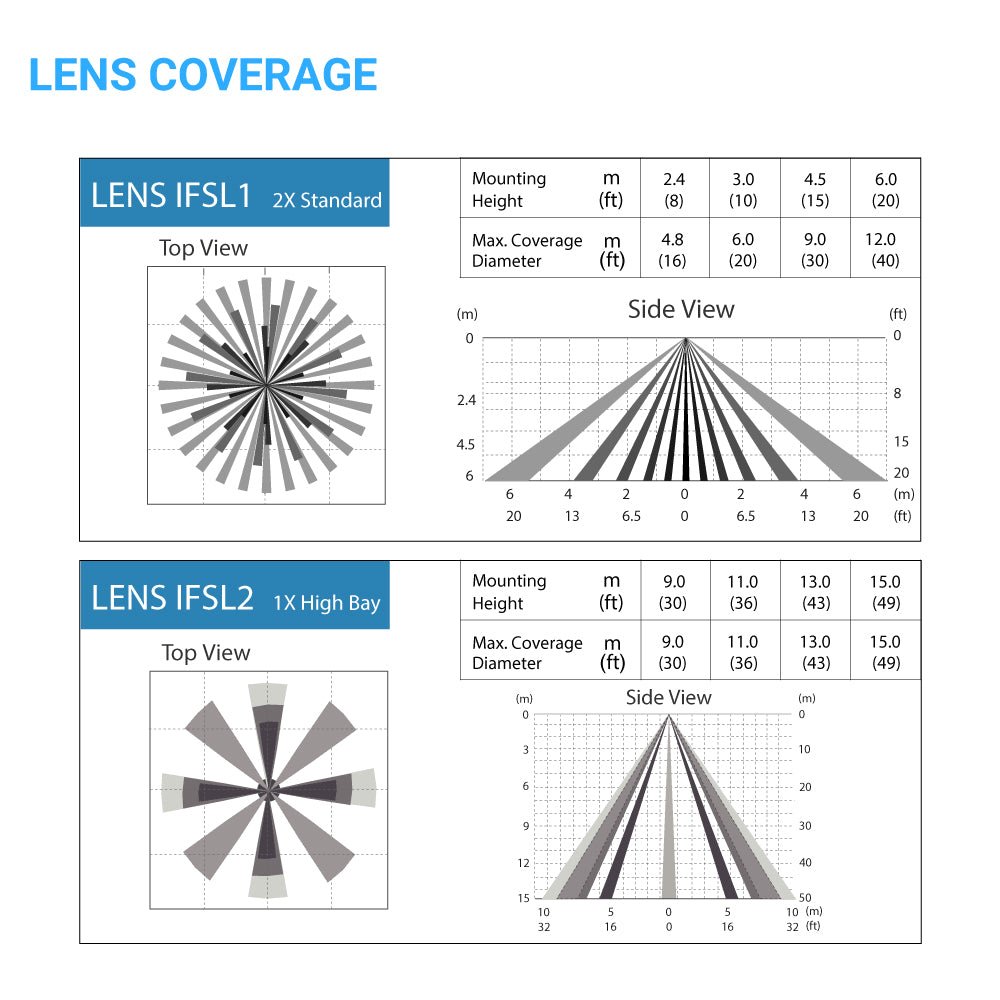

• The total detection range of 40 feet;
