LED Canopy Light 75W 5700K Daylight 9750LM IP65 Waterproof 0-10V Dim 120-277VAC Surface or Pendant Mount, for Gas Stations Outdoor Area Light, White - 1-Pack

Write a review
Apply for Terms (Net 30/60)
MPN: CN011
Regular Price: $116.05
$72.99
Save $43.06 (38%)
Click here for bulk orders!
  • 30 Days Return
  • 5 Years Warranty
spec-video

Installation

spec-video

Spec Sheet

Pack: 1-Pack
Total:$72.99
Expert Help 815-697-5223

75W Waterproof Canopy LED Lights for Garage Shop Indoor Parking Underpasses Outdoor Carport Ceiling Light White

LEDMyplace brings to you 75W Outdoor LED Canopy Light Fixture available in a slim and sleek design and in the color temperature of 5700K. This is a high-performance lighting fixture, capable of being mounted on any soft fit/canopy, and is perfect for gas stations. Because of its unique design, this outdoor lighting fixture is suitable for gas stations. In extreme contrast to conventional metal-halides or sodium-vapor lamps, this 75W canopy light fixture can bring in 75% of energy savings.

The product is dimmable from 0-10V to allow for further savings in energy during downtime. The product also has CRI >70 and a lumen output of 9750 lumens, this product provides for excellent viewing of objects and spaces within the viewing range or light beam angle. The housing constructed of rugged die-cast aluminum with an integral heat sink makes it an ideal luminaire for businesses operating 24/7. The fixture is suitable for wet locations making it a perfect fit for gas stations.

9750
Lumens
110
Beam Angle
120-277
Voltage
>70
CRI
75
Watt

Feature of LED Square Outside Canopy Lights:

  • Available Wattage: 75W
  • Available Color Temperature: 5700K
  • Wattage Equivalent: 262W
  • Lifespan - 50,000 hours
  • Voltage: 120V - 277V
  • IP65 rated
  • 5 years of Manufacturer's Warranty

features Specs.

Easy Installation

The LED Canopy light can be easily installed by undertaking surface mounting and in places where the temperature does not exceed 122 degrees F. While the product can not be recess mounted, it is installed by mounting the fixture plate to J-Box with two screws. Follow the manufacturer’s instructions for complete installation steps.

Rugged Metal

The product comes with an internal heat sink made of aluminum for dissipating the heat that is produced during its operation.

Thermal Heat Dissipation

The product comes with an internal heat sink made of aluminum for dissipating the heat that is produced during its operation

Premium LED Chips:

In order to maintain the highest quality of the product, we use Lumileds 2835 chip. The chips are packaged inside the product with high precision and accuracy to render maximum operational efficiency to the product.

IP 65 Rated

The internal driver inside the LED canopy light is rated as IP65 which means the product is ensured against dust and water coming from a nozzle.

Ultra-Wide Beam Angle

The product has a very wide beam angle (also known as very wide flood) for illumination of large areas and spaces without highlighting any specific object. This kind of beam angle works best for low-ceilings. There is a limited light loss with this kind of beam angle.

Low Maintenance Cost

The LED canopy lights from LEDMyPlace are designed to last for not less than 50,000 hours and that means there is no hassle of replacing the lamp.

0-10V Dimmable


This product can be dimmed to 0 volts when the LED canopy light will get completely turned off or dimmed to the lowest possible. At 10V, the light can be dimmed to 100% of its potential output.

Shatter Proof Lens

The LED canopy light has a shatterproof lens so that it will be unbreakable when exposed to external stress or strain.

Installation

  • UL Certification

    UL Certification

    UL (Underwriter Laboratories) certification is recognized by NRTL (Nationally Recognized Testing Laboratories) – an organization regulated by OSHA (U.S. Occupational Safety and Health Administration). Commonly seen on electrical products, a UL certificate signifies that the products are safe to use in public spaces. They are checked for hazardous elements and once the lights pass the test, they are certified by UL.





Green, Eco-Friendly & Mercury-Free
Taking care of the environment is a responsibility that everyone should feel accountable for. The good thing is that lights and luminaries available at LEDMyPlace comply with environmental safety and can be categorized as Green Lights. These lights are completely free from toxic and hazardous chemicals like Mercury and Lead.

Using them, you not only save money, but you help contribute towards reducing the environmental impact of traditional bulbs on the Earth.

5-Year Hassle-free Warranty & 30-Day Return Policy
All our products come with a 5-year manufacturer warranty that gives you peace of mind knowing that in case of any operational fails - we have your back.

If, in case you are not simply satisfied with your order parcel within 30 days of receiving it, you can talk it out with us and look forward to a refund.

For any of the above problems, all you have to do is get connected with one of our Customer Care Executives and we can take it forward from there on.

Specifications

Beam Angle: 110 Beam Angle
CCT: 5700 Kelvin
Color Temperature (Kelvin): 5700K
Dimmable: 0-10V Dimmable
IP Rating: IP65 Rated
Lumens: 9750 Lumens
Replaces: 262 Watt Replacement
Voltage: 120-277 Volt
Wattage: 75 Watt
Brand: LEDMyplace
Color Rendering Index(CRI): >70 CRI

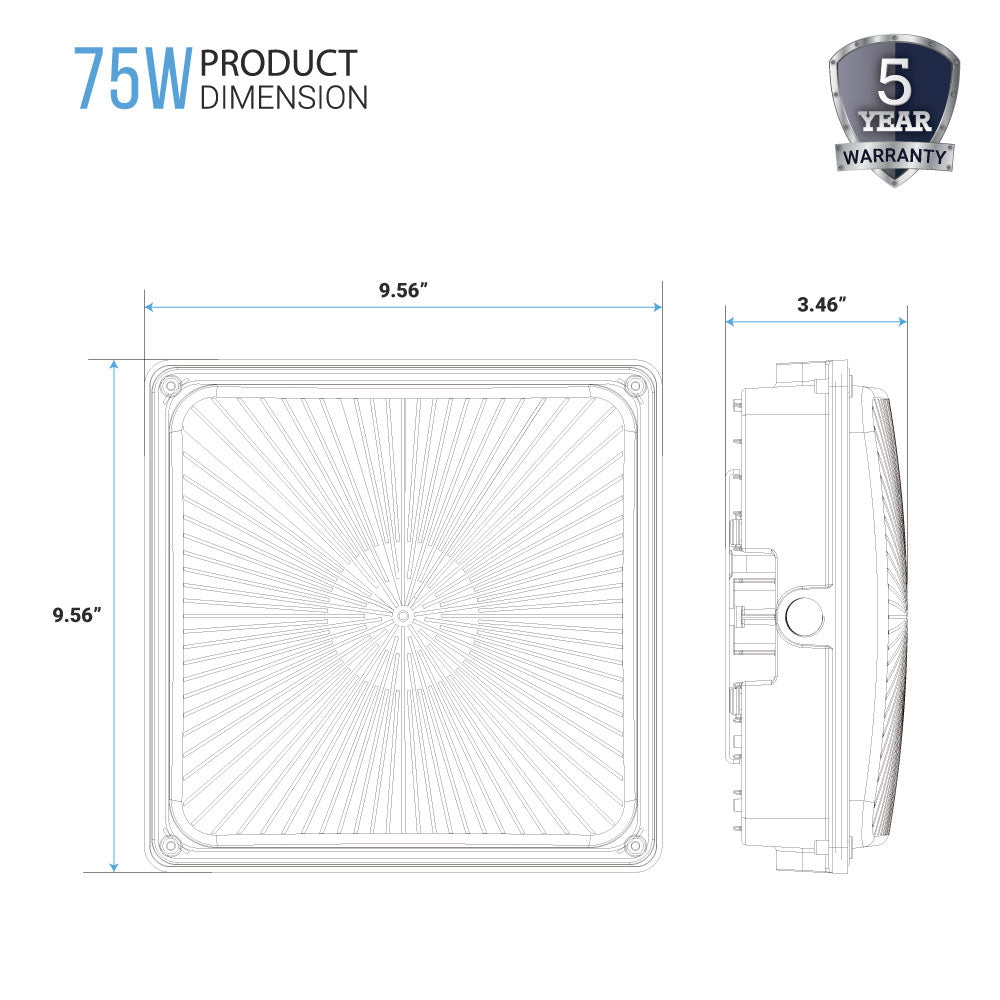

Dimensions (L x W x H): 9.56 x 9.56 x 3.46
Housing: Aluminum
Life Hours: 50,000 Hours
MPN (Part No.): CN011
SKU: WEN-BWCP-75W-57-WH
Warranty: 5 Years
Operating Temperature: -40 Degree F To +122 Degree F

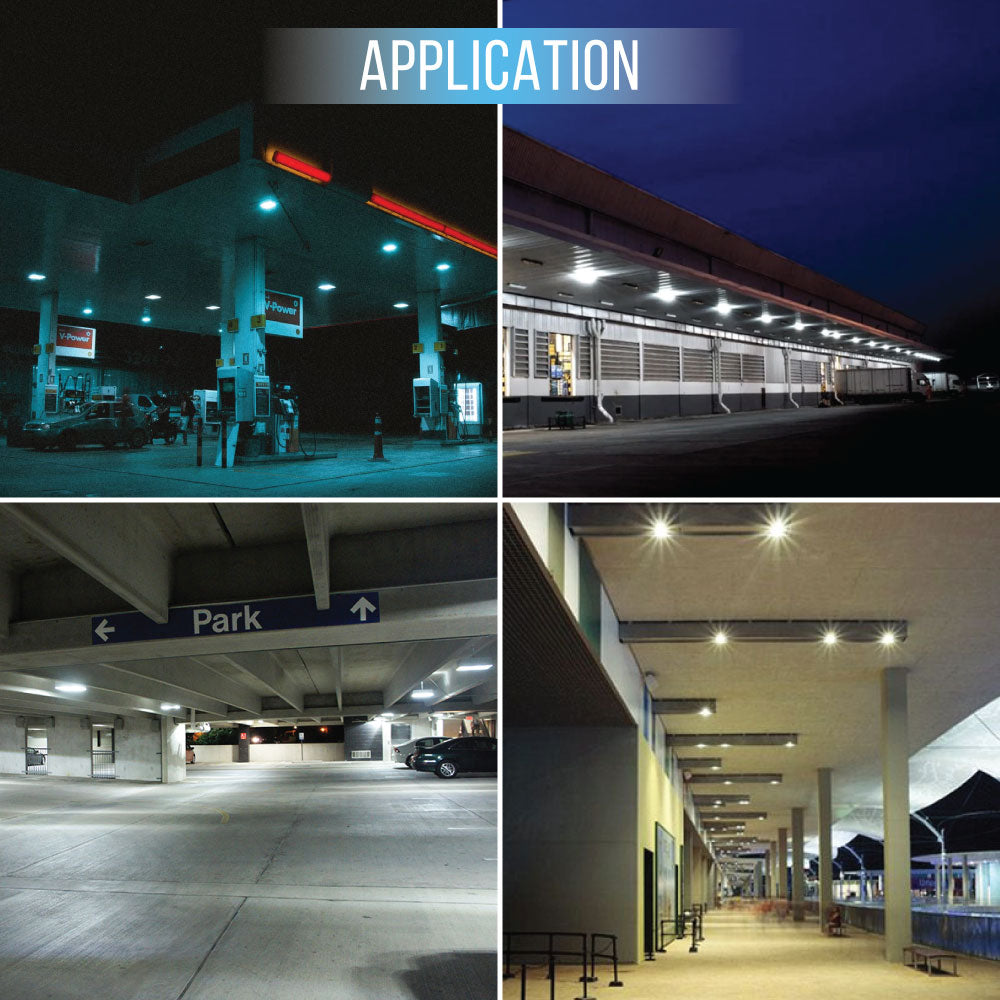

Applications





Product Review

Questions & Answers

Ask a Question

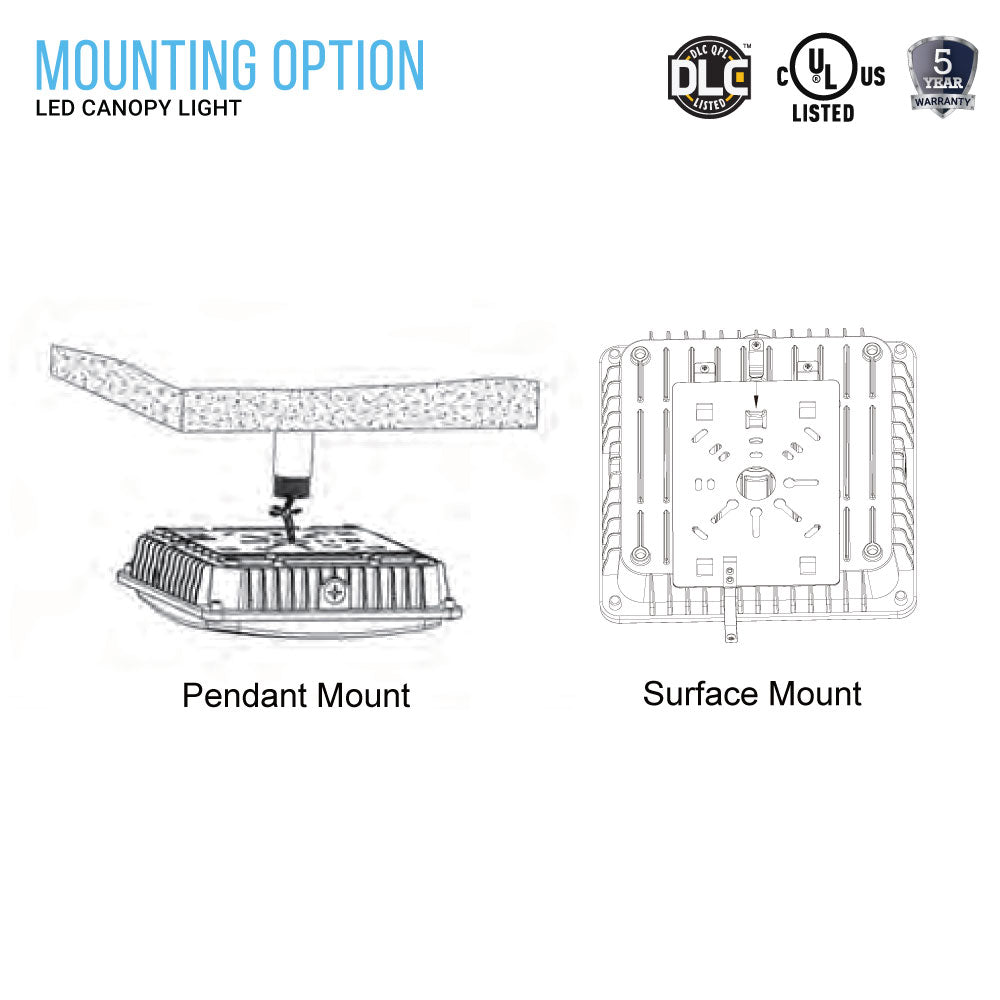

  • do these lights have a spot to screw in a 3/4 inch nipple tflush mount the light

    Yes,  you can either pendant mount or surface mount this light.
