40-Pack LED Module, 2 LEDs/Mod, DC12V, 1W

40-Pack LED Module, 2 LEDs/Mod, DC12V, 1W

MPN: MD001
Quantity must be 1 or more
Regular Price:
Regular price
$25.00
  • 30 Days Return
  • 5 Years Warranty

Frequently Bought Together

Main Item: $25.00 Addon Item: $38.50 = Total: $63.50 Please add at least 1 add-on item to proceed
Default Title
40-Pack LED Module, 2 LEDs/Mod, DC12V, 1W
Regular price
$25.00
Sale price
$25.00

Overview

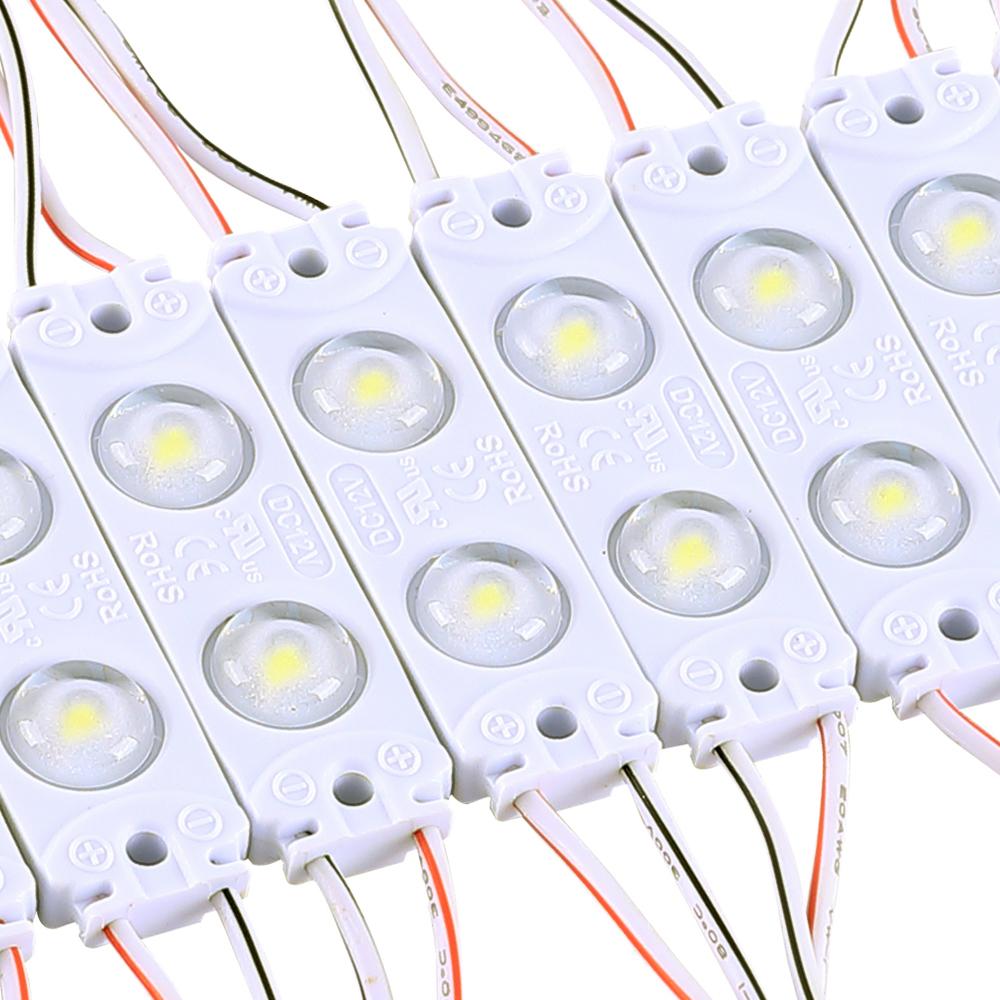

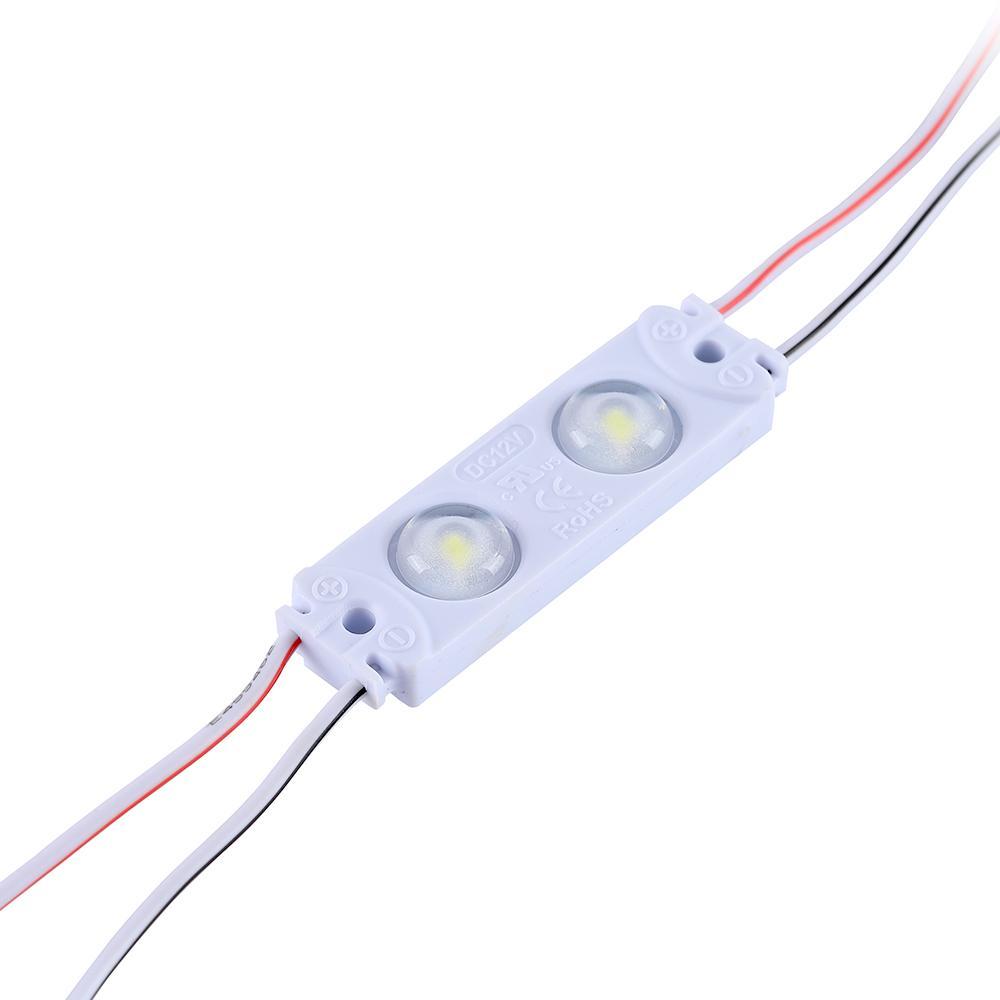

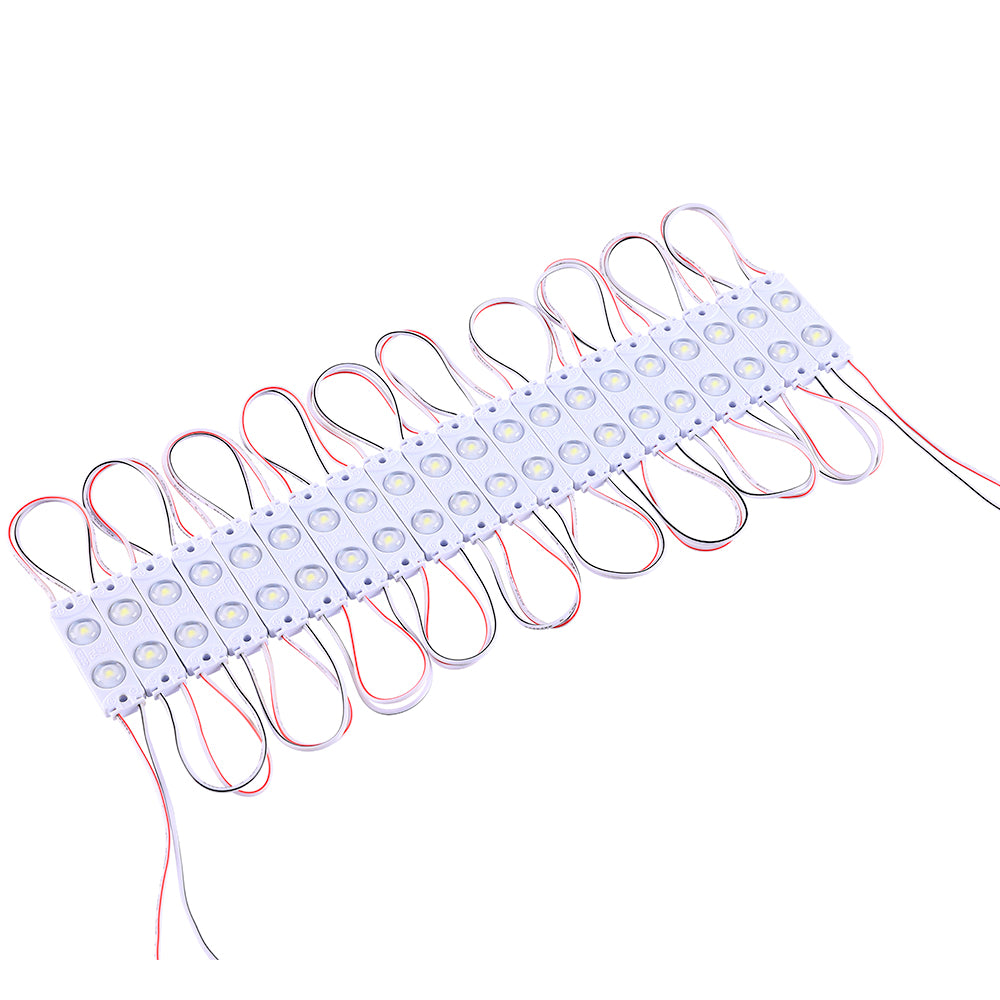

This 40-pack module powered by just 1W is ideal for use as a depth sign (e.g. welcome sign) or logo at metros, airports, banks, shopping malls et al. This dust-tight, shock-resistant and water-resistant module utilizes the power of high output SMD2835 to ensure even and uniform single color of the light while leaving no dark spots anywhere. The module works best where depth signs of 8-15 cm depth are needed. One of the best things about this LED module is not only does it have special optics (uniquely designed lens) with 160 degree beam angle for wide area front or back lighting but LED encapsulation with 99.99% gold bonding wire along with a silver-coated pure copper bracket for better ductility and heat dissipation. This module helps you to make your sign/logo appear clearer, and easily visible while also lending color-contrast to the signage


70
Lumens
50,000
Hours
5
Years
7000
Kelvin
1Watt
  • Rated IP65, the LED outdoor light module is capable of being used for both indoor and outdoor lighting condition.
  • The CCT of 7000K (overcast sky or daylight shade under blue sky) is perfect for open areas and public places so as to draw the focus and attention of any customer, visitor or traveller.
  • The CRI of >75 enables viewing of objects or spaces in their real colors with 75% precision in comparison to natural light.
  • The operating temperature range is wide enough and so can work easily under the range of -25 to +60 degrees.
  • Superior to conventional light module because of low-voltage and constant current voltage thus enabling module to last longer and making inter-connectedness of several modules in multiple forms possible.

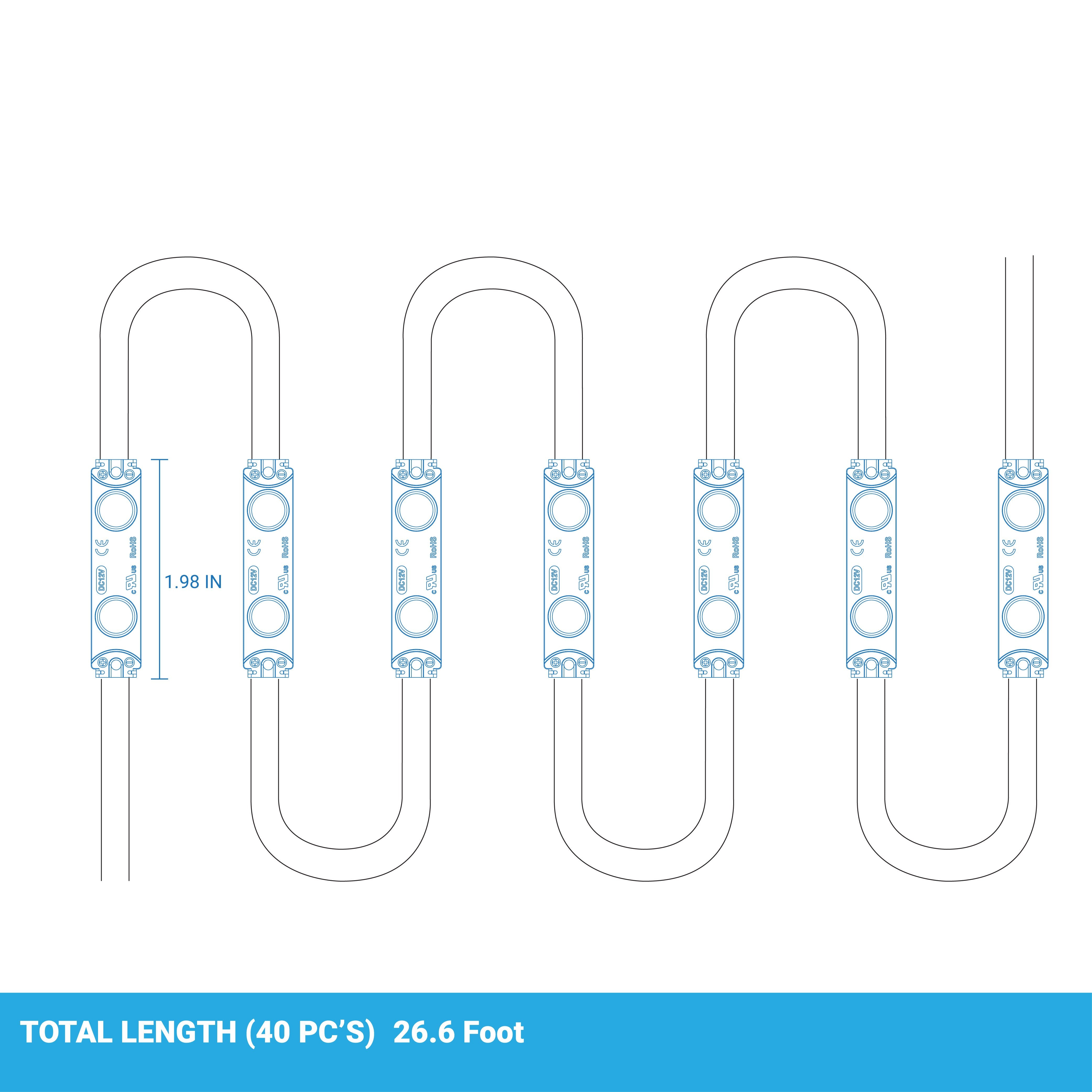

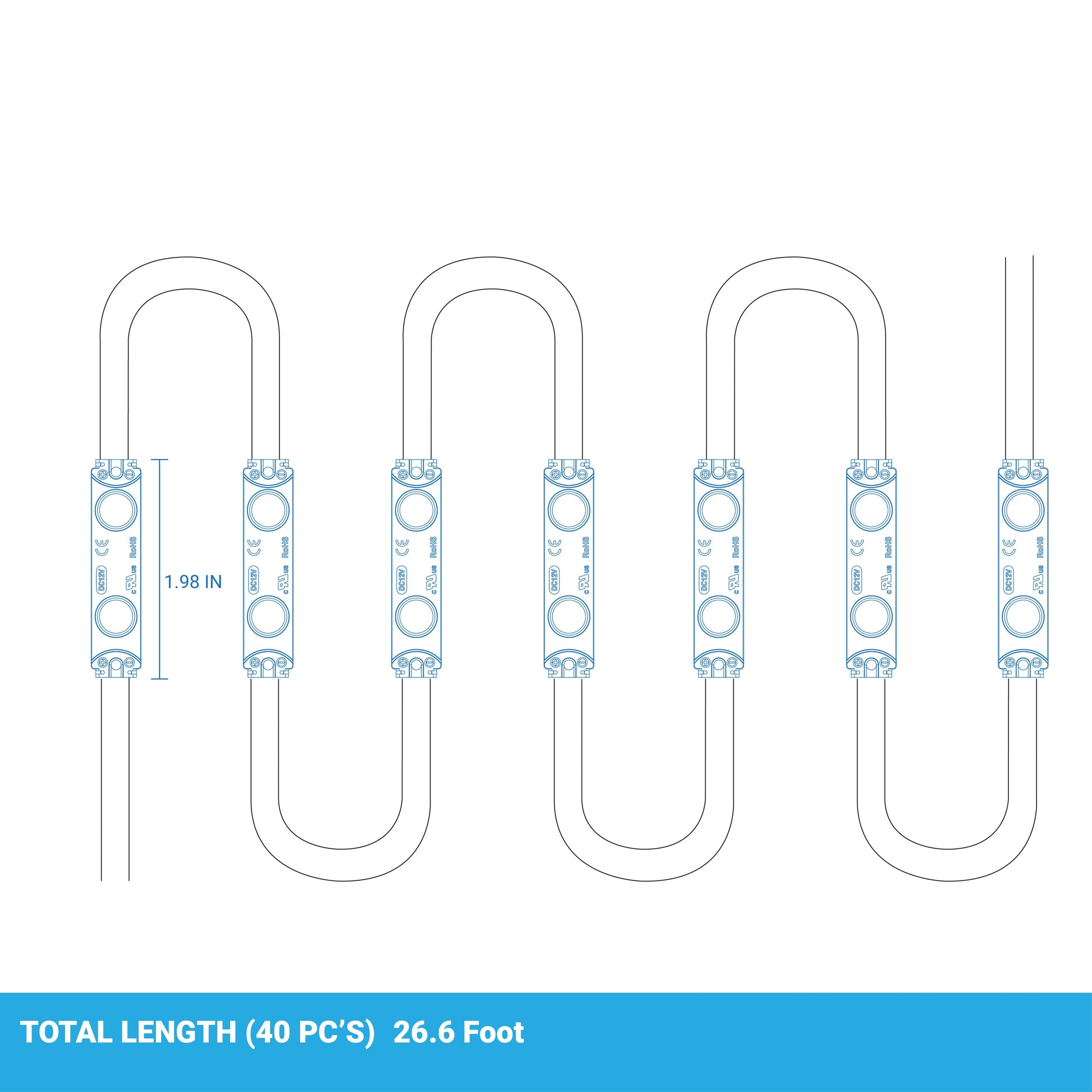

  • A maximum of 20 pcs (out of 40 pcs in a single module) can be connected in series when installing this module.

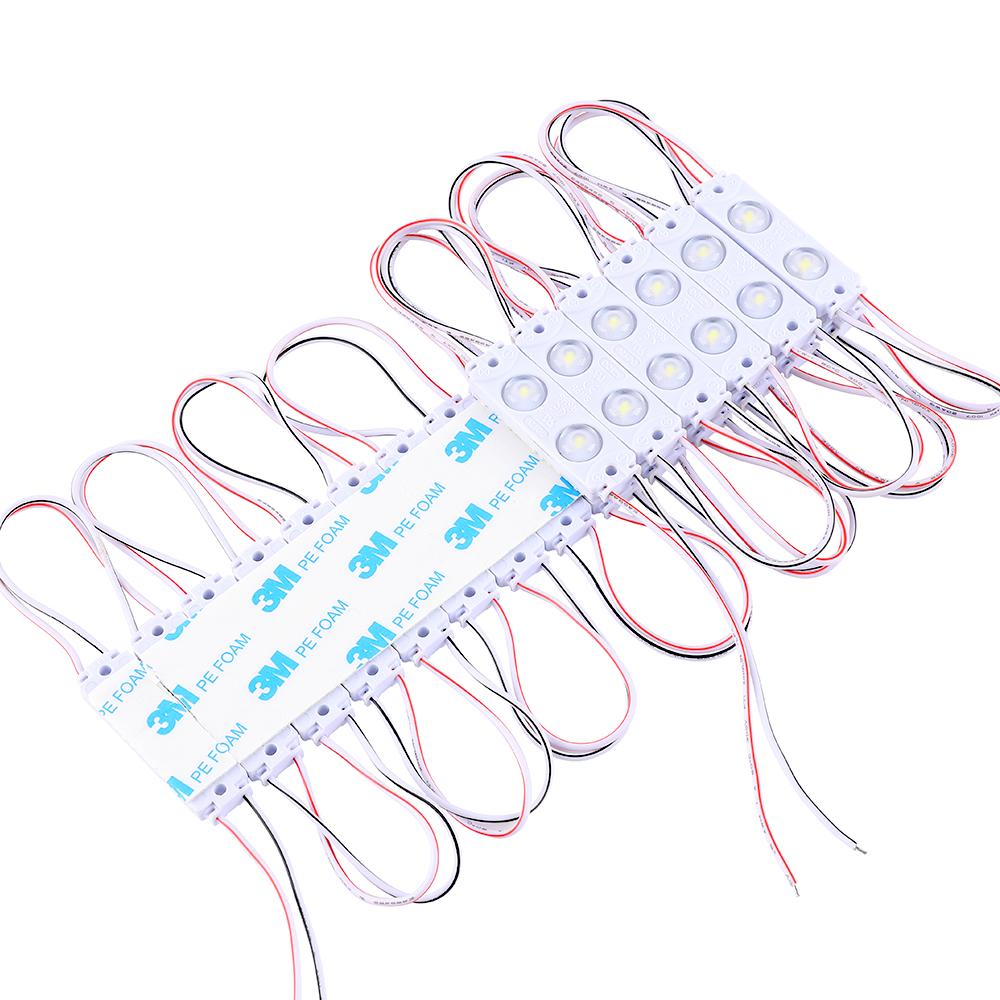

  • The installation and maintenance comes easy when all you need to do is make use of 3M adhesive tape from the back and a few screws to fix the sign and by making sure a distance of 2 meters minimum is kept between the constant current power supply and the module to maintain the same brightness all over. Installation and maintenance must be taken by experts or professionals.
  • Being certified by UL, CE and RoHS, the product is completely safe for use.
  • You stand to gain from this product by having a 5 years of hassle-free manufacturer’s warranty.

LED Module IP65 Rated

The module having a total of 40 pcs of LEDs is eligible for use in both indoor and outdoor conditions as the driver that comes with it is rated as IP65. The IP65 driver protects the module against dust, shock, moisture and even water ejected from the nozzle.


LED Module 160° Beam Angle

Utilizing the power of SMD LED chips and high quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.

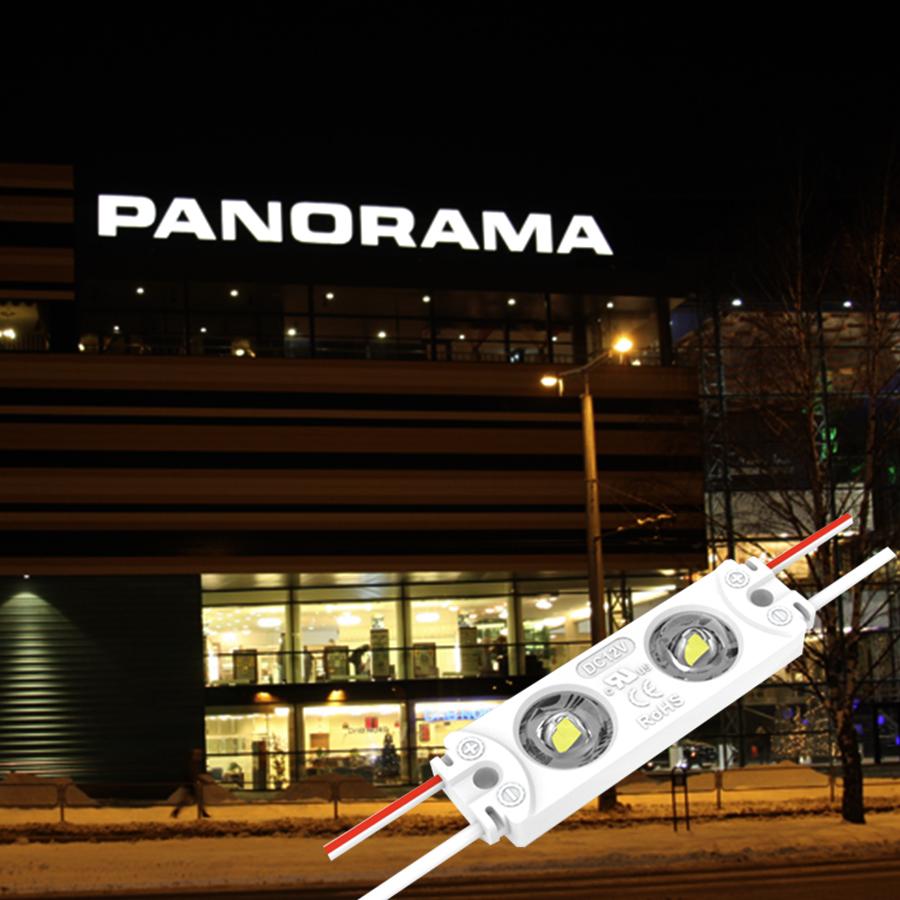

LED Module Recommended For Airports, metros, Banks, Buildings And Shopping Malls, etc.

The LED module has multiple uses such as sign lighting, back lighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilise up to 3 modules per square foot of an area.

5 Year Warranty CE, RoHS And UL Certified

The module being certified by CE, UL and RoHS meets the minimum regulation for product safety, health and environmental conditions. It’s a risk-free product as you have a 5 years of warranty from the manufacturer’s end.


No Spot Good Color Conformity

The SMD LED chips of 2835 grade are much brighter than many other LED chips and provide for perfect color conformity when there is a demand for display lighting.


CRI ≥ 75  DC 12V| 70 LM | 7000K

(Anti-Dusting, Anti-Moisture, Water Proof, Anti-Shock)

A CRI of above or equal to 75 on a scale of 100 means the module is above average in color rendering of objects and considered ideal for outdoor depth sign lighting. Further, this module prevent ingress of dust, moisture, shock or even water up to a certain degree.


Specifications

Beam Angle: 160° Beam Angle
Brightness: 70 Lumens
Certifications: UL, CE and RoHS certified.
Color Temperature (Kelvin): 7000 Kelvin
Fixture Color: Pure white
LED Type: SMD2835
Light Distribution: 70LM/W
MPN (Part No.): MD001
Safety Rating: UL, CE and RoHS certified.
UPC: 719034339634
Warranty: 5 Years
Brand: LEDMyplace
CCT: 7000 Kelvin
Color Rendering Index(CRI): >75 CRI
Dimensions (L x W x H): 1.99x0.59x0.28
IP Rating: IP65 Rated
Life Hours: 50,000 Hours
Lumens: 70 Lumens
Operating Temprature: -13°F to 140°F
SKU: WEN-ZE02QAC.BAG
Voltage: 12V DC
Wattage: 1Watt
