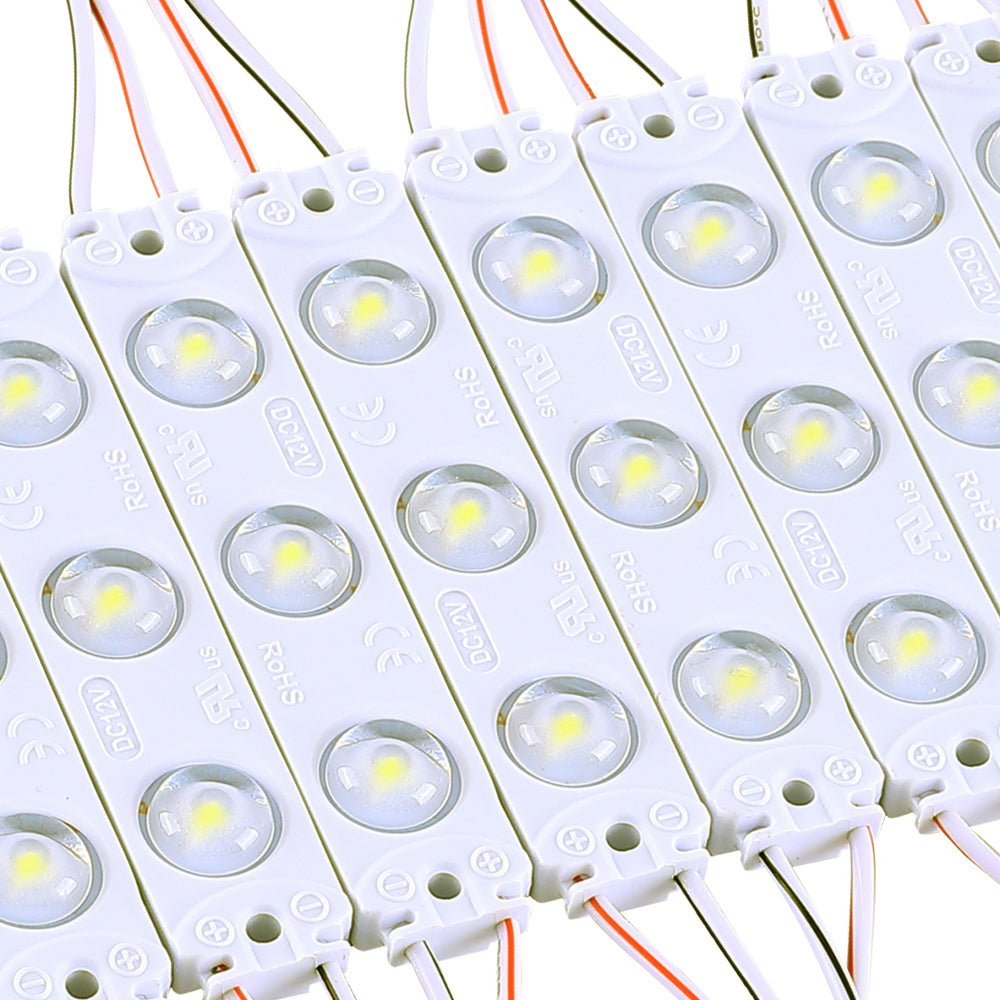

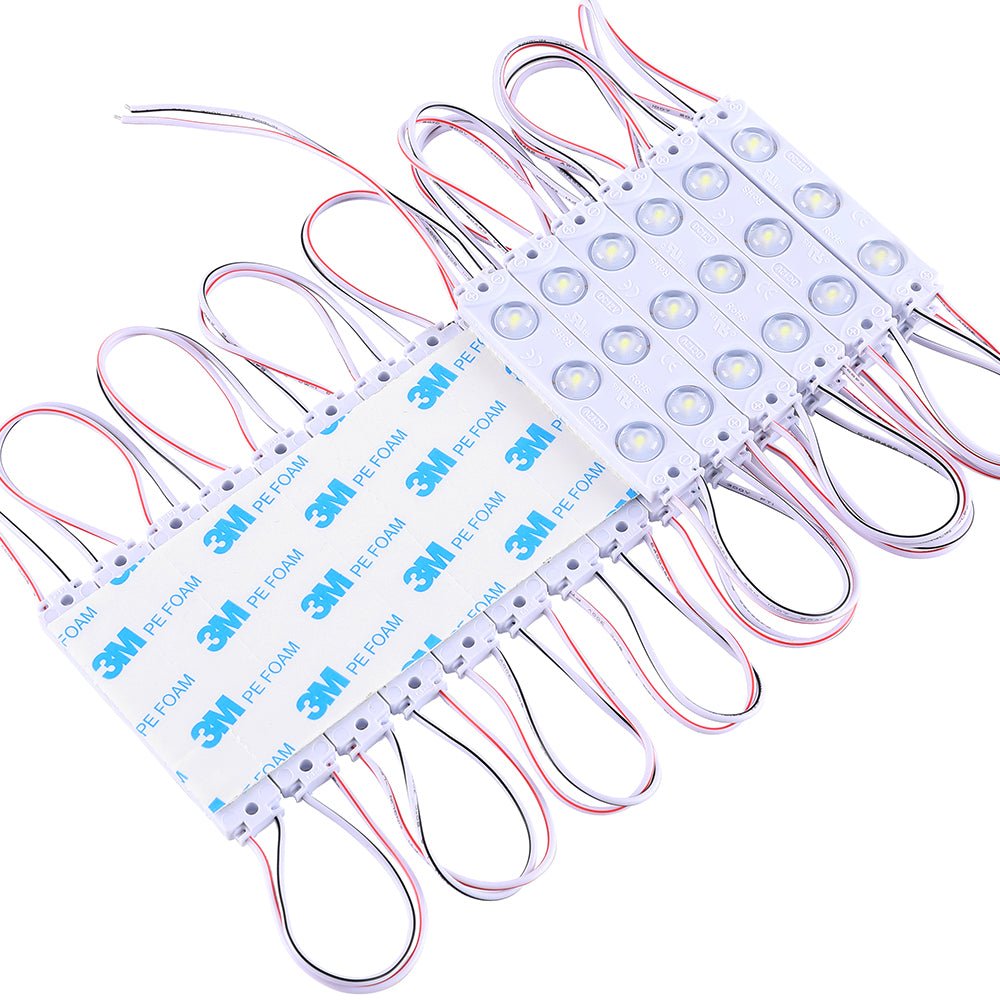

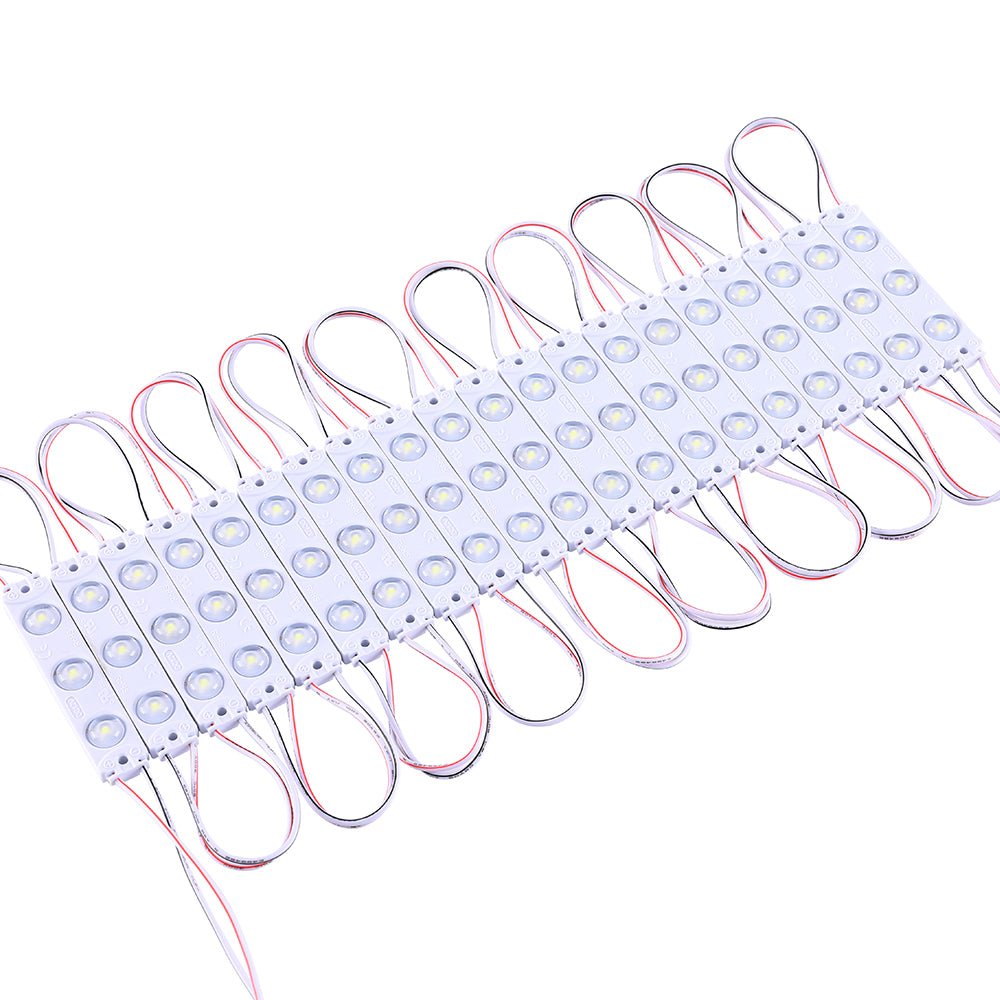

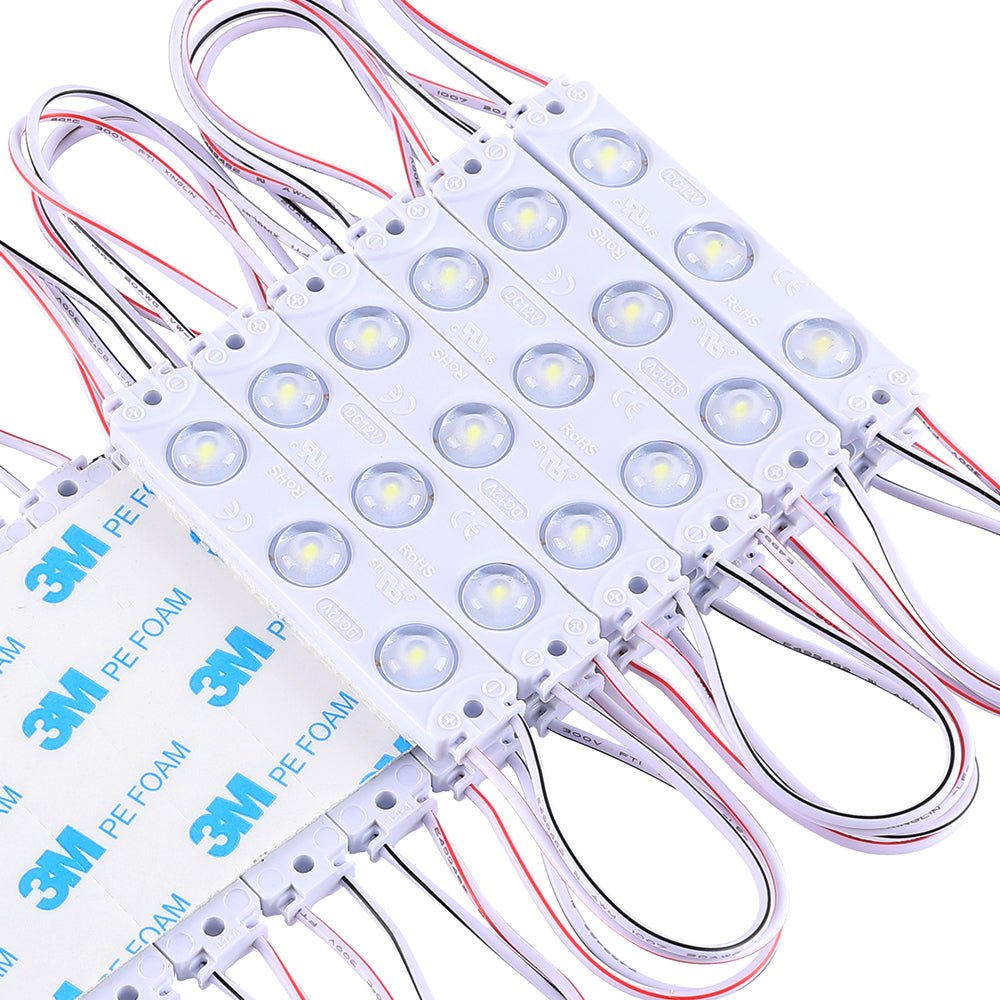

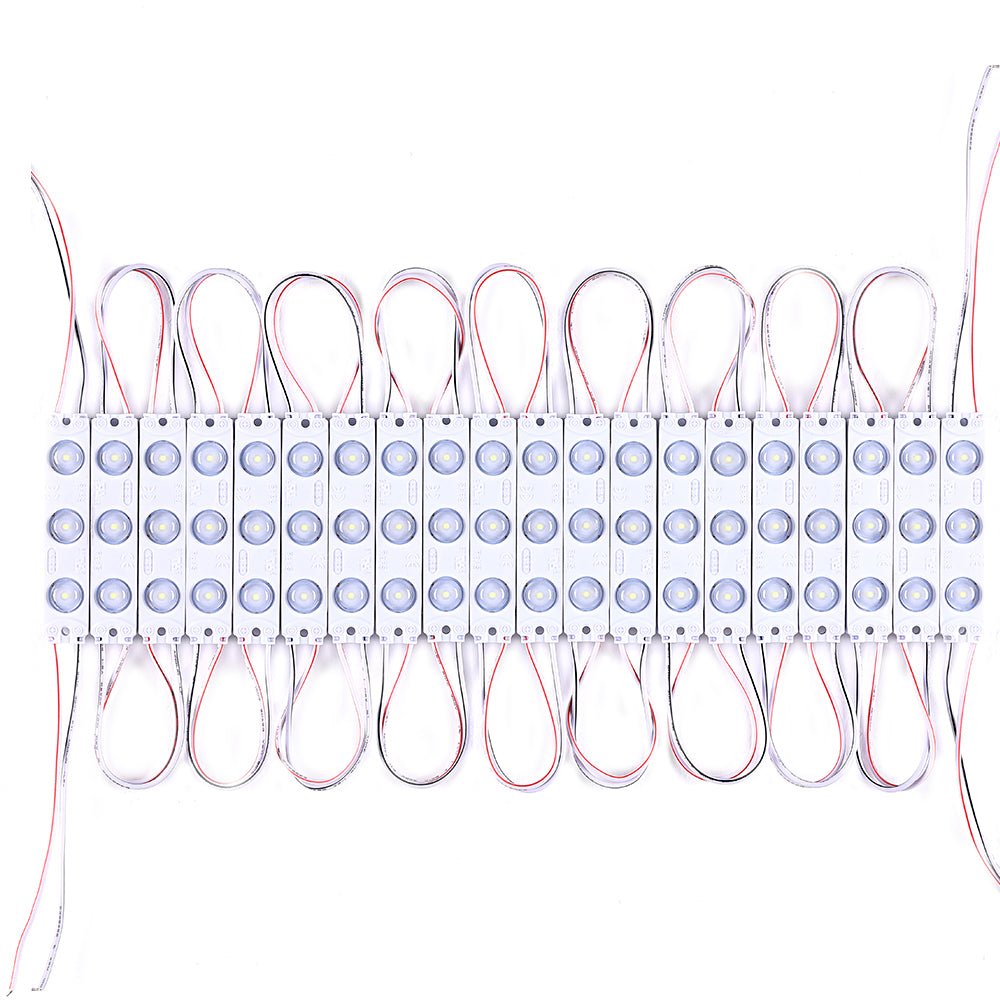

Utilizing the power of SMD LED chips (SMD 2835), this 3 LED module is capable of delivering 100 lumens with a beam angle of 160° for a consistent and high level of brightness in larger spaces with no visible spots. While the 20 pcs out of the 40 modules in a single pack can be connected in series to provide for even and uniform sign lighting all over the depth sign, the product is highly energy-efficient and built to last longer than any traditional neon or fluorescent signage lighting system. For larger units, multiple modules can be connected in parallel and by being powered through a 12VDC. This product is being offered as an overmoulded module to provide you with anti-dusting, anti-moisture, anti-shock, and moisture-resistance features.
Please Note:- If you want to connect, for example, 40pcs it should be two-end input for a series connection or 2 x 20pcs parallel connection.
The module having a total of 40 pcs of LEDs is eligible for use in both indoor and outdoor conditions as the driver that comes with it is rated as IP65. The IP65 driver protects the module against dust, shock, moisture and even water ejected from the nozzle.
Utilizing the power of SMD LED chips and high quality optics (special lens), the module is capable of emitting light with an angle of 160 degrees which ensures an ultra-wide beam (very wide beam of 120°+40°) of light to cover larger areas with better light distribution by completely eliminating the dark spots.
The LED module has multiple uses such as sign lighting, backlighting, indoor or outdoor commercial sign displays, light boxes and advertisement signs. You can utilize up to 3 modules per square foot of an area.
The module being certified by CE, UL and RoHS meets the minimum regulation for product safety, health and environmental conditions. It’s a risk-free product as you have 5 years of warranty from the manufacturer’s end.
A CRI of above or equal to 75 on a scale of 100 means the module is above average in color rendering of objects and considered ideal for outdoor depth sign lighting. Further, this module prevents ingress of dust, moisture, shock or even water up to a certain degree.
The SMD LED chips of 2835 grade are much brighter than many other LED chips and provide for perfect color conformity when there is a demand for display lighting.
| Beam Angle: | 160° Beam Angle |
| Brightness: | 100 Lumens |
| Color Rendering Index(CRI): | >75 CRI |

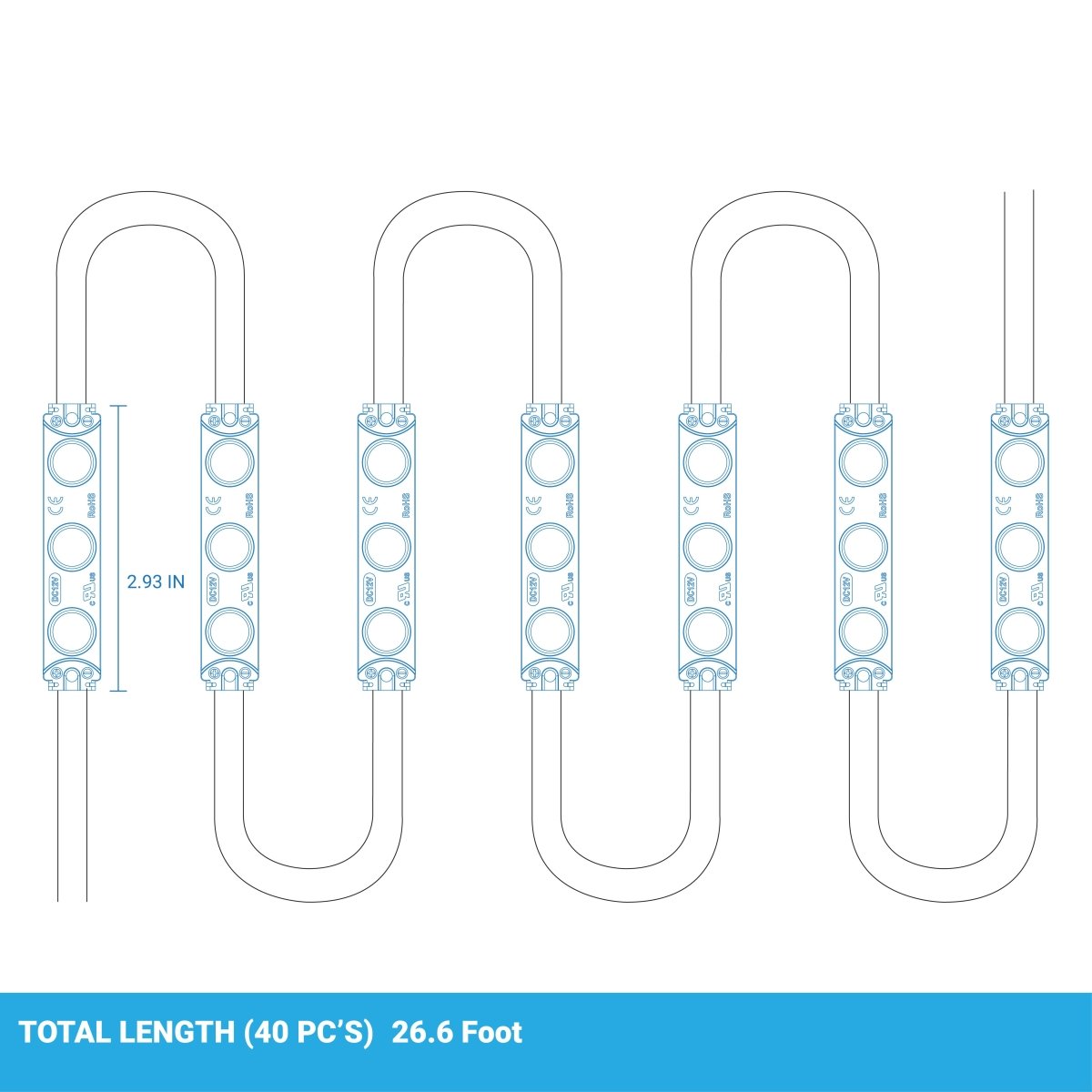

| Dimensions (L x W x H): | 2.93x0.59x0.28 |
| IP Rating: | IP65 Rated |
| Life Hours: | 50,000 Hours |
| Lumens: | 100 Lumens |
| Safety Rating: | UL, RoHS Listed |
| UPC: | 719034339641 |
| Warranty: | 5 Years |
| Operating Temperature: | -13 Degree F To 140 Degree F |
| Brand: | LEDMyplace |
| CCT: | 7000 Kelvin |
| Color Temperature (Kelvin): | 7000 Kelvin |
| Fixture Color: | Pure white |
| LED Type: | SMD2835 |
| Light Distribution: | 100LM/W |
| MPN (Part No.): | MD002 |
| SKU: | WEN-ZE03QAC |
| Voltage: | 12V DC |
| Wattage: | 1Watt |
to connect 1 or two bags of the LED modules, what kind of power source do I need? Please advise of needed configuration for a food truck. Thanks
The power source should be 20 % higher the wattage of the modules. Let say one bag of modules have 40 of them i.e. 40 W, so you will need a power source of 48 W.
