Edge Lit Red LED Exit Sign, 3W , Red, UL,CUL Listed, AC120-277V, Surface Mount, 90-min Battery Backup - 1-Pack

Write a review
Apply for Terms (Net 30/60)
MPN: EX006
Regular Price: $77.89
$48.99
Save $28.90 (38%)
Click here for bulk orders!
  • 30 Days Return
  • 2 Years Warranty
spec-video

Spec Sheet

Color: Red

Red

Green

Style: Edge Lit
Size: 1-Pack
Total:$48.99
Expert Help 815-697-5223

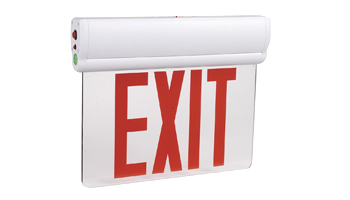

Edge Lit Clear Exit Sign - RED - Fire Resistant - Thermoplastic ABS Housing

During an emergency, these successful escape lights provide a safe route. These Emergency Light Edge-Lit Exit Signs are essential because they guide people in the direction of the most direct route to a safe location. These lights mean that the building is safe and that people are in a secure location. This 3-watt Edge-Lit Red LED Exit Sign from LEDMyplace is perfectly suitable for commercial premises. With the help of a 3.6V Nickel Cadmium battery, they give the battery backup of 90 minutes. The input voltage of these battery-operated emergency lights is 120-277V. The fire exit lights are UL certified. The fixture has a rated operational life of more than 25,000 hours which means that these lights will not need a replacement for a long time.

25,000
Hours
100-277
Voltage
2
Years
3
Watts

Features of Edge-Lit Red LED Exit Sign - Surface Mount - 90-Minute Battery Back-Up

  • Available Wattage: 3W
  • Output: 1W max
  • Color: Red
  • 3.6V Nickel Cadmium Battery
  • Voltage: AC120-277V
  • Charging time: 24 hours
  • Discharge time: 90 minutes
  • Working Temp: 32°F to 140°F
  • Dimension: 11.71x7.26x1.75 In
  • UL Certificate.
  • Warranty: 2 Years

features Specs.

Construction

These lights are constructed from injection-molded, high-quality, Engineering-grade, retardant thermoplastic. They are equipped with fire-resistant qualities.





Fire Resistant

The fixture is certified with a UL rating. The Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances includes small-scale tests that evaluate the flammability of polymeric (plastic) materials used for parts in devices and appliances in response to a small, open flame or radiant heat source under controlled laboratory conditions.

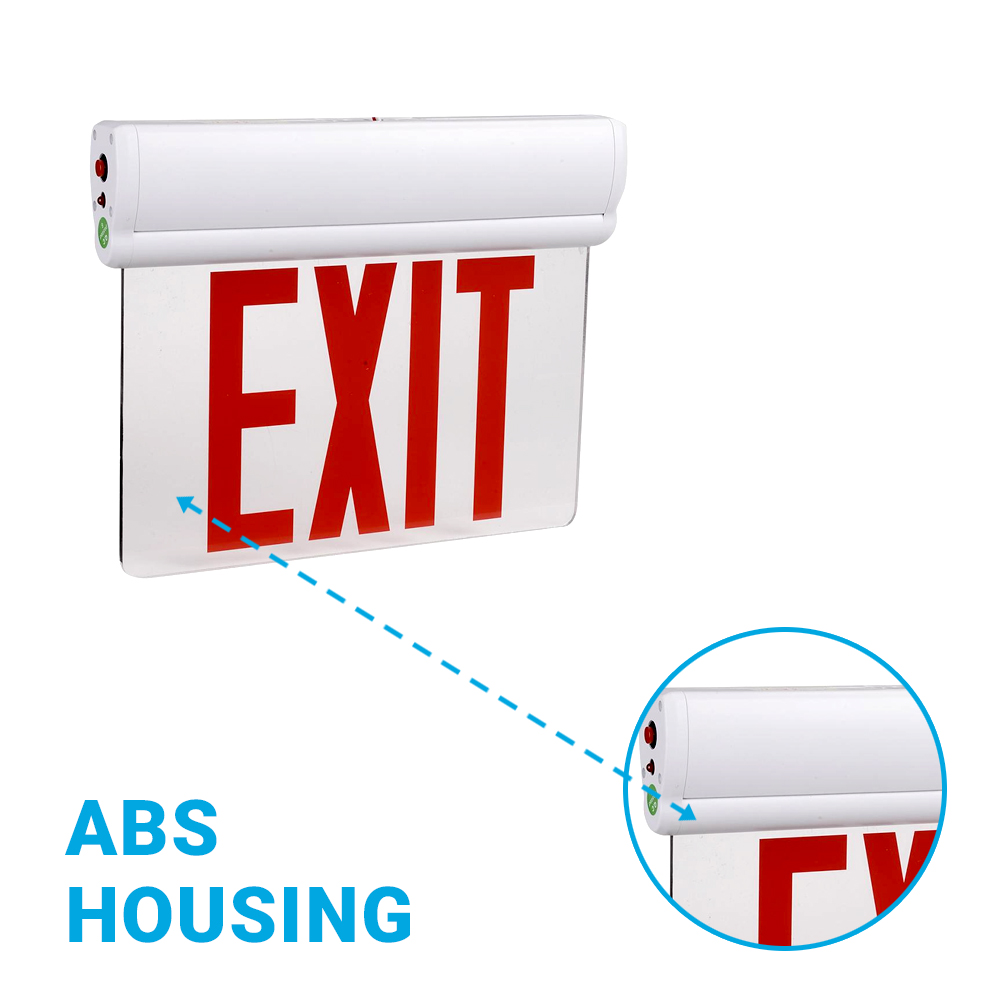

ABS Housing

The fixture is constructed with Acrylonitrile butadiene styrene (ABS) injection-molded thermoplastic. ABS properties consist of superior hardness, gloss, toughness, and resistance properties, more significant than that of pure polystyrene. The fixture’s capacity to resist heat under emergency conditions allows it to perform at its fullest.

Illumination

Long-lasting, energy-efficient ultra-bright white LEDs are used in emergency lighting. For optimum light distribution, the heads are made with high-performance chrome plated reflectors and polycarbonate lenses. Red or green LEDs are used in the exit section.

During Emergency

An internal solid-state transfer switch allows uninterrupted emergency operation for at least 90 minutes if the regular utility power fails. Within 24 hours, the fully automatic charger starts recharging a discharged battery.

BATTERY BACKUP

LED Exit Light is designed with a 1.2 Nickel Cadmium (NiCad) battery that provides a minimum emergency duration of 90 minutes. The recharge time of the battery is 24 hours.

Operational Temperature

Operating Temperature: 0°C~40°C

Specifications

Brand: LEDMyplace
Dimensions (L x W x H): 12.20x10.11x4.33 In
Life Hours: 25,000 Hours
Safety Rating: UL Listed
Voltage: 100-277 VAC
Wattage: 3 Watts
Certifications: UL Listed
Fixture Color: Red
MPN (Part No.): EX006
SKU: WEN-7008R
Warranty: 2 Years
Operating Temperature: 32 Degree F To 104 Degree F

Product Review

Questions & Answers

Ask a Question

  • Type clear o mirror with arrows

    Clear Panel without arrows

  • Do I have to hardwire it

    Yes
