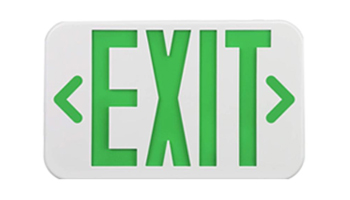

Green LED Exit Sign - 90-Minutes Back-Up Battery Included - UL Certified
Green LED Exit Signs are battery-operated emergency lights is suitable for wall, sloped, high, or standard ceiling mounting. This light has a 1.2V Nickel Cadmium Battery, which provides a backup of 90 minutes after the power goes off. These lights come with a UL-94v-0 rating, which means that these are fire resistant as well. These lights also have a removable front cover that makes installation and maintenance headache-free.
- Available Wattage: 4W
- Output: 1W max
- Color: Green
- 1.2V Nickel Cadmium Battery
- Voltage: AC120-277V
- Charging time: 24 hours
- Discharge time: 90 minutes
- Working Temp: 32°F to 140°F
- Dimension: 11.71x7.26x1.75 In
- UL Certificate.
- Warranty: 2 Years
The LED Exit Sign is suitable for wall, sloped, high, or standard ceiling mounting. Recessed mounting option allows the unit to be ceiling recessed for drop ceiling or new construction application only. Includes field installable directional arrow indicators. All hardware is included.

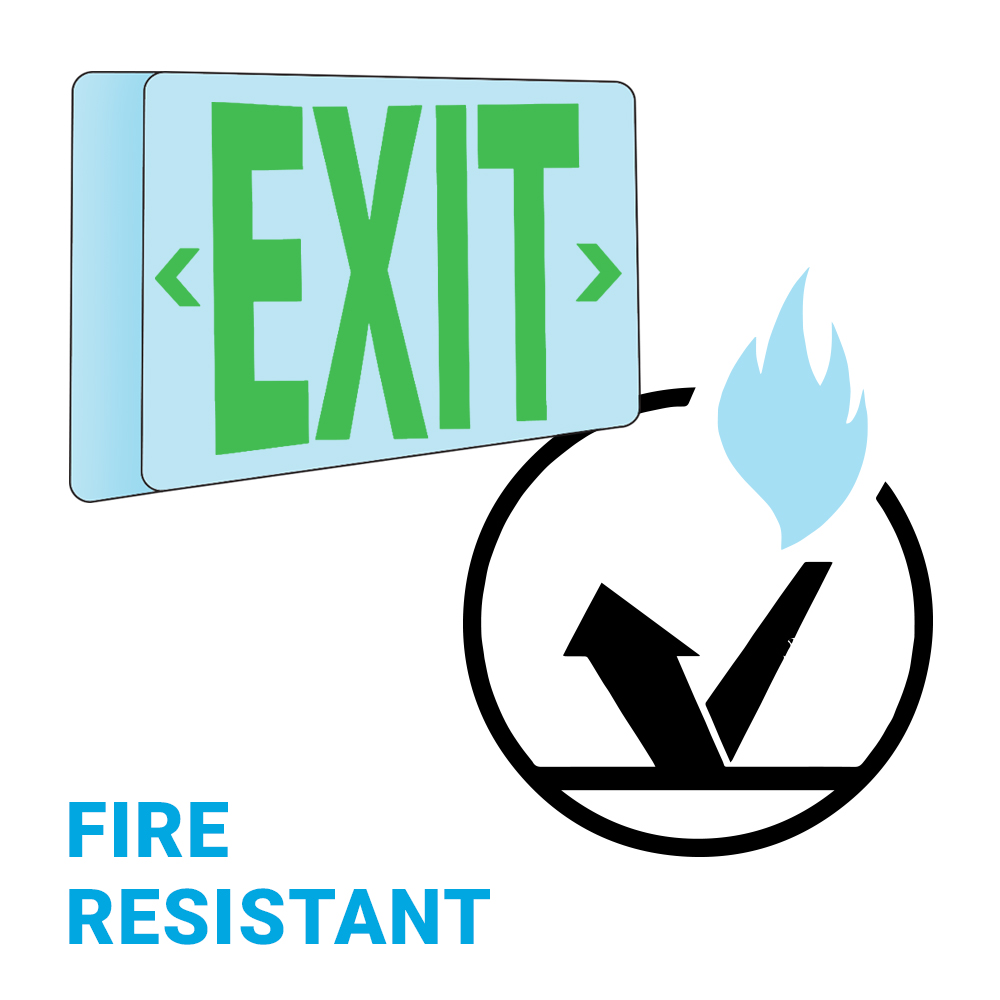

The fixture is certified with UL-94v-0 rating. The Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances includes small scale tests that evaluate the flammability of polymeric (plastic) materials, used for parts in devices and appliances, in response to a small, open flame or radiant heat source under controlled laboratory conditions.

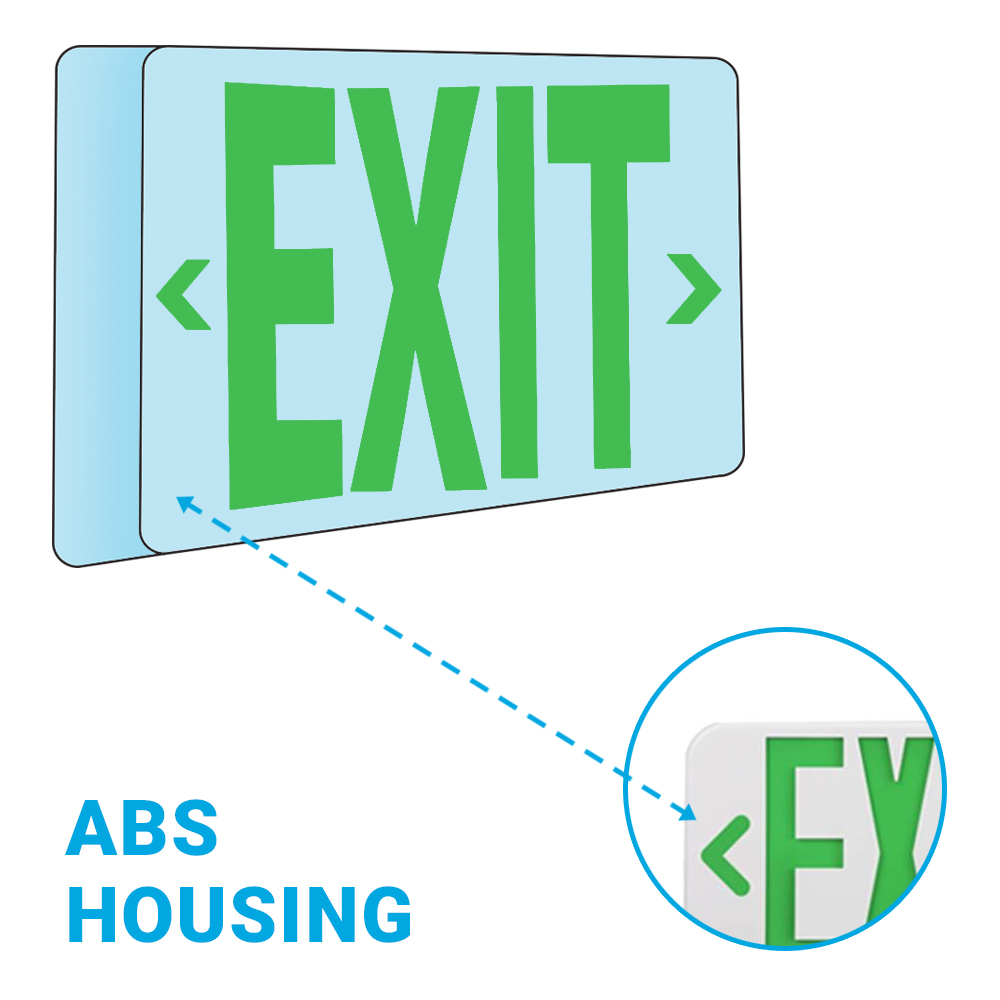

The fixture is constructed with Acrylonitrile butadiene styrene (ABS) injection-molded thermoplastic. ABS properties consist of superior hardness, gloss, toughness and resistance properties, greater than that of pure polystyrene. The fixture’s capacity to resist heat under emergency condition allows it to perform at its fullest.

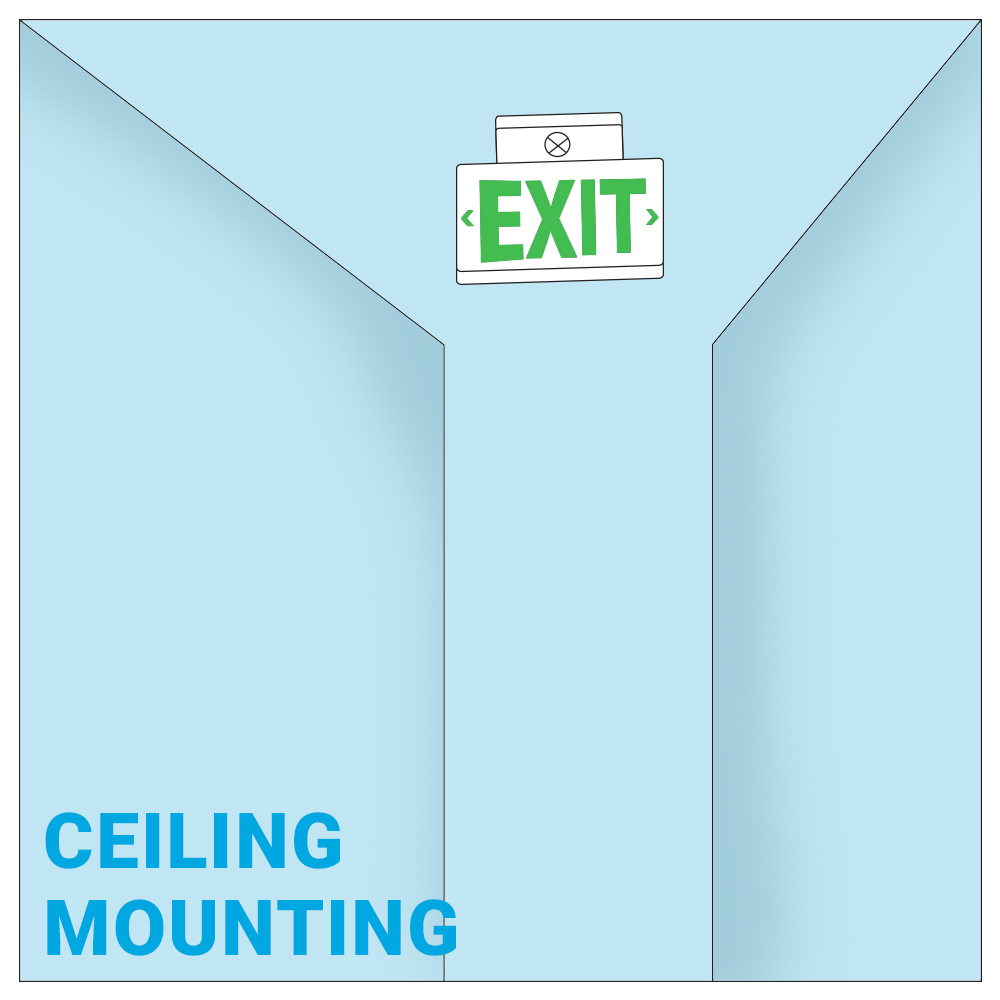

The fixture can be easily ceiling mounted and it allows the fixture to stay intact. LED Exit Sign light can fit best in all types of ceiling whether it’s a traditional ceiling or modern fall ceiling. Ensuring no wires are pinched after the installation is crucial for the seamless operation of the fixture.

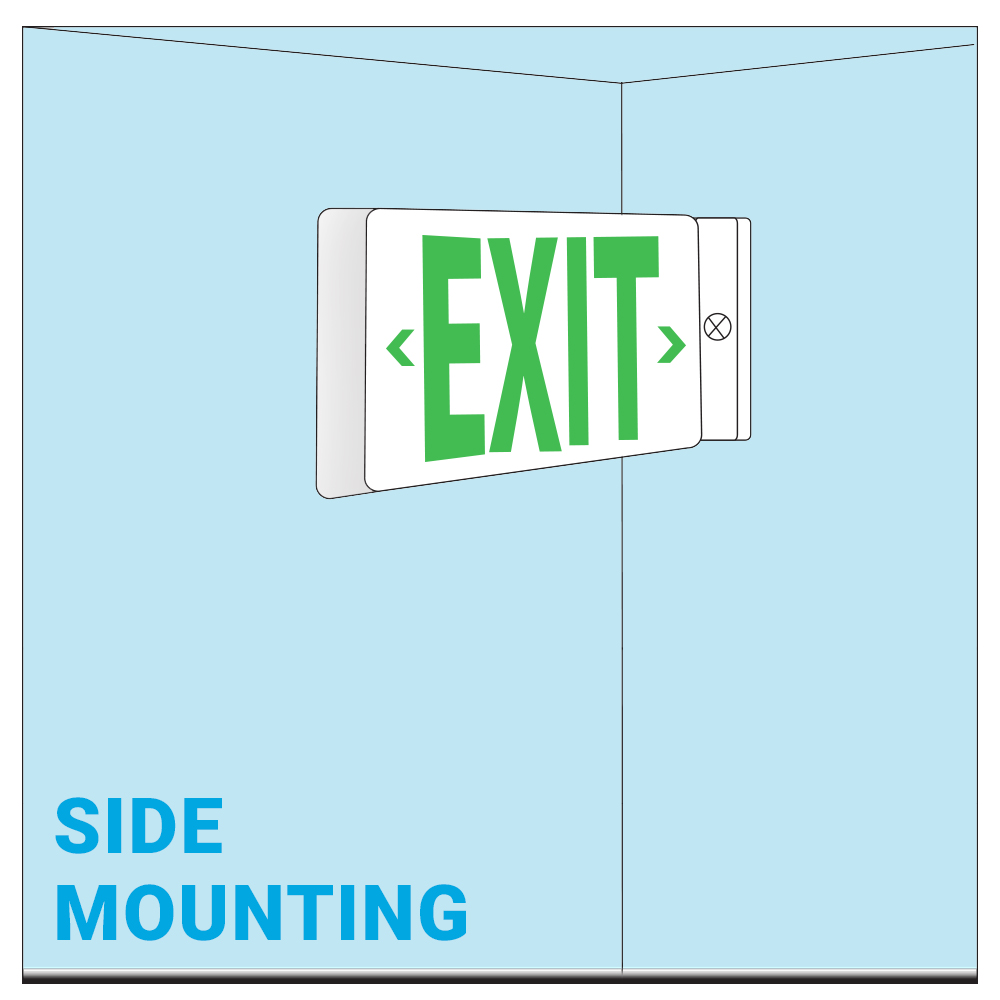

The fixture can be easily side mounted and it allows the fixture to stay intact. LED Exit Sign light can fit best in all types of walls whether it’s a concrete wall or glass wall. Ensuring no wires are pinched after the installation is crucial for the seamless operation of the fixture.

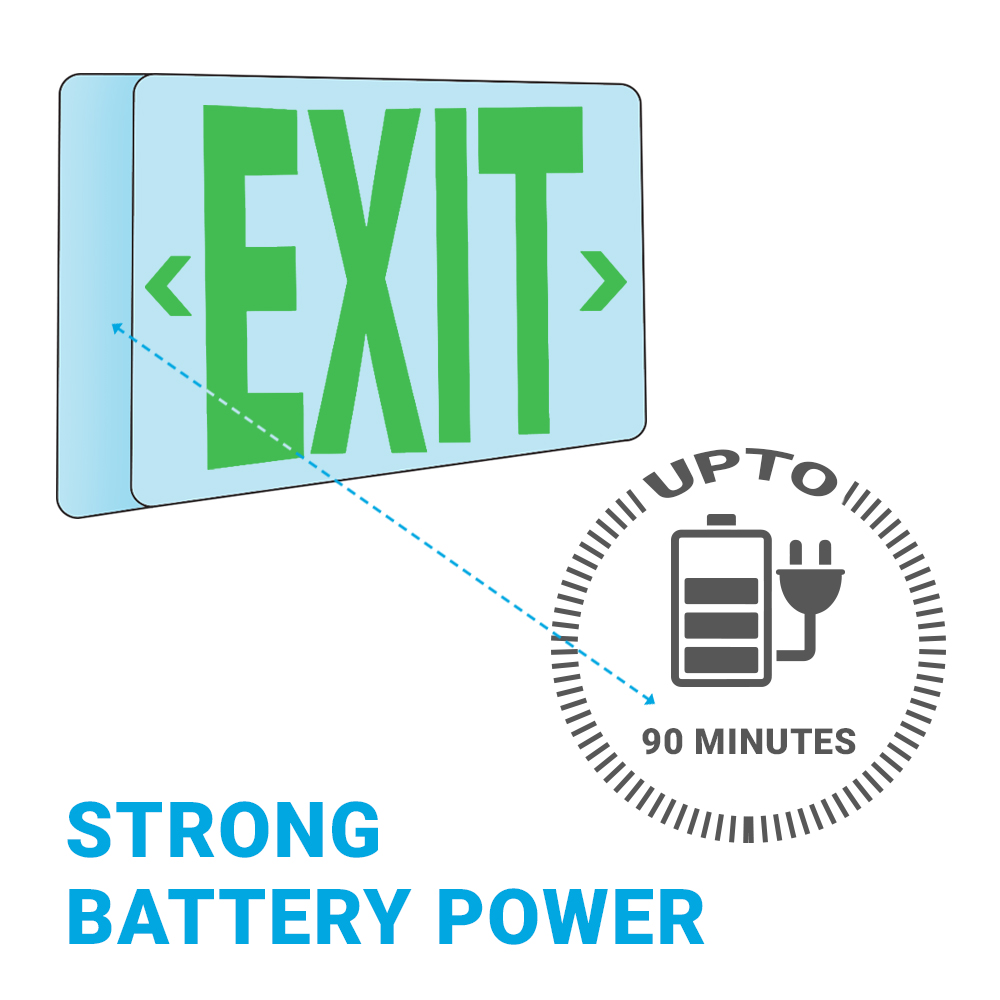

Strong Batter Power
The LED Exit Sign is designed with a 1.2V Volt maintenance-free NiCad battery. The battery is protected by a low voltage cut-off circuit. The operating temperature range for the battery is 32°F to 104°F. The charging time of the battery is 24 hours and emergency discharge time is 90 minutes.
|Dimensions (L x W x H):||11.61x8.18x4.56 In|
|Life Hours:||25,000 Hours|
|Operating Temprature:||32°F to 140°F|
|MPN (Part No.):||EX005|
