UFO LED High Bay Light 150W 5700K Daylight, 21750lm, IP65 Waterproof, 0-10V Dim, For Areas with High Ceilings LED Warehouse Lights Commercial Shop Workshop Factory Barn Garage Lighting

Skip to product information
1 of 18

UFO LED High Bay Light 150W 5700K Daylight, 21750lm, IP65 Waterproof, 0-10V Dim, For Areas with High Ceilings LED Warehouse Lights Commercial Shop Workshop Factory Barn Garage Lighting

Regular Price: $85.99
$75.99
Save $10.00 (12%)
  • 30 Days Return
  • 5 Years Warranty
Wattage: 150W CCT: 5700K

High Bay LED Lights, 150W, 120V-277V, UL, DLC, HOOK MOUNT, BLACK, for Gymnasium Factory Warehouse Hangar

Introducing our best selling product High Bay LED Light 150W UFO 5700K. This Round UFO High Bay LED Light gets suspended from the ceiling with the help of hooks. It is an ideal lighting solution to an indoor ceiling with a height up to 15ft-25ft with 21,750 lumens. Install these lights in spaces like warehouses, factories, workshops, and more. High Bay LED light offers more brightness than your traditional 525W M.H. light. These energy-efficient LED lights allow one to save 375W of energy on each fixture. Its premium-grade lens is designed to achieve a beam angle of 110 degrees, covering all corners of the facility. This LED Warehouse light also has an IP65 rating, meaning that the fixture is completely dust-free and water-resistant.

When installing 150W UFO High Bay, you can also look for the 360° 3 Step Dimming Motion & Daylight Sensor, which is a feature that allows energy-saving without missing comfort. When the UFO High Bay Lights are used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve a 3-step dimming LED sensor to function. It is perfect for large facilities where the requirement of lights change and does not always demand a total shut down. If you want to know the installations and get other detailed information on the sensor, click here. So, if you want to illuminate a large indoor area, High Bay LED Lights are a perfect choice. These lights provide powerful lighting with very little energy consumption. Even if you need to illuminate a small area such as a tabletop or workbench, you can go for these LED Shop Lights without any second thought.



525
Watt Replacement
21750
Lumens
50,000
Hours
110°
Beam Angle
120V
Voltage

Features Of High Bay LED Light 150W UFO 5700K / Warehouse Lighting

  • Available Wattage: 150W
  • Color Temperature Available: 5700K
  • Wattage Equivalent: 525W
  • Lumens: 21,750
  • Beam Angle: 110 degree
  • Lifespan: 50,000 hours
  • Voltage: 120V - 277V
  • Color: Black
  • IP65 Rated
  • UL, DLC approved
  • 5 years of Manufacturer's Warranty

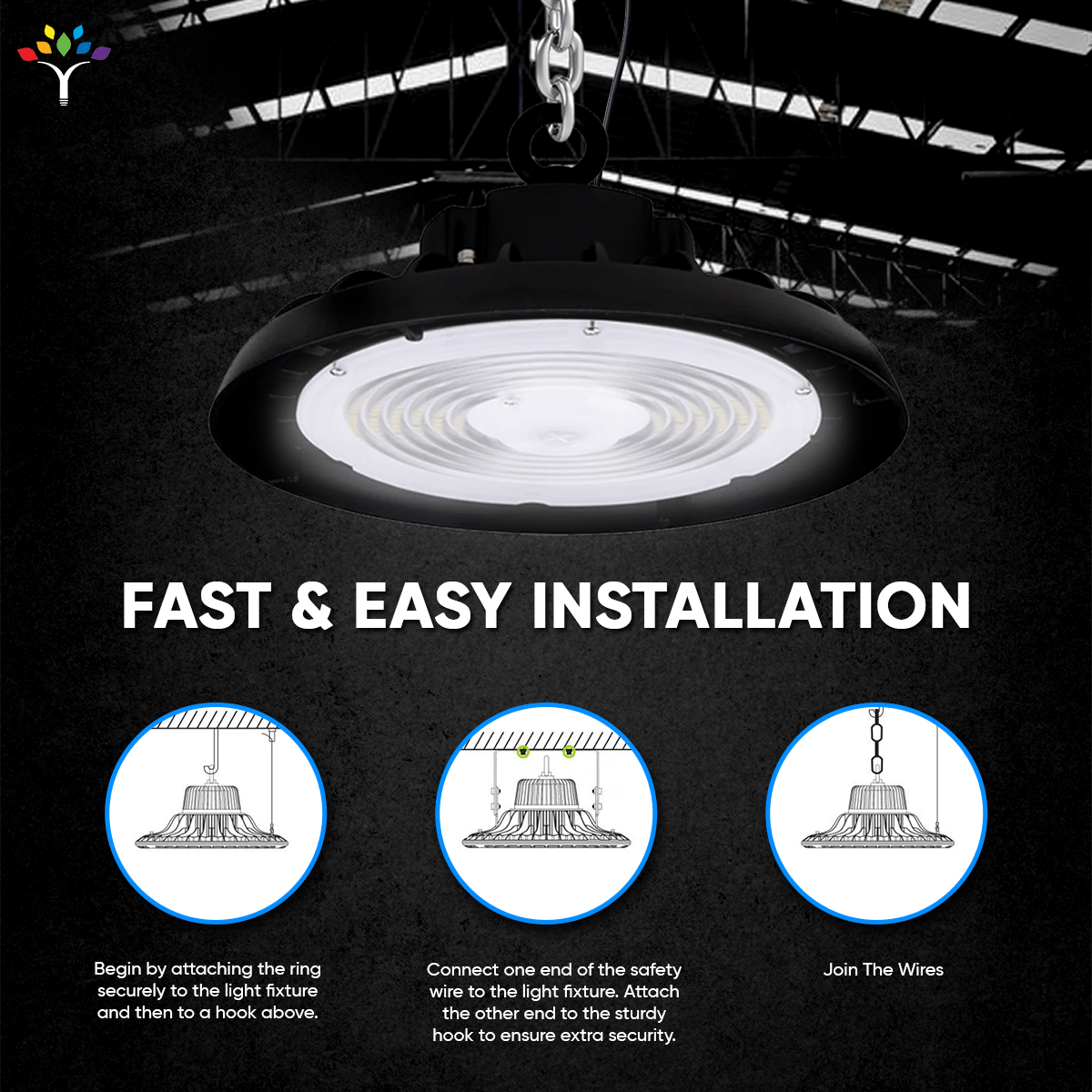

Easy Installation

The hanging ring that comes with our UFO high bay light must be inserted in the lamp's hole and tightened through a bolt on the hanging ring to fix the lamp firmly. Now mount this ring on the ceiling via a hook. For more details, check the complete manufacturer's instructions that come along with the product.

high bay led lights

Hook Mount

For hook mounting the 150W UFO Round High bay, you must have a heavier hook than the lamp. Make sure the weight of the hook is 3-4 times heavier than the UFO lamp

high bay led lights

Thermal Heat Dissipation

The UFO high bay lighting fixtures come with heatsink manufactured out of aluminum for excellent heat dissipation.

high bay led lights

Premium LED Chips

To maintain the quality of the product, we use premium LED chips. The chips are packaged inside the product with high precision and accuracy to render the product's maximum operational efficiency.

IP 65 Water Proof

The Ingress Protection rating means our UFO high bay is protected against dust-tight and water ingress coming through a nozzle made possible through a driver inside the product.

high bay led lights
high bay led lights

Ultra Wide Angle Lens

This product comes with a beam angle that is too wide and not less than 110 degrees, which is utilized for illumination of broad areas and huge spaces.

high bay led lights
high bay led lights

Rugged Construction

Our UFO high bay's housing is designed in rugged die-cast aluminum to impart the fixture the necessary durability for withstanding any external tampering.

high bay led lights

Low-Cost Maintenance

The average lifespan of the 150W LED UFO lights is 50,000 hours. There is no complaint of lumen depreciation till the end of its lifespan. Installing LED UFO will reduce recurring replacement charges; hence, it is a low-cost maintenance light.

high bay led lights

1-10 Dimmable

The 150W UFO 5700K High Bay as a 3-step dimmable product can be dimmed from 10 volts to 1 volt, 1V being the minimum light level that can be achieved, and 10V being the highest level of dimming allowed by the dimmer. At 10 volts, the controlled lighting is at 100% of its potential output. Make sure you have a compatible dimmer for our UFO high bay dimmable light. Check 360° 3 Step Dimming Motion & Daylight Sensor for UFO High bay for better understanding.

high bay led lights

CRI >80

CRI (Color Rendering Index) for UFO high bay helps in viewing objects and surfaces with greater clarity and in their true colors compared to what they would look without any artificial lighting.

high bay led lights

Motion Sensor (Optional)

The motion sensor comes as an accessory, and you can choose to have this with our UFO high bay as it helps in not just alerting an intruder in your facility, but allows you to have much better control of the lighting. The 3 Step Dimmer sensor allows energy saving without compromising comfort. You can also go through the blog mentioned above to get a better hang of this sensor.

high bay led lights

Rebate Eligible

The UFO high bay is DLC approved and comes within the scope of rebate-eligibility criteria.

high bay led lights

Compatible Dimmers

The LED UFO High Bay product is compatible with the following dimmers. These dimmers work perfectly with our lights.

  • DS710
  • IP710
  • NTSTV-DV
  • NFTV
  • DVTV-WH
  • H4FBL3PW

P.S. For any other Dimmer, please contact our customer support or check with your electrician

Specifications

Beam Angle: 110° Beam Angle
Certifications: UL, DLC Listed
Color Temperature (Kelvin): 5700 Kelvin
Dimmable: 1-10V Dimmable
DLC Model no.: WEN-HB07-150WS1BT2A1-abc57
Housing: Aluminum
Lens Type: Clear Glass
Lumens: 21750 Lumens
Power Factor: >0.9
Shape: UFO
UPC: 763684286107
Warranty: 5 Years
Weight: 11 Lbs
Brand: LEDMyplace
Color Rendering Index(CRI): >80 CRI
Diameter: 12.6 In
DLC Listed: Yes
Fixture Color: Black
IP Rating: IP65 Rated
Life Hours: 50,000 Hours
MPN (Part No.): UF008
Replaces: 525 Watt Replacement
SKU: WEN-HB02-150WD1-5700K
Voltage: 120V - 277 Volt
Wattage: 150 Watt
Operating Temperature: -40 Degree F To +122 Degree F

Product Review

Questions & Answers

Ask a Question
  • I have a new pole Barn 40x28 with 11ft ceilings. What would you suggest for this?

    I will not suggest you these because these are 150W UFO LED High Bays will flood the surrounding with a huge amount of light. I request you to have a look at intergarted tube lights on our website.

  • Would you recommend these for a 42x64 pole barn with a 14’ ceiling? If so, how many and what wattage? Thanks

    These will be a great fit. As per the dimensions provided, you will need approximatelt 2-3 of these 150W.

  • I have a 50 by 60 by 16 How many would you recommend? I already have 6 plugs in ceiling each are about 14 feet off of sidewalls both ways. And then spaced 16 feet apart in 2 rows of 3. And 20 feet between the 2 rows down the middle. Would 6 be ok. Or do I need to add more?

    You will need 2-3 of these approximately.

  • I have new shop 30x40 14 ht ceiling How many lights would suggest.

    I would suggest 2-3 of these lights approximately.

  • new garage with vaulted ceils, 28x34 ft. what is your recommendation per number of fixtures 2 or 3?

    We would recommend 2 of these UFOs.

  • How many do you think I need for a 70x104 warehouse with 16’ tall ceilings?

    You could get away with about 12 of these!

  • I have a new pole barn 48x80x16 how many lights do I need and where do I put them

    You would be fine with anywhere from 10-12 lights and they could be spaced out about 20ft apart or so.

  • 50 - 30 - 14 in close shop

    You could get away with about 4 lights! Or up to 6 if you'd like to space them closer together.

  • How many lights for a 30' x 40' x 14' high pole barn?

    You could get away ith about 4 lights! 6 if you wanted to space them out a little closer together.

  • I have a 36' x 40' x 16' eaves pole building how many will I need to get the best coverage? Thanks ...and if I purchase one to verify their effectiveness may I return it if it doesn't provide the light I am expecting or needing?

    You could get away with about 6 lights! And yes, you'd have 30 Days from date of purchase to return it. You'd be responsible for return shipping costs but we'd provide the RMA Form and our return process is quite quick and simple.

  • My building is 24x40x16. How many do i need?

    You could get away with 2 fixtures, or for sure 3, but we'd recommend the 200W version!

  • We have a 36x48 pole barn with 16' ceilings. How many lights do you recommend?

    You could do as little as 4 or as many as 6, depending on how far you'd like them space out!

  • Do they come with mounting hook? And I'm thinking 12 in a 40x52x16 shop?

    Yes! And you could use even less if you wanted, like 6-8.

  • What dimmers would be suitable for these ?

    They work with any LED compatible 0-10V dimmer.

  • how many amps do these lights draw

    They draw 1.65A.

  • what is the diameter of these lights?

    The entire diamater is 12in but the diameter of the inner glass pieces is almost 8.5in.

  • We have fellowship hall at church 50x80x20 that is used for different things. Kids and teens play area dinners get togethers. Need something that won't shatter and can be dimmed for other activities

    These high bays provide both of those. The glass is tempered is there is a dimming wire on the back of the light next to the power supply wiring cable.

    We also sell a motion sensor/dimmer/daylight sensor for our UFOs, found here; https://www.ledmyplace.com/products/360-3-step-dimming-motion-daylight-sensor-for-ufo-high-bay-49ft-max-height

  • How long is the drop cord?

    Unfortunately there is no additional drop cord. The power cord is about 1.5 ft.

  • how much does one of these lights weigh??

    7 lbs app.

  • I have 6 of these lights. Do I have to have a separate dimmer for each one?

    No, you don't need separate dimmer. You can operate all of those 6 lights with one dimmer. All you need is one Power Pack to connect all the lights with one power source and one wire less dimmer controller. Please check the following links

    https://www.ledmyplace.com/products/wireless-dimmer-manually-turn-on-off-and-dim-command

    https://www.ledmyplace.com/products/power-pack-0-10v-wireless-dimming-module-120-277v-10a-build-in-relay

  • Are these lights shatterproof? We have a food plant where we are thinking to place these lights over some equipment. Thanks

    Yes, they are shatter proof.

  • New metal building 56x40, with shop area of 40x40. 12' eves, 17' roofline, figure lights would sit ~ 14'. How many units would you suggest for shop area?

    1 to 2 UFO's are fine for this big area.

  • Are they wireless

    No, they have the power cable attached

  • Do these lights output UV light? I would like to avoid problems incurred with UV output.

    These fixtures have no UV light emissions.

  • What size wire is recommended and can they be daisy chained together?

    18AWG wire

  • 30’x50’x16’ shop Wire size 12/3 How many can be installed on one 120V/20amp breaker?

    It's recommended that you must consult with your electrician for safety wiring

  • Do these come with a cord to plug into a ceiling outlet?

    These have a short pig tail to hard wire.

  • Is this plug and play or does it require being hardwired in?

    This is hard wired and required an AC input of 100-277V

  • I have a 1600 square foot gym 16’ ceilings, how many should i use? I was thinking 3 would work as the shape is in an ‘L’ pattern

    4 UFO's are sufficient for this area

  • 20x40 pole barn with 12ft ceiling. How many lights would I need?

    1-2 UFO's

  • building a new building 215 ft x 120 ft 30 ft ceiling it will be a manufacturing environment would this light be a good choice if so how many to have good lighting thru the entire building?

    35 Lights

  • is it a 3 wire hook up or 2 wires

    We have here 3 wiring connection, plus 2 wires would be for dimming.

  • How many lights would I need If the ceiling is 30 Ft high. Area 144’ x 48’?

    12 lights

  • Can these be surface mounted into a metal ceiling?

    You can surface mount them with the help of its bracket which is a separate accessory i.e. U Bracket for 150w UFO [FX036].  Also you have to make sure that the ceiling can carry the weight of the light.

  • Which color wire is the neutral for this fixture? It has green with yellow stripe, brown, and blue wires.

    Green With yellow Stripe is ground ; Brown is Hot ; Blue is Neutral.

  • Are these dimmable? Thx

    yes , however you need to buy the dimmer seperately .
