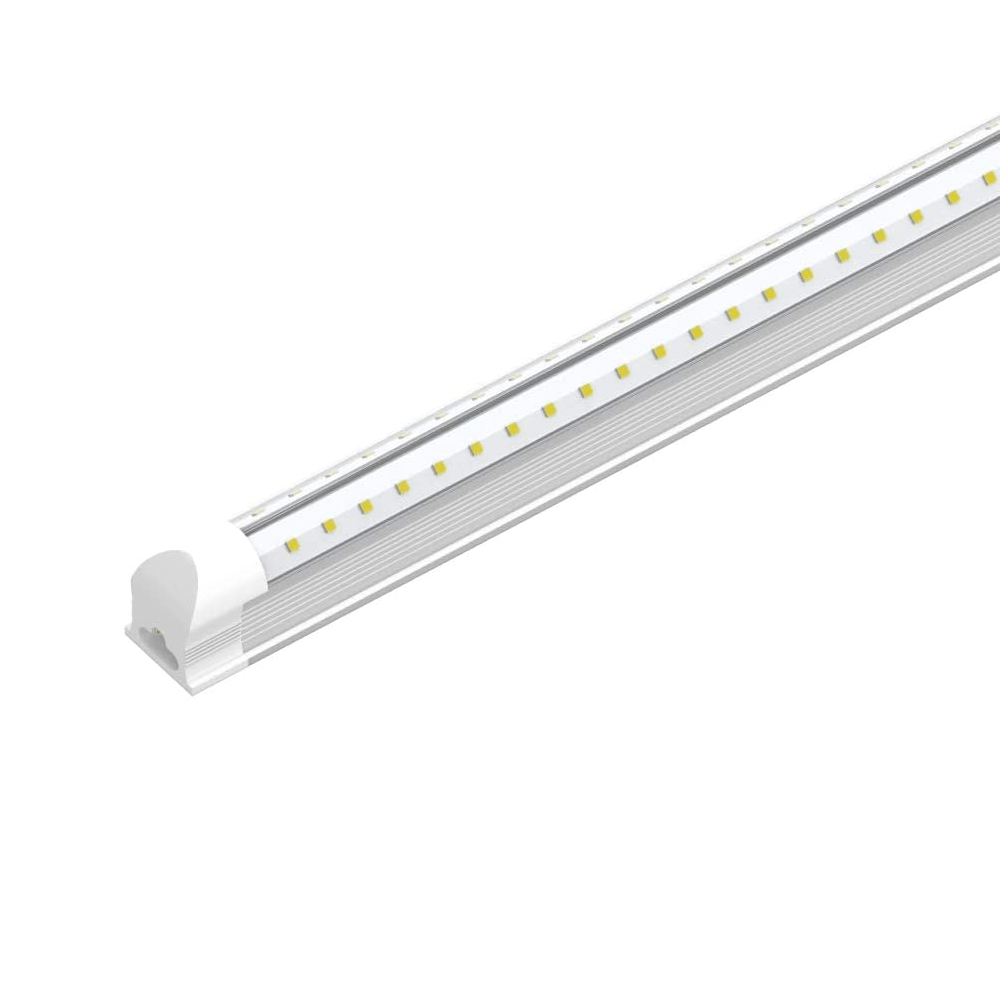

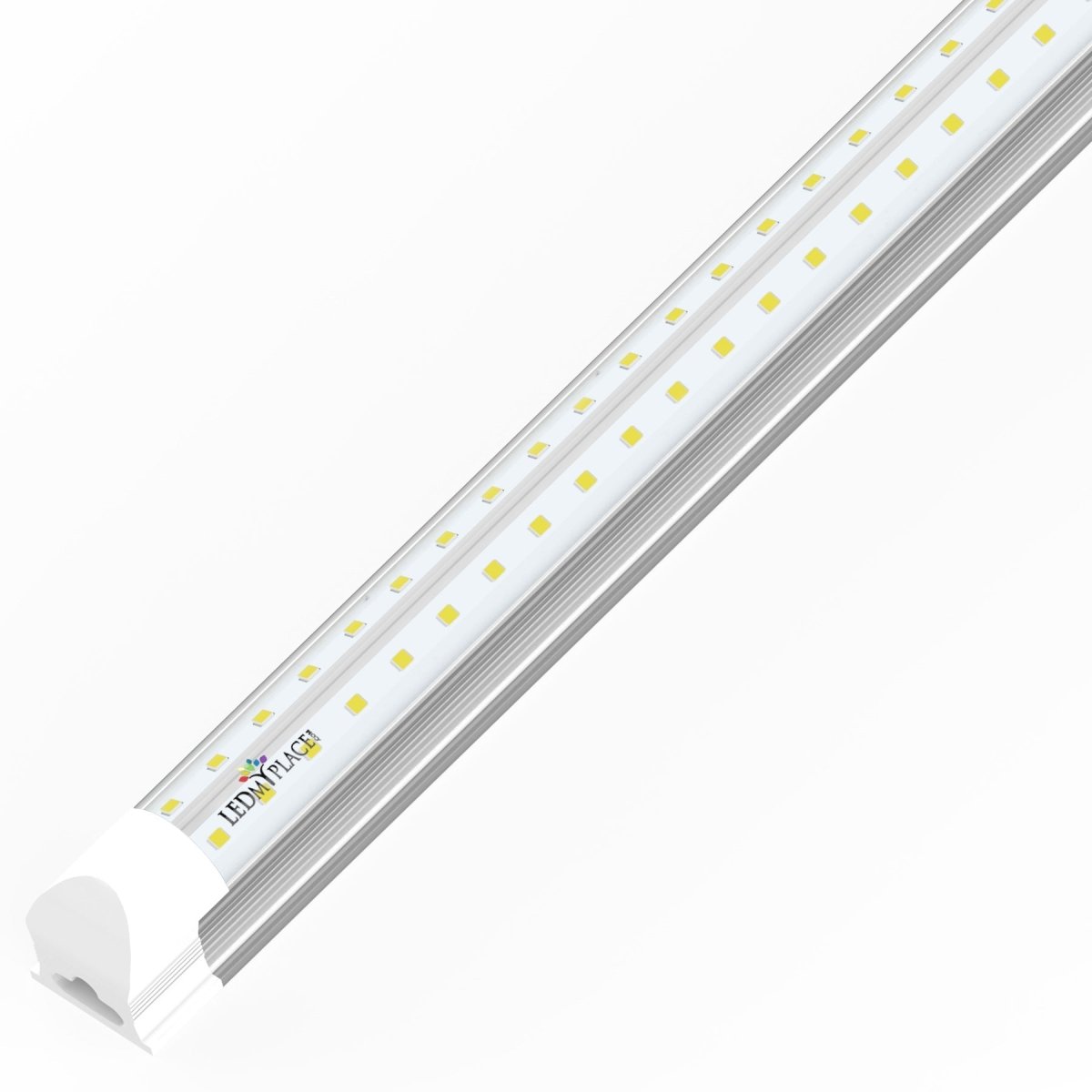

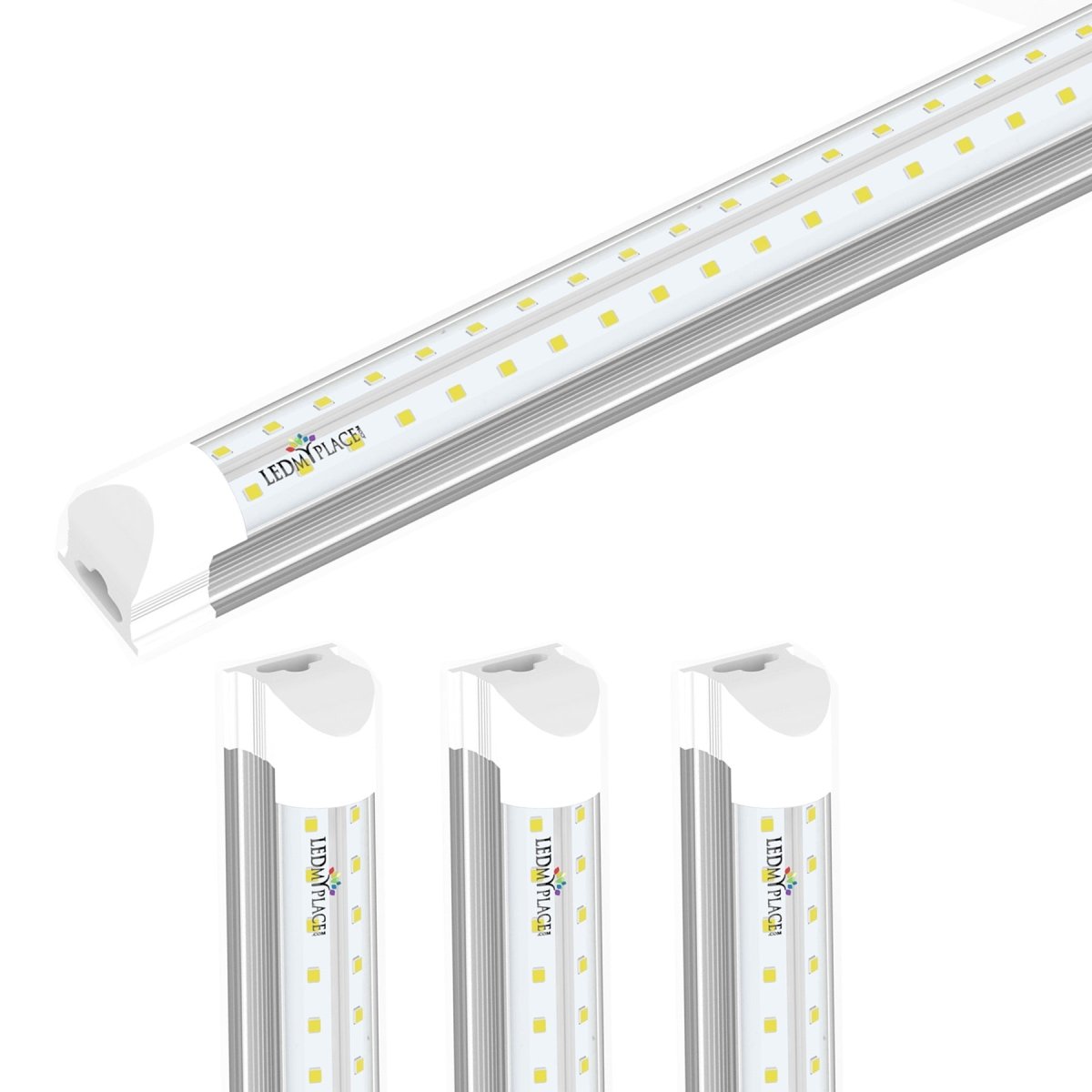

A V-shape LED Integrated tube is an ideal shop lighting fixture. Its ability to brighten up the indoor location makes this light an excellent attachment for locations like homes, offices, schools, departmental stores, workshops, etcetera. This 60 Watt T8 8ft LED Integrated tube light is sufficient to illuminate your desired location with 7200 lumens power. In addition, the 5000K color temperature allows dispersing a daylight white light on your site for better visibility.
Furthermore, this T8 LED light is more efficient from a power-saving standpoint as it offers 210 wattage replacements than a traditional lighting fixture. Also, this light has quite the reach with a 180 degrees beam angle. Moving forward, this LED tube light has a 50,000 hours lifespan ensuring that the light won’t go off any sooner. As certified by DLC certification standards, this light is supposedly an ideal pick for your indoors. So, pick this V shape 8ft LED integrated tube light and make your location effortlessly visible. Adding on, this fixture comes with a 13-inch pigtail to conveniently connect the tube with the power supply. Also, you can join this fixture for up to 4 attachments either directly or with the help of a connecting cable that is sold separately in 3,6 & 10 ft.
Features of 60 Watt V Shape Integrated LED Tube, 210W Equivalent - 5000 Kelvin
Easy Installation

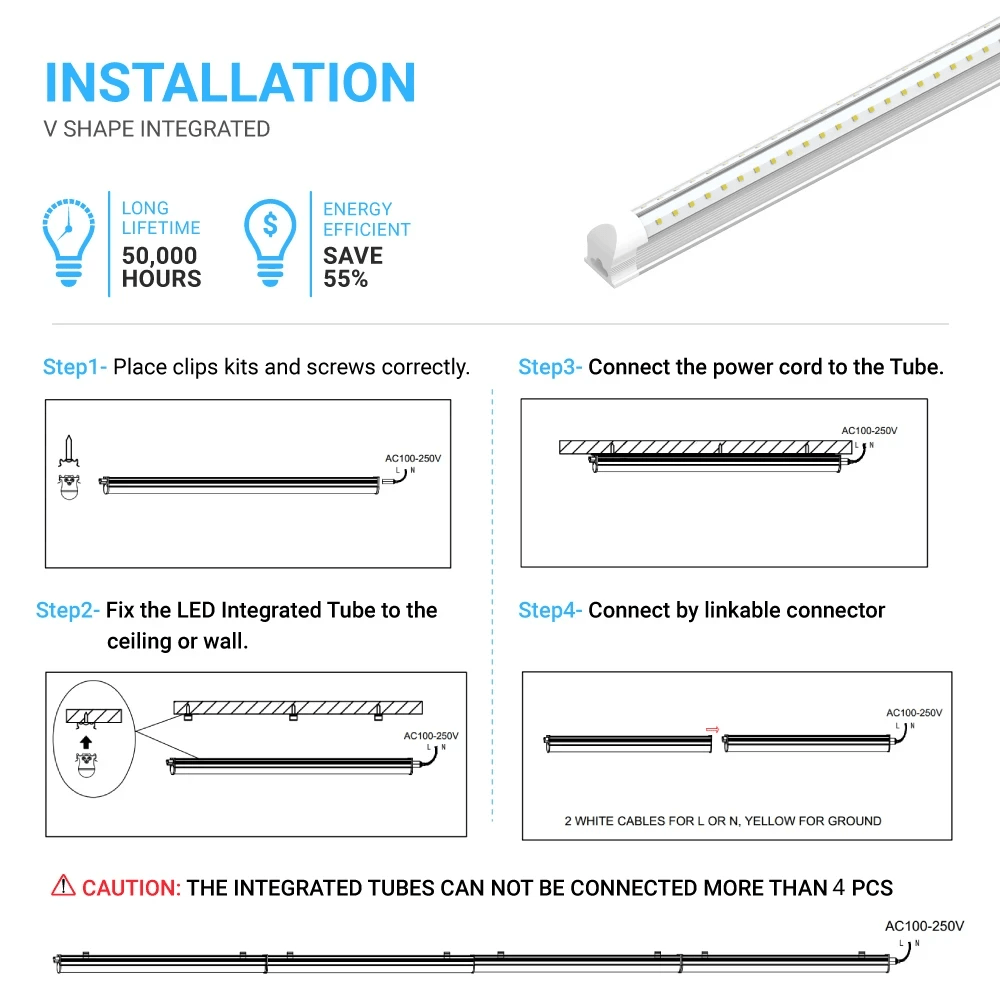

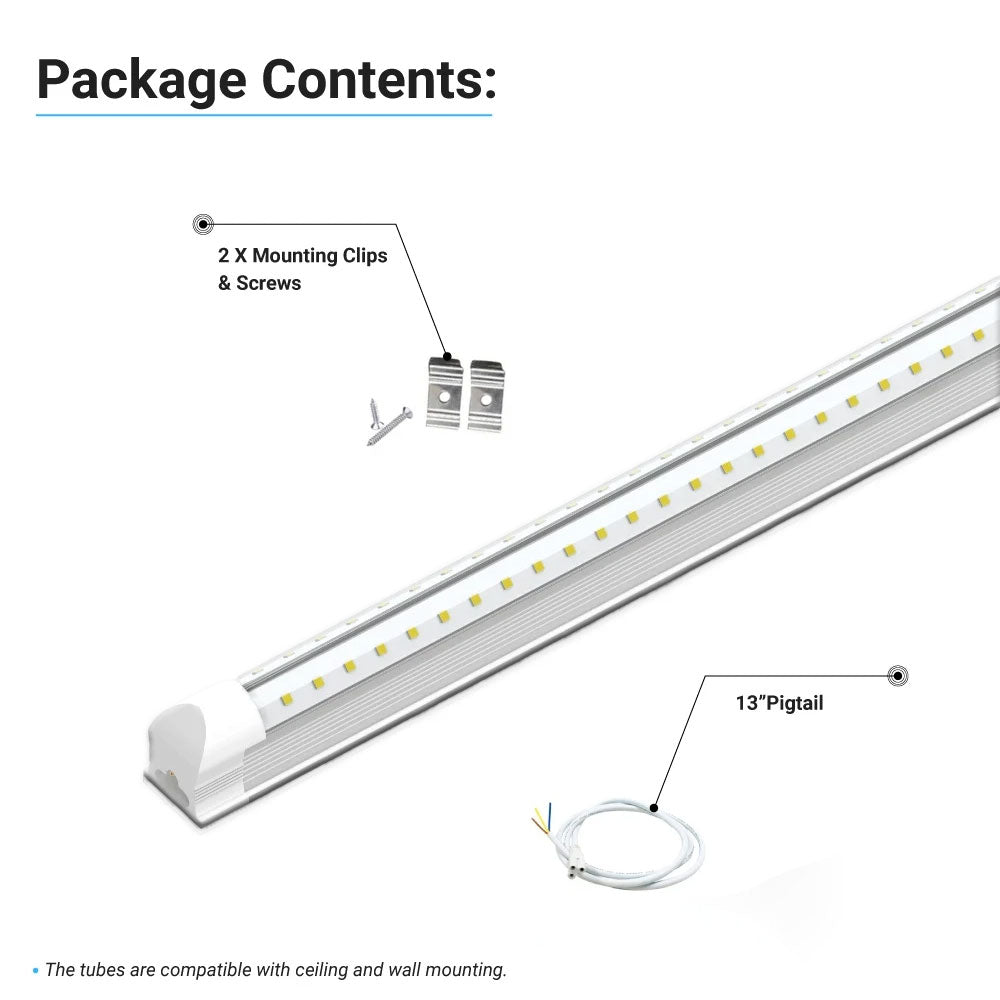

T8 8ft LED Integrated tube is a linkable integrated fixture and can be linked using a linkable connector directly. During installation, you will find two white cables for L or N and yellow for the ground; using these wires also integrated tubes can get connected. You can mount this fixture by placing the clip kits and screws correctly. Then fix the tube to the ceiling or wall. Once you get done with the tube fixing, connect the power cord (Sold Separately) to the tube.
Our T8 8ft integrated tube doesn’t require any ballast unlike in case of fluorescent tube when such tube required removing of the ballast and which took substantial amount of resources both in terms of labor and time. Earlier, it was often easier to install a new 8ft integrated tube than to retrofit the fluorescent tube when you struggled with the issue of ballast compatibility. But, now, with T8 8ft integrated tube, you can heave a sigh of relief as all you need to do is replace the fluorescent tube with our integrated tube by directly wiring it to the line source and without undertaking any step of ballast removal.
With fluorescent tubes, you often encountered the problem of flickering on a consistent basis and then you helplessly tried to fix it in some or the other way, sometimes by fixing the loose tube in its place, at other times, replacing the starter. Fortunately, this isn’t the case with our T8 8 ft LED integrated tubes. Our 8ft integrated tube is completely flicker-free since it operates without any starter and thus this tube is a time-saving lighting product when you can safely rely on it without your regular activity getting disrupted.
Our T8 8ft LED integrated tube accepts an input voltage of AC 100-277. With an LED driver inside the tube that can adjust according to the incoming voltage to provide the current supply, this voltage range allows you to directly wire the fixture without making any modifications.
With our T8 8ft integrated tube lasting for not less than 50,000 hours and with very little lumen depreciation until the end of lifespan, you incur no cost or almost negligible maintenance cost.
Our T8 8 ft integrated tube by all means are built to last for more than 50,000 hours, thanks to the innovators of LED technology.
The CRI being 80 for integrated tube means it enables objects and spaces to display their true colors to 80% extent and this is what makes it suitable to different applications.
The integrated tube having this wide beam angle can be used for general area lighting and for illuminating large areas. For integrated tubes installed in low ceiling rooms, this beam angle is perfect.
The integrated tubes by all means do not bring any less than 75% savings in energy when making a switch from fluorescent tube to this tube.
The heat sink allows our T8 8ft integrated tube to dissipate any heat produced by the tube. This heat sink made of aluminium is light weight and a good thermal conductor.
The Operating Temperature of these LED Integrated Tubes is -4°F to 104°F which is -20°C to 40°C. These LED Integrated Tubes to perform very well in these temperatures.
Our integrated tube is rated IP40 indicating that the tube is protected against any dust particles with thickness greater than 1mm and any moisture or water coming from any direction. This makes our tubes suitable even for those indoor areas where there are chances of penetration of water such as bathrooms, kitchens etc.
LEDMyPlace uses LED chip of highest grade, made available to us through the largest manufacturer of LEDs -- Epistar Corporation. The LED chip being manufactured out of high quality materials is durable, low heat generating and eco-friendly with a long service life.

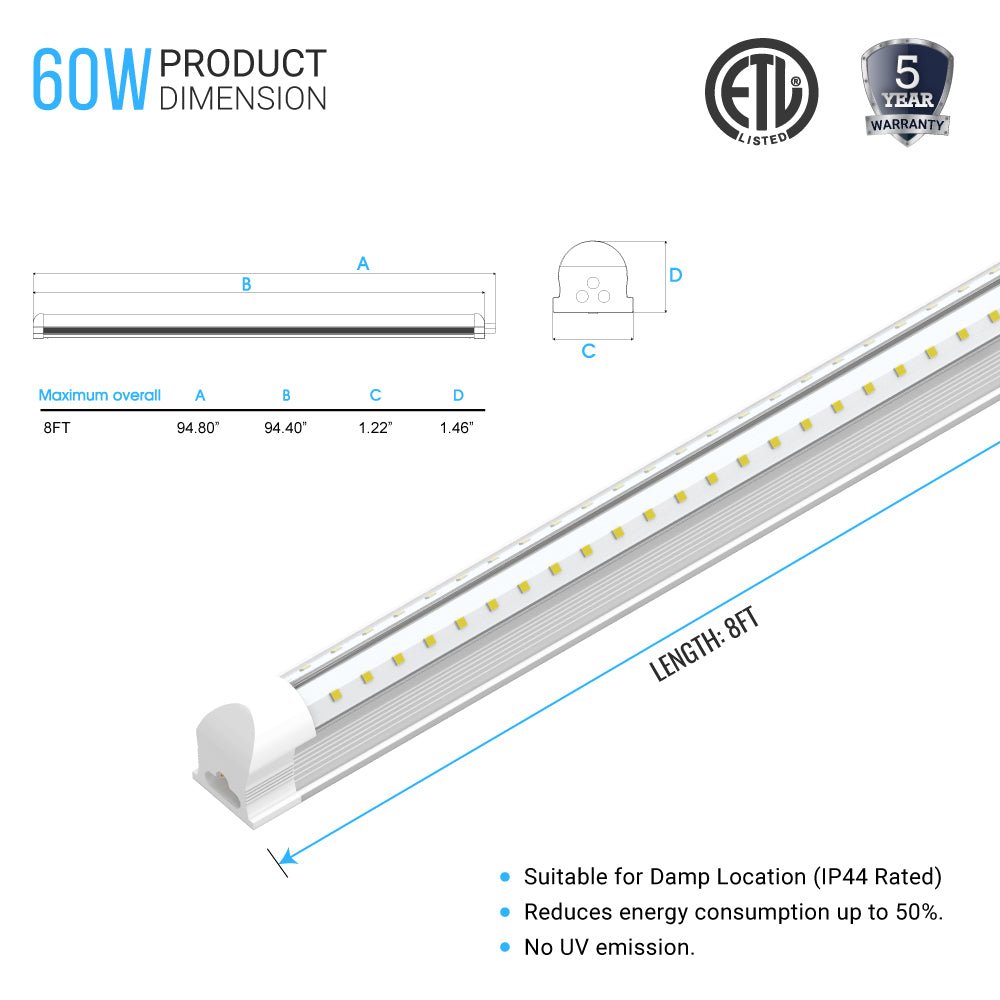

| Dimensions (L x W x H): | 94.80''x1.22''x1.46'' |
| Beam Angle: | 180° Beam Angle |
| CCT: | 5000 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |
| Damp Location: | Damp Location |
| Housing: | Aluminum |
| LED Type: | 2835 |
| Lumens: | 7200 Lumens |
| Power Factor: | >0.90 |
| Safety Rating: | ETL Listed |
| Voltage: | 100-277 Volt |
| Wattage: | 60 Watt |
| Base Type: | Integrated |
| Brand: | LEDMyplace |
| Certifications: | ETL, Dlc Listed |
| Color Temperature (Kelvin): | 5000 Kelvin |
| Dimensions (L x W x H): | 96 |
| IP Rating: | IP40 Rated |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | IT007 |
| Replaces: | 210 Watt Replacement |
| SKU: | WEN-8FT-INT-60W-V-5000-C |
| Warranty: | 5 Years |
| Operating Temperature: | -4 Degree F To +104 Degree F |
I'm looking at buying some of these for a 3rd car garage I'm adding. Are these hard wired to a circuit or do they plug into a ceiling outlet?

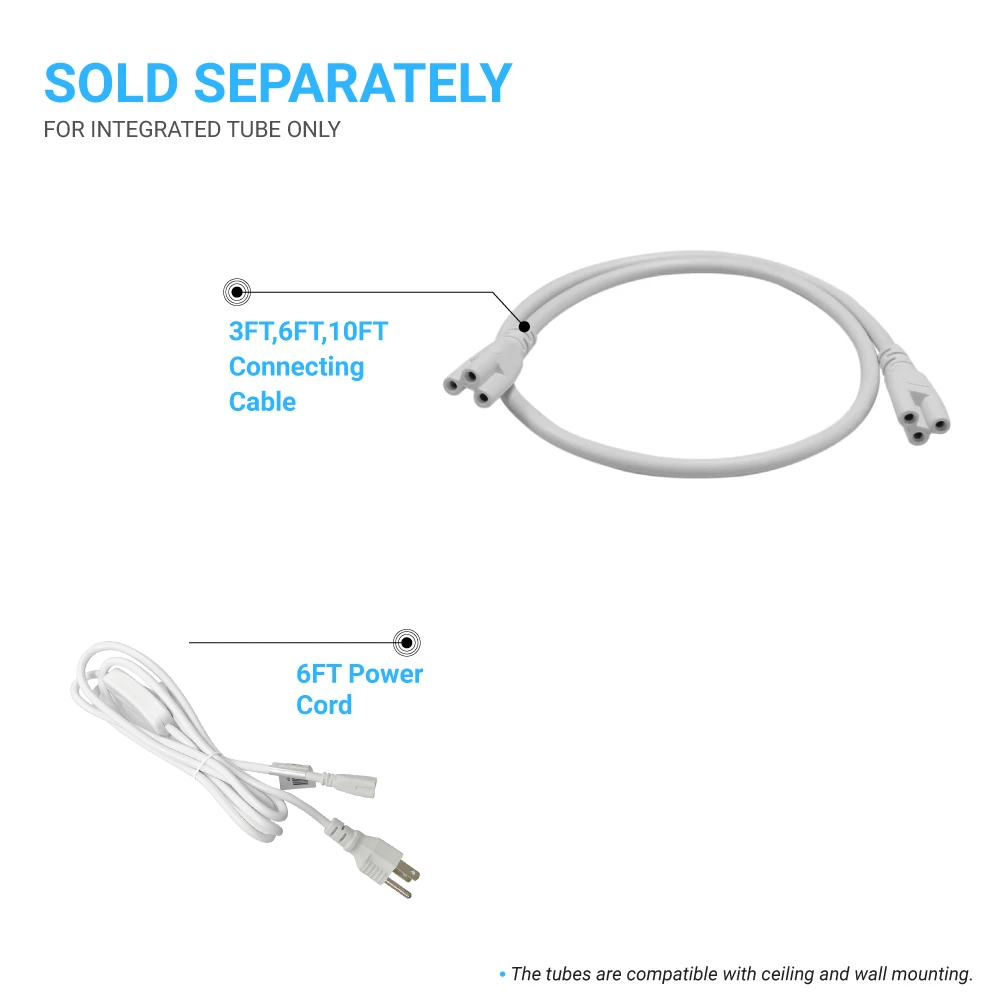

They get mounted to any flat surface with the provided mounting clips, and then get hard-wired into your power supply via the pigtail we provide or the 1ft connecting cable we also provide. We also sell 3ft, 6ft, and 10ft connecting cables, as well a a 6FT Power Cord.
Will they work well in shop with 15 foot side walls
Yes, they are ideal for shops.
1. where are they made. 2. do they have cord for duplex receptial 3will they re[lace t12 8 ft.
They are manufactured in China. There is only a pig tail comes along with it for hard wire connection. They are not bulbs but complete fixture with LED's embeded on it. You have to take down your existing fixtures for T8/T12 and replace it with them.
are these dimmable?
These lights are not dimmable.
How many of these T8 8ft V shape LED tube 60w Integrated 5000k clear can be linked together?
you can link 4 T8 8ft V shape LED tubes yes it can be linked together.
