Offer a well-illuminated indoor premise with the highly-efficient T8 8ft integrated LED tube light bulb. This 60 Watt V-shaped 8ft LED shop light is an excellent choice for indoor lighting purposes. You can use this light for shops, departmental stores, barns, warehouses, offices, factories, garages, etcetera. Also, the light is IP20-rated and is suitable for damp and moist environments. In addition, this plug & play LED tube light works without a ballast fixture.
Moreover, this 8ft LED tube light is energy efficient and can help lower your power consumption bills. It offers wattage replacement to a 210 Watt conventional light. Moving forward, the light is linkable, and you can either link them directly or use a connecting cable. (Note: The connecting cable and power cord is not included with this LED tube light, you will have to purchase it separately). The connection can be extended for up to 4 LED tubes. The 6500K color temperature lets this light disperse a crystal white light in the room. Plus, its 180 degrees wide beam angle illumination ensures the light has a wide brightness reach. Thus, opt for this LED shop light that will relentlessly work for 50,000 hours without flickering or dimming its illumination effect.
Easy Installation

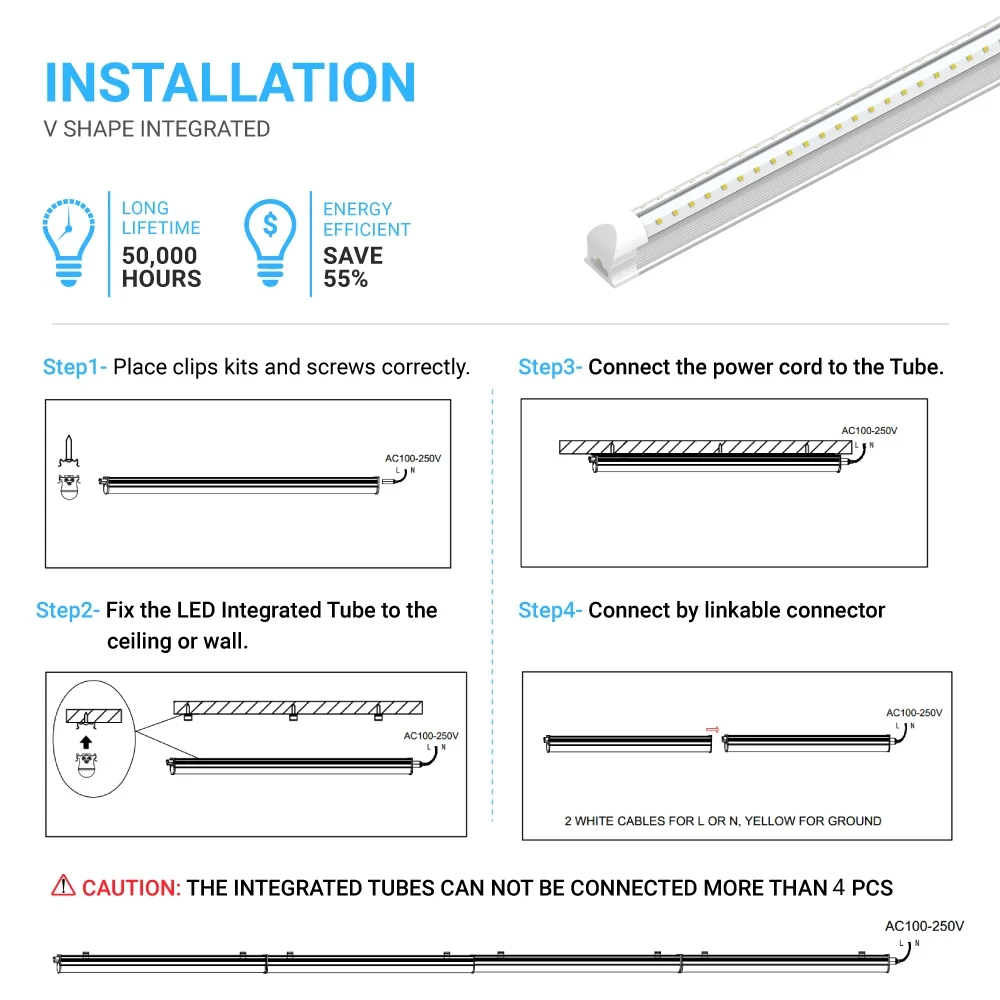

T8 8ft LED Integrated tube is a linkable integrated fixture and can be linked using a linkable connector directly. During installation, you will find two white cables for L or N and yellow for the ground; using these wires also integrated tubes can get connected. You can mount this fixture by placing the clip kits and screws correctly. Then fix the tube to the ceiling or wall. Once you get done with the tube fixing, connect the power cord (Sold Separately) to the tube.
Our T8 8ft integrated tube doesn’t require any ballast unlike in case of fluorescent tube when such tube required removing of the ballast and which took substantial amount of resources both in terms of labor and time. Earlier, it was often easier to install a new 8ft integrated tube than to retrofit the fluorescent tube when you struggled with the issue of ballast compatibility. But, now, with T8 8ft integrated tube, you can heave a sigh of relief as all you need to do is replace the fluorescent tube with our integrated tube by directly wiring it to the line source and without undertaking any step of ballast removal.
With fluorescent tubes, you often encountered the problem of flickering on a consistent basis and then you helplessly tried to fix it in some or the other way, sometimes by fixing the loose tube in its place, at other times, replacing the starter. Fortunately, this isn’t the case with our T8 8 ft LED integrated tubes. Our 8ft integrated tube is completely flicker-free since it operates without any starter and thus this tube is a time-saving lighting product when you can safely rely on it without your regular activity getting disrupted.
Our T8 8ft LED integrated tube accepts an input voltage of AC 100-277. With an LED driver inside the tube that can adjust according to the incoming voltage to provide the current supply, this voltage range allows you to directly wire the fixture without making any modifications.
Our T8 8 ft integrated tube by all means are built to last for more than 50,000 hours, thanks to the innovators of LED technology.
The CRI being 80 for integrated tube means it enables objects and spaces to display their true colors to 80% extent and this is what makes it suitable to different applications.
The integrated tube having this wide beam angle can be used for general area lighting and for illuminating large areas. For integrated tubes installed in low ceiling rooms, this beam angle is perfect.
The integrated tubes by all means do not bring any less than 75% savings in energy when making a switch from fluorescent tube to this tube.
The heat sink allows our T8 8ft integrated tube to dissipate any heat produced by the tube. This heat sink made of aluminium is light weight and a good thermal conductor.
The Operating Temperature of these LED Integrated Tubes is -4°F to 104°F which is -20°C to 40°C. These LED Integrated Tubes to perform very well in these temperatures.
With an IP20 rating, our LED integrated tubes prevent dust and humidity from affecting the product’s performance. Therefore, it is ideal for placing in the kitchen, bedroom, living room, etc., from a performance standpoint. Thus, making it an excellent choice for indoor lighting, these integrated tubes will serve you well in every possible aspect for a long time.
LEDMyPlace uses LED chip of highest grade, made available to us through the largest manufacturer of LEDs -- Epistar Corporation. The LED chip being manufactured out of high quality materials is durable, low heat generating and eco-friendly with a long service life.

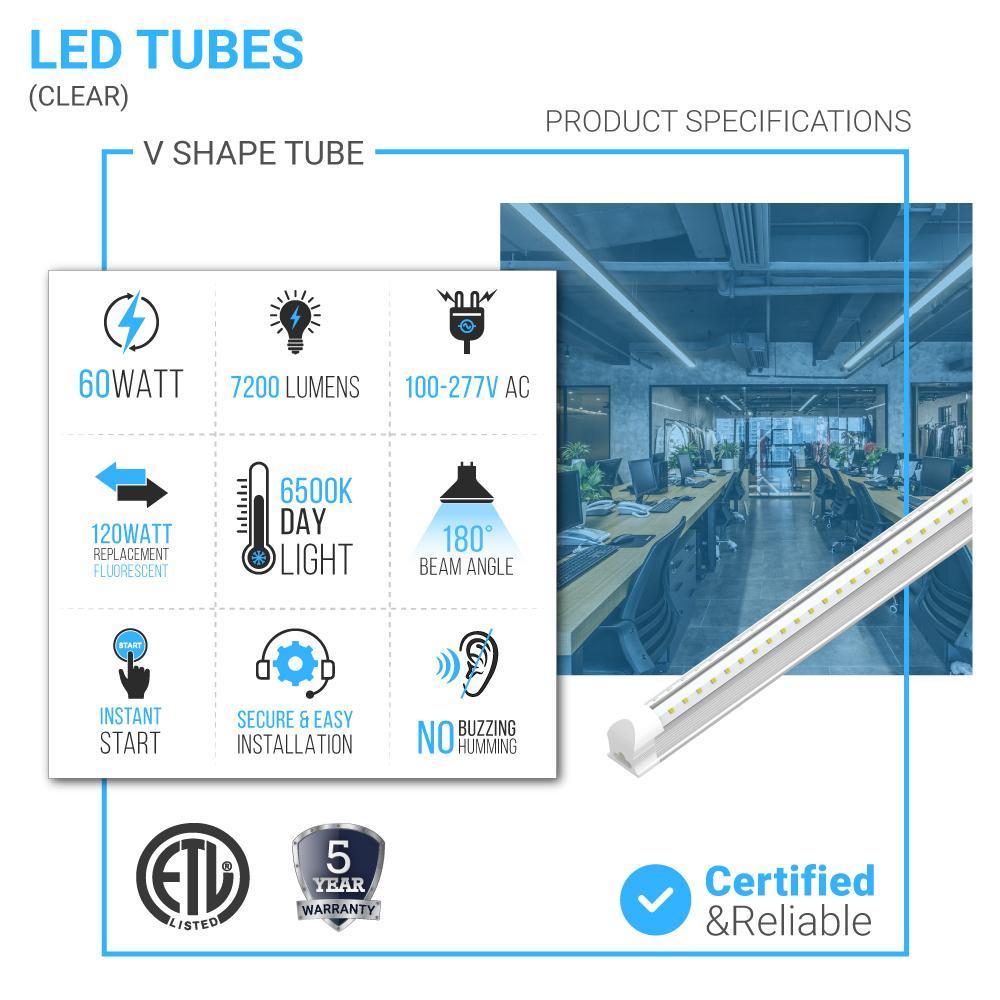

| Base Type: | Integrated |
| Brand: | LEDMyplace |
| Certifications: | ETL Listed |
| Color Temperature (Kelvin): | 6500 Kelvin |

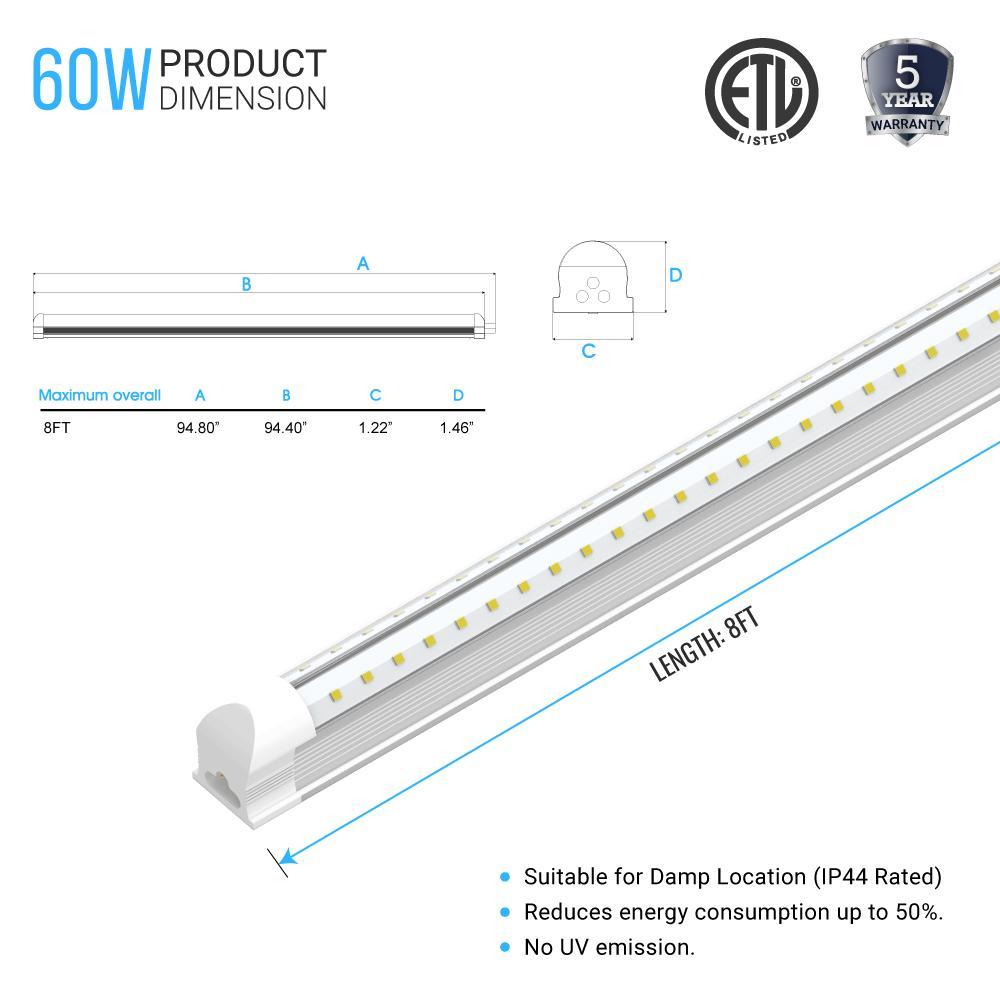

| Dimensions (L x W x H): | 96 |
| Housing: | Aluminum |
| LED Type: | 2835 |
| Lumens: | 7200 Lumens |
| Power Factor: | >0.90 |
| SKU: | WEN-8FT-INT-60W-6500K-C |
| Warranty: | 5 Years |
| Operating Temperature: | -4 Degree F To +104 Degree F |
| Beam Angle: | 180° Beam Angle |
| CCT: | 6500 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |
| Damp Location: | Damp Location |
| DLC Listed: | No |
| IP Rating: | IP20 Rated |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | IT016 |
| Replaces: | 210 Watt Replacement |
| Voltage: | 100-277 Volt |
| Wattage: | 60 Watt |
is a power cord supplied with each light even when ordered in multiples of four? if so, what length?
No power cords are supplied, but they come with pigtails to daisy chain them, and we offer 3-6-10ft connecting cables on our accessories page.
what is the length of the provided pigtail

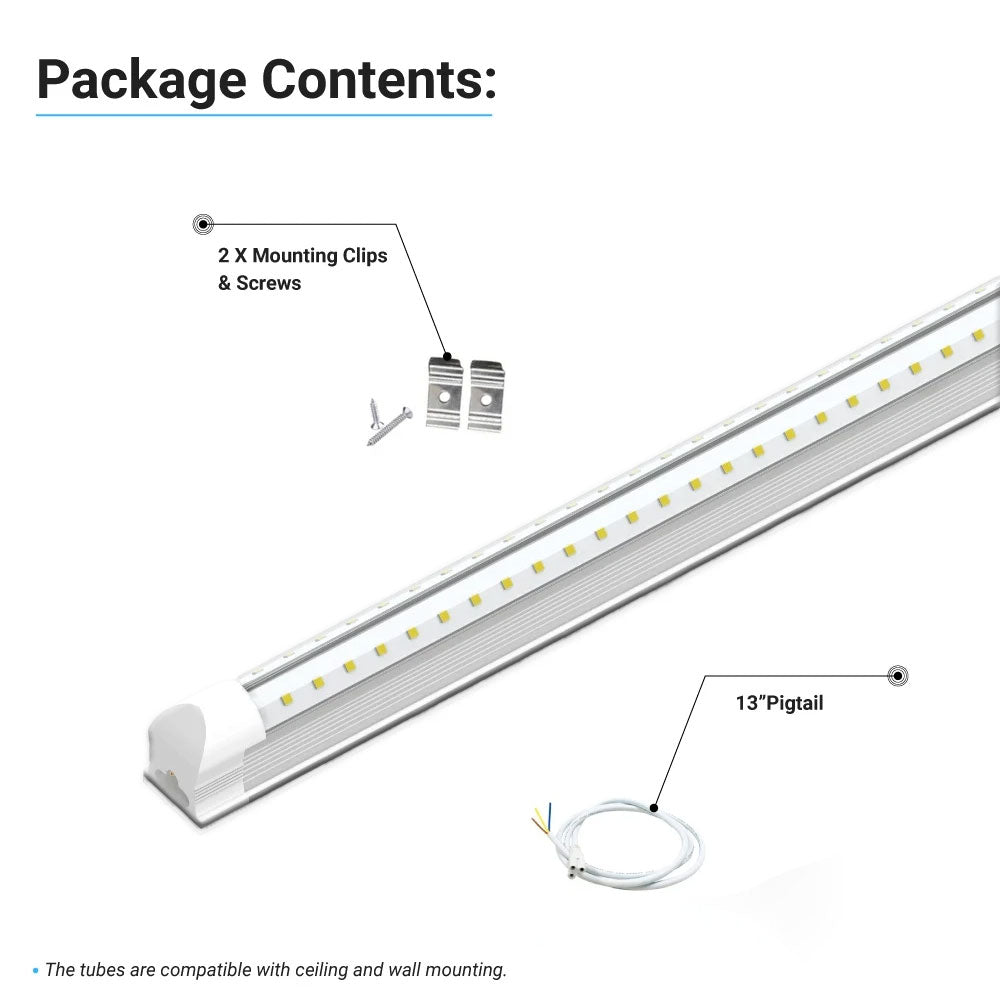

It is 13 inches long.
Are these replacement bulbs for existing fluorescent light fixtures?
No, these are meant to be mounted to any flat surface and then get hard-wired into the power supply.
Which color wire is hot, neutral, ground? The colors don’t seem to follow household wire colors
The blue is negative, brown is positive, and yellow is the ground.
can I run 4 lights pigtailed together off 120 volt circuit
Yes, you can 4 or up to 4 lights in a line with these 60W, 240W total.
What brand are these?
They are WEN Lighting tubes.
What are the temperature limits on these lights?
The Operating Temperature of these LED Integrated Tubes is -4°F to 104°F which is -20°C to 40°C and Storage Temperature is 20°C to 45°C
We bought the 8 ft garage light for 25.99. Trying to install them and can not figure out how to attach them to RAFTERS IN GARAGE, was there something else we needed to purchase to install them?
You can screw in the mounting clips into the Rafters and slide the tube in the clips.
how do you connect them?
You can connect them through connecting cables or the endcap can connect directly
Can they be wired to a dimmer switch?
No, they are not dimmable
can these be run off of a sq wave inverter or do i need sine wave when powering off grid ?
Sine wave inverter are recommended.
Do these LED lights interfere with garage door opener remotes.
It's possible that there could be a signal interference when LED's are run along with Radio in a same room. You can try using the Radio at a distance or in a different room if the same issue exist.
Are these bulbs UL listed?
No, they are ETL certified.
Can these be used outside under a metal roof?
Unfortunately these are only meant to be used for indoors.
I've just installed an 8ft x 4ft pegboard against my garage wall with a workbench below. How much does this 8ft light weigh and can I attach it to the top of the 8ft pegboard? I'm trying to avoid installing in the drywall ceiling using anchors. Please advise.
Yes you can, weight is 1.8 lbs,
Are these lights shielded so they don't effect radio signal
It does effect the radio signals. There is no shield on the lights that can prevent it.
How many amps do these draw?
0.5AMPS
Can you wire this instead of using a plug? I have lights to replace and they are tied to a switch.
The come with a pig tail which can be hard wired to your power source.
RE: 8ft integrated t8 LED tube light These units are supplied with a 13" pigtail. Do you have longer pigtails???
Unfortunately, we don't carry the pig tail i.e. hard wired in other sizes. That said we have a power cord with a switch on the wire which can be purchased separately.
Are these ceiling mount, chain mount, or wall mount fixtures?
These come with the clips that can be mounted on any flat surface or hung with the wire, or suspended from a 2x4 that they're mounted to. There are quite a few different options!
I assume that the three wire plug/pigtail supplied is; hot, neutral, ground, and that the triple tubular connector is for daisy chaining.
yes that is correct.
Can these be wired to a dimmer?
no these are non dimmable.
Can I chain connect 4 bulbs?
yes you can connect upto 4 Bulbs in a row
how do they do in very high moisture?
these lights are not waterproof and we won't recommend them for the wet area.
What is the Power Factor on the 8' LED Bulbs ?
its >.95
Are there Pigtails Available, to be able to space them apart? i.e.- Connect 4 in a row, with space in between the Lights?
yes we have 3ft cables to space these apart
Can I get or make hangers for ceiling? What do you suggest? Thanks..
Either u can directly mount these tubes in the Ceiling & all the necessary fixtures for Installation are included in the box. Or you can a buy additional hangers but you will have to get it from outside.
are 4 packs of this light cheaper
No, it's not but you will qualify for free shipping. However, 10 pack & 20-packs do provide a discount on the lights.
what is the warranty on these?
It has a 5-year hassle free warranty.
My shop has 12 T12 flouresant 8’ bulbs if I pull out the ballasts I can just pop your bulbs in and good to go?
No, these are independent fixtures which should be directly wired (without ballast).
