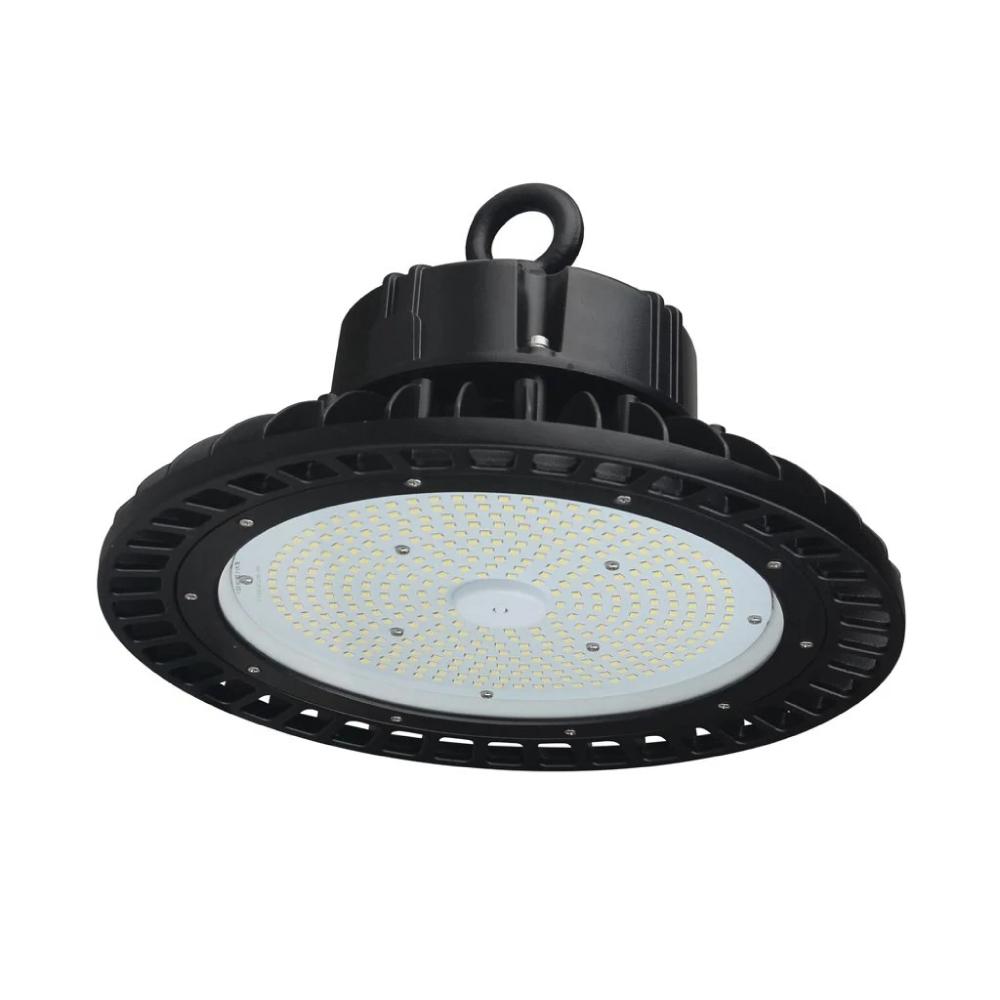

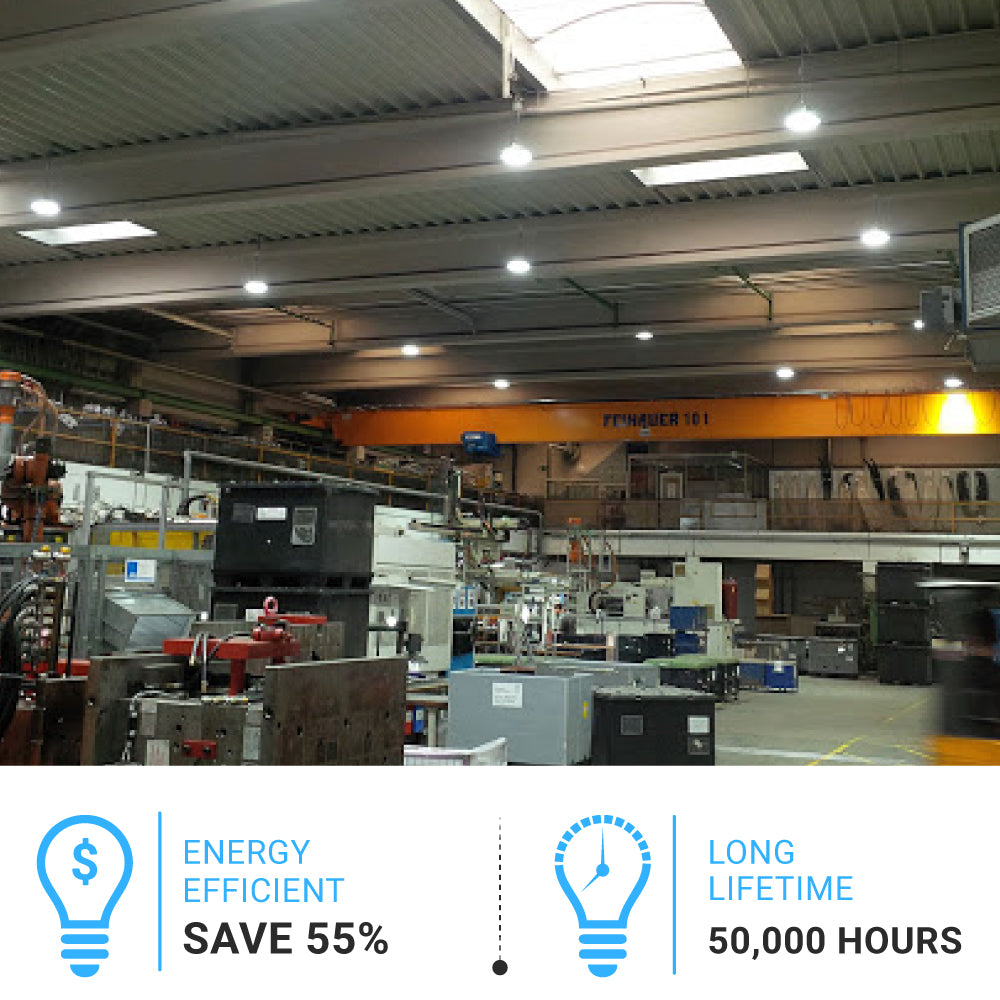

Illuminate your industrial spaces with our adaptable UFO LED High Bay Light, offering adjustable wattage options of 240W, 220W, or 200W to suit your requirements. Emitting bright 5700K light at an impressive 131 lumens per watt efficiency, this dimmable fixture ensures versatile lighting solutions for factories, workshops, barns, garages, commercial shops, warehouses, and airports. With a waterproof IP65 rating and compatibility with high voltage AC277-480V systems, it guarantees durability and reliability. UL and DLC listings further ensure quality, while Gen23 technology promises superior performance and energy efficiency.

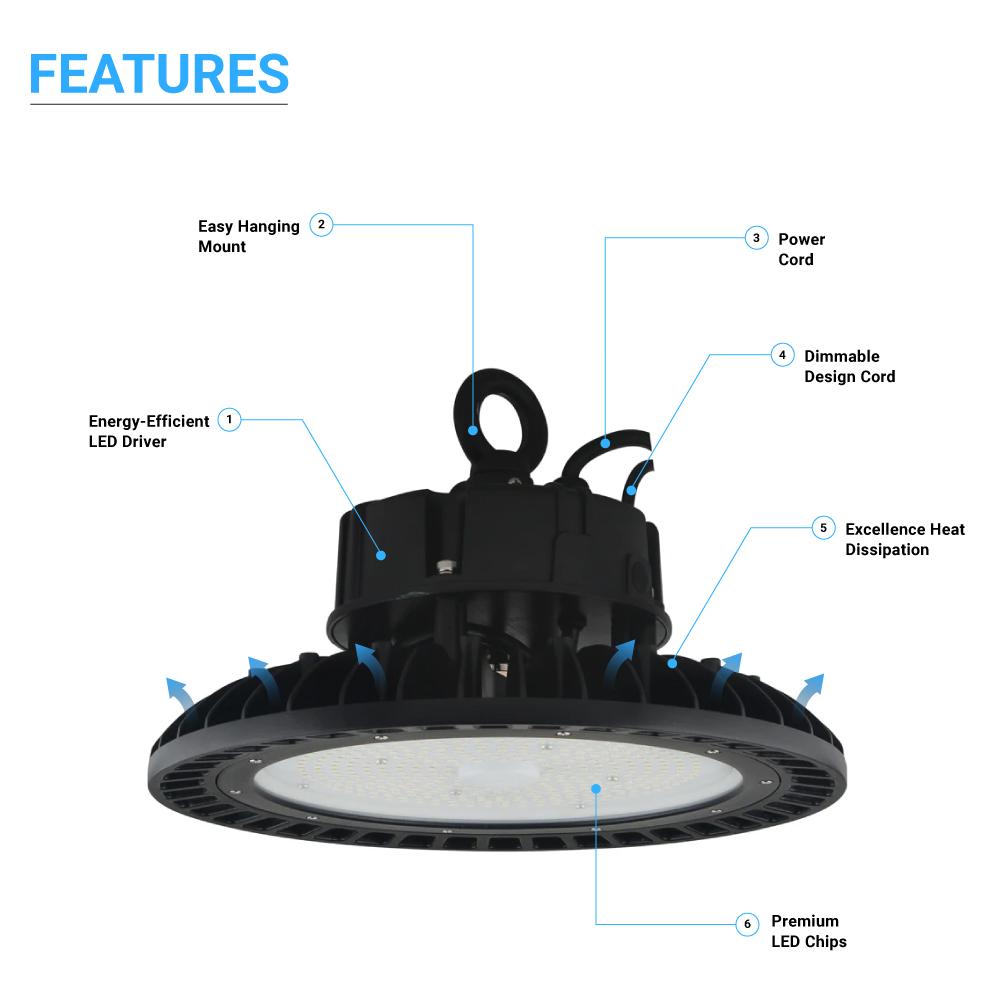

Features Of 240 Watt UFO High Bay LED Lights:
Easy Installation:

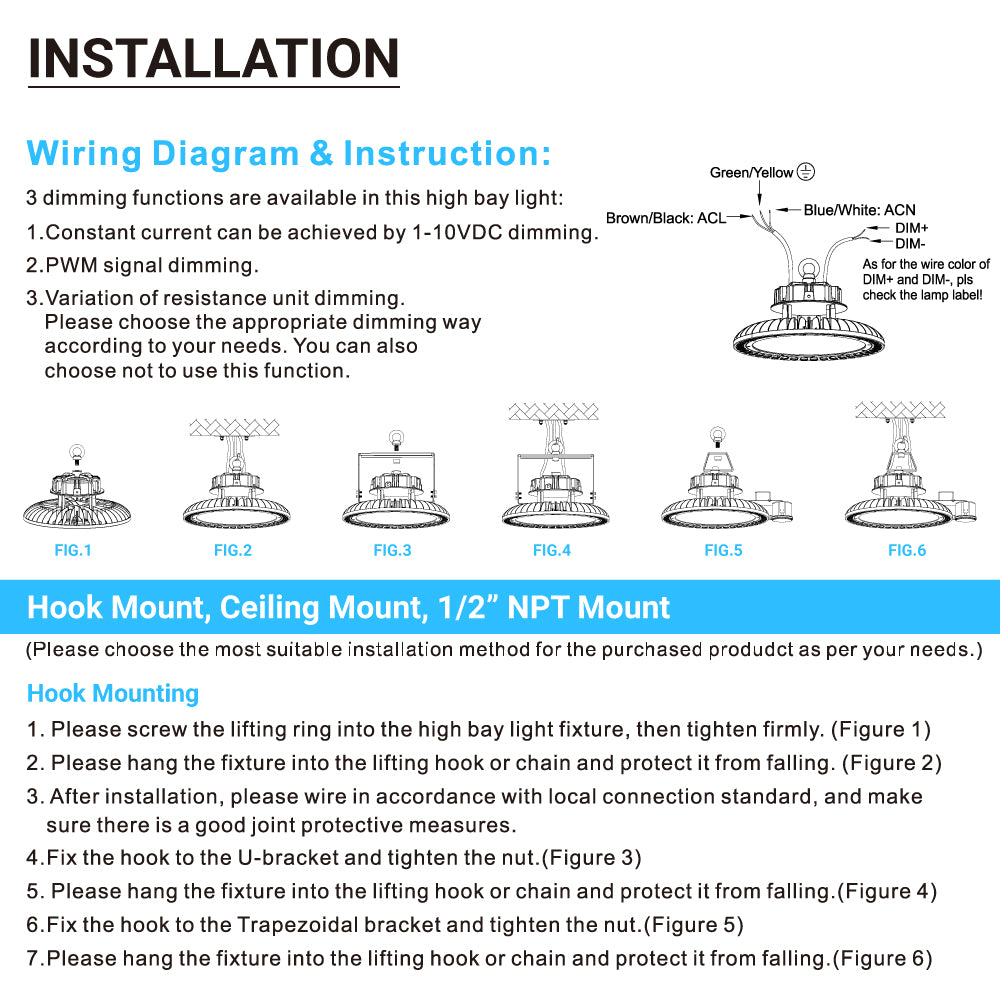

This LED UFO light fixture can be installed easily using the various mounting option the product comes with, reducing installation time by 80% of what traditional fixtures consume. For step by step guide to installing warehouse light refer to the installation guide. (Included inside the box)
Hook Mount:

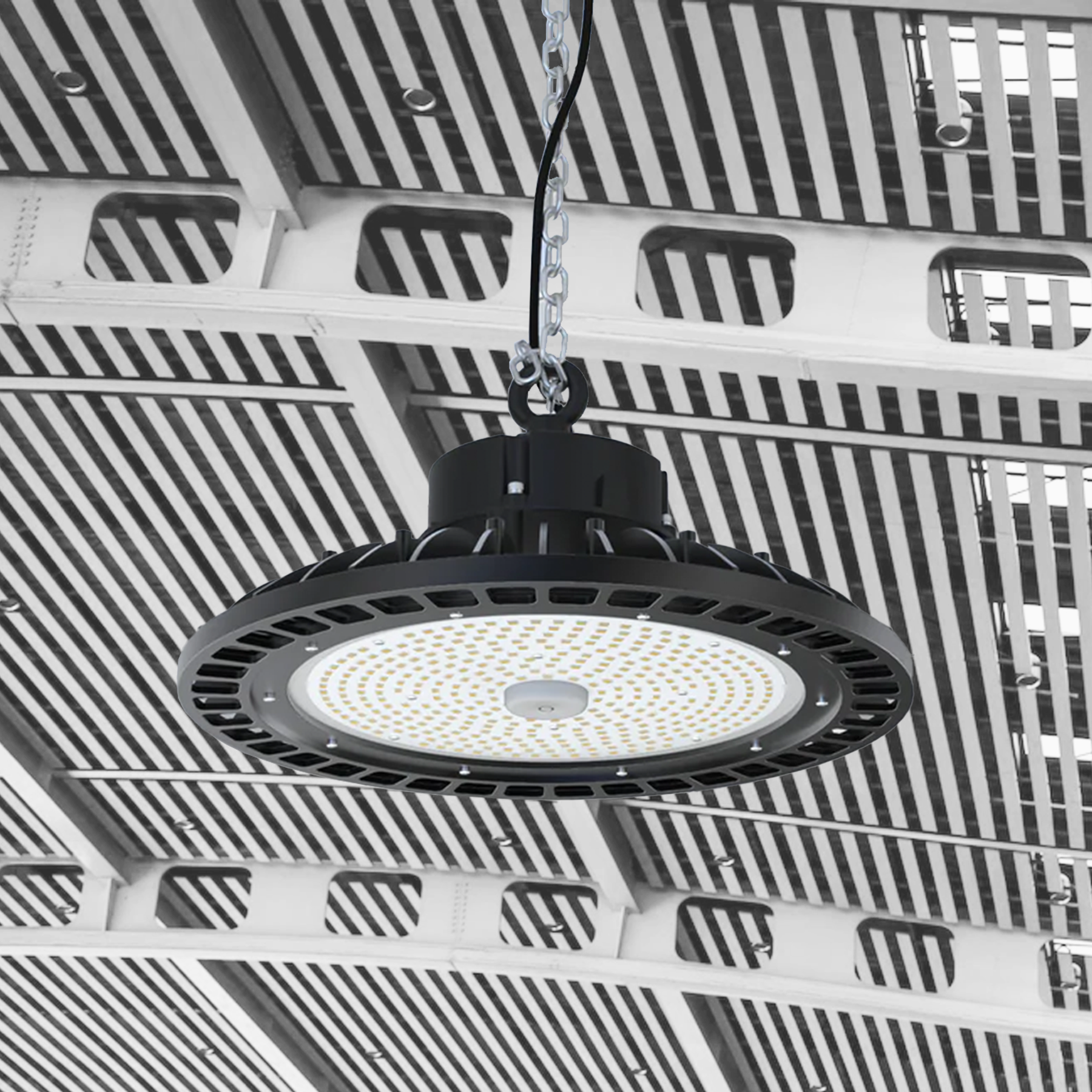

The hanging ring that comes with our UFO high bay light can be inserted in the mounting cavity and tightened through a bolt on the hanging ring to firmly fix the lights. Now mount this ring on the ceiling via a hook. Remember for hook mounting you must have a heavier hook than the lamp, recommended weight is 3-4 times heavier than the high bay light fixture.
Thermal Heat Dissipation:

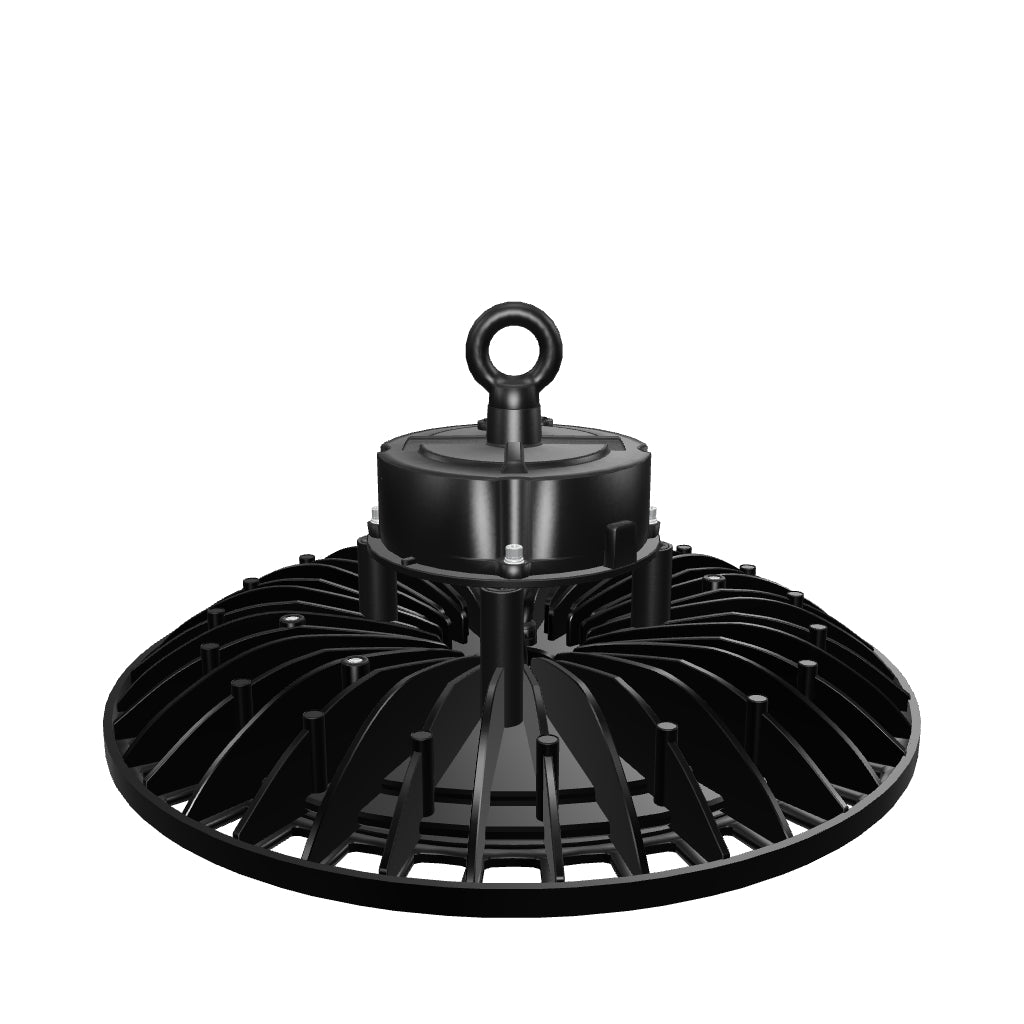

The UFO high bay lighting fixtures have an inbuilt aluminum heatsink which accounts for excellent heat dissipation giving these lights a longer lifespan and better performance.
Premium LED Chips:
For maintaining the best quality of our products we use premium LED chips in our Light Fixture. Built with high precision and accuracy these products render maximum operational efficiency.
IP65 Waterproof Rating:
The high bay lights come with an IP65 rating, certifying the product to be splash and dustproof. These warehouse lighting fixtures are versatile and long-lasting products.
Ultra Wide Angle Lens:
The LED UFO High Bay lights are designed to provide high-intensity lights in large storage spaces like warehouses, departmental stores, etc. that's why these come with an ultra-wide-angle lens.
Rugged Construction:
Designed in a rugged die-cast aluminum these UFO high bay lights are sturdily built and can withstand external pressure while installation, removal, and shipping.
Low-Cost Maintenance
The average lifespan of these 240W LED UFO lights is around 50,000 hours. With no lumen depreciation, this product is known to provide flicker-free lighting till the end of its lifespan. Installing LED UFO will reduce recurring replacement charges; hence, it is a low-cost maintenance light
1-10 Dimmable
The 240W UFO 5700K High Bay comes with a 3-step dimmer and can be dimmed from 10 volts to 1 volt, with 1V being the minimum light level, and 10V being the highest level of dimming allowed by the fixture. At 10 volts, the controlled setting of light is at 100% of its potential output.
CRI >80
CRI or Color Rendering Index of a light source is a measure of clarity and true colors visible under that source compare to the sun having the maximum CRI of 100. The CRI of these LED high bay lights is greater than 80.
Rebate Eligible
The UFO high bay is DLC approved and comes within the scope of rebate-eligibility criteria.
Compatible Dimmers
The LED UFO High Bay product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
H4FBL3PW** For any other Dimmer, please contact our customer support or check with your electrician.

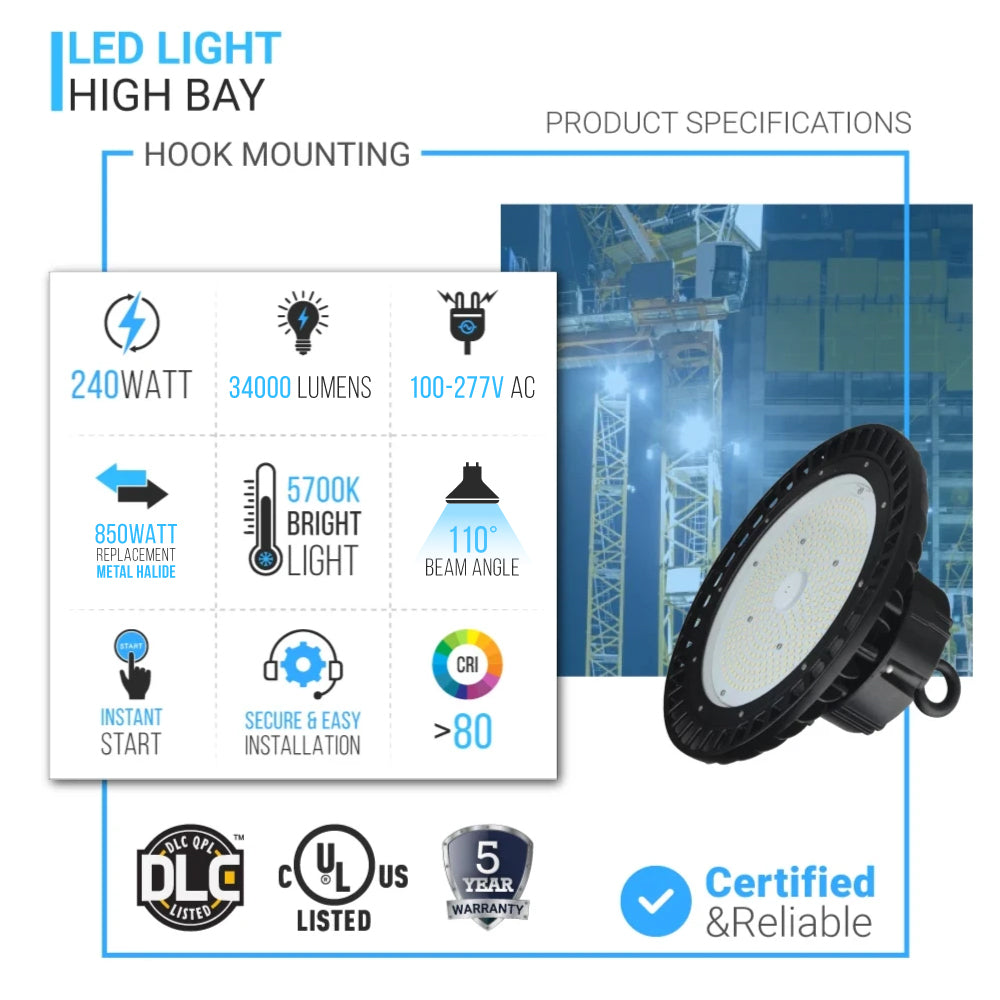

| Beam Angle: | 90° Beam Angle |
| Certifications: | UL Listed |
| Color Temperature (Kelvin): | 5700 Kelvin |
| Dimmable: | 1-10V Dimmable |
| Fixture Color: | Black |
| IP Rating: | IP65 Rated |
| Life Hours: | 50,000 Hours |
| Metal Halide Equal: | 800 Watt Replacement |
| Power Factor: | ≥0.9 |
| SKU: | HIGHVOLTAGE-WEN-HB05-240WSACGH2-BH57 |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | >80 CRI |

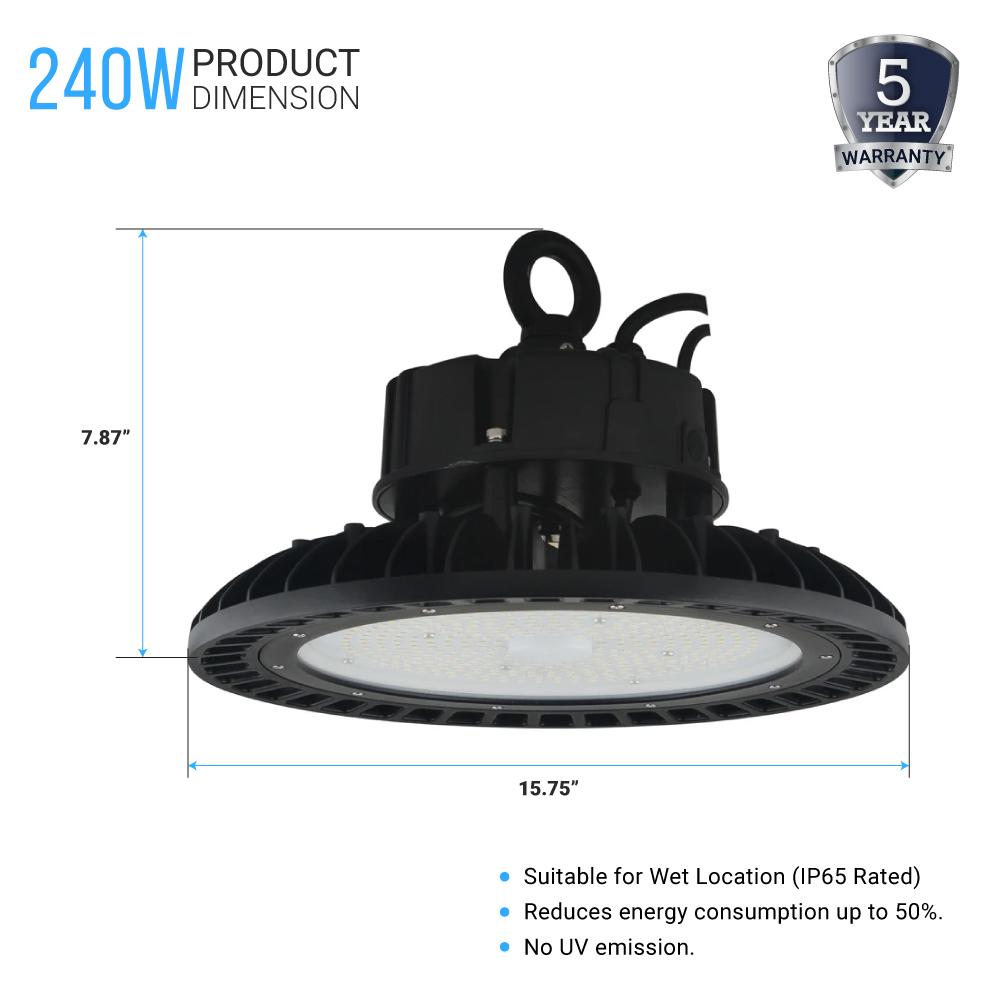

| Dimensions (L x W x H): | 7.95x14.96 Dai |
| DLC Listed: | Yes |
| Housing: | Aluminum |
| LED Type: | SMD2835 |
| Lumens: | 37200 Lumens |
| MPN (Part No.): | UF014 |
| Replaces: | 840 Watt Replacement |
| Voltage: | 277V - 480V |
| Wattage: | 240/220/200Watt |
