T8 4ft Integrated LED Tube Light 30W V Shape, High Output Linkable 4 FT LED Shop Light, Plug and Play, 3900LM, 6500K Clear, Damp Location, For Garage, Workshop, Basement
- translation missing: en.products.product.sale_price
Uplift the illumination effect in your residential and commercial locations with a suitable T8 4ft integrated LED tube light. This 30 Watt LED tube light is suitable for your workspace. With a 6500K color temperature, the light has an excellent illumination effect that you can consider using in offices, retail stores, factories, garages, and other commercial locations. In addition, this is a clear 4ft LED shop light with a 120 degrees wide beam angle illumination. Plus, this V-shaped LED light features 2 rows of LED chips.
Moreover, you can extend this T8 4ft integrated LED tube light to 4 more LED tube lights using a connecting cable, as these are linkable lights. The light has an IP40 rating, making it an ideal light that will effortlessly work in damp locations or sites with a high moisture rate. Furthermore, these 4ft LED tube lights are energy efficient as they offer wattage equivalency to a 105 Watt conventional light. Also, the lifespan of 50,000 hours will not let this light run off any sooner.
Features of T8 4 Ft. LED Tube - 3900 Lumens - 30 Watt - 105W Equivalent - 6500 Kelvin

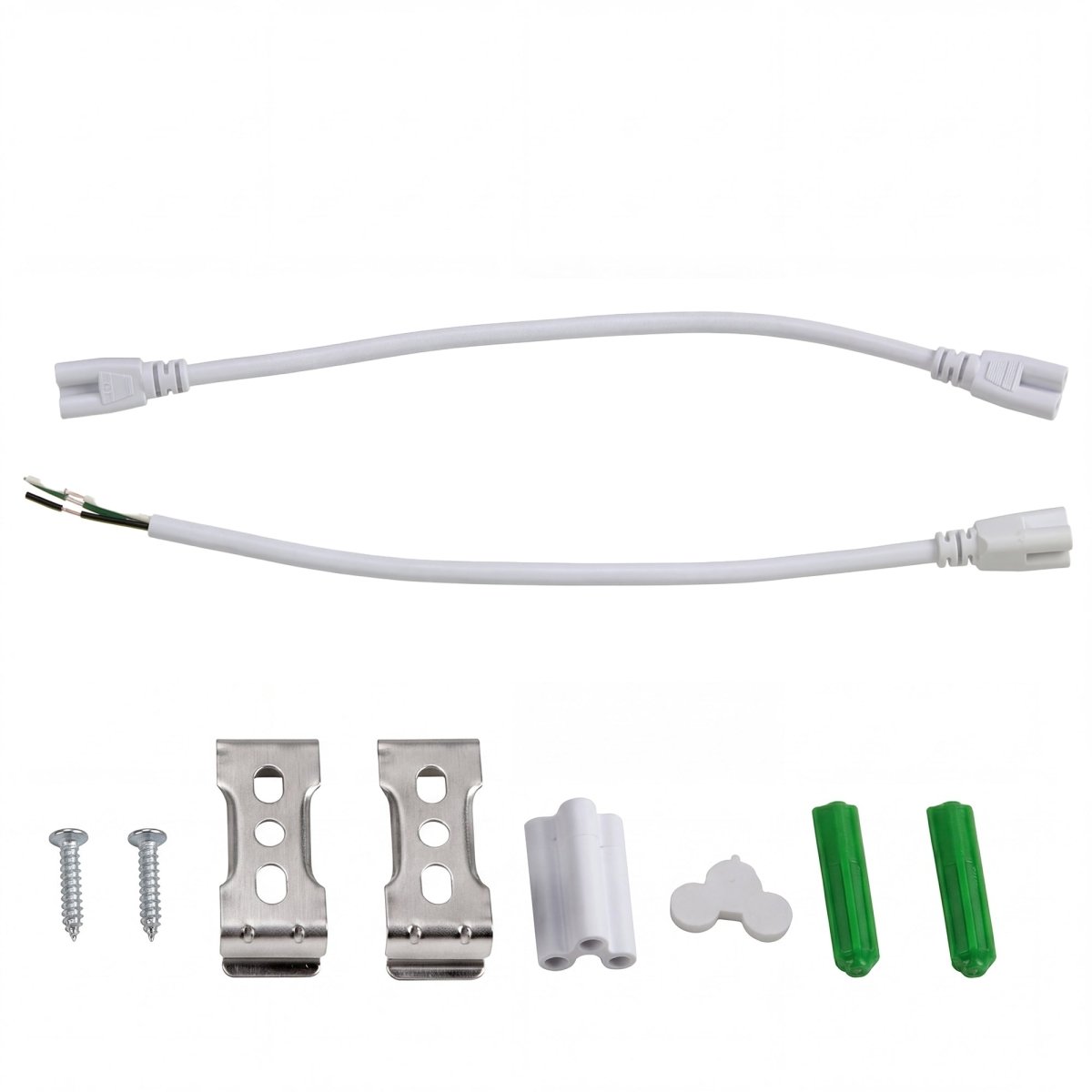

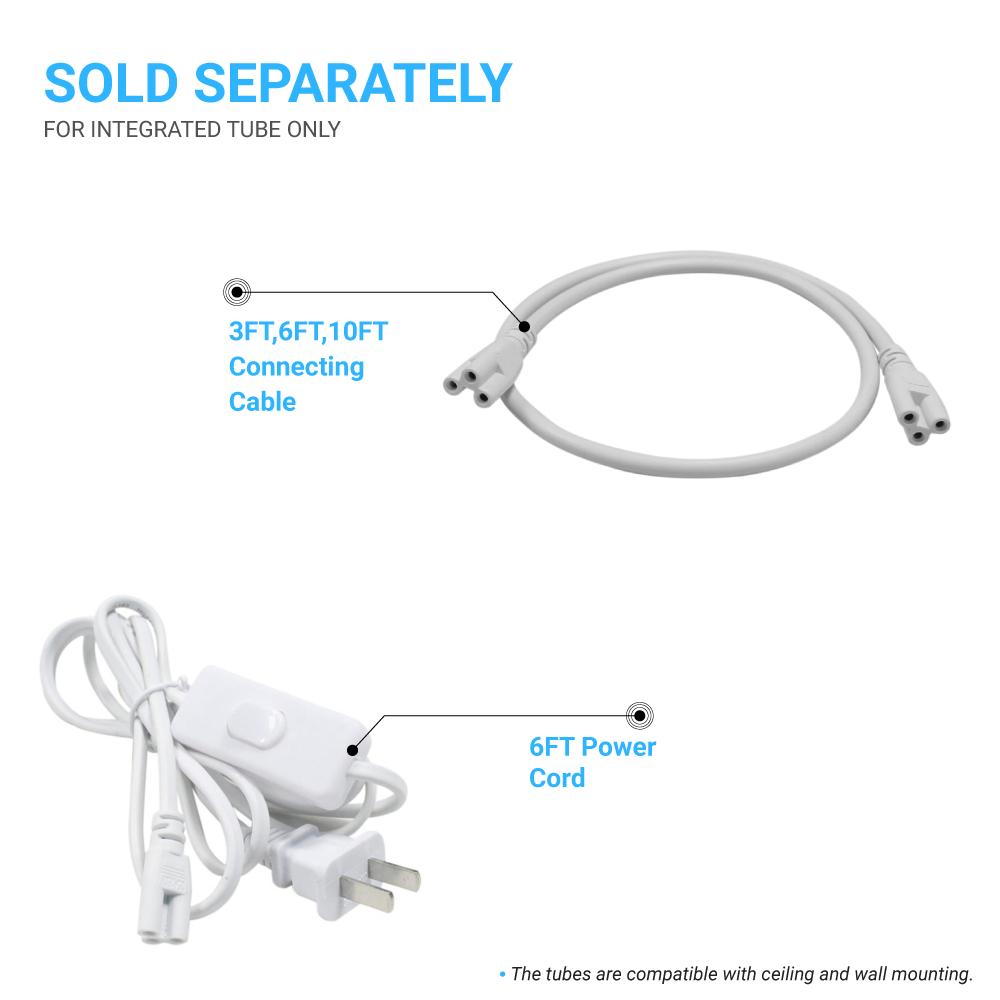

T8 4ft LED Integrated tube is a linkable integrated fixture and can be linked using a linkable connector directly. During installation, you will find two white cables for L or N and yellow for the ground; using these wires also integrated tubes can get connected. You can mount this fixture by placing the clip kits and screws correctly. Then fix the tube to the ceiling or wall. Once you get done with the tube fixing, connect the power cord (Sold Separately) to the tube.
Our T8 4ft integrated tube doesn’t require any ballast unlike in case of fluorescent tube when such tube required removing of the ballast and which took substantial amount of resources both in terms of labor and time. Earlier, it was often easier to install a new 4ft integrated tube than to retrofit the fluorescent tube when you struggled with the issue of ballast compatibility. But, now, with T8 4ft integrated tube, you can heave a sigh of relief as all you need to do is replace the fluorescent tube with our integrated tube by directly wiring it to the line source and without undertaking any step of ballast removal.
With fluorescent tubes, you often encountered the problem of flickering on a consistent basis and then you helplessly tried to fix it in some or the other way, sometimes by fixing the loose tube in its place, at other times, replacing the starter. Fortunately, this isn’t the case with our T8 4 ft LED integrated tubes. Our 4ft integrated tube is completely flicker-free since it operates without any starter and thus this tube is a time-saving lighting product when you can safely rely on it without your regular activity getting disrupted.
Our T8 4ft LED integrated tube accepts an input voltage of AC 100-277 Volts. With an LED driver inside the tube that can adjust according to the incoming voltage to provide the current supply, this voltage range allows you to directly wire the fixture without making any modifications.
With our T8 4ft integrated tube lasting for not less than 50,000 hours and with very little lumen depreciation until the end of lifespan, you incur no cost or almost negligible maintenance cost.
Our T8 4 ft integrated tube by all means are built to last for more than 50,000 hours, thanks to the innovators of LED technology.
The CRI being 80 for integrated tube means it enables objects and spaces to display their true colors to 80% extent and this is what makes it suitable to different applications.
The integrated tube having this wide beam angle can be used for general area lighting and for illuminating large areas. For integrated tubes installed in low ceiling rooms, this beam angle is perfect.
The integrated tubes by all means do not bring any less than 75% savings in energy when making a switch from fluorescent tube to this tube.
The heat sink allows our T8 4ft integrated tube to dissipate any heat produced by the tube. This heat sink made of aluminium is light weight and a good thermal conductor.
The Operating Temperature of these LED Integrated Tubes is -4°F to 104°F which is -20°C to 40°C. These LED Integrated Tubes to perform very well in these temperatures.
Our integrated tube is rated IP40 indicating that the tube is protected against any dust particles with thickness greater than 1mm and any moisture or water coming from any direction. This makes our tubes suitable even for those indoor areas where there are chances of penetration of water such as bathrooms, kitchens etc.
LEDMyPlace uses LED chip of highest grade, made available to us through the largest manufacturer of LEDs -- Epistar Corporation. The LED chip being manufactured out of high quality materials is durable, low heat generating and eco-friendly with a long service life.
|Dimensions (L x W x H):||47.56''x1.22"x1.46|
|Beam Angle:||120° Beam Angle|
|Color Temperature (Kelvin):||6500 Kelvin|
|Dimensions (L x W x H):||47.56''x1.22"x1.46|
|Operating Temperature:||-68 Degree F To +122 Degree F|
|Color Rendering Index(CRI):||>80 CRI|
|Damp Location:||Damp Location|
|IP Rating:||IP40 Rated|
|Life Hours:||50,000 Hours|
|MPN (Part No.):||IT013|
|Replaces:||105 Watt Replacement|
Do you have people who do installation?
No, we dont install.
Suitable for 12' mounting heights? Is interconnecting cable required or butt mount?
Yes, Its suitable for 12ft height

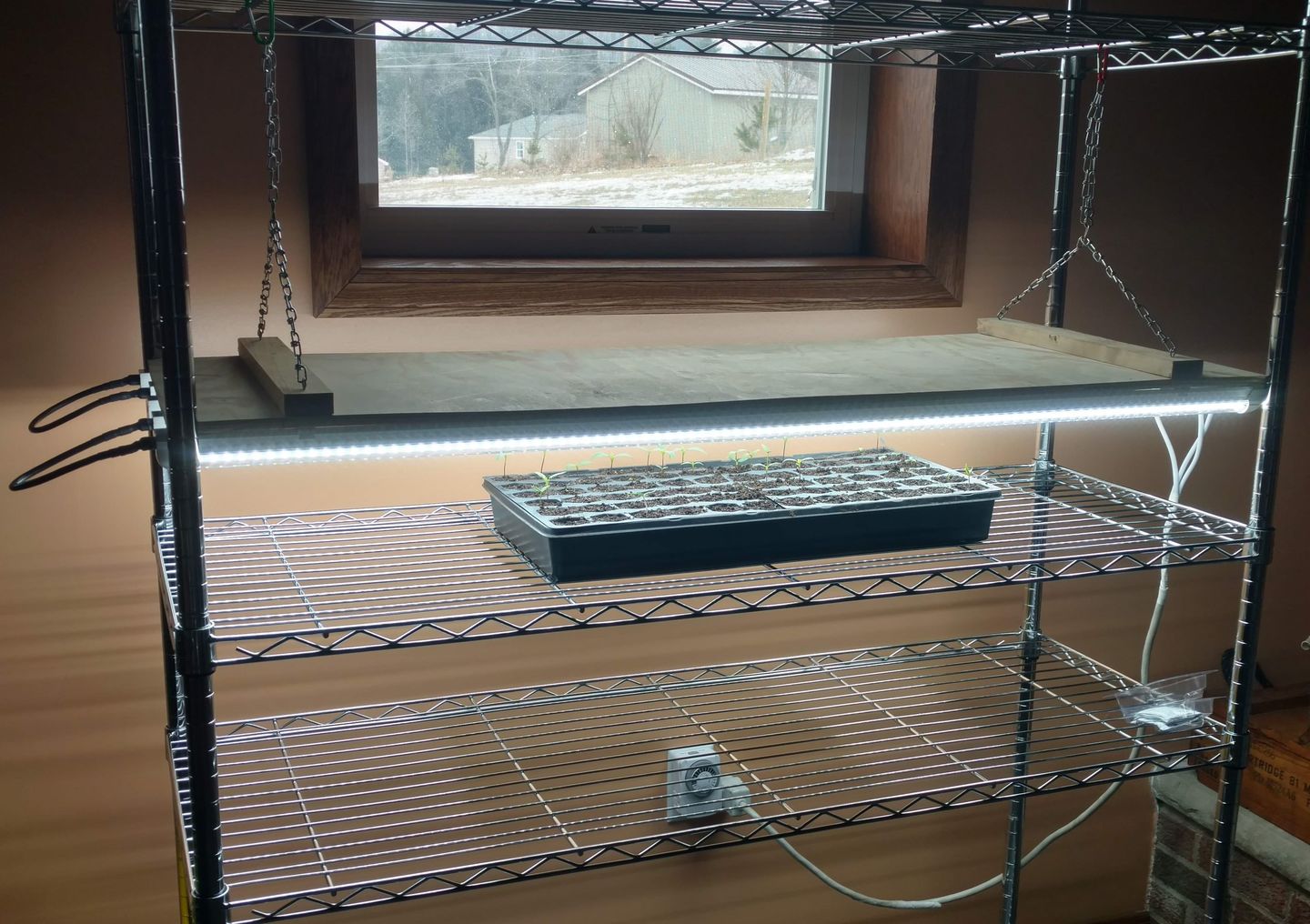

Can you hang these by a chain?
Yes, they can be hung by a chain if you want to hang them like that. However, we do not recommend doing so if you have to alter the light in any way as the warranty will no longer be valid if you do so nor do we provide chains for these lights.
can you connect the T8 4ft 30w and T8 8ft 60w together to equal 12'?
You can connect the 60W integrated with 4ft 22W and 2ft 10W. It's not compatible with 4ft 30W.
The 30W V-shape LED Tube product specification claims a 120 degree beam width, yet the product features illustrations portray a 240 degree width. Inexplicably the lower power 22W V-shape LED Tube product specification and feature illustrations show a 180 degree beam width which is 60 degrees greater than for the higher output 30W Tube. Pictures of both products show similar V-shape internal substrates for the two rows of LED chips with only differences in the quantities and output flux of the chips. Please clarify the definition of the beam width specification and explain the apparent discrepancy in ratings of the two similar V-shape Tube products.
All 2835 type led chip itself has an "optical beamangle" of 120 degree; since the V shape has 2 rows towards different direction, for the whole tube it has "visual beamangle" of 240 degree.
How long are the connecting cables
The connecting cable comes along with the pacakge is 12 inch.
Do you have to use the connecting 12” cord? Do they connect without using the 12” cord?
No, its not mandatory to use the connecting cables to join the tubes. They can be integrated into each order.
Is it dimmable?
NO this fixture isnt dimmable
How many can you hook up in one line
you can hook up upto 6 in a row
How many Volts?
how is it mounted? can it be be used in an existing 4ft shop light without removing the tombstones?. why even bother with the old ballast at all?
These are independent fixtures, they don't need tombstones or Ballast at all.
