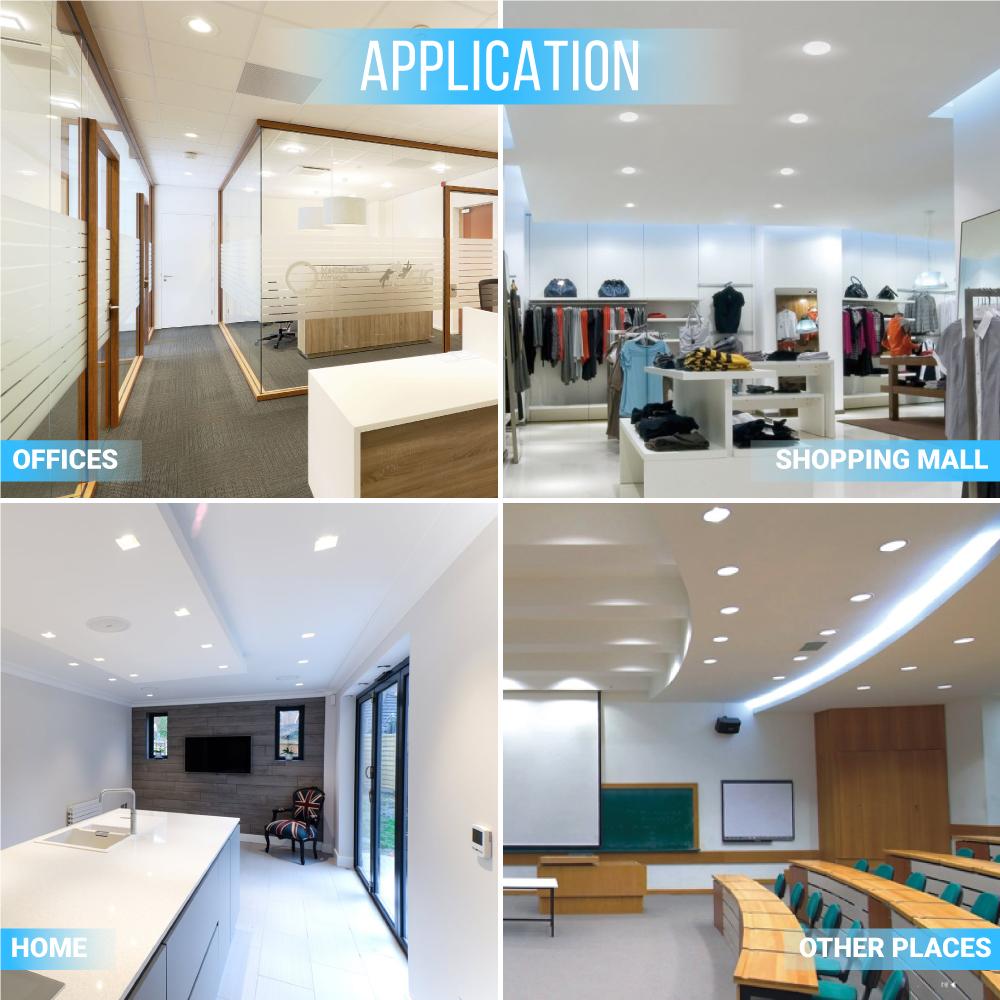

The 4-inch dimmable LED disk downlight in 10W comes in an aluminum smooth trim design that can be fitted in limited plenum space. This downlight can conveniently replace 35W of halogen downlight, helping you to save at least 88% of electricity consumption. This LED disk downlight has a CRI of 90+ and that means the color of objects and surfaces would look as real and natural as they would under natural light. This retrofit downlight comes in 3 color temperatures as 3000K, 4000K & 5000K to provide you with ambient lighting, task lighting, and display lighting options. This downlight can easily fit in 4-inch housing can without much effort and hence an easy installation process. The Beam angle of 120 degrees for this downlight allows you to illuminate large spaces rather than highlighting a specific area in consideration and which also diminishes the need for too many downlights in one single space. With this product, you can be eligible for rebates as it has all the necessary approvals and certifications.
The installation of this dimmable LED downlight takes place in easy steps with first switching off the power supply and then taking out the existing downlight from the fixture. Next, you must twist the adapter in the socket and then insert the connector into the socket. Insert the dimmable LED downlight trip. Make sure, you have a compatible dimmer installed for our dimmable LED downlight to dim appropriately. For details, you must read the instruction booklet. If not able to self-install, you must consult an electrician.
Nowhere you will find any dark spot when using this dimmable LED downlight in its full non-dimming mode. The light distribution is uniform and even with a light spread at a wider beam angle.
The Color Rendering Index is a measurement of the light source to display the color of objects accurately, realistically and naturally. With reference light as daylight or natural light, CRI is measured on a scale of 0-100. LED lighting products usually have a CRI of 70 or above 70 with different indexes useful to different applications. A CRI of >80 for dimmable LED downlights mean they are good for retail or any other commercial application when the objective is to accurately display the merchandise.
We use the SMD LED chips as one of the Premium LED chips on board for best results. For this product, the SMD type is 2835.
The dimmable LED downlight utilizes a wide beam angle of 120-degrees to illuminate large spaces when your objective is to have a non-directional light. The distribution of light is in such a way that no specific objects are highlighted and rather the light distribution is uniform.
The LED panel coming in a slim and sleek design imparts an aesthetic look to the interiors while also being portable at the same time. Check the bullet points, it's not formatted/bullet listed.
The housing for this dimmable LED downlight is made of rugged die-cast aluminum for better durability.
The dimmable LED downlight is an energy-saving option over conventional lights. When you make a switch from an incandescent or halogen light to our dimmable LED downlight, you bring about 88% in energy savings. This is because, by design, the LED downlights are superior and use the latest technology for less power-drawing from the source.
The dimmable LED downlight for dimming purposes uses a low-voltage dimming driver. The driver works best for a commercial application having 0-10V systems, thus providing for smooth dimming. Also, this 0-10V driver is compatible with a 0-10V dimmer.
| Base Type: | Surface mount |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | >90 CRI |
| Dimmable: | Triac dimming |
| Housing: | Aluminum |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | DW024 |
| Replaces: | 35 Watt Replacement |
| Voltage: | 120 Volt |
| Wattage: | 10 Watt |
| Beam Angle: | 120° Beam Angle |
| Certifications: | ETL, Energy Star Listed |
| Dimensions (L x W x H): | Dia 4.96x0.63 |
| Fixture Color: | White |
| LED Type: | 2835 |
| Lumens: | 650 Lumens |
| Power Factor: | >0.9 |
| SKU: | WEN-D234-90-3000.1pk,WEN-D234-90-4000.1pk,WEN-D234-90-5000.1pk |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
Is it possible to install into ITL INTERTEK 5000999 led down light?
I am sorry, we are not sure about the ITL INTERTEK certification. But if you have 4 inch hole you can put these lights on.
Can this be installed into a junction box
All other 3 styles that we offer can be, but these are meant for new construction and without a junction box.
Led M Place -- 4-inch Dimmable LED Disk Downlight, Kitchen Lights, 10W, Recessed Ceiling Light Fixture -- MPN: DW024 The review on this item indicated that a customer installed in celling on top of a j-box however in the G&A section you say "for new construction and without a junction box" . Does the kit have a bracket or something that can be screwed to attach to j-box and then fixture attaches to the bracket. Just how are they attached?
Yes, downlight can be install with or without juction box. It comes with a metal plate to attach the fixture.
